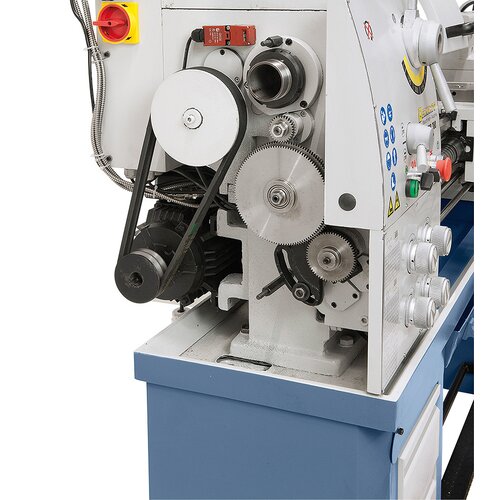

Standard accessories inlcude change gears for thread cutting.

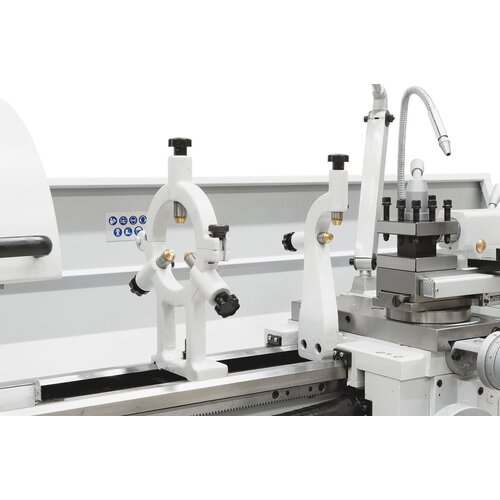

Complete with steady and follow rest to allow for solid support of long workpieces.

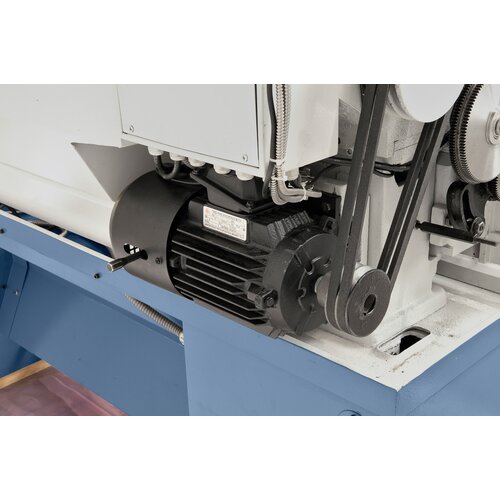

Powerful motor with magnetic brake in accordance with CE-standards.

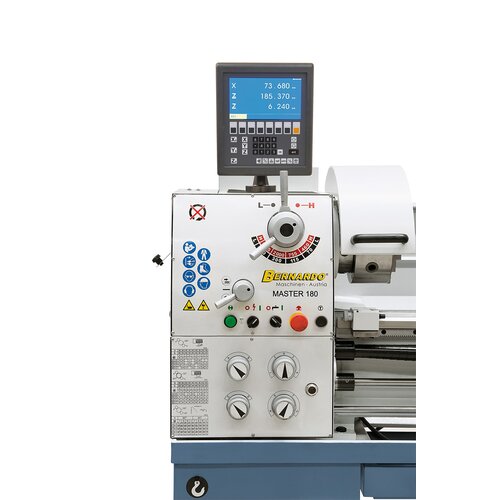

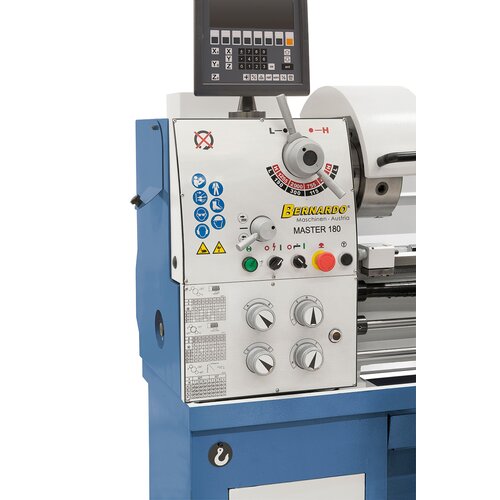

Straightforward feed and speed setting on gear head. Hardened and polished gear wheels saturated in oil ensure smooth operation.

Micrometer longitudinal fence and safety clutch are part of standard equipment.

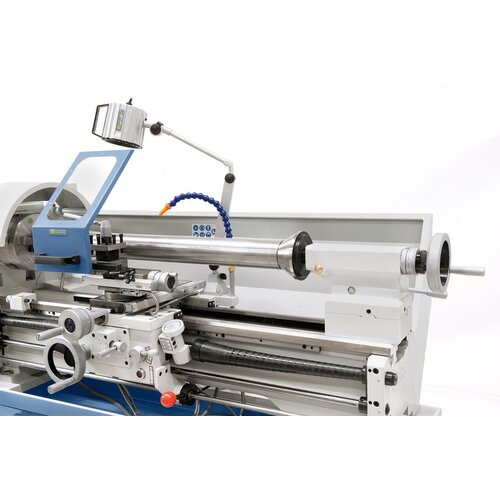

Ball nose live center 125 mm, ideal for clamping of pipes and hollow parts (optional).

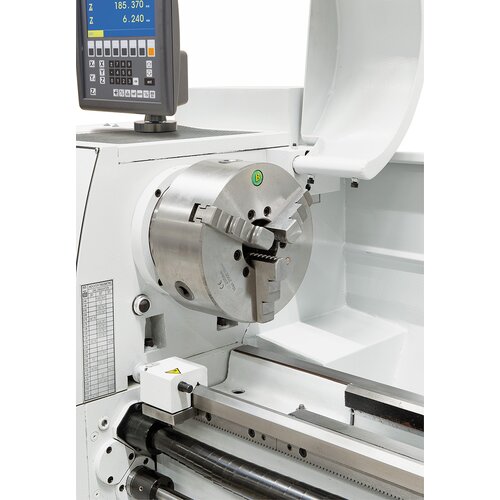

Advantage of Bernardo chuck DK11-200 mm / D5: soft solid jaws, hard master jaws, hard reversible top jaws and soft top jaws are optionally available.

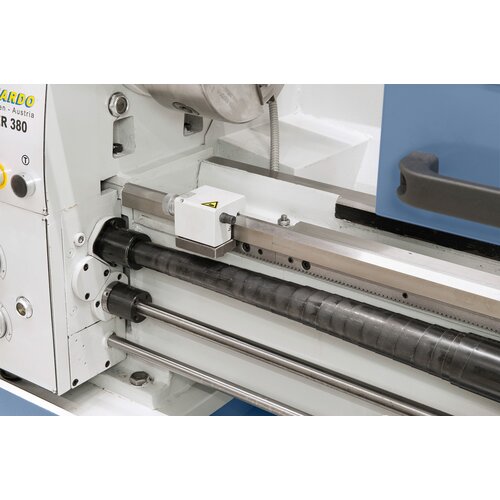

The machine is serially equipped with a Bernardo digital readout

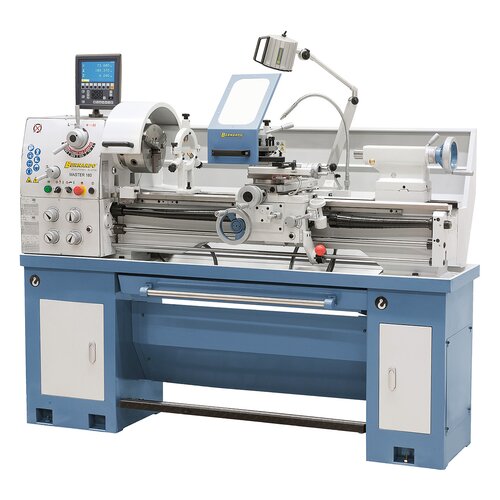

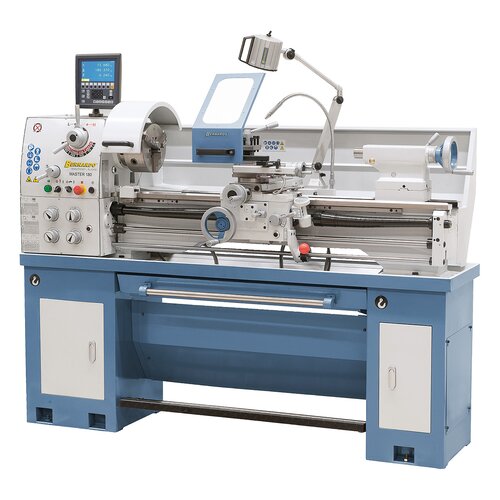

Universal turning lathe Master 180 incl. 3-axis digital readout ES-12 V *

Art.Nr.: 03-1264XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Master 180 precision lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards.

€7,608.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

51 mm spindle bore to machine large shaft diameters comes standard
Perfect machine for technical schools, repair shops and training workshops
Ideal for processing of steel, non-ferrous materials and plastics
Removable bridge allows machining of workpieces with a big diameter

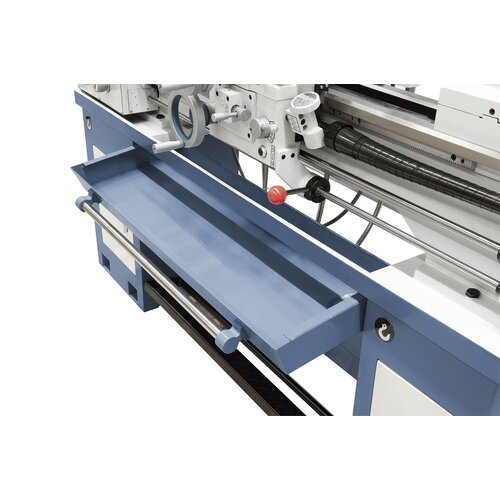

Chip tray extracts to front, keeping space requirements to a minimum
Clear arranged speed and feed control settings, smooth operation and accurate control
Electro-magnetic foot brake reduces downtime
State-of-the-art spindle bedding with high-quality, angular ball bearings
Grey cast-iron machine bed, inductive hardened and polished
One-hand clamping for tailstock, adjustable for taper turning
High spindle concentricity (≤ 0,015 mm)
Hardened and polished spindle runs in oil bath
Tailstock, spindle stock and all guides are adjustable

Product Specifications

Distance between centers	1000 mm
Center height	180 mm
Swing over bed	360 mm
Swing over gap*	480 mm
Swing over cross slide	220 mm
Bed width	185 mm
Spindle bore	51 mm
Spindle nose fixture	DIN 55029, D1-5
Speed range	(8) 70 - 2000 rpm
Longitudinal feed	(32) 0,052 - 1,392 mm/rev.
Cross feed	(32) 0,014 - 0,380 mm/rev.
Metric thread	(26) 0,4 - 7,0 mm
Inch thread	(34) 4 - 56 threads/1“
Diameter of tailstock sleeve	42 mm
Travel of tailstock sleeve	110 mm
Taper of tailstock sleeve	MT 4
Motor power output S₁ 100%	1,5 kW (400 V)
Motor power input S₆ 40%	2,2 kW (400 V)
Machine dimension (W x D x H)	1920 x 750 x 1600 mm
Weight approx.	540 kg

* Removable bed length: 225 mm

Delivery Contents

3-axis digital readout ES-12 V with LCD-display
3-jaw chuck DK11-200 mm / D5
Independent chuck K72-200 mm / D5
Steady rest - Passage up to 70 mm
Follow rest - Passage up to max. 50 mm
Coolant device
Initial filling with Shell Tellus 46
Extractable chip tray
Face plate 320 mm
4-way tool post holder
Protective cover at 4-way tool post holder
Safety clutch
Micrometer longitudinal fence
Thread dial
LED machine light
Morse taper drill sleeve
Change gears
2 dead centers
Foot pedal with brake function according to CE
Motor with magnetic brake according to CE
Stand
Tools
