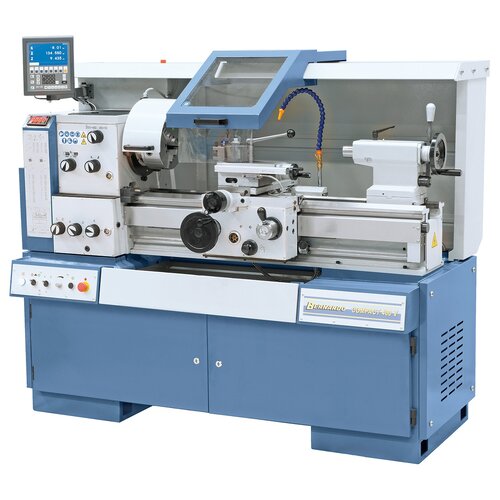

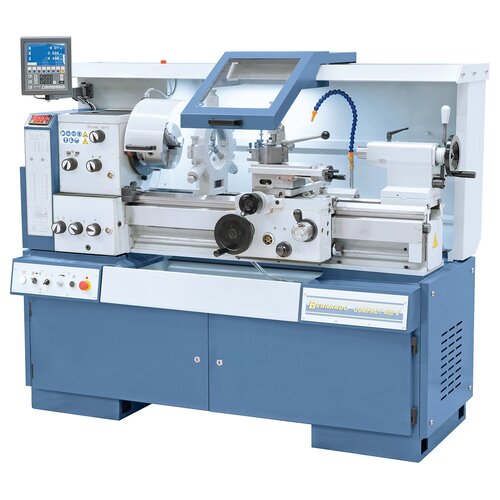

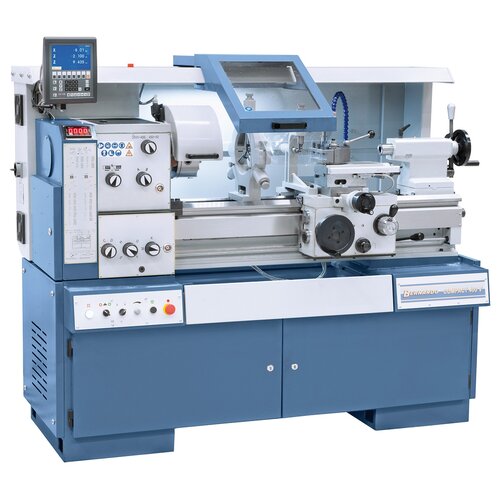

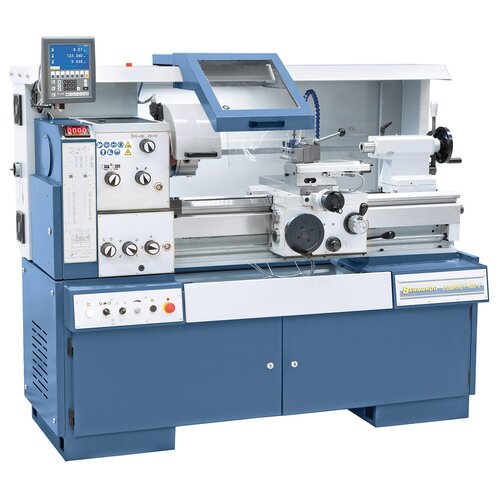

Universal turning lathe Compact 400 V incl. 3-axis digital readout ES-12 V
Art.Nr.: 03-1291XLThe Compact 400 V is universal lathe designed for easy and economical production of single parts or small series. The outstanding user-friendliness makes this model particularly attractive for machinery and plant engineering, manufacturing and production of single parts. Additionally this model is equipped with a variable speed adjustment for ideal setting of the cutting speed.
€19,308.00
incl. 20% VATAvailability
Product Properties
- Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
- Stepless speed adjustment, set speed can be read on digital display
- Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Modern bearing of main spindle with angular ball bearing in precision construction
- The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning
- Chip tray extracts to front, keeping space requirements to a minimum
- 52 mm spindle bore to machine large shaft diameters comes standard
Product Specifications
|
Distance between centers |
850 mm |
|
Center height |
200 mm |
|
Swing over bed |
400 mm |
|
Swing over cross slide |
245 mm |
|
Bed width |
260 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1-5 |
|
Speed range, stepless |
50 - 450 / 450 - 2500 rpm |
|
Longitudinal feed |
(20) 0,025 - 2 mm/rev. |
|
Cross feed |
(20) 0,012 - 1 mm/rev. |
|
Metric thread |
(26) 0,2 - 14 mm |
|
Inch thread |
(42) 1 - 80 threads/1“ |
|
Diameter of tailstock sleeve |
50 mm |
|
Travel of tailstock sleeve |
120 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power |
5,5 kW (7,5 HP) |
|
Machine dimension (W x D x H) |
1900 x 1000 x 1610 mm |
|
Weight approx. |
1240 kg |
Delivery Contents

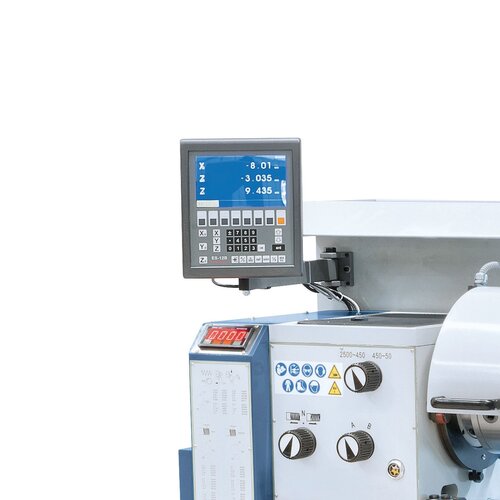

- 3-axis digital readout ES-12 V with LCD display

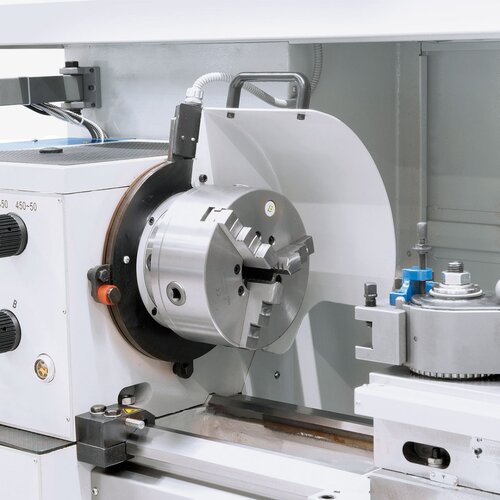

- 3-jaw chuck PO3-200 mm / D5
- Face plate 320 mm

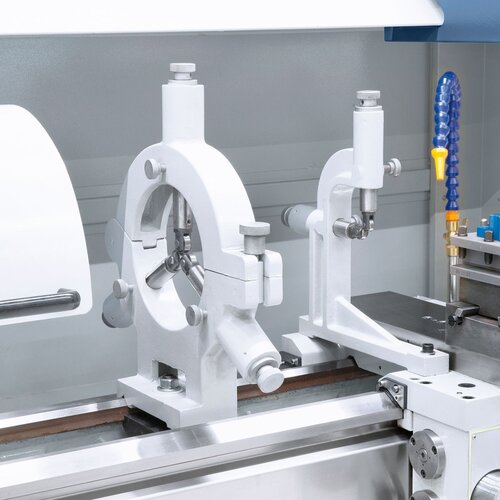

- Steady rest - Passage up to max. 130 mm
- Follow rest - Passage up to max. 100 mm
- Coolant device

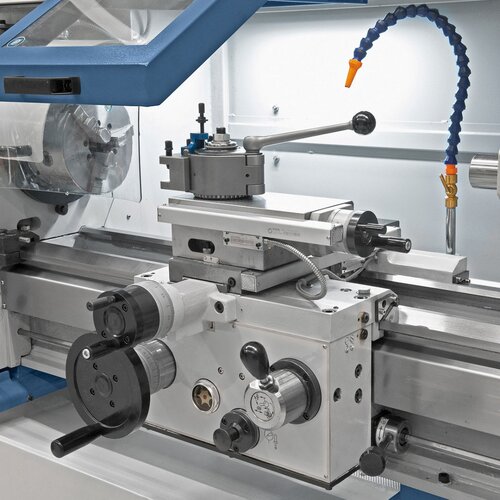

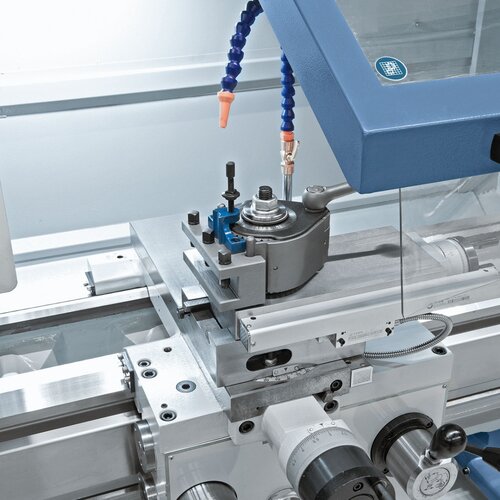

- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool holder
- Micrometer longitudinal fence
- Safety clutch
- Motor with magnetic brake according to CE
- Inital filling with Shell Tellus 46
- Frequency inverter

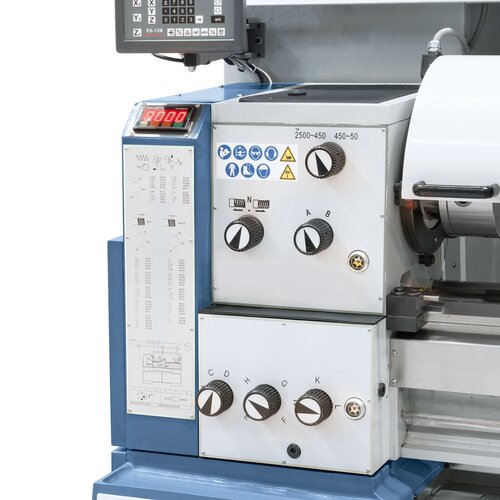

- Digital readout of speeds
- Extractable chip tray
- LED machine light

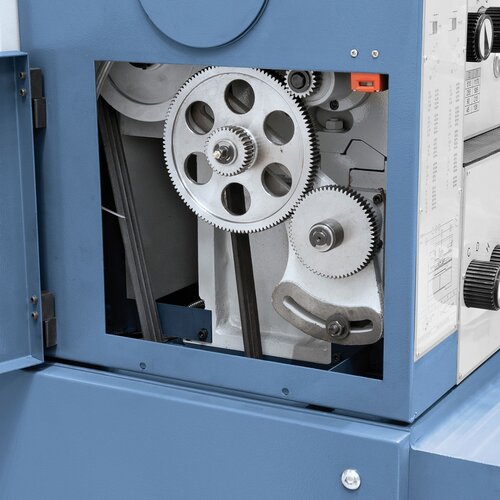

- Change gears
- Morse taper drill sleeve
- 2 dead centers
- Splash guard
- Tools
