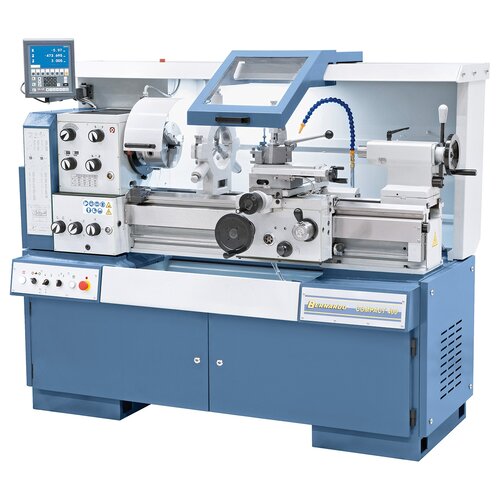

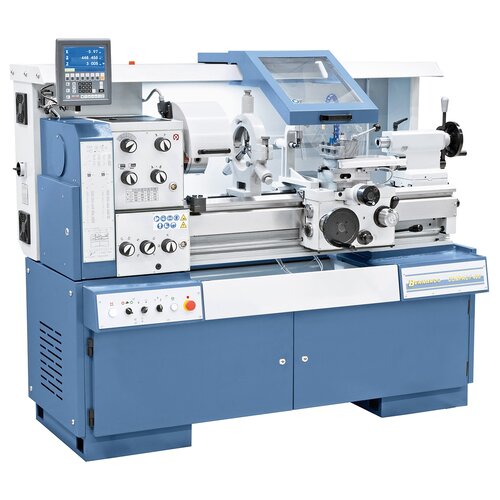

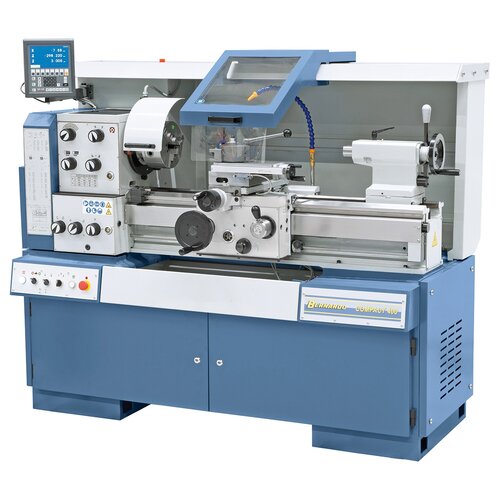

Universal lathe Compact 400 incl. 3-axis digital readout ES-12 V
Art.Nr.: 03-1290XLThe Compact 400 precision lathe is a state of the art machine. Making this model truly versatile is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards. The high user-friendliness makes this model popular for training purposes and schools.
€17,076.00
incl. 20% VATAvailability
Product Properties
- Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
- Various possible applications in general machine construction, production, single part manufacturing etc.

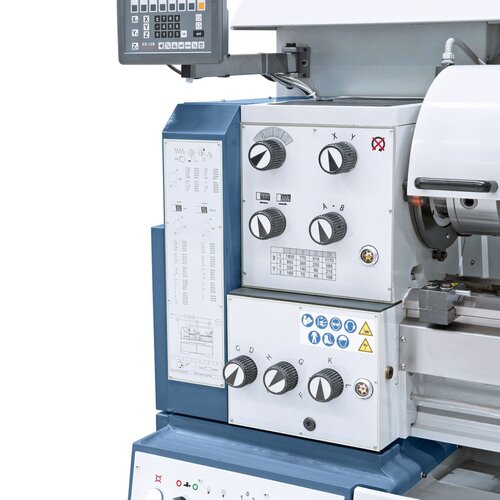

- Easy, smooth and precisely adjustable speed and feed settings
- Modern bearing of main spindle with angular ball bearing in precision construction
- Hardened and ground gears and shafts, even in feed gear unit
- Central and easy coupling of feeds and threads with leadscrew and feed rod
- The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning

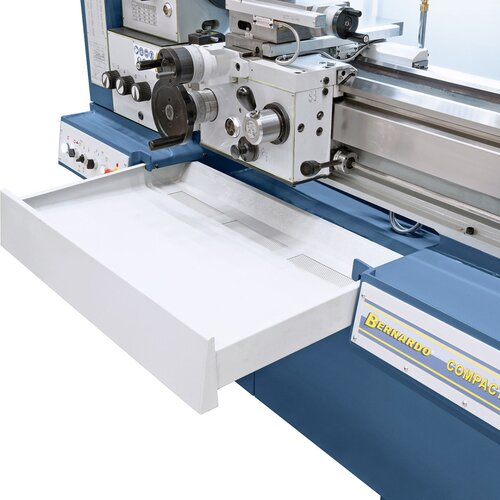

- Chip tray extracts to front, keeping space requirements to a minimum
- 52 mm spindle bore to machine large shaft diameters comes standard
Product Specifications
|
Distance between centers |
850 mm |
|
Center height |
200 mm |
|
Swing over bed |
400 mm |
|
Swing over cross slide |
245 mm |
|
Bed width |
260 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1-5 |
|
Speed range |
(16) 45 - 1800 rpm |
|
Longitudinal feed |
(20) 0,025 - 2 mm/rev. |
|
Cross feed |
(20) 0,012 - 1 mm/rev. |
|
Metric thread |
(26) 0,2 - 14 mm |
|
Inch thread |
(42) 1 - 80 threads/1“ |
|
Diameter of tailstock sleeve |
50 mm |
|
Travel of tailstock sleeve |
120 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power |
3,0 / 4,5 kW |
|
Machine dimension (W x D x H) |
1900 x 1000 x 1610 mm |
|
Weight approx. |
1255 kg |
Delivery Contents

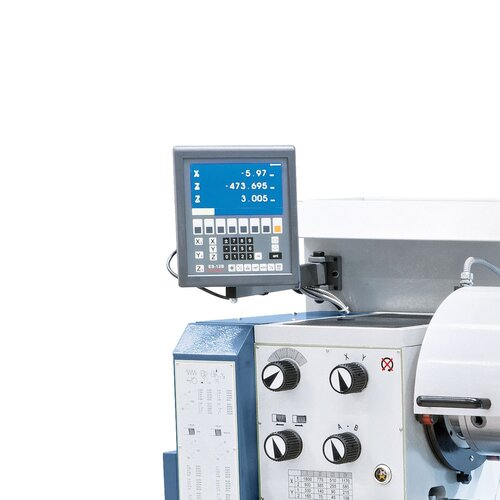

- 3-axis digital readout ES-12 V with LCD display

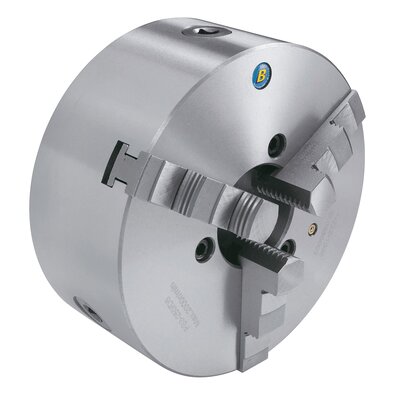

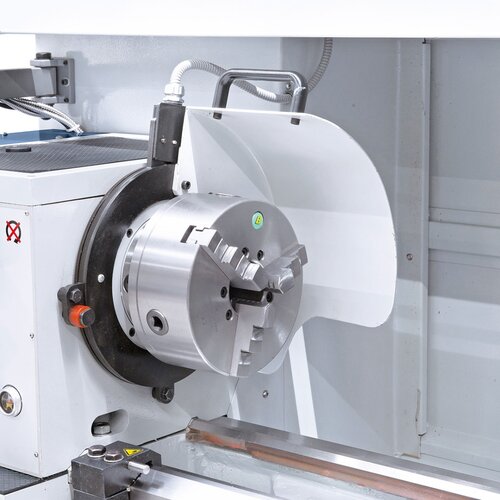

- 3-jaw chuck PS3-200 mm / D5
- Face plate 320 mm

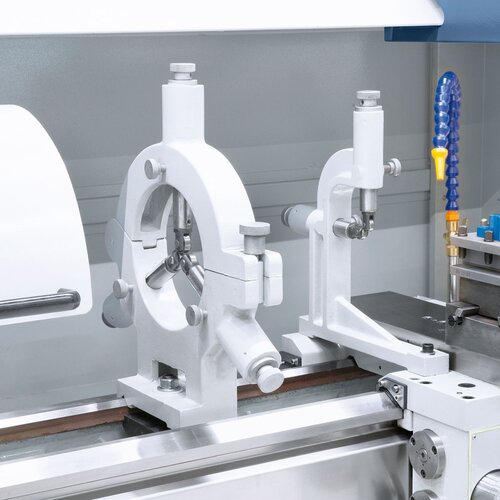

- Steady rest - Passage up to max. 130 mm
- Follow rest - Passage up to max. 100 mm
- Coolant device

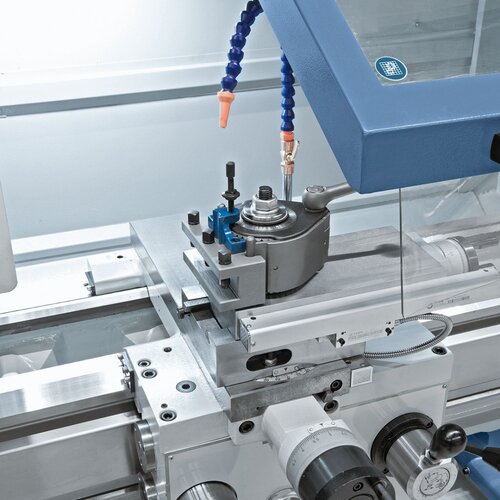

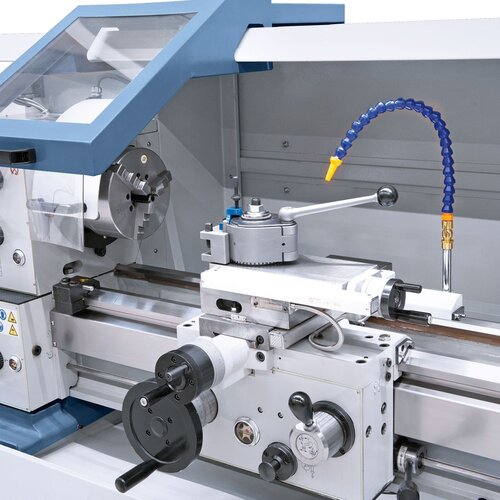

- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool holder

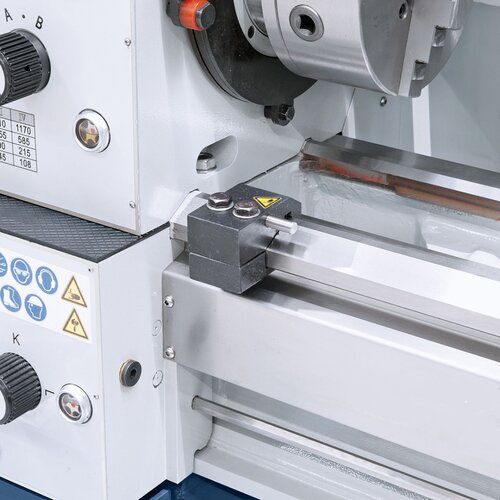

- Micrometer longitudinal fence
- Safety clutch
- Motor with magnetic brake according to CE
- Inital filling with Shell Tellus 46
- Extractable chip tray
- LED machine light

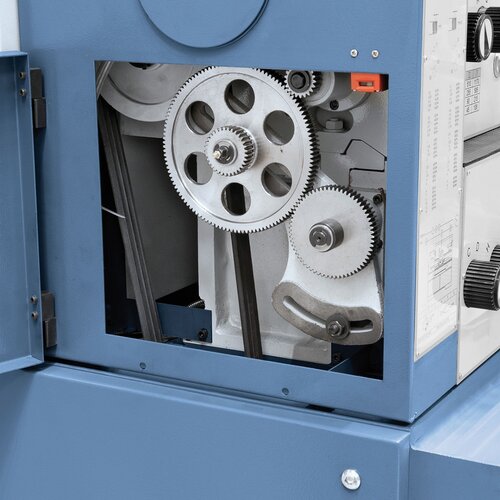

- Change gears
- Morse taper drill sleeve
- 2 dead centers
- Splash guard
- Tools
