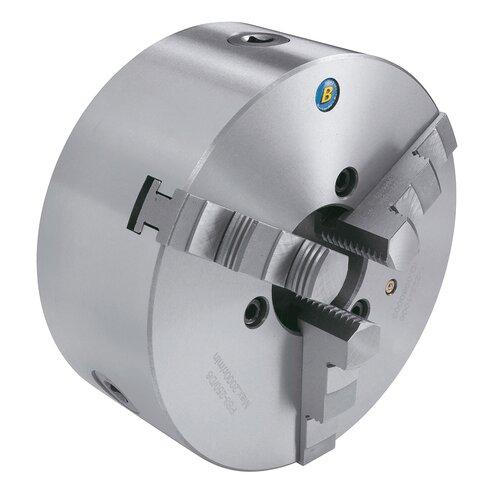

Bernardo Standard 3-jaw chuck PS3-D according DIN 55029 PS3-250/D5, cast iron
Art.Nr.: 21-1055F1€757.20
incl. 20% VATAvailability
Out of Stock
Product Properties
Execution:
- Standard-3-jaw chuck with high-quality cast iron body
- With Camlock direct mounting according to DIN 55029
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3
Product Specifications
|

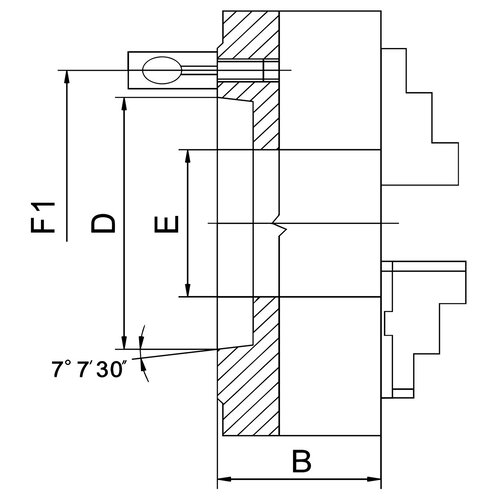

Chuck size |
250/D5 |
|
Diameter |
250 mm |
|
Taper |
5 |
|
B |
103,5 mm |
|
D (max.) |
82,578 mm |
|
E |
76 mm |
|
F1 |
104,8 mm |
|
Camlock stud |
6 |
|
Max. speed |
2000 rpm |
|
Weight approx. |
32 kg |
