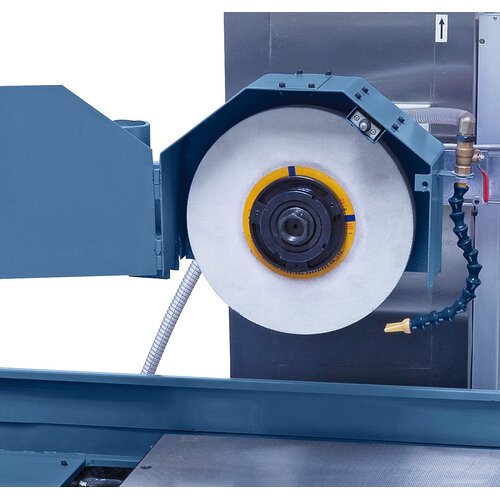

The solid guiding of the grinding head ensures precise infeed.

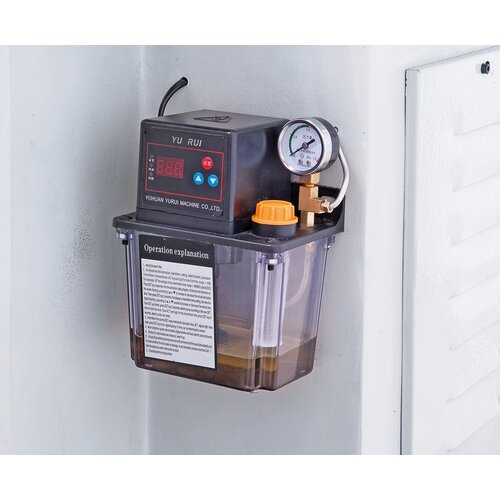

Automatic central lubrication for all guide rails and spindles.

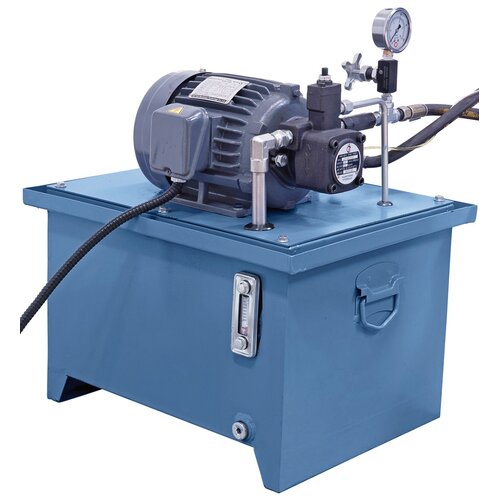

Separate hydraulic unit to eliminates vibrations and thermal strain

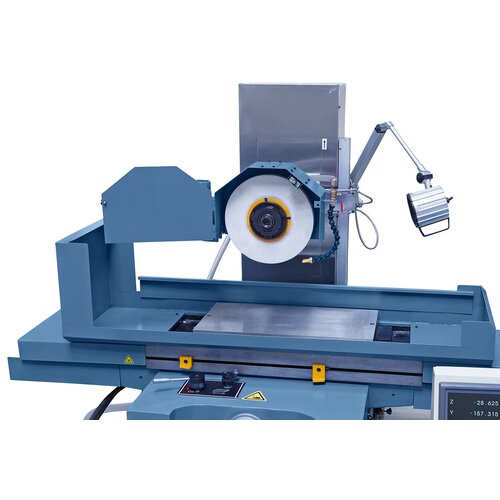

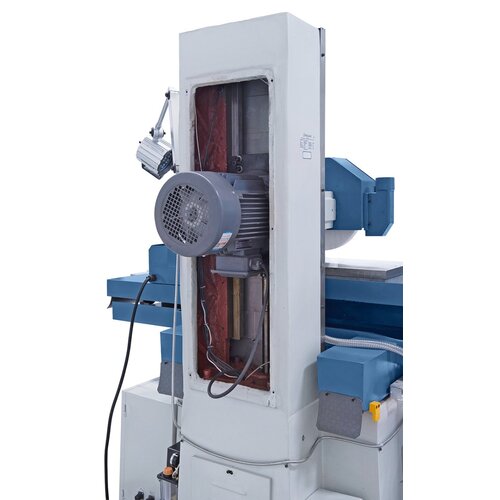

The pre-tensioned special bearings of the spindle assure a vibration-free run and highest accuracy.

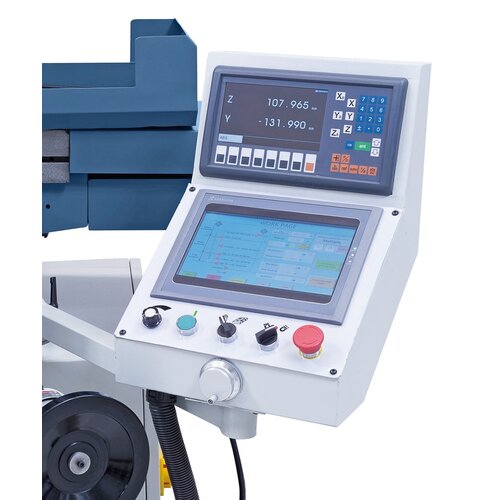

Control with touch operation and electronic handwheel.

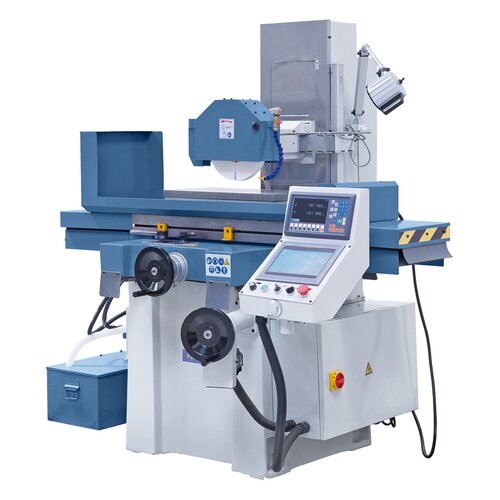

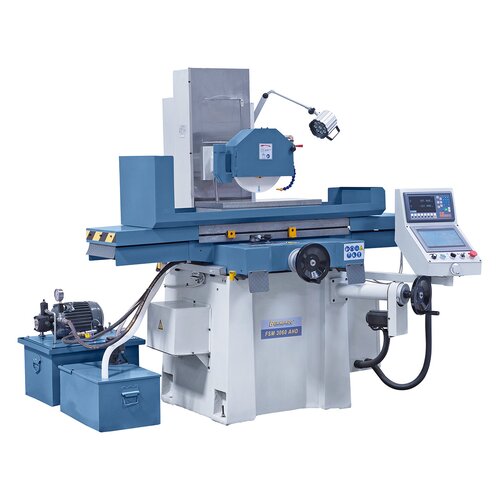

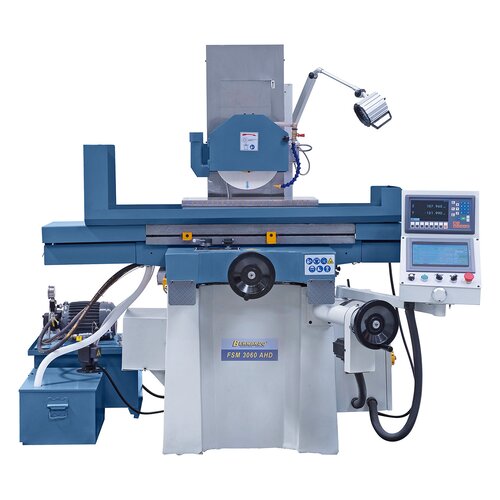

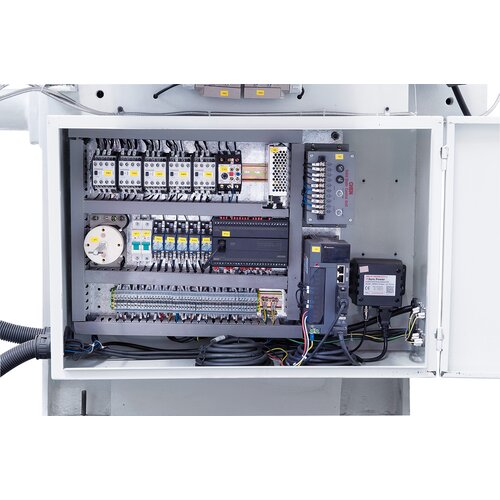

Surface grinding machine FSM 3060 AHD **

Art.Nr.: 05-1408

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FSM-AHD-series are solidly-built surface grinding machines featuring automatic vertical feed. The extensive range of standard equipment ensures optimal performance eg. computer automated vertical feed, magnetic clamping plate with demagnetization device, control via touchscreen and a electronic handwheel.

€22,320.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
V-flat longitudinal table guide, double-V cross table guide
Spindle features axial and radial, clearance-free, pre-tensioned bearings
Solidly constructed and well supported structure assures high stability
Digitally controlled, automatic vertical feed with servo motor
State of the art hydraulic system guarantees soft table traverse even at high work load
Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end
Adjustable longitudinal and cross table movement via end stops

Product Specifications

Table dimensions	300 x 700 mm
T-slot quantity / width	1 / 14 mm
Electric magnet clamping plate	300 x 600 mm
Max. travel, longitudinal	640 mm
Max. travel, cross	320 mm
Max. distance spindle / table	520 mm
Max. workpiece weight*	200 kg
Grinding wheel	300 x 30 x 75 mm
Table speed, hydraulic	2 - 18 m/min
Cross adjustment
Automatic adjustment, cross	0,5 – 10 mm/Stroke
Rapid feed, cross	990 mm/min
Adjustment per handwheel rotation	4 mm/rev.
Scale division on handwheel	0,02 mm
Vertical adjustment
Automatic adjustment, vertical	0,01 / 0,1 mm
Rapid feed, vertical	360 mm/min
Adjustment per handhwheel rotation	2 mm/rev.
Scale division on handwheel	0,01 mm
Motor power of sanding spindle	4,0 kW
Spindle speed	1440 rpm
Motor power of hydraulic pump	1,5 kW
Motor power of vertical feed	0,75 kW
Length	2000 mm
Depth	1650 mm
Height	1850 mm
Weight approx.	1400 kg

* with magnet clamping plate

Delivery Contents

2-axis digital readout ES-12 H with LCD-display
Control with touch operation
Electronic handwheel
Grinding wheel
Flange
LED machine light
Electric magnet clamping plate
Balancing stand
Balancing arbor
Protective covers
Demagnetization device

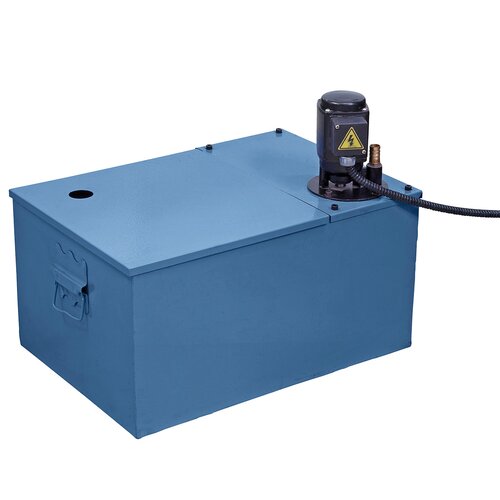

Coolant device
Dressing diamond
Machine feet
Central lubrication
Tools

Suitable accessories

Precision universal vise - 70 mm

Art.Nr. : 28-6035

€672.00
