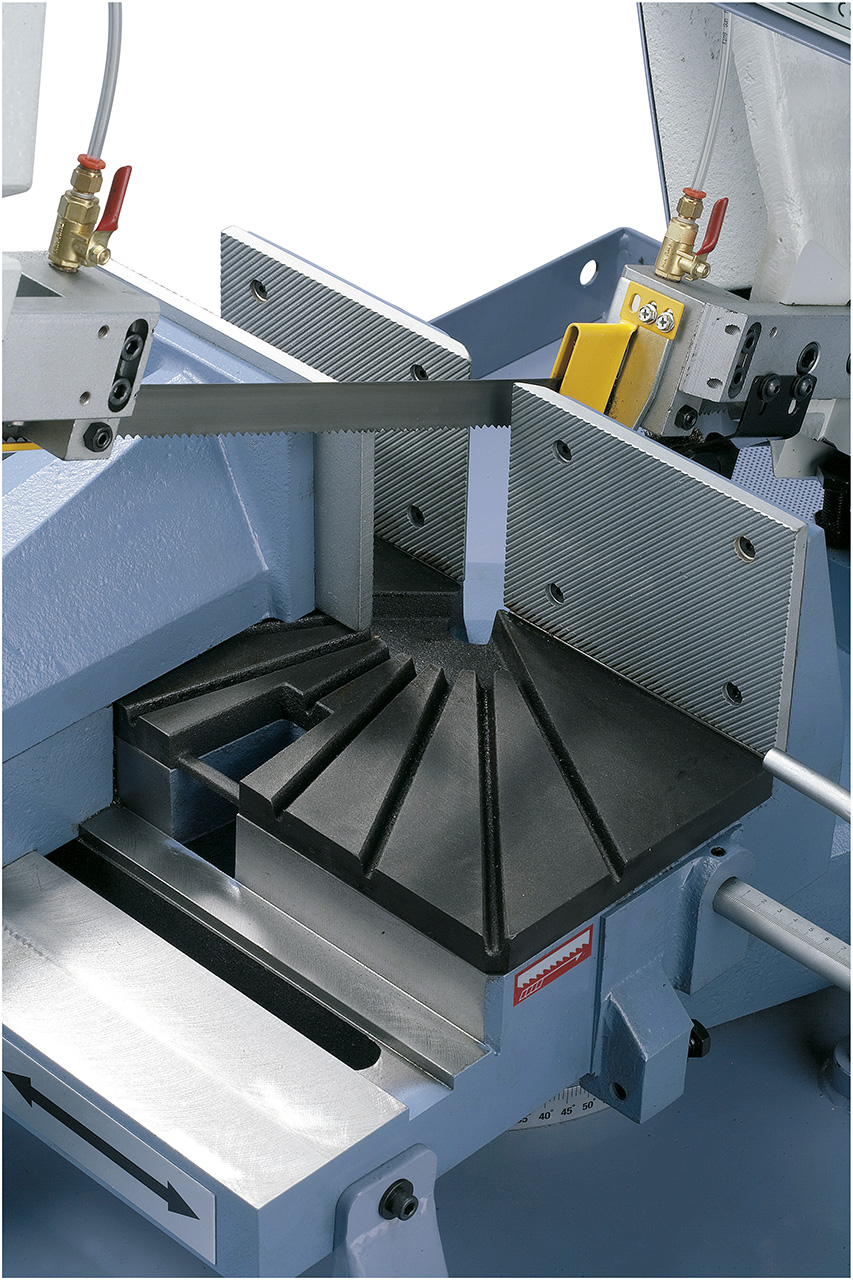

Quick adjustment of the required opening

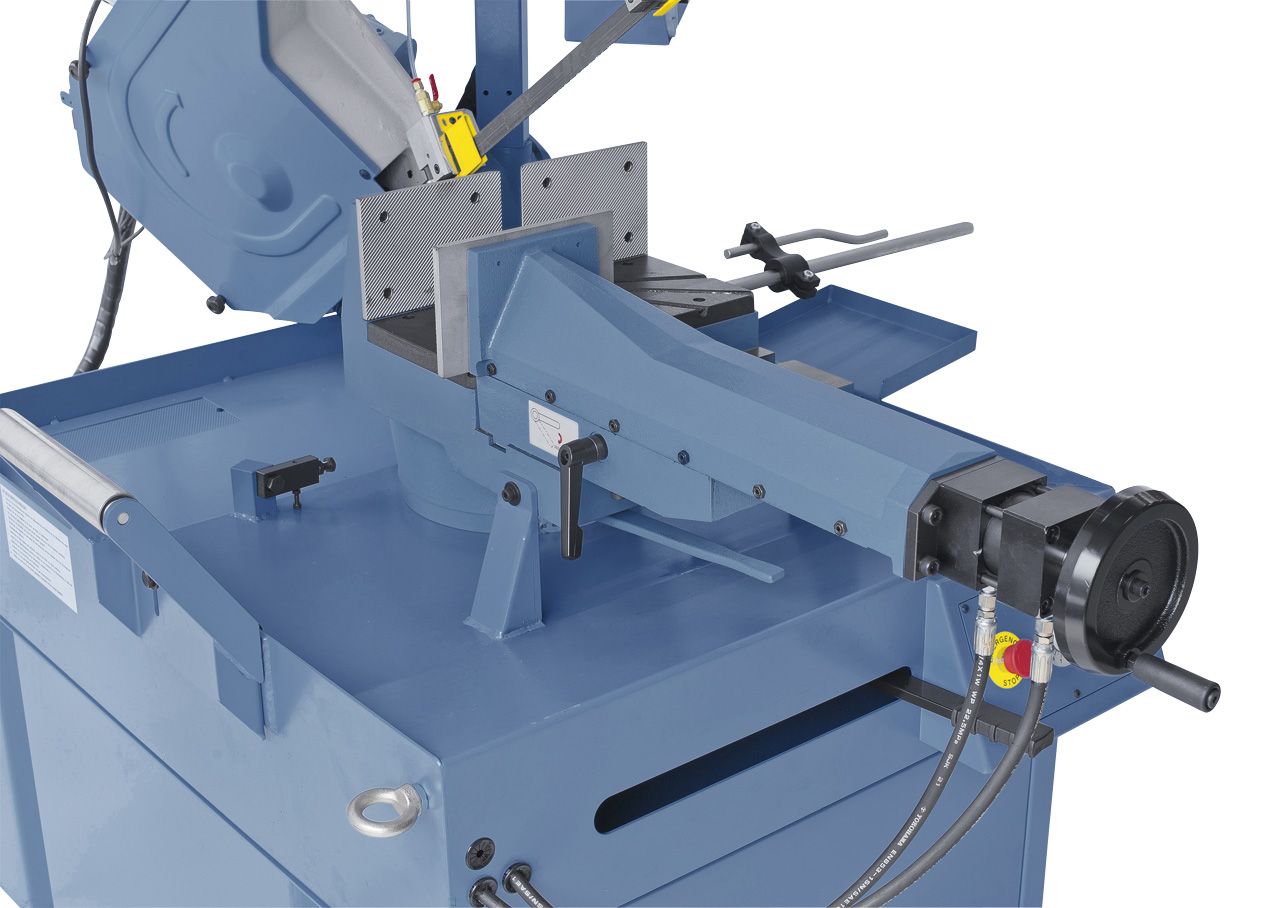

Quick clamping vice can be moved sidewise for double mitre cutting.

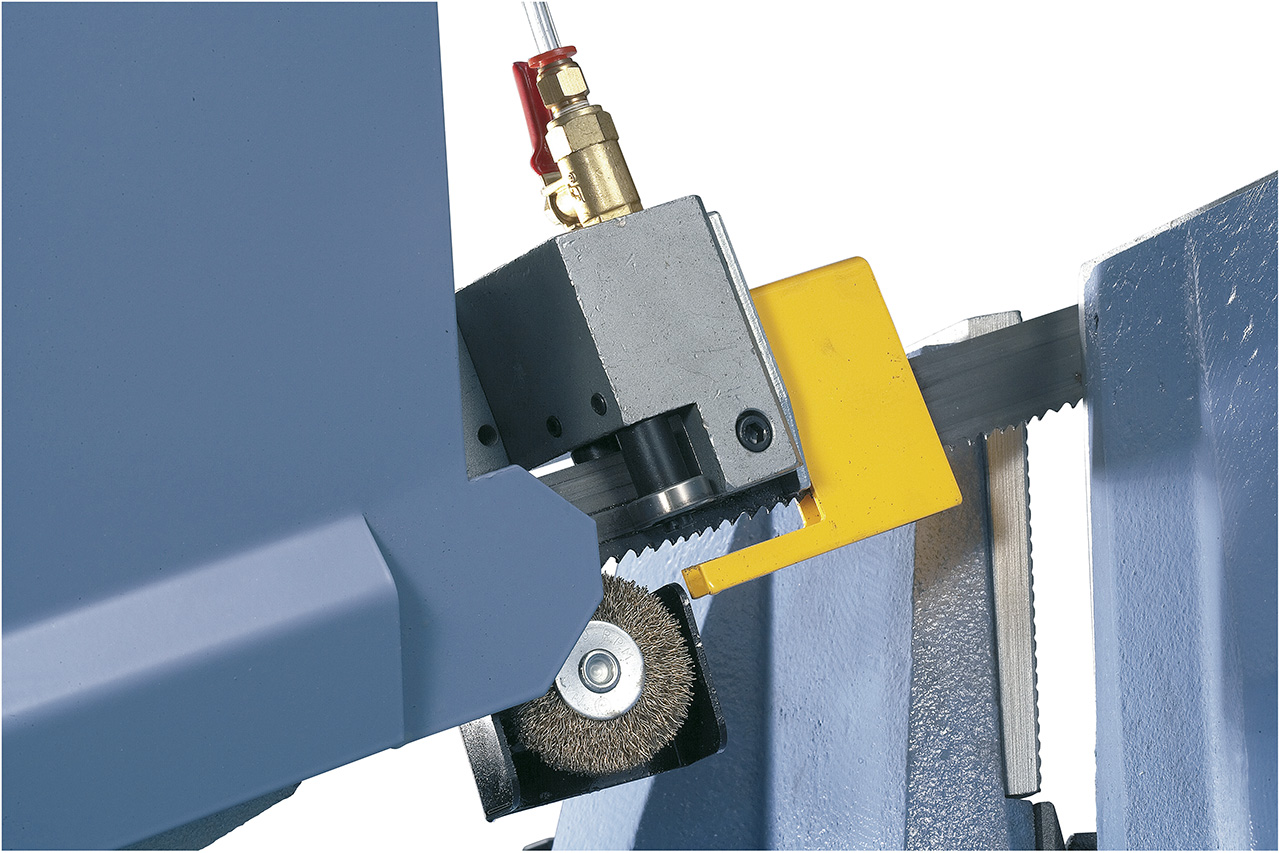

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts.

Convenient support pressure adjustment via regulating valve.

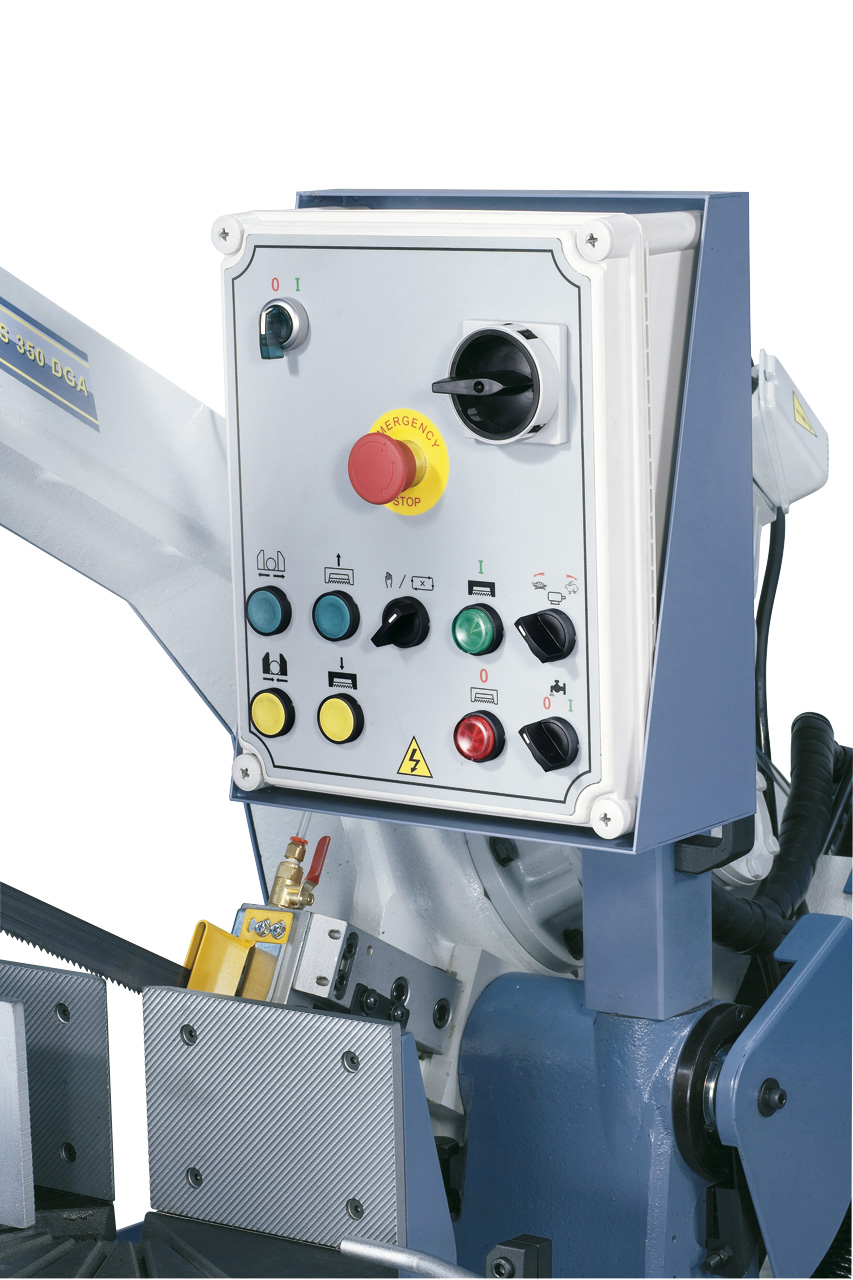

Clear arrangement of the control elements on the tiltable panel.

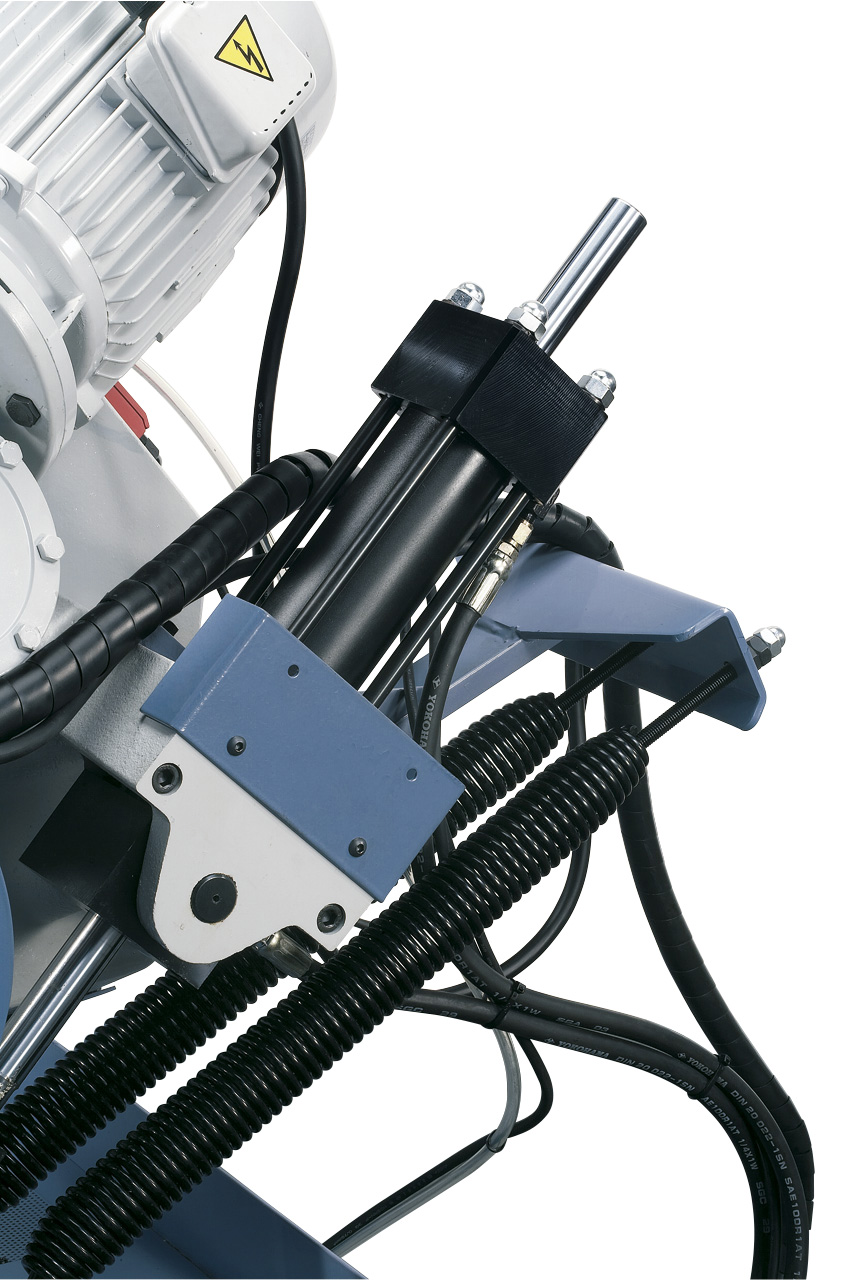

Strong hydraulic cylinder, designed for permanent operation.

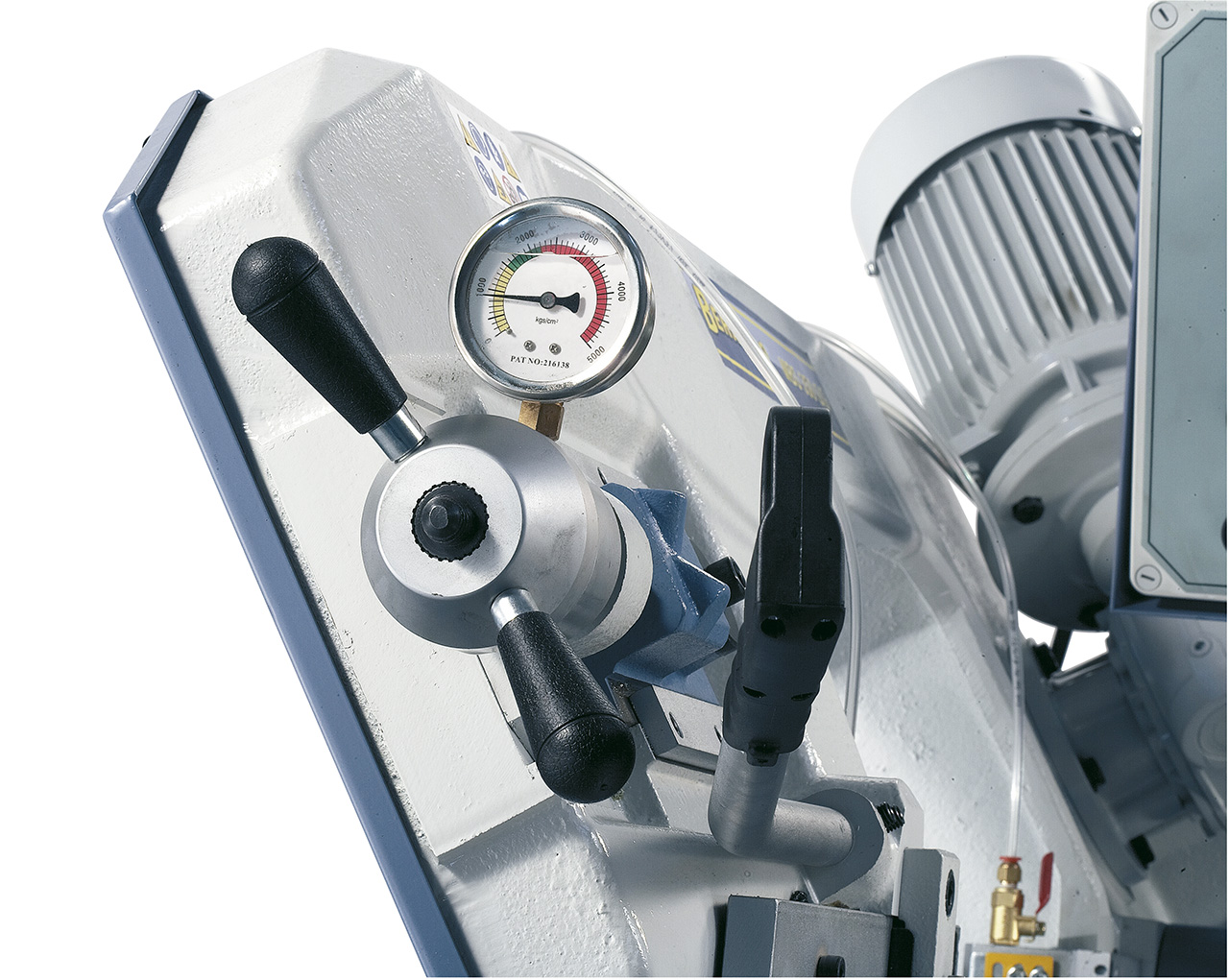

The manometer allows precise blade tension.

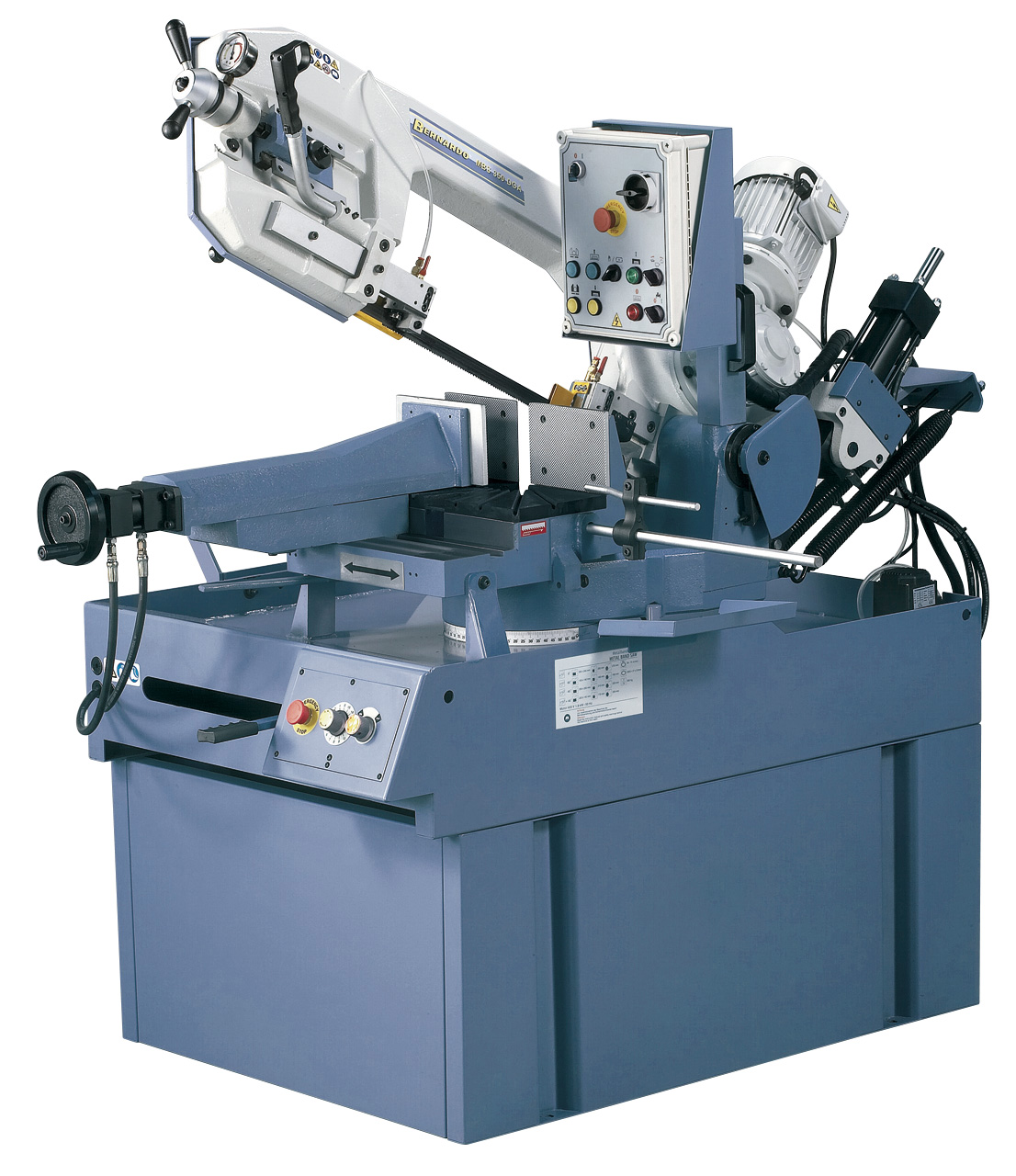

Semi-automatic double mitre bandsaw MBS 350 DGA-V / 400 V

Art.Nr.: 04-1704

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 350 DGA-V double mitre bandsaw features a solid construction allowing precise cutting of hollow profiles, full rivet material, stainless steel etc. The semi-automatic function increases the productivity, making this model ideal for locksmith shops, engine construction, tool shops etc. Furthermore this model comes complete with variable cutting speed for ideal adjustment to each workpiece.

€9,504.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

The semi-automatic function greatly increases productivity
Optional manual or semi-automatic operation
Relocatable vice, manual or hydraulic clamping
Saw frame tilts (-45° up to +60°), angle can be read on scale
Professional band saw with unbeatable price-to-performance ratio
Smooth and vibration-free run guarantees high cutting accuracy
Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
Adjustable hydraulic cylinder for support pressure regulation of the saw frame

Semi-automatic operating mode:

Hydraulic clamping of the vice
Hydraulic lowering of the saw frame
Lifting of the saw frame

Product Specifications

Cutting capacity round / square 90°	270 mm / 260 x 260 mm
Cutting capacity flat 90°	350 x 240 mm
Cutting capacity round / square 45° R	230 mm / 210 x 210 mm
Cutting capacity flat 45° R	230 x 150 mm
Cutting capacity round / square 45° L	200 mm / 170 x 170 mm
Cutting capacity flat 45° L	200 x 140 mm
Cutting capacity round / square 60° R	140 mm / 140 x 140 mm
Working height	950 mm
Bandsaw blade dimension	2925 x 27 x 0,9 mm
Cutting speeds, stepless	20 - 70 m/min
Coolant pump	100 W
Motor power output S₁ 100%	2,2 kW
Motor power input S₆ 40%	3,0 kW
Voltage	400 V
Machine dimensions (L x D x H)	2010 x 1230 x 1820 mm
Weight approx.	600 kg
