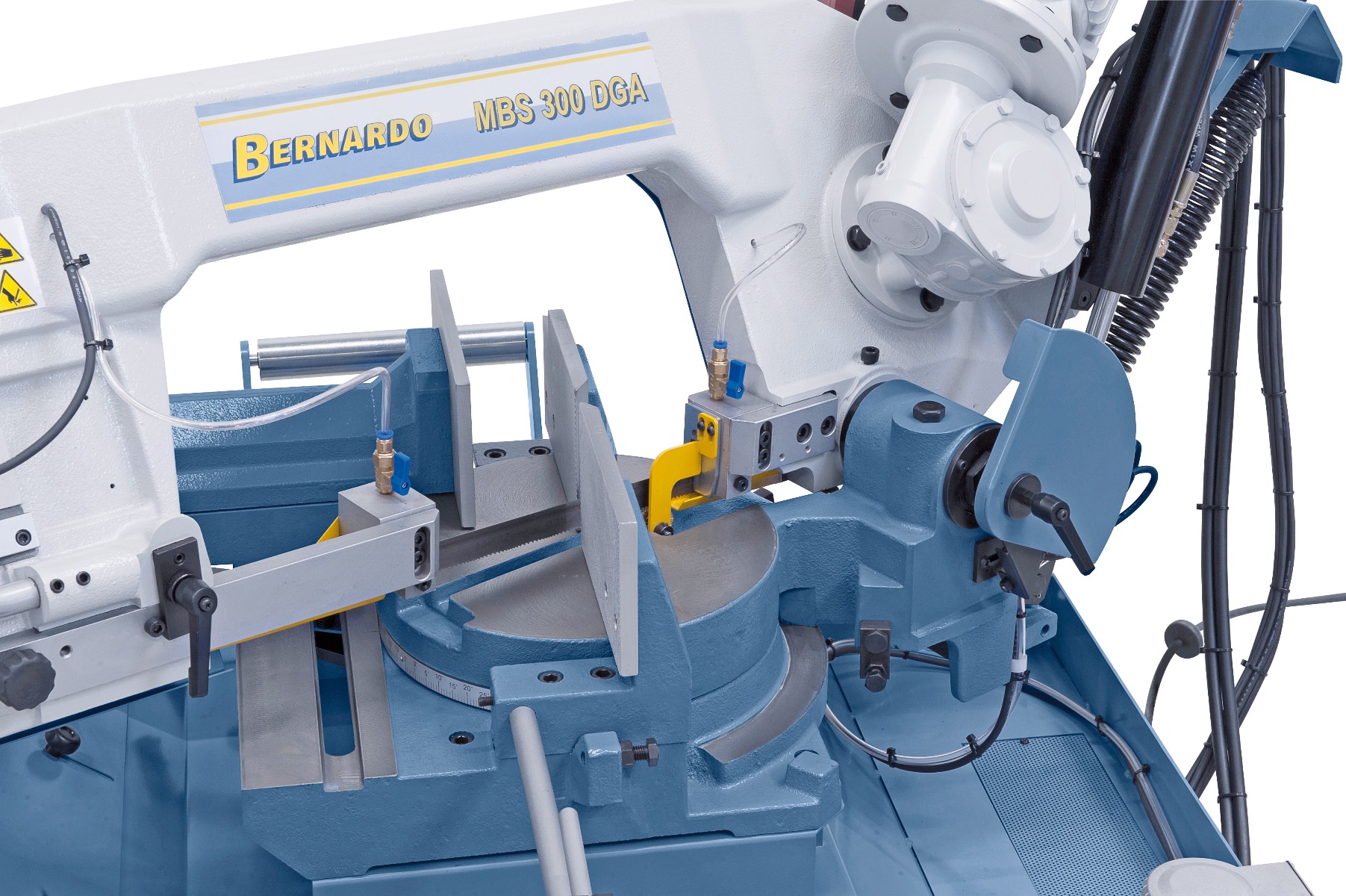

The cutting groove on the turning plate moves simultaneously to the saw arm.

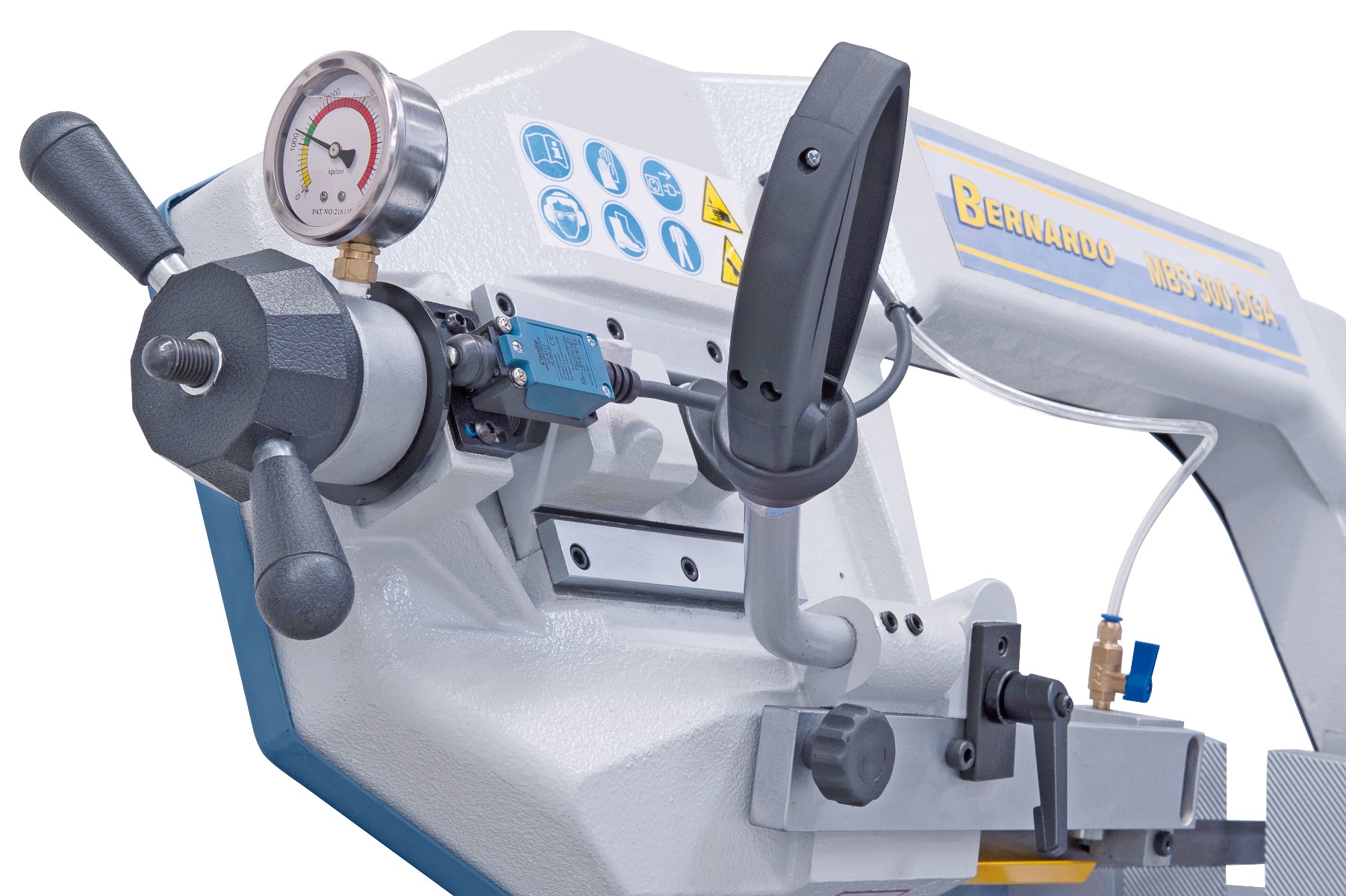

The manometer allows precise blade tension.

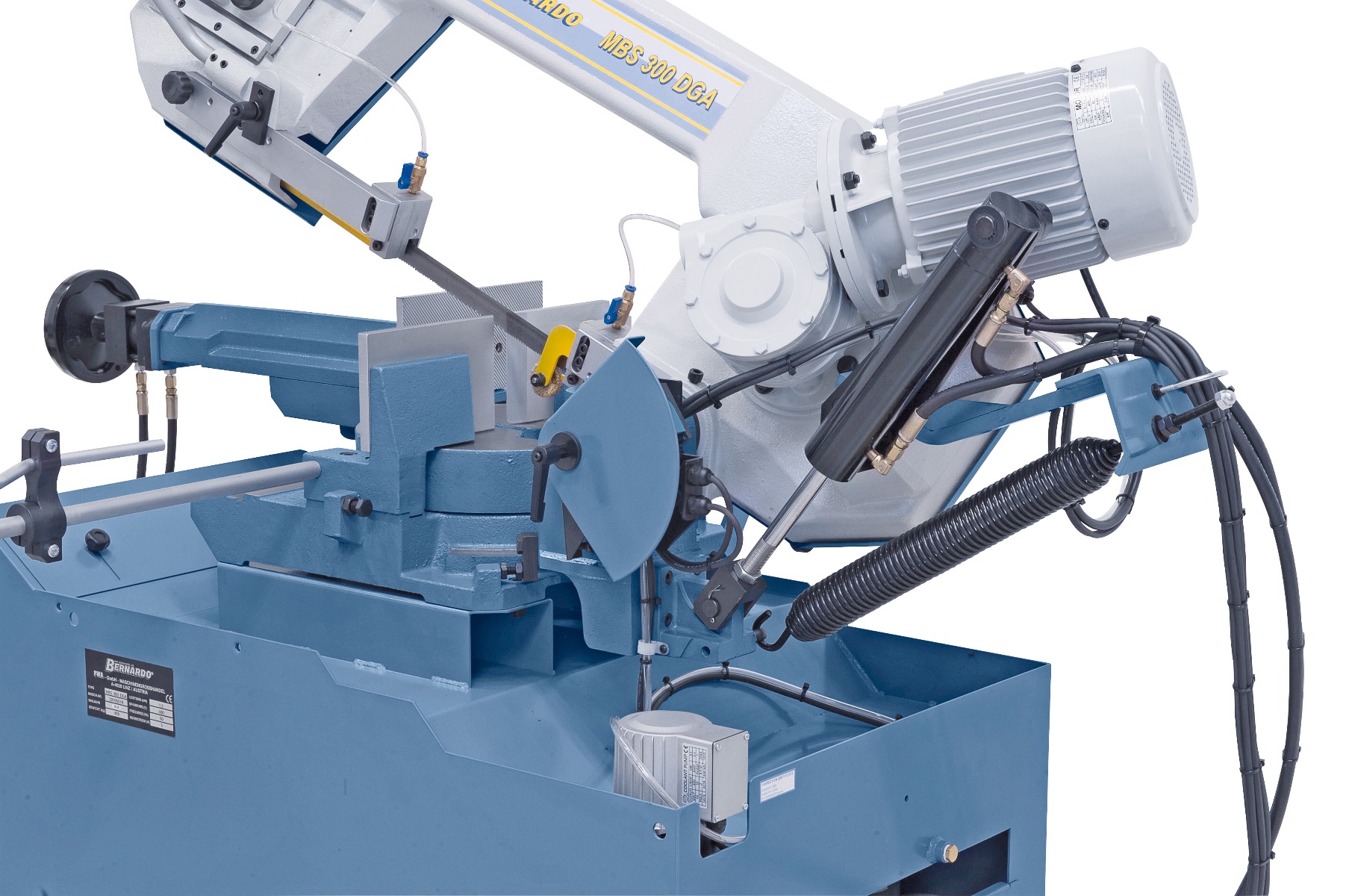

Serially with hydraulic lowering cylinder for stepless lowering of saw arm and automatic shut down at cutting end.

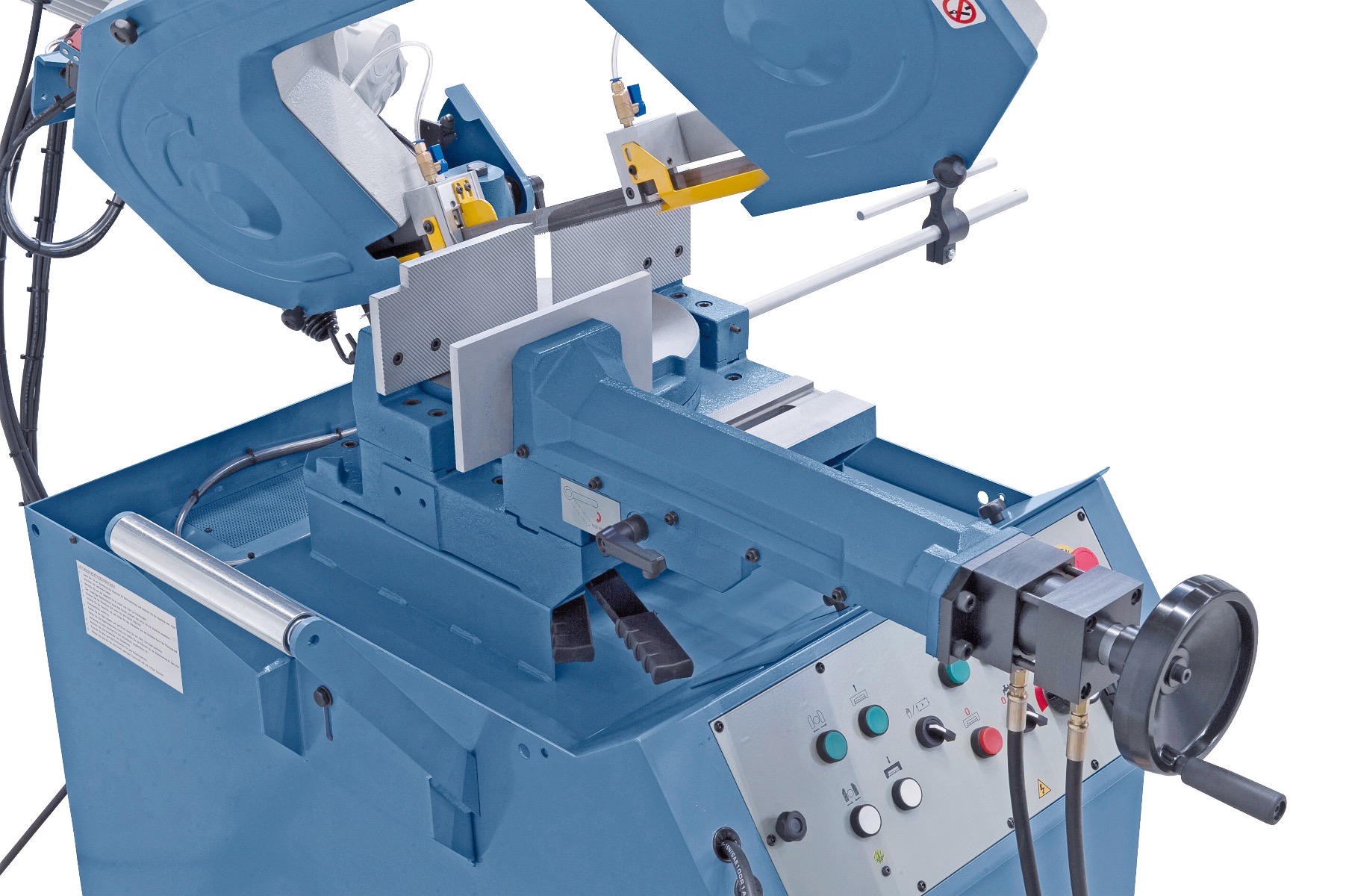

Relocatable vice, manual or hydraulic clamping.

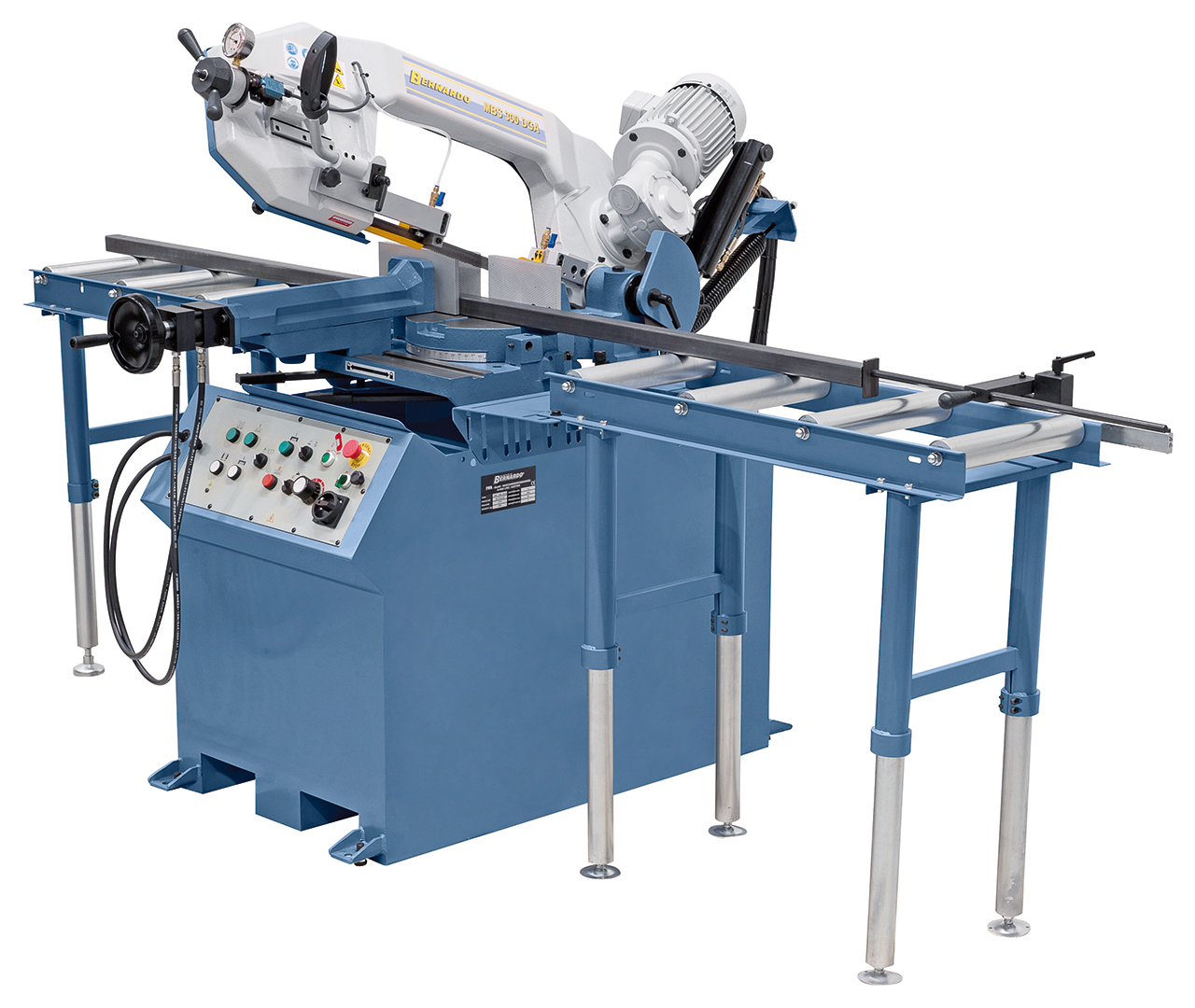

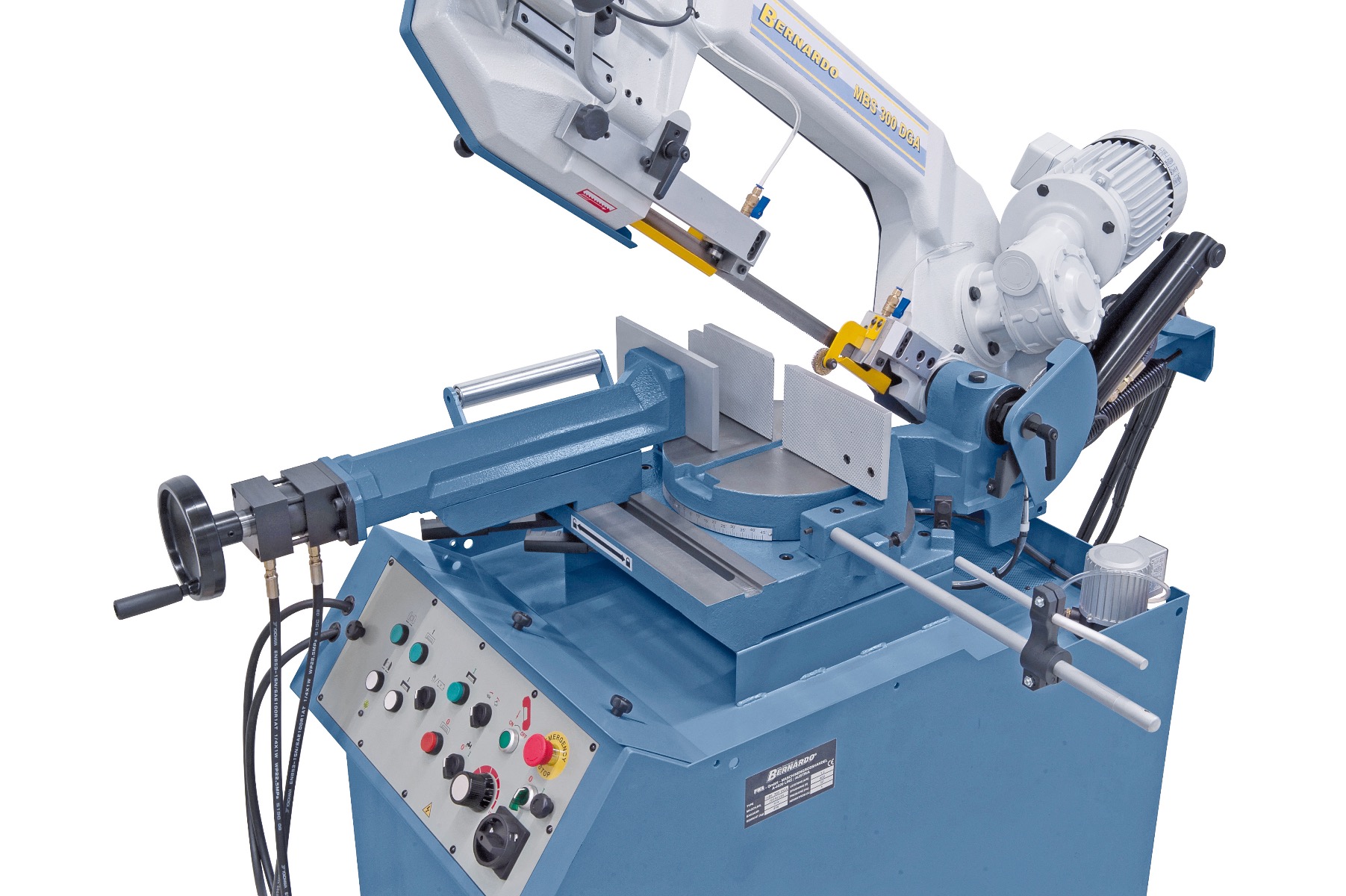

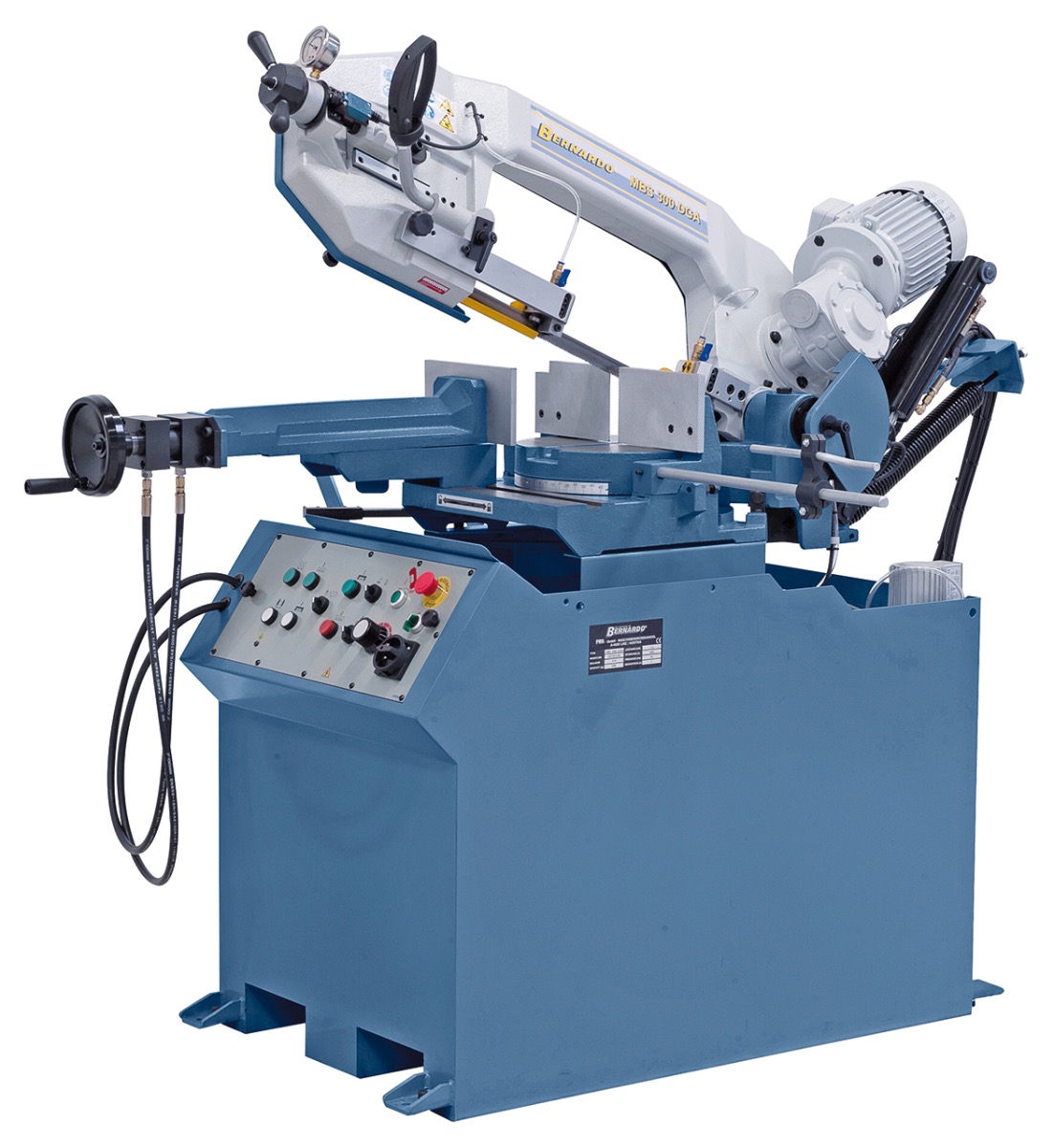

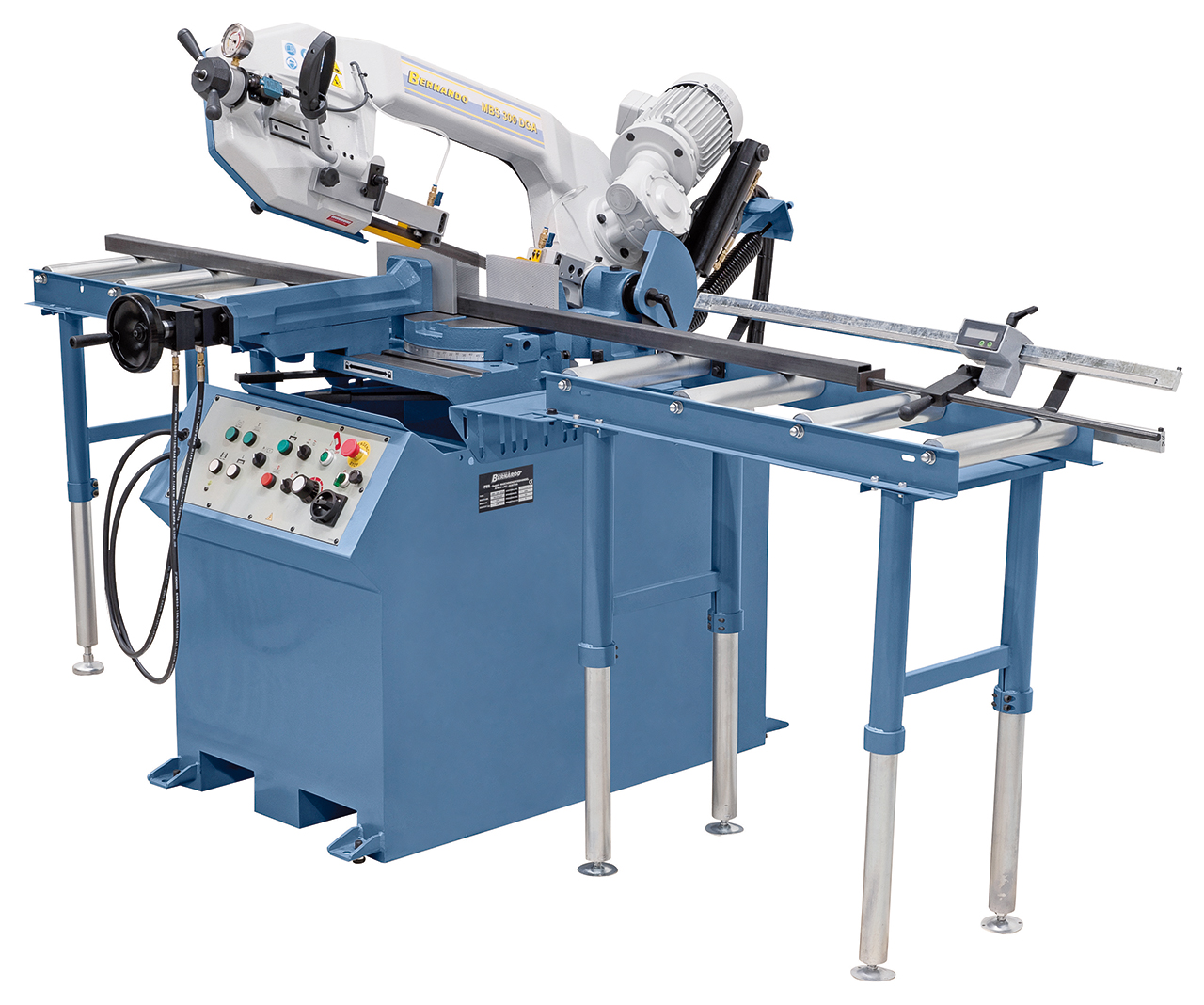

Semi-automatic double mitre bandsaw MBS 300 DGA / 400 V

Art.Nr.: 04-1714

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 300 DGA is a cost-effective double mitre band saw for cutting of hollow profiles, solid materials, stainless steel, tool steel etc. The semi-automatic function increases the productivity, making this model ideal for the professional user.

€8,796.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

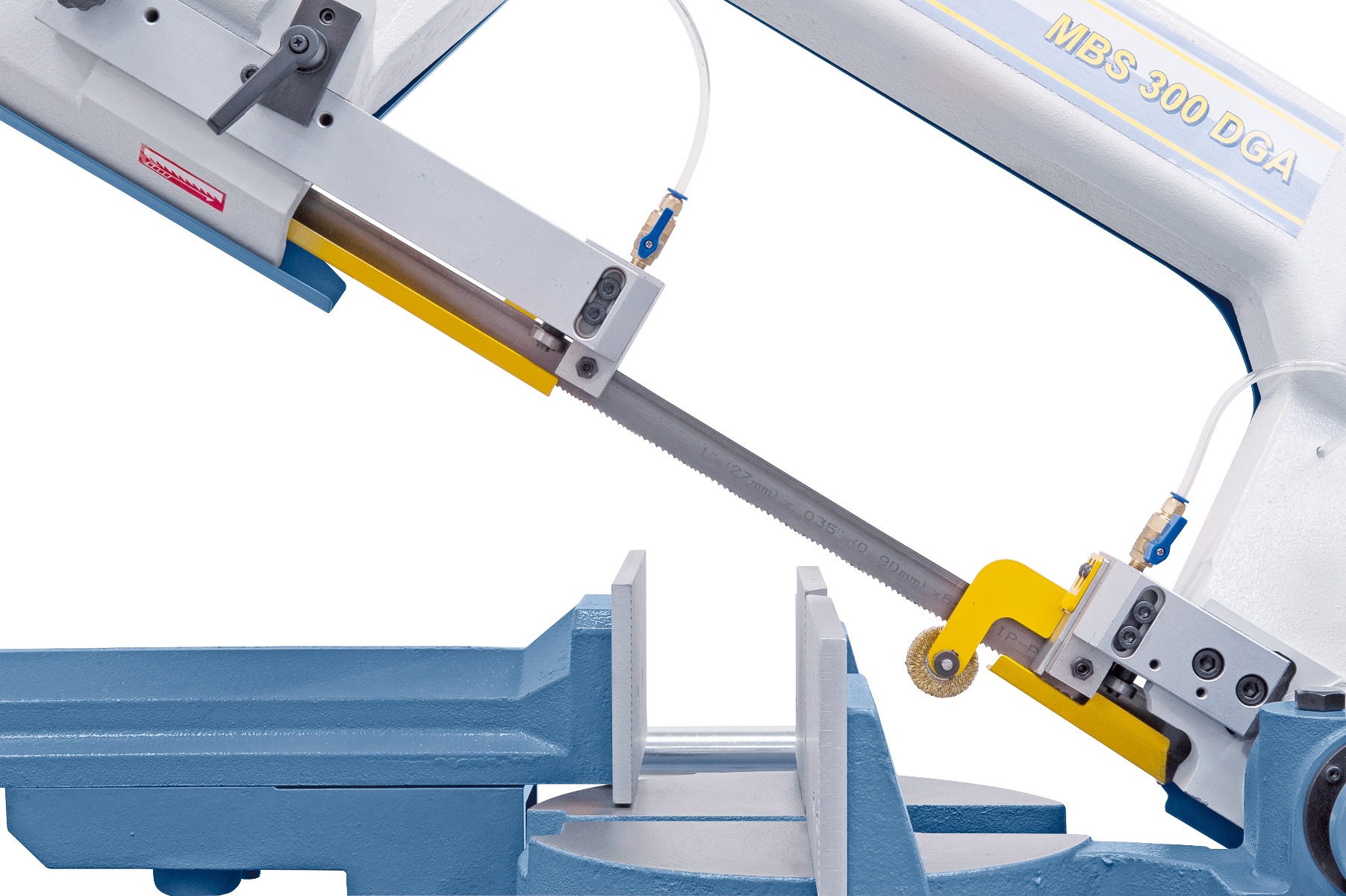

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
The semi-automatic function increases productivity significantly
Relocatable vice, manual or hydraulic clamping
The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles
Adjustable hydraulic cylinder for pressure regulation of the saw frame
Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals
Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
Torsion-free, strong spheroidal cast iron saw frame

Product Specifications

Cutting capacity round / square 90°	255 mm / 255 x 255 mm
Cutting capacity flat 90°	310 x 160 mm
Cutting capacity round / square 45° R	185 mm / 180 x 180 mm
Cutting capacity flat 45° R	230 x 170 mm
Cutting capacity round / square 45° L	180 mm / 170 x 170 mm
Cutting capacity flat 45° L	220 x 140 mm
Cutting capacity round / square 60° R	115 mm / 115 x 115 mm
Working height	1000 mm
Bandsaw blade dimension	2750 x 27 x 0,9 mm
Cutting speeds	35 / 70 m/min
Coolant pump	100 W
Motor power	1,1 kW / 1,5 kW
Voltage	400 V
Machine dimension (L x D x H)	1680 x 1300 x 1580 mm
Weight approx.	505 kg
