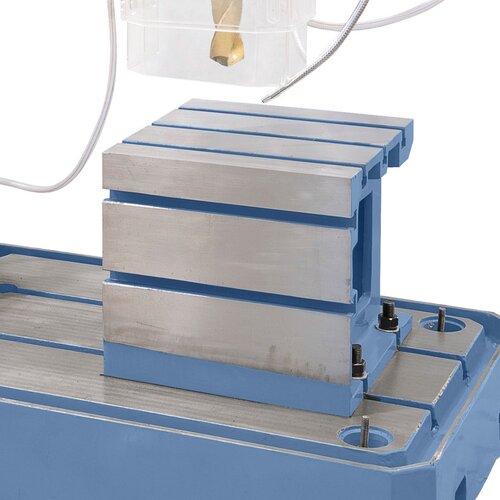

High-quality, box table with 5 T-slots, as standard accessory
High-quality, box table with 5 T-slots, as standard accessory

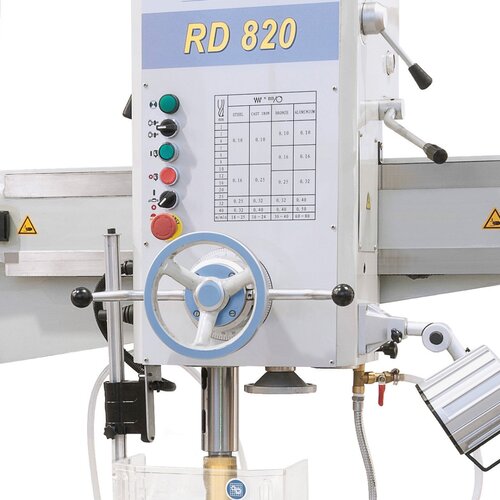

Control elements are clearly arranged on spindle stock
Control elements are clearly arranged on spindle stock
High-quality, box table with 5 T-slots, as standard accessory
Control elements are clearly arranged on spindle stock

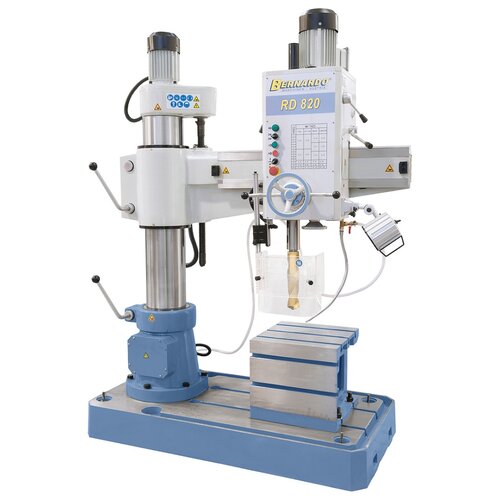

Radial drilling machine RD 820 x 32 *

Art.Nr.: 01-1324XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The radial drilling machine RD 820 x 32 is a clearly arranged machine with high performance and easy to use. This model is ideal for complex tasks such as drilling, countersinking, reaming and thread cutting.



€9,300.00

incl. 20% VAT

Availability

Deliverable Soon
Deliverable by Jul 28, 2025

Product Properties

  • Mechanical adjustment of the tilting movement of the support and the adjustment of the headstock
  • Smooth surface of column guarantees easy movement of arm
  • Solid construction allows smooth running
  • Easy adjustment to clamped workpiece
  • User-friendly control elements on front of machine
  • Electric height adjustment of swivel arm
  • Wide speed range allows ideal speed settings
  • Thread cutting takes place by change of spindle rotation

Product Specifications

Drilling capacity max.

32 mm

Thread cutting max.

M24

Distance spindle to column min./max.

310 - 820 mm

Vertical movement of the support

500 mm

Travel of drill head (horizontally)

510 mm

Spindle stroke

250 mm

Spindle speeds

(6) 75 - 1220 rpm

Morse taper

MT 4

Feed range

0,1 / 0,16 / 0,25 mm/rev.

Distance spindle to box table

16 - 515 mm

Distance spindle to base

370 - 870 mm

Box table (L x W x H)

400 x 400 x 350 mm

Clamping area base

825 x 690 mm

Column diameter

200 mm

Lifting motor

0,75 kW

Motor power

1,5 kW

Machine dimension (W x D x H)

1470 x 750 x 2100 mm

Weight approx.

1200 kg

Delivery Contents

  • Box table
  • Coolant device
  • LED working light
  • Lifting motor
  • Height adjustable protective cover
  • Operating tool
