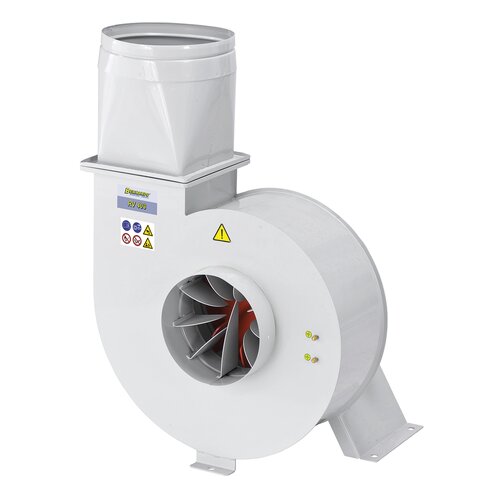

Picture with adapter square / round diam. 300 mm

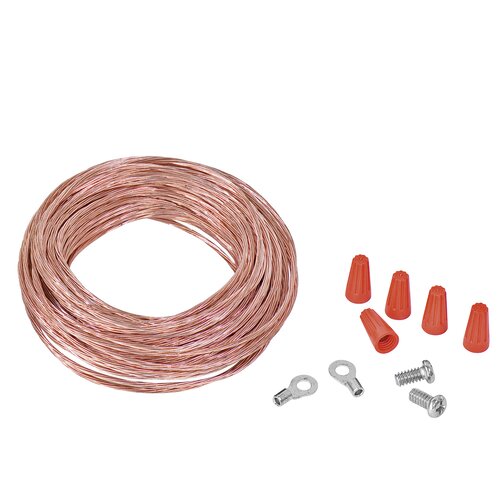

Grounding set ES 1 (optional extra): Attention! The dust collector must be grounded at all time to reduce the riskof fire and explosion.

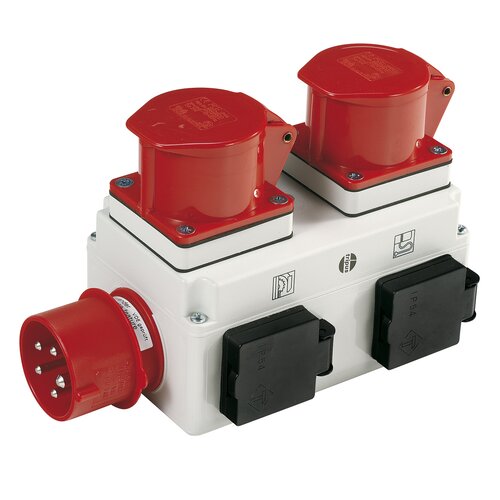

Automatic start-up system ALV 10 / 1M: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (option)

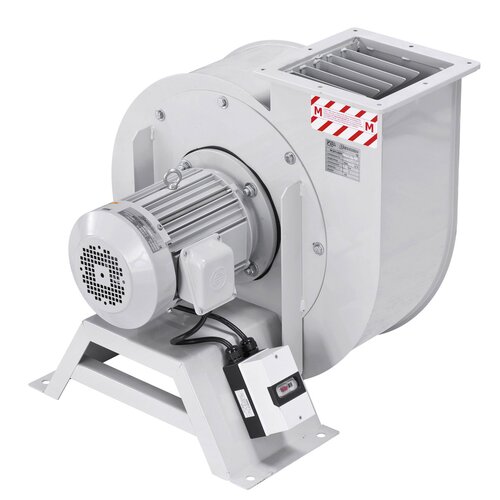

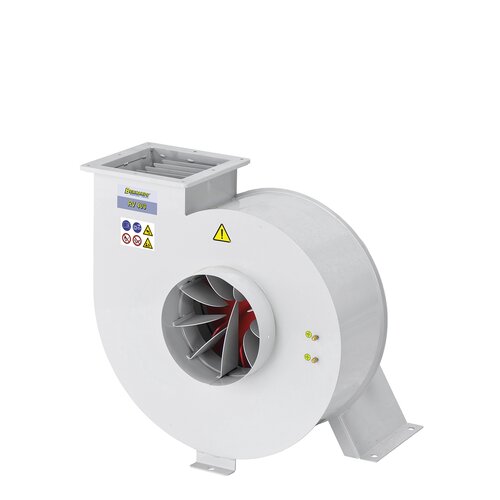

Radial collector RV 403 / 400 V

Art.Nr.: 12-2030

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The RV 403 radial collectors features a powerful drive motor and optimally positioned fan wheels, making this model extremely quiet and highly efficient. It is commonly used for removal of fine waste (wood and plastic shavings, etc.) and highly suitable for aeration and ventilation purposes.

€1,344.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Using radial collectors ensures ideal production conditions and clean air at the work place
High-quality powder coating creates scratch-resistant and shock-proof surface
Constant extraction force even during long operations
Optimal fan design guarantees top efficiency and smooth run
Statically and dynamically balanced steel fan wheels
High extraction performance with minimum space requirements

Product Specifications

Capacity max.	5800 m³/h
Low pressure max.	1690 Pa
Inlet diameter	250 mm
Outlet diameter	215 x 215 mm
Motor power	2,2 kW (3,0 HP)
Voltage	400 V / 50 Hz
Dimension (W x D x H)	650 x 600 x 655 mm
Weight approx.	53 kg
