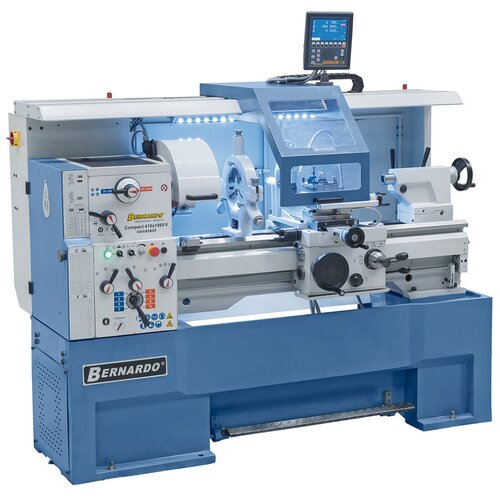

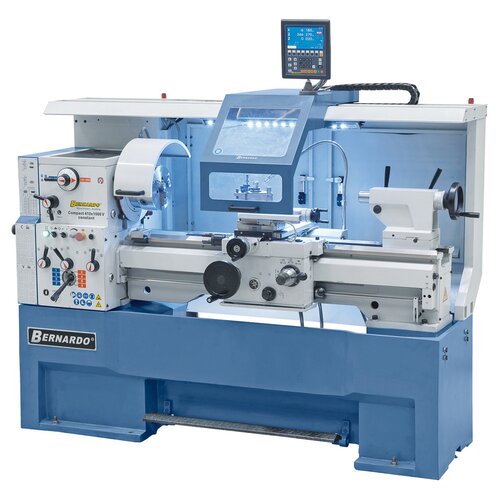

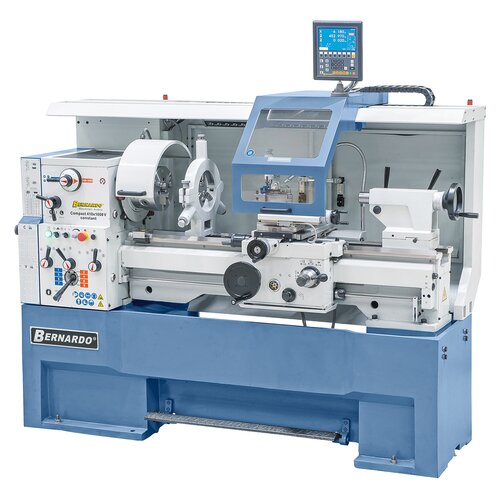

Precision turning lathe Compact 410 x 1000 V-constant *
Art.Nr.: 03-1305XLThe Compact 410 V-constant is universal lathe designed for easy and economical production of single parts or small series. The outstanding user-friendliness makes this model particularly attractive for machinery and plant engineering, manufacturing and production of single parts.Furthermore, this model features the additional feature of “constant cutting speed”, allowing excellent results when processing work pieces with inconsistent diameters.
€20,664.00
incl. 20% VATAvailability
Product Properties
- Constant cutting speed when face turning, spindle speed automatically adjusts to diameter of work piece
- High surface quality due to the constant cutting speed when facing turning
- Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Modern bearing of main spindle with angular ball bearing in precision construction
- The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning
- Chip tray extracts to front, keeping space requirements to a minimum
- 52 mm spindle bore to machine large shaft diameters comes standard
Product Specifications
|
Distance between centers |
1000 mm |
|
Center height |
210 mm |
|
Swing over bed |
420 mm |
|
Swing over cross slide |
250 mm |
|
Bed width |
250 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1-6 |
|

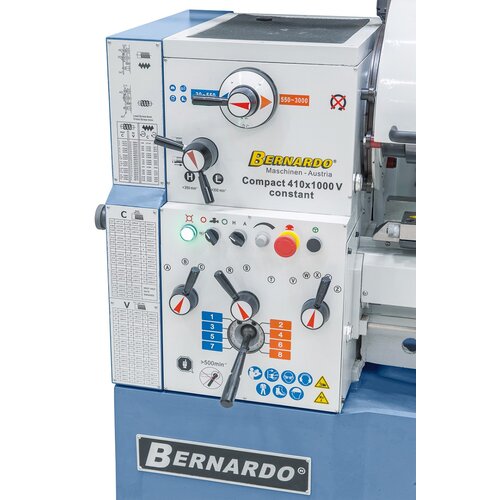

Speed range, stepless |
30 - 550 / 550 - 3000 rpm |
|
Longitudinal feed |
(20) 0,026 - 0,9 mm/rev. |
|
Cross feed |
(20) 0,013 - 0,45 mm/rev. |
|
Metric thread |
(42) 0,2 - 14 mm |
|
Inch thread |
(45) 2 - 72 threads/1“ |
|

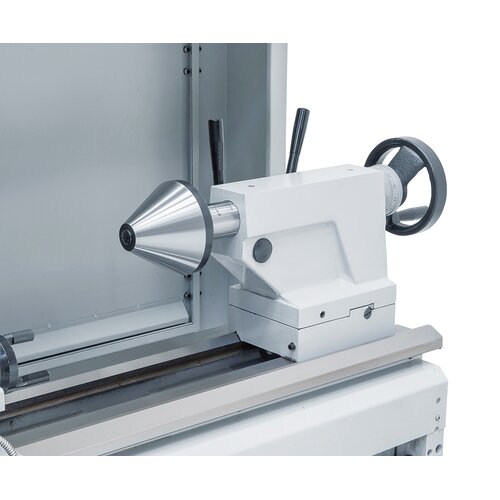

Diameter of tailstock sleeve |
50 mm |
|
Travel of tailstock sleeve |
125 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power |
5,5 kW (7,5 HP) |
|
Machine dimension (W x D x H) |
1950 x 1000 x 1820 mm |
|
Weight approx. |
1270 kg |
Delivery Contents

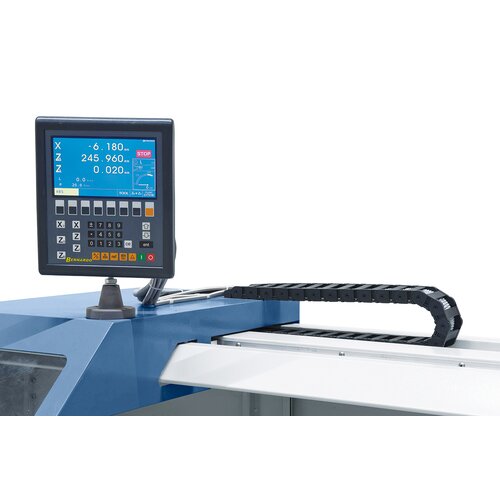

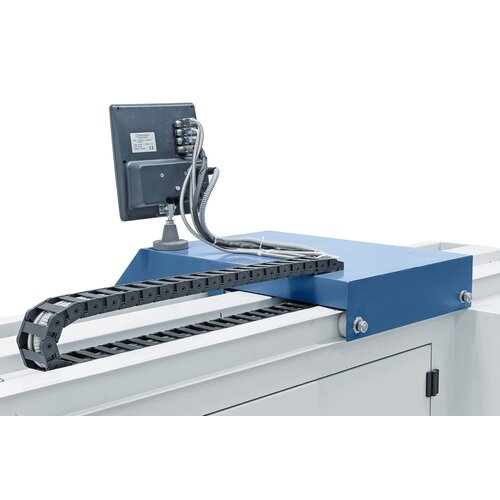

- 3-axis digital readout ES-12 S with LCD-display and speed indication

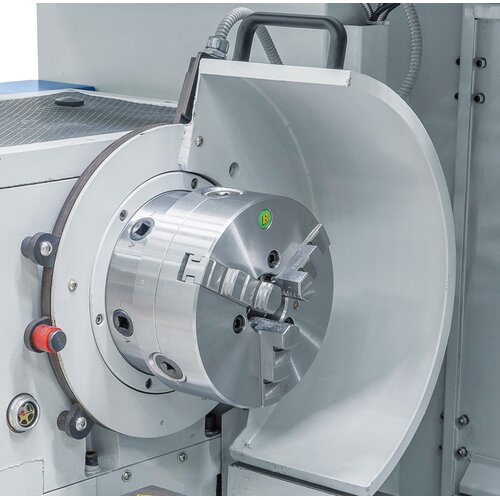

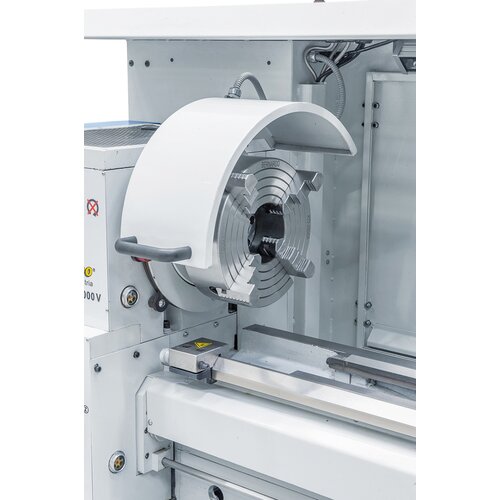

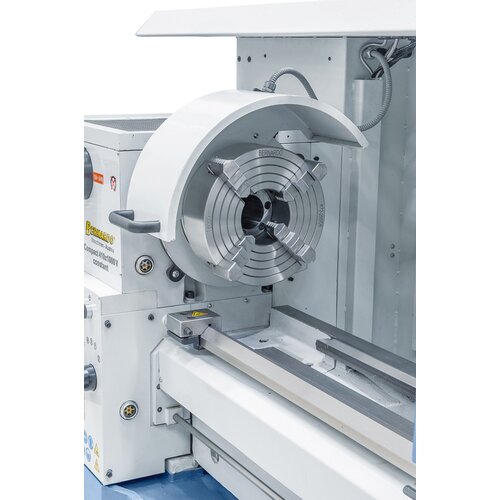

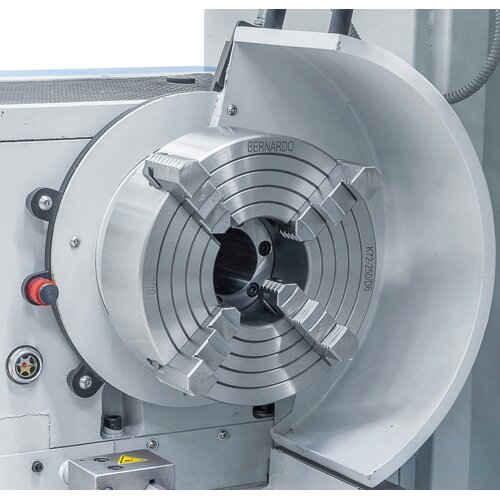

- 3-jaw steel chuck PO3-200 mm / D6
- Face plate 350 mm

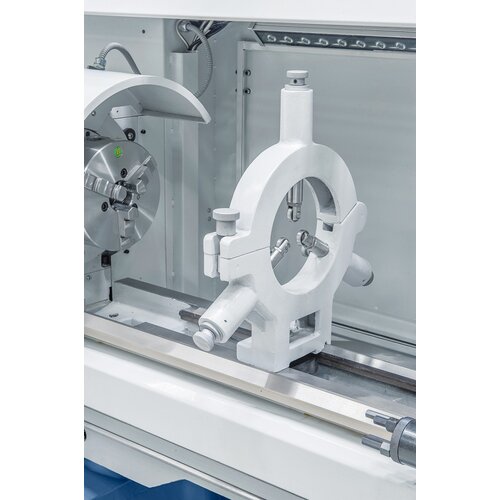

- Steady rest - Passage up to max. 130 mm

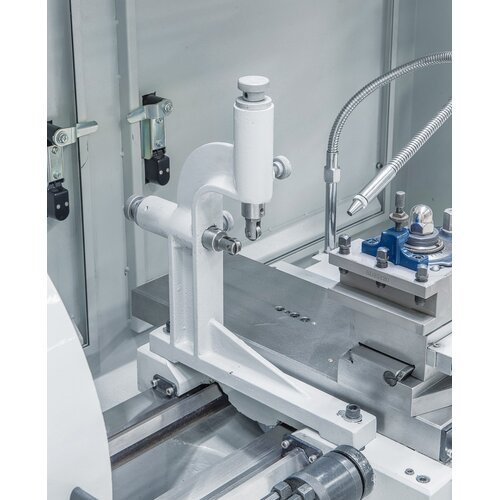

- Follow rest - Passage up to max. 70 mm
- Coolant device

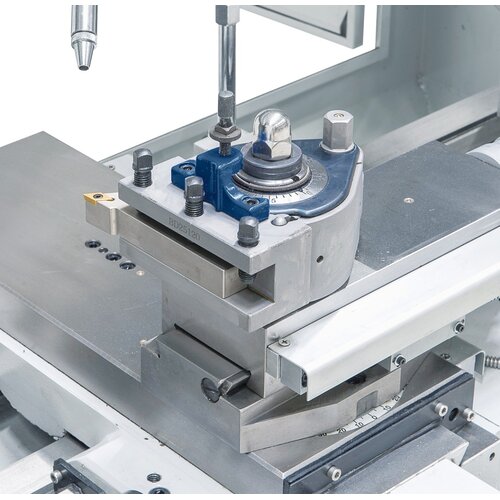

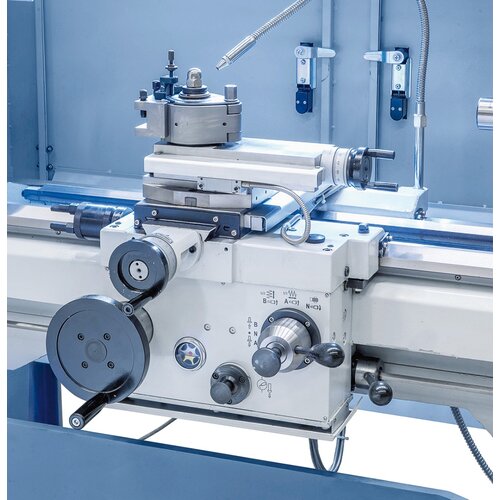

- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool holder
- Micrometer longitudinal fence

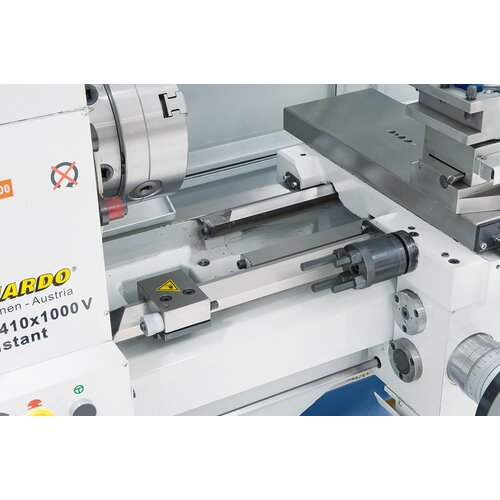

- Turret fence with fine adjustment
- Safety clutch
- Foot pedal with brake function according to CE
- Inital filling with Shell Tellus 46

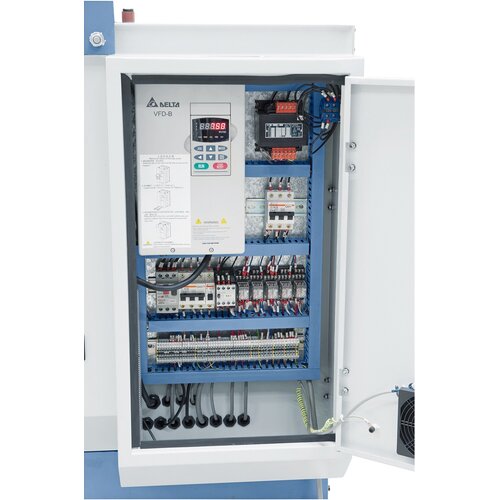

- Frequency inverter
- LED machine light

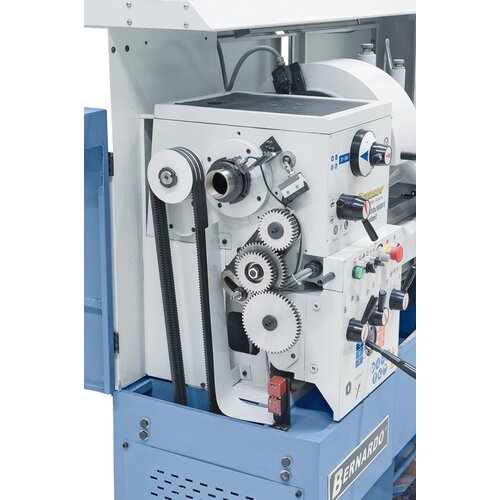

- Change gears
- Morse taper drill sleeve
- 2 dead centers
- Splash guard
- Tools
