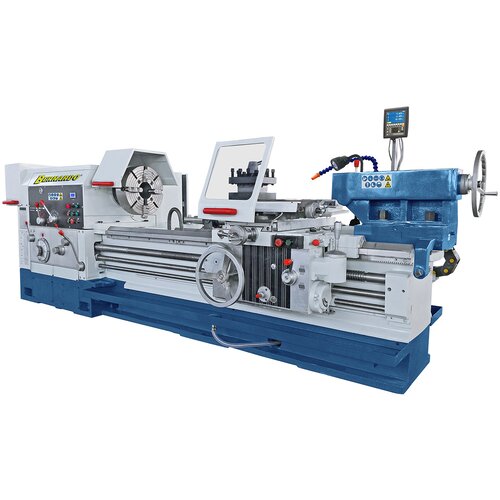

Picture show RD 200

Supplied as standard with chuck fittings on both sides

The digital speed display ensures optimal adjustment of the cutting speed.

Ergonomically arranged control elements on gear head - hardened and polished gears allow for smooth run.

Complete with rapid feed to reduce downtime enormously.

A taper turning device with a machining length of 500 mm is included in the standard delivery.

Optinal available: Steady rest

Oil country lathe RDM 225 **

Art. No.: 03-1369XL1

Wishlist Comparison List

Price on request

Request product now

Out of Stock

Large spindle bore of 225 mm
Various possible applications in general machine construction, production, single part manufacturing etc.
The cast-iron headstock with large wall thickness and compact construction guarantees rigidity and stability
The large dimensioned guideways are inductively hardened and grounded
Hardened, polished gear wheels and shafts, even in feed unit
Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
Stepless speed adjustment at gear head, ideal adjustment of the cutting speed to the workpiece and the feed speed
Complete with rapid traverse longitudinal and cross to reduce downtime

Distance between centers	1300 mm
Swing over bed	630 mm
Swing over cross slide	340 mm
Tube diameter min./max.	50 - 220 mm
Bed width	550 mm
Max. workpiece weight	3000 kg
Travel x-axis	340 mm
Travel y-axis	1300 mm
Speed range	(3) 20 - 450 rpm
Spindle bore	225 mm
Longitudinal feed	(24) 0,1 - 7,5 mm/min
Cross feed	(24) 0,05 - 0,38 mm/min
Metric thread	(15) 1 - 7,5 mm
Inch thread	(19) 2 - 14 threads/1“
Rapid feed x-axis	3000 mm/min
Rapid feed y-axis	4000 mm/min
Section of tool shank	32 mm
Taper of tailstock sleeve	MT 5
Diameter of tailstock sleeve	100 mm
Travel of tailstock sleeve	250 mm
Motor power	11 kW
Machine dimension Length	3750 mm
Width x Height	1900 x 1700 mm
Weight approx.	4600 kg
