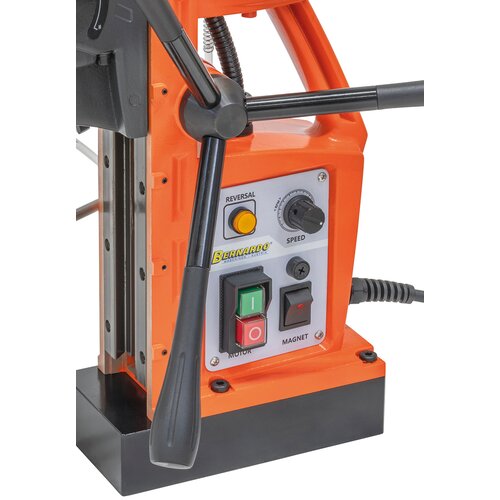

Clearly arranged controls
Clearly arranged controls

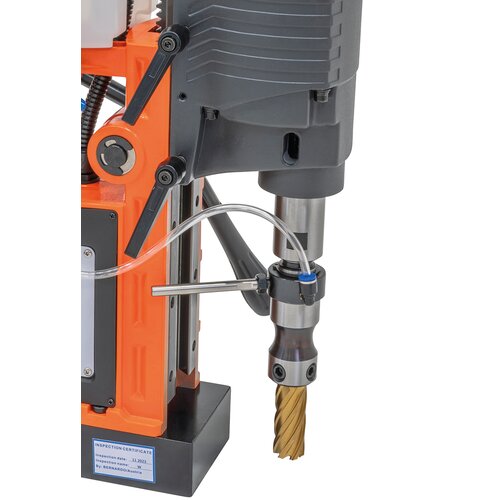

Automatic internal lubrication; the coolant is directed straight to the tip of the core drill.
Automatic internal lubrication; the coolant is directed straight to the tip of the core drill.

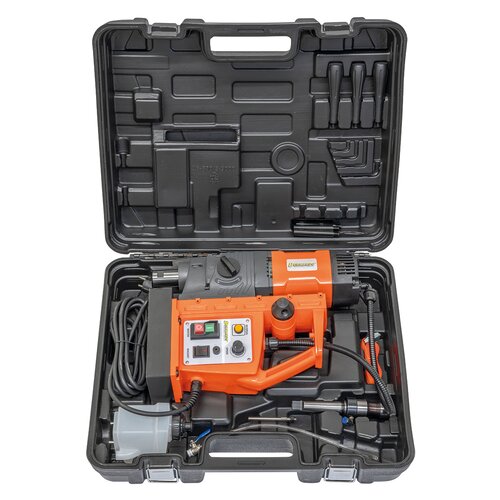

Delivery is in a high-quality transport box.
Delivery is in a high-quality transport box.

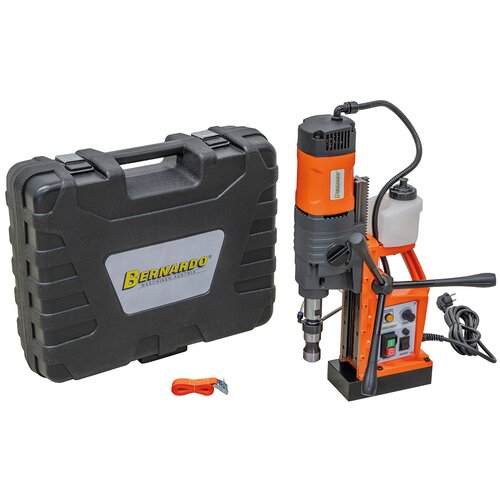

Complete scope of delivery
Complete scope of delivery

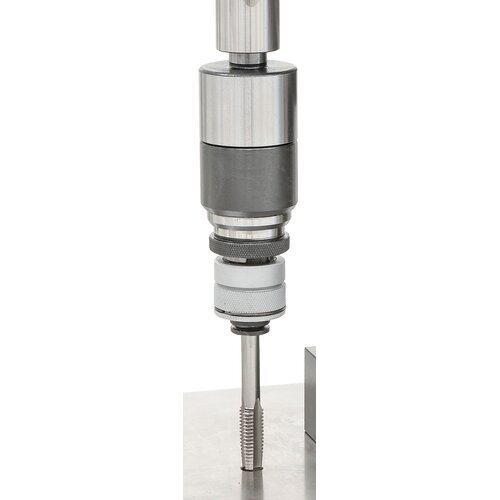

Thread cutting attachment sold separately
Thread cutting attachment sold separately
Clearly arranged controls
Automatic internal lubrication; the coolant is directed straight to the tip of the core drill.
Delivery is in a high-quality transport box.
Complete scope of delivery
Thread cutting attachment sold separately

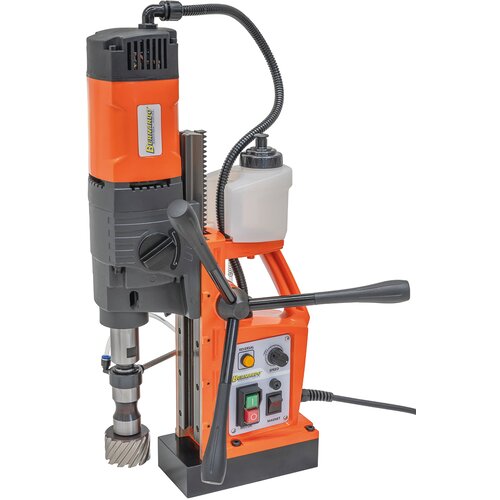

Magnetic-core drilling machine TPC 2200 *

Art. No.: 01-13811
Wishlist Comparison List

€1,152.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Automatic internal lubrication, the coolant is directed directly to the tip of the core drill
  • Variable speed setting for optimal adjustment of cutting speed during core drilling, threading, sinking and reaming
  • Comes as standard with MK 3 cone to accommodate various tools (twist drills, countersinks, reamers, thread cutting chuck, hole saw,...)
  • High-torque drive motor with soft start and overload protection
  • Powerful electromagnet ensures maximum magnetic holding force

Product Specifications

Core drill max. Ø

65mm

Core drill max. drilling depth

50mm

Spiral drill max. Ø

25mm

Drilling head travel distance max.

200mm

Thread cutting max.

HIGHWAY M22

idle speed, stepless

100 - 210/210 - 520 rpm

Spindle mount

MK 3

Weldonschaft admission

19mm

Distance between spindle and base plate max.*

185mm

Distance between weldon mount and base plate max.*

85mm

magnetic holding force

15800 N

Magnetic base dimensions (L x W x H)

200 x 105 x 45mm

engine power

1890 W

voltage

230 V

Machine dimensions (W x D x H)

290 x 360 x 640 mm

Weight ca.

20.5 kg

*Expandable by up to 80 mm

Delivery Contents

  • Plastic box
  • Refrigerant container
  • Tool holder with automatic
  • MK 3 internal cooling/Weldon shaft 19 mm
  • Seatbelt
  • Operating instructions
  • Operating tool
