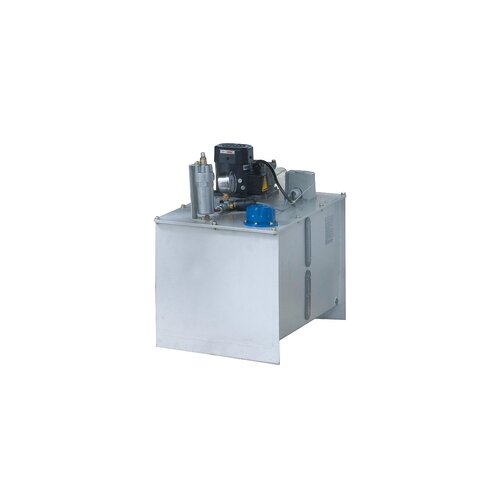

Individual hydraulic unit with oil cooling eliminates vibrations and thermal strain on the machine frame.

Manual parallel dressing device features micrometric adjustment as standard.

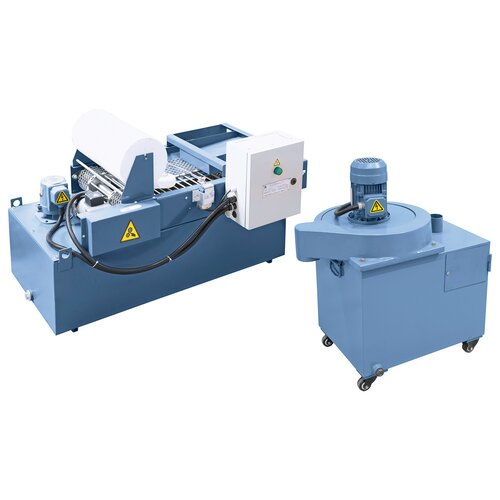

Coolant device with extractor and magnetic seperator are optionally available.

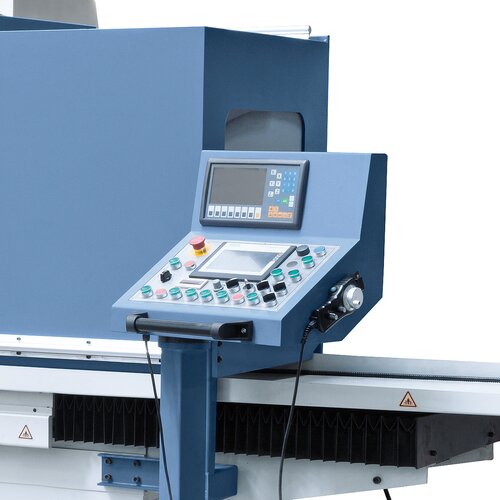

Including Siemens SMART-Paneel IE V3 with touchscreen and electronic handwheel

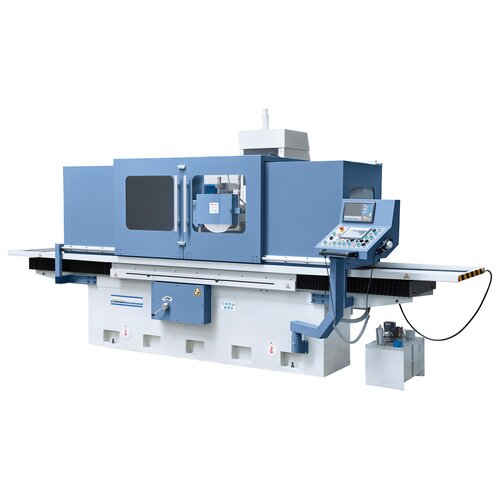

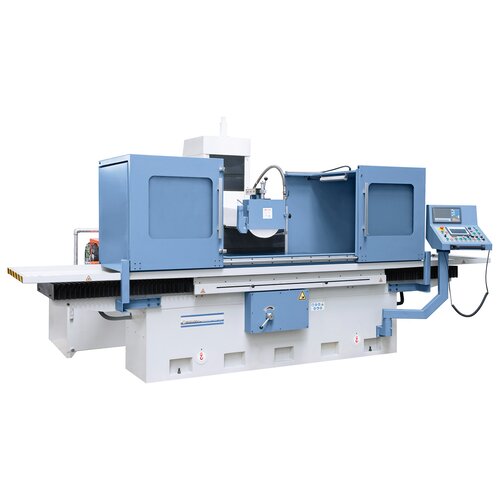

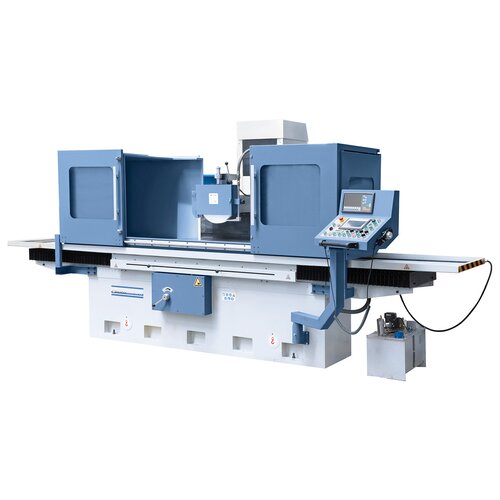

Hydraulic surface grinding machine BSG 60120 PLC with 2-axis digital readout ES-12 H **

Art.Nr.: 05-1451XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€66,708.00

incl. 20% VAT

Out of Stock

Hardened and polished table guides cross and longitudinal. Durcite- B coated counter guides ensure high rigidity and low friction
Longitudinal and cross movement takes place via V-flat guiding
Computer automated feed via rapid feed to workpiece height, adjustable roughing and surface finishing stroke, automatic return into start position at end of program
Axial and radial bearings in grinding spindle are clamped clearance free
Annealed machine base guarantees high accuracy
Strong reinforcements and thick walls ensure rigidity
End stops allow adjustable longitudinal and cross travel
State of the art hydraulic system guarantees soft table traverse even at high work load
Including Siemens PLC-control for programming simple sanding cycles via touchscreen

Table dimensions	600 x 1200 mm
T-slot quantity / width	3 / 18 mm
Electric magnet clamping plate	600 x 1200 mm
Max. travel, longitudinal	1520 mm
Max. travel, cross	660 mm
Max. distance spindle / table	600 mm
Max. workpiece weight*	970 kg

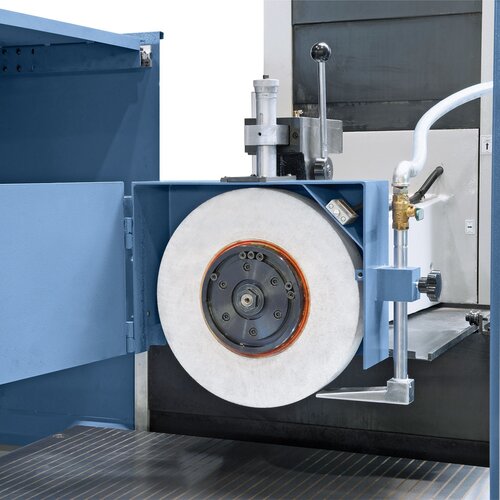

Grinding wheel	350 x 50 x 127 mm
Table speed, hydraulic	5 - 25 mm/min
Cross adjustment
Automatic adjustment, cross	0,5 - 30 mm/stroke
Rapid feed, cross	50 - 600 m/min
Vertical adjustment
Automatic adjustment, vertical	0,005 / 0,01 / 0,015 /
	0,02 / 0,03 / 0,04 mm
Rapid feed, vertical	0 - 300 mm/min
Motor power of sanding spindle	7,5 kW
Spindle speed	1440 rpm
Motor power of hydraulic pump	5,5 kW
Total connected load	18 kW
Length	4800 mm
Depth	2750 mm
Height	2420 mm
Weight approx.	6500 kg
