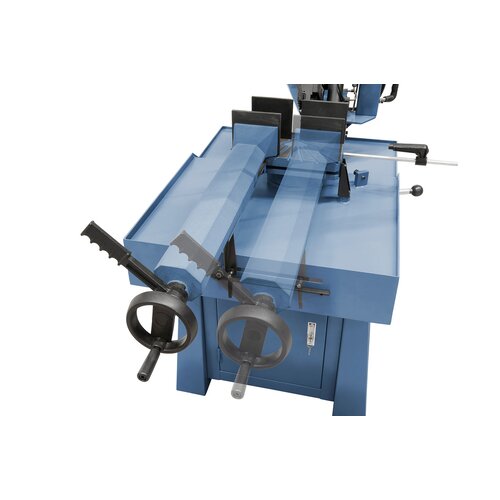

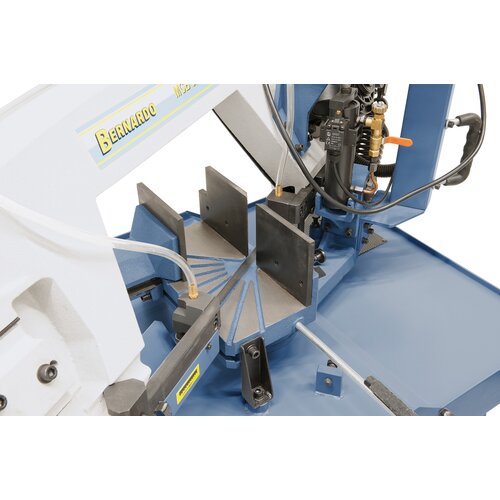

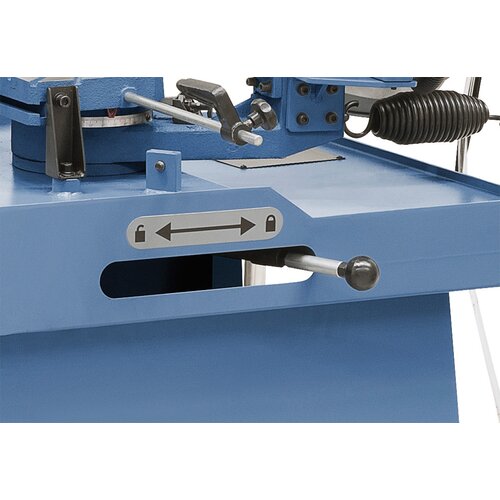

Quick clamping vice can be moved sidewise for double mitre cutting.

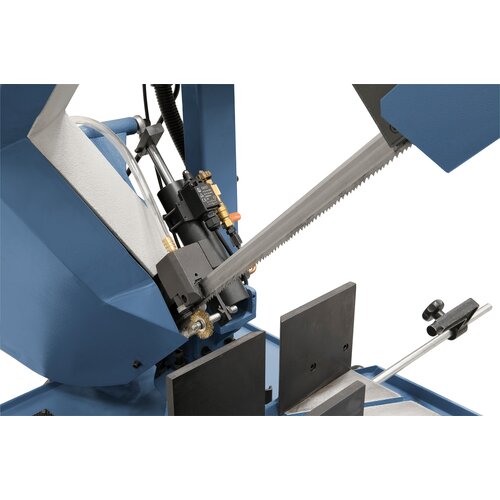

Bandsaw blade guiding with carbide inserts and chip brush to allow for optimal results.

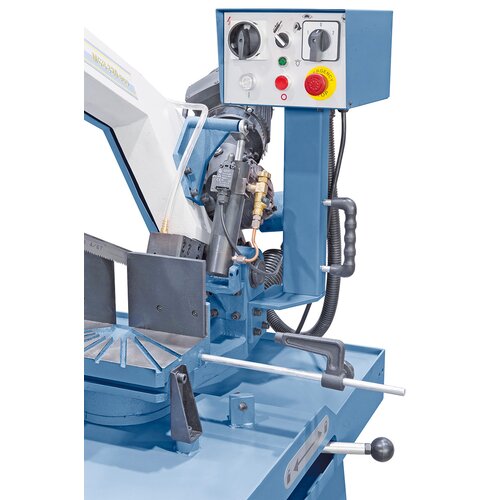

Clearly arranged switch box on the front of the machine, making operating very user-friendly.

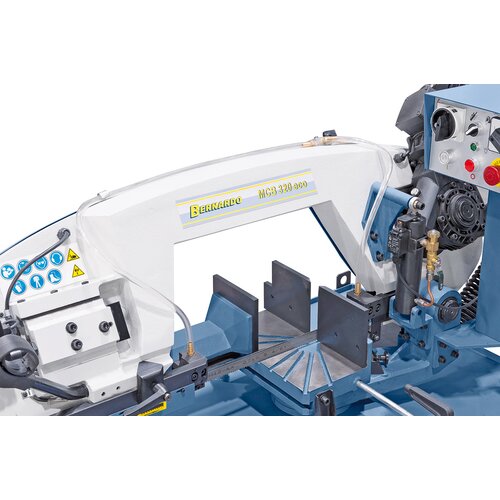

Grey cast-iron saw arm guarantees precise results

For mitre cutting the saw frame tilts from 90º to 60º.

Includes material fence for effective work - ideal for serial section.

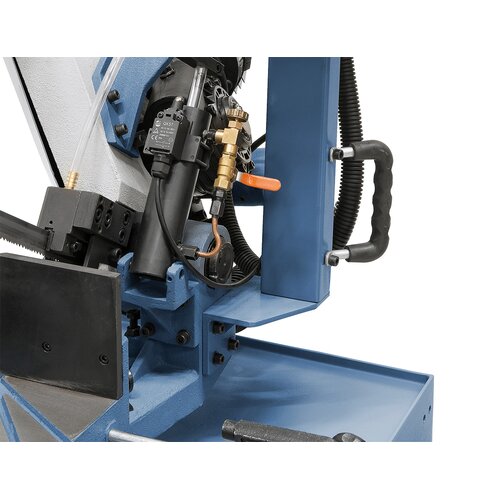

Big hydraulic cylinder for stepless lowering of the saw frame

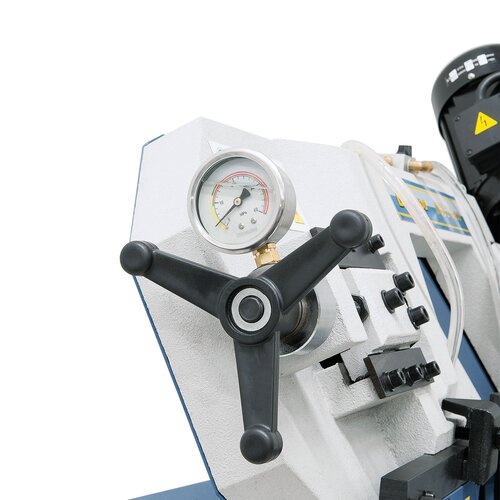

Ergonomic handle, adjustment of the blade tension by handwheel.

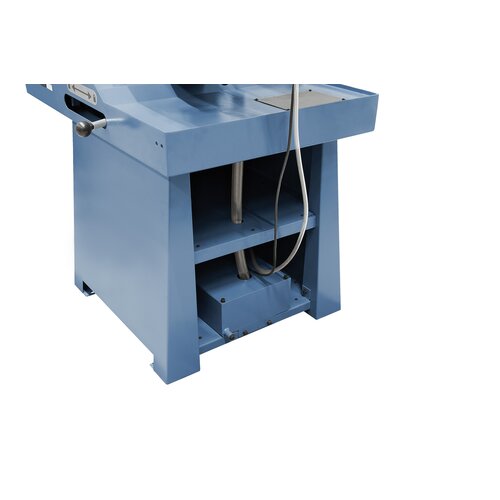

Powerful coolant device integrated in base, hence requiring little space.

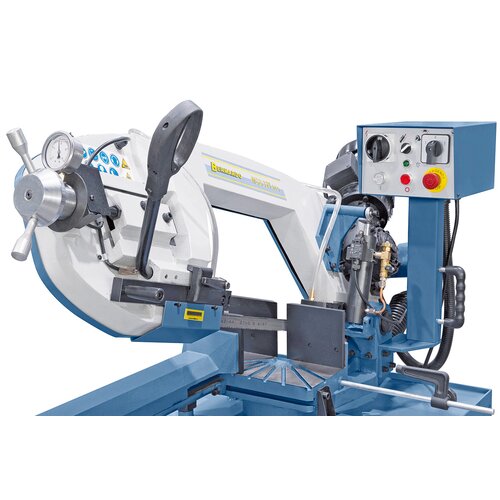

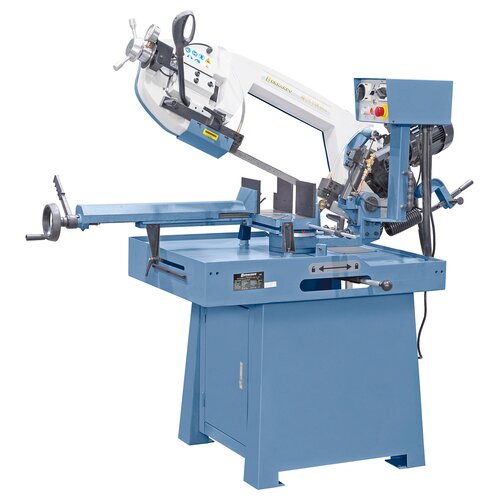

Horizontal bandsaw MCB 320 eco / 400 V

Art.Nr.: 04-1166

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The compact double mitre bandsaw MCB 320 eco featuring a tilting saw arm, keeping spare requirements to a minimum as there is no need to change the position of the material when mitre cutting. Further features include a device to change to manual mode, the adjustable vice with quick adjustment and an automatic blade break control.

€3,444.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

For cutting of hollow profile and full rivet material, stainless steel, tool steel,...
Torsion-free, strong cast iron saw frame
2 speed settings (35 / 70 m/min) for optimal cutting results
Saw frame pressure regulated by adjustable hydraulic cylinder
Sawframe swings left (-45°) and right (+60°) for double mitre cutting
High-quality materials ensure a quiet, vibration-free run
Robust cast iron vice with material fence, ideal for repetitive cutting
Bandsaw blade guiding with quick adjustment to the workpiece , guarantees optimal cutting results
Robust construction ensures smooth and vibration-free run

Product Specifications

Cutting capacity round 90°	240 mm
Cutting capacity square 90°	225 x 225 mm
Cutting capacity flat 90°	310 x 180 mm
Cutting capacity round 45°	200 mm
Cutting capacity square 45°	180 x 180 mm
Cutting capacity round 60°	140 mm
Cutting capacity square 60°	140 x 140 mm
Working height	950 mm
Bandsaw blade dimension	2680 x 27 x 0,9 mm
Cutting speeds	35 / 70 m/min
Coolant pump	45 W
Motor power output S₁ 100%	1,1 / 1,5 kW
Motor power input S₆ 40%	1,5 / 2,2 kW
Voltage	400 V
Machine dimension (L x D x H)	1550 x 870 x 1490 mm
Weight approx.	313 kg
