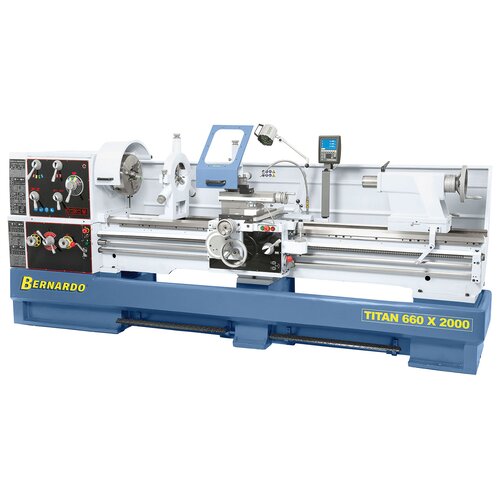

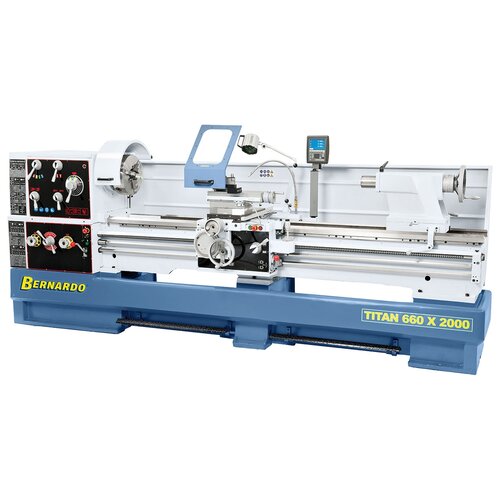

Heavy duty industrial lathe TITAN 660 x 3000 incl. 3-axis digital readout *
Art.Nr.: 03-1352XLThe turning lathe Titan 660 x 3000 meets the standards of modern technology. The high user-friendliness (rapid feed, 40 pos. tool post and holder set, mechanic coupling, digital readout and high power range) makes it very popular for machine construction, plant construction, production and single-unit production.
€37,116.00
incl. 20% VATAvailability
Product Properties
- Various possible applications in general machine construction, production, single part manufacturing etc.

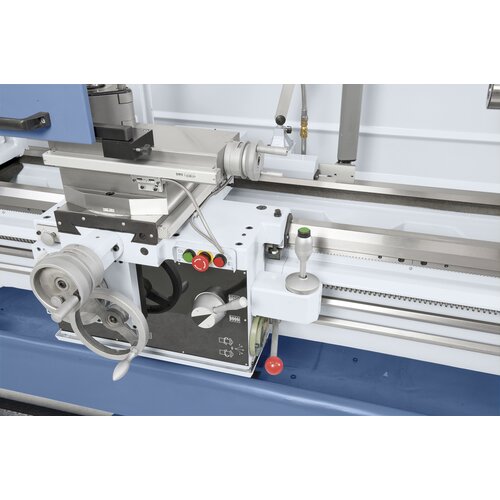

- Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
- Grey cast-iron machine bed, inductive hardened and polished
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Hardened, polished gears and shafts, even in feed unit
- Complete with longitudinal and cross rapid feed to reduce downtime
- Large spindle bore (105 mm) allows processing of workpieces with a large diameter
- Mechanic coupling allows soft start
- Electro-mechanical foot brake keeps downtime to a minimum
- High performance even at face turning
- Machine bed guide ways are reinforced for higher rigidity and fewer vibrations
Product Specifications
|
Distance between centers |
3000 mm |
|
Center height |
330 mm |
|
Swing over bed |
660 mm |
|
Swing over gap |
900 mm |
|
Swing over cross slide |
460 mm |
|
Bed width |
400 mm |
|
Spindle bore |
105 mm |
|
Spindle nose fixture |
DIN 55029, D1-8 |
|
Speed range |
(16) 25 - 1600 rpm |
|
Longitudinal feed |
(25) 0,044 - 1,48 mm/rev. |
|
Cross feed |
(25) 0,022 - 0,740 mm/rev. |
|
Metric thread |
(54) 0,45 - 120 mm |
|
Inch thread |
(54) 7/16 - 80 threads/1“ |
|

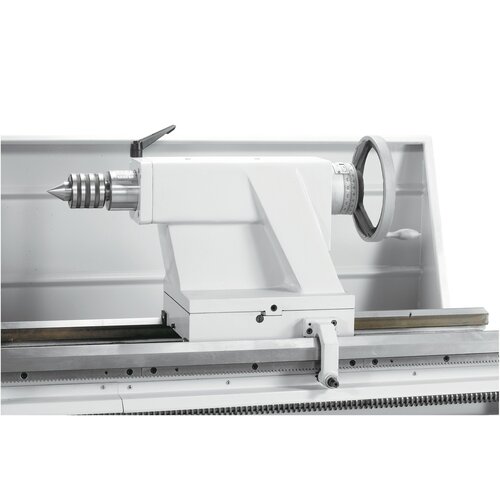

Diameter of tailstock sleeve |
90 mm |
|
Travel of tailstock sleeve |
235 mm |
|
Taper of tailstock sleeve |
MT 5 |
|
Motor power |
7,5 kW (10,0 HP) |
|
Machine dimension (W x D x H) |
4630 x 1200 x 1520 mm |
|
Weight approx. |
3300 kg |
Delivery Contents
- Safety clutch
- Rapid feed longitudinal and cross
- LED machine light

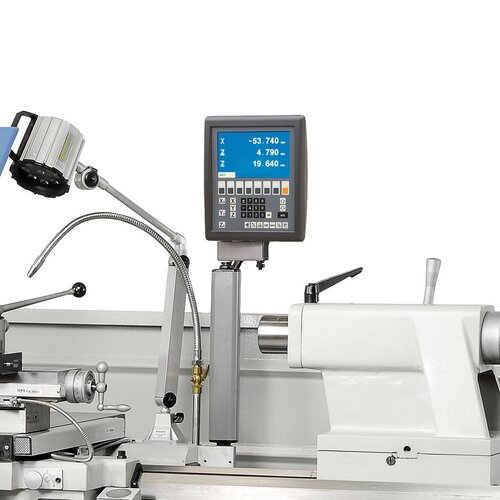

- 3-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck PS3-315 mm / D8
- Face plate 450 mm

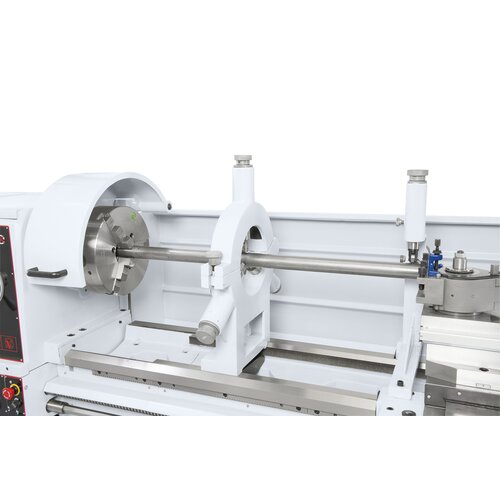

- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 120 mm
- 2 dead centers
- Motor with magnetic brake according to CE
- Foot pedal with brake function acc. to CE
- Initial filling with Shell Tellus 46
- Coolant device
- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool post holder
- Spindle support
- Change gears
- Morse taper drill sleeve
- Splash guard

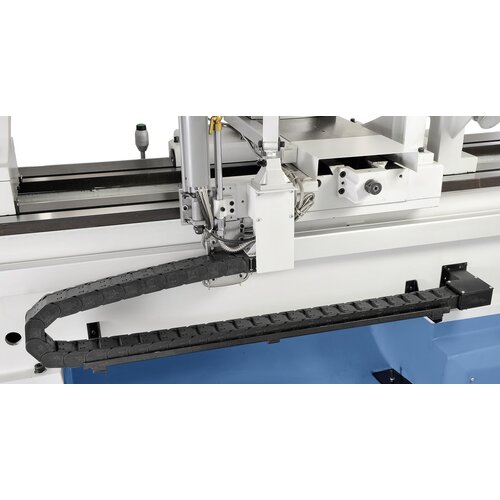

- Cable guiding by energy chain
- Tools
