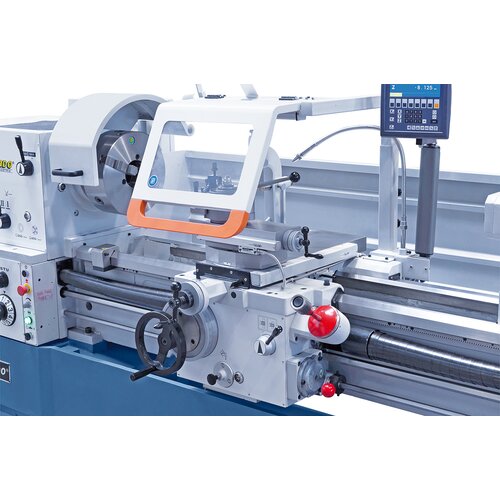

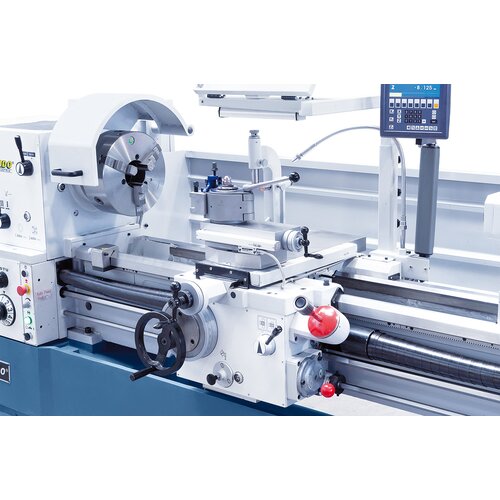

The digital display results in a significant productivity increase of up to 50 %.

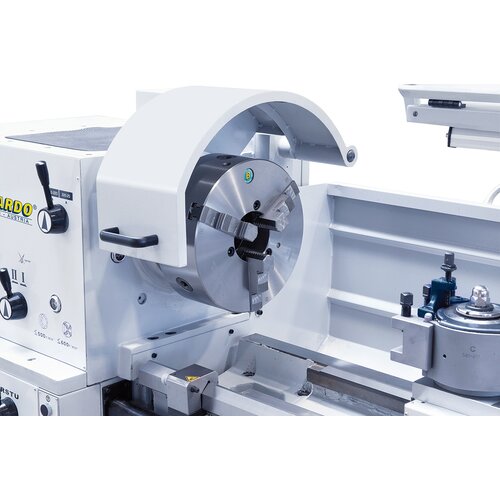

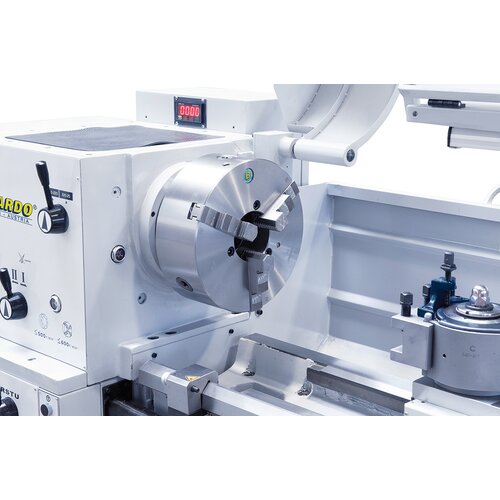

Advantage of Bernardo chuck PS3–315 mm / D8: high concentricity and long life span.
Complete with rapid feed to reduce downtime enormously.

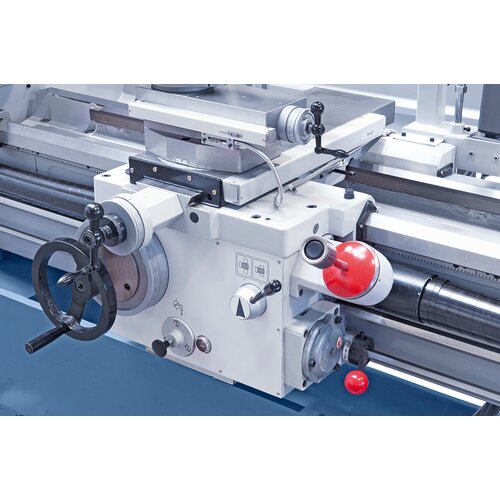

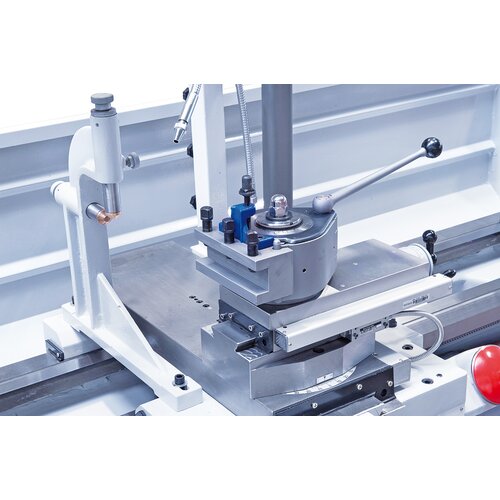

Convenient feed settings for high accuracy, polished gear wheels allow for smooth operation.

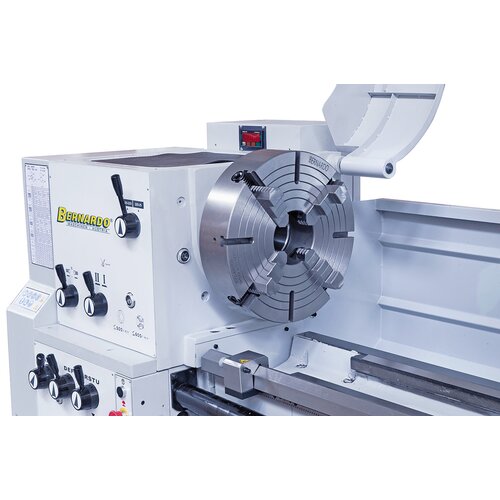

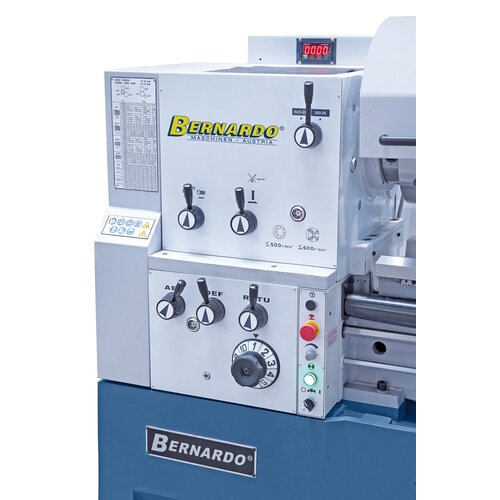

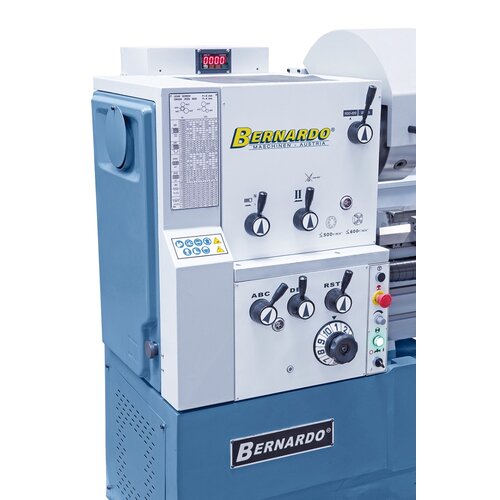

User-friendly operation, clear arrangement of switches and controls on gear head.

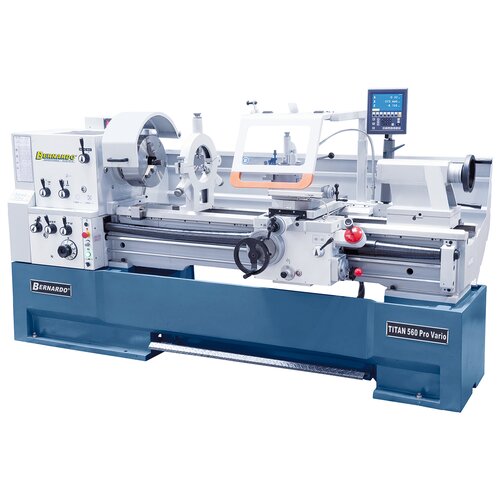

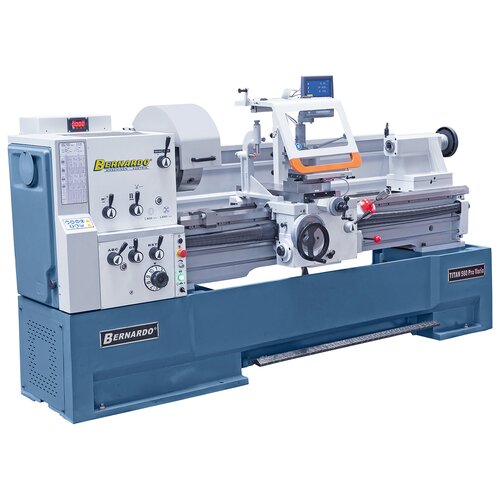

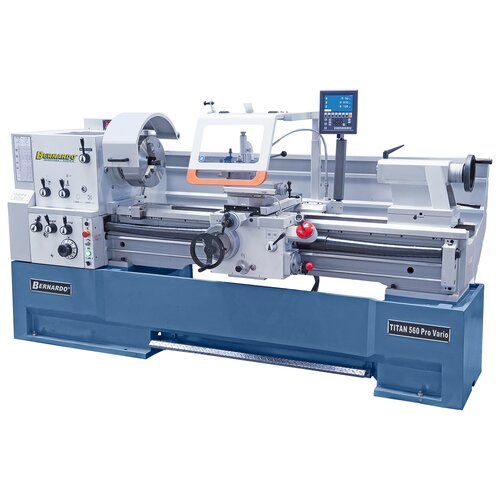

Heavy duty industrial lathe TITAN 560 x 2000 Pro Vario *
Art.Nr.: 03-1349BXLThe Titan 560 Pro Vario is a state-of-the-art, revolutionary manufacturing lathe. The wide range of standard equipment, such as the 3-jaw chuck, steady and follow rest, change gears and the 3-axis digital readout, 40 pos. tool post and holder set, make this model extremely versatile. Furthermore, this model comes equipped with a stepless speed adjustment up to 1500 rpm, allowing the speed to be optimally adjusted to the workpiece and the feed rate.
€30,492.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
- Stepless speed adjustment, set speed can be read on digital display
- Various areas of application, such as general engineering, production, single part manufacturing etc.
- Removable bridge allows operating of oversize workpieces
- Complete with rapid traverse longitudinal and cross to reduce downtime
- State-of-the-art main spindle bearing features high quality angular ball bearings
- Machine bed, cast in one piece, is rigid and emilinates vibrations, allowing accurate turning

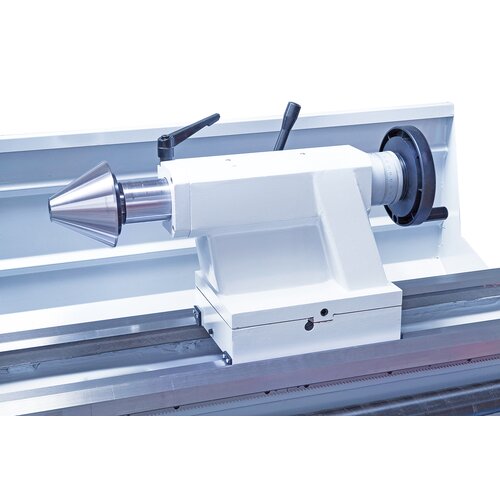

- Tailstock can be repositioned for taper turning
- Central lubrication of apron
Product Specifications
| Distance between centers | 2000 mm | |
| Center height | 280 mm | |
| Swing over bed | 560 mm | |
| Swing over gap | 785 mm | |
| Swing over cross slide | 350 mm | |
| Bed width | 350 mm | |
| Spindle bore | 105 mm | |
| Spindle nose fixture | DIN 55029, D1 - 8 | |
| Speed range, 2 steps | 25 - 220 / 220 - 1500 rpm | |
| Longitudinal feed | (42) 0,055 - 3,061 mm/rev. | |
| Cross feed | (42) 0,025 - 1,384 mm/rev. | |
| Metric thread | (41) 0,1 - 14 mm | |
| Inch thread | (60) 2 - 112 threads/1“ | |
| Diameter of tailstock sleeve | 75 mm | |
| Travel of tailstock sleeve | 185 mm | |
| Taper of tailstock sleeve | MT 5 | |
| Motor power | 7,5 kW (10,0 HP) | |
| Machine dimension | Length | 3340 mm |
| Depth x Height | 1150 x 1610 mm | |
| Weight approx. | 2720 kg |
Delivery Contents

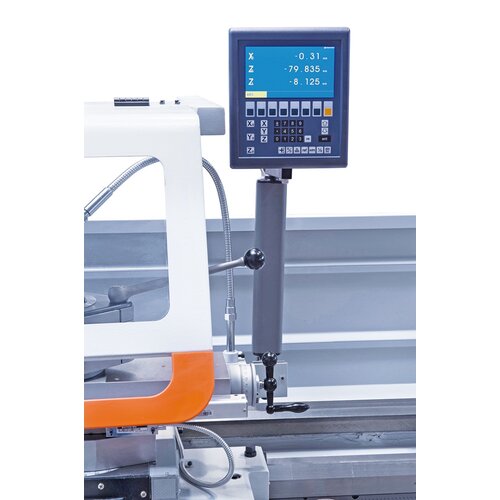

- 3-axis digital readout ES-12 V with LCD display
- 3-jaw chuck PS3-315 mm / D8

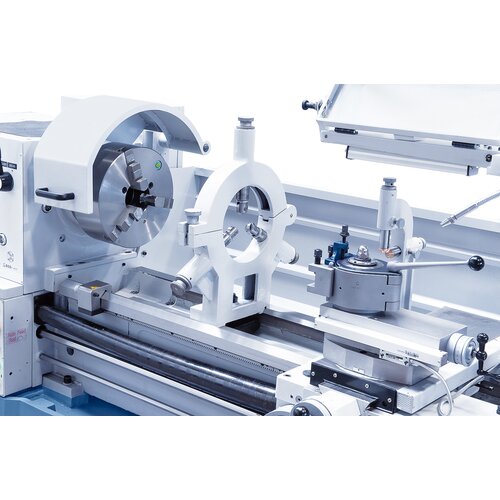

- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 120 mm
- Foot pedal with brake function according to CE

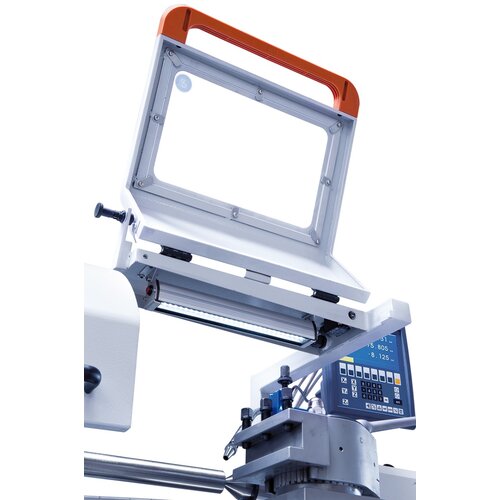

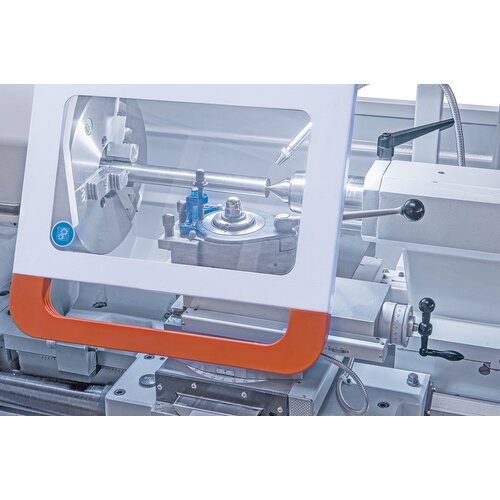

- Protective device at tool post holder
- LED machine light
- Initial filling with Shell Tellus 46
- Face plate 450 mm
- 2 dead centers
- Frequency inverter
- Digital readout of speeds
- Safety clutch
- Rapid feed longitudinal and cross
- Coolant device

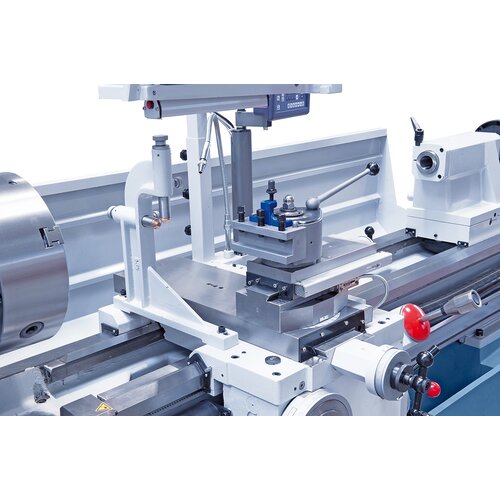

- 40 pos. tool post and holder set with 4 inserts

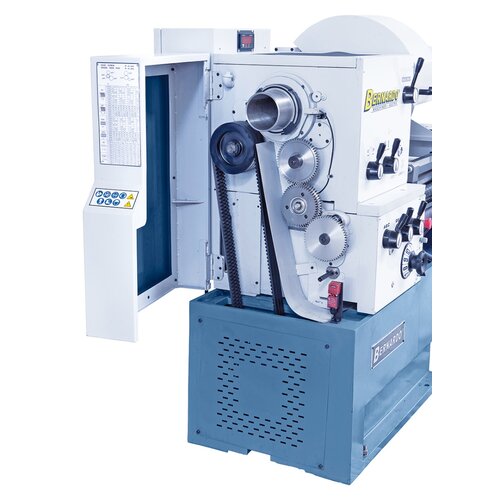

- Change gears
- Morse taper drill sleeve
- Splash guard
- Tools
