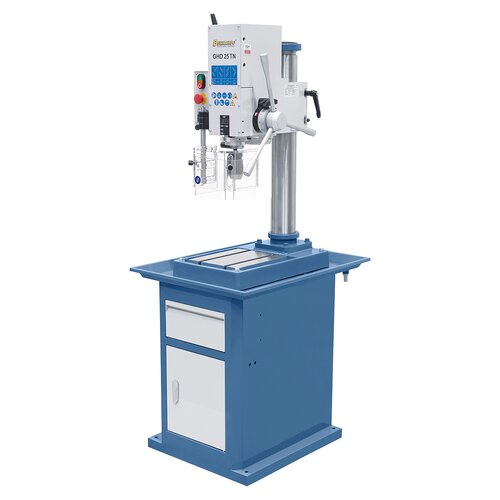

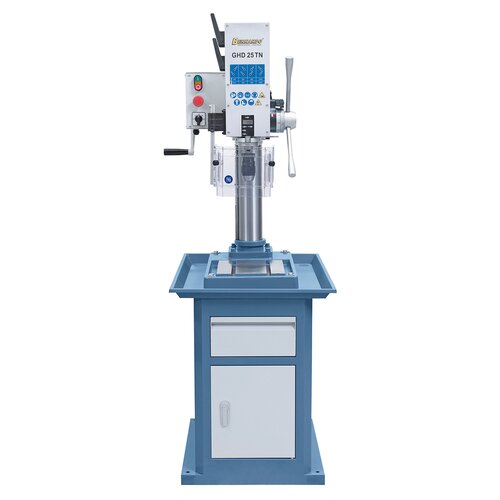

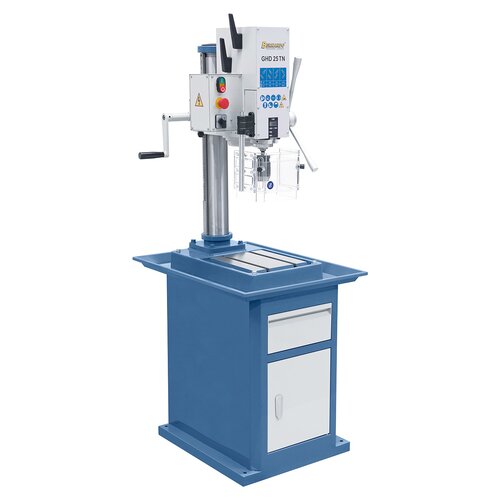

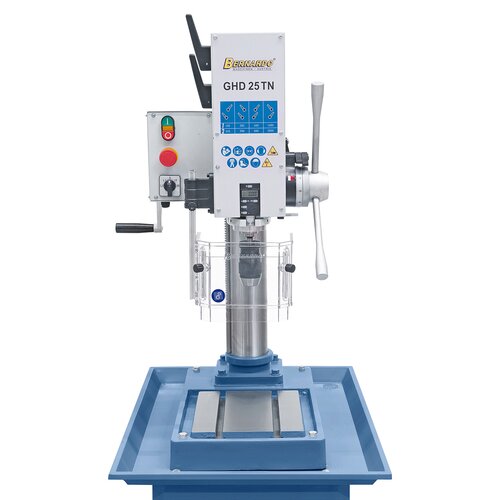

Machine partially shown with special accessories
Machine partially shown with special accessories
Machine partially shown with special accessories

Gearhead drilling machine GHD 25 TN with digital display for drill depth

Art.Nr.: 01-1241B
Wishlist Comparison List

The GHD 25 TN gearhead - table drilling machine offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.

€2,628.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

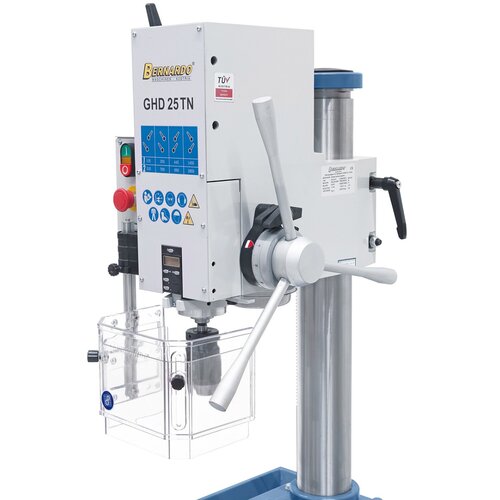

  • Digital display for drill depth increases comfort

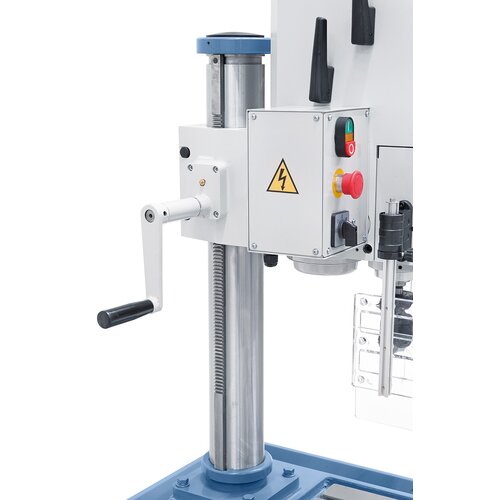

  • Drill head swivels 360° and can be adjusted in height

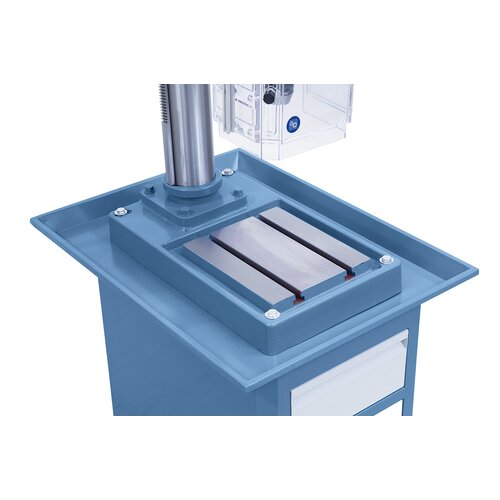

  • Large machine table with T-slots
  • Helical –teethed gearbox for optimal torque
  • Switch for direction of rotation, right and left turning, allows for thread cutting
  • High-quality ball bearings ensure optimal concentricity
  • Solid, polished steel column, designed for heavy workloads
  • Helical gears in combination steel against reinforced fiber material result in high efficiency and smooth run

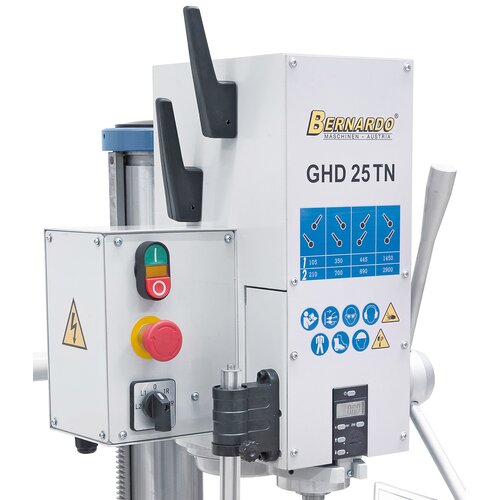

  • Powerful 2-step drive motor allows for 8 speed settings

Product Specifications

Drilling capacity max.

25 mm

Thread cutting max.

M10

Keyless drill chuck

1 - 16 mm / B 16

Morse taperx

MT 3

Spindle speed

(8) 105 - 2900 rpm

Distance spindle to column

255 mm

Distance spindle to base

535 mm

Spindle stroke

120 mm

Column diameter

100 mm

Working surface of base / T-slot size

250 x 290 mm / 14 mm

Motor power output S1 100%

0,65 / 1,2 kW (400 V)

Motor power input S6 40%

0,90 / 1,7 kW (400 V)

Machine dimension (W x D x H)*

500 x 570 x 1100 mm

Weight approx.

140 kg




* without stand

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1

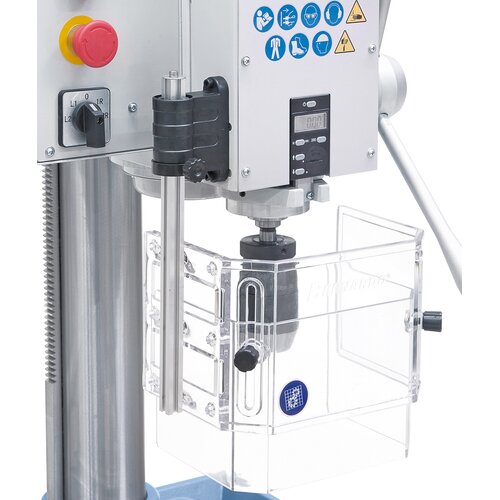

  • Digital drill depth indication
  • Automatic tool release device
  • Left and right turning
  • Height adjustable protective cover
