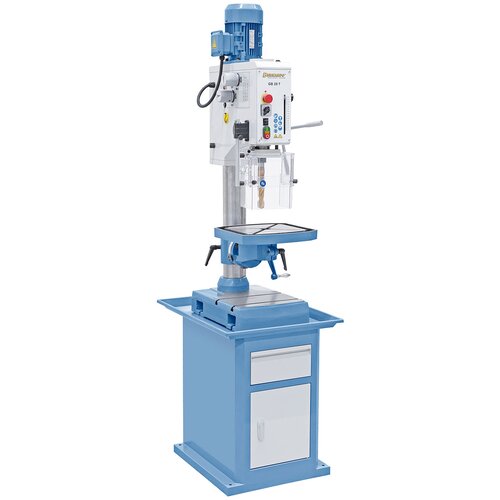

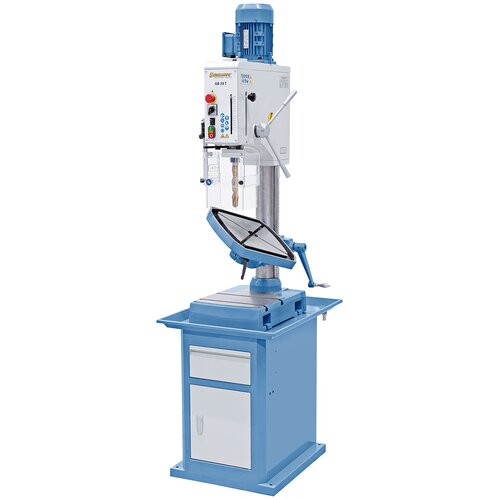

Stand optionally available
Stand optionally available
LED working light for optimum lighting
LED working light for optimum lighting

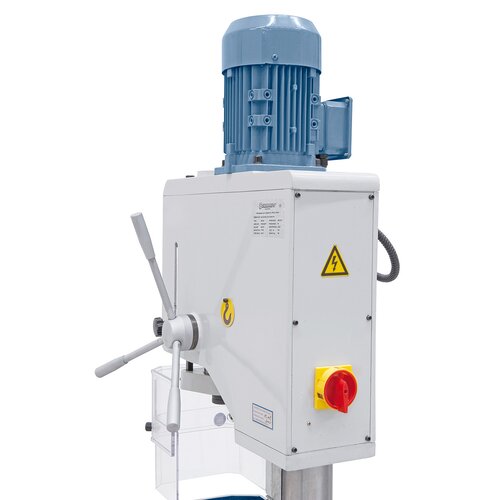

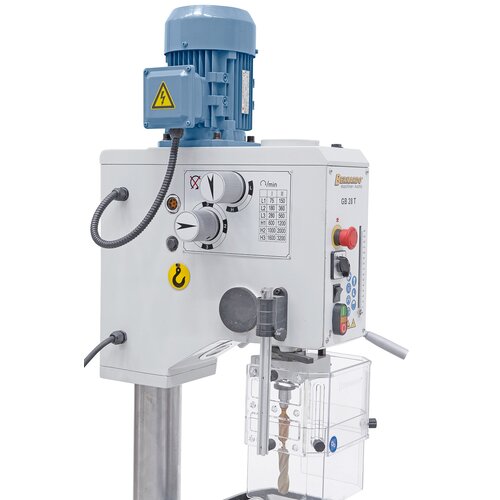

Ergonomically arranged handles guarantee smooth spindle feed.
Ergonomically arranged handles guarantee smooth spindle feed.

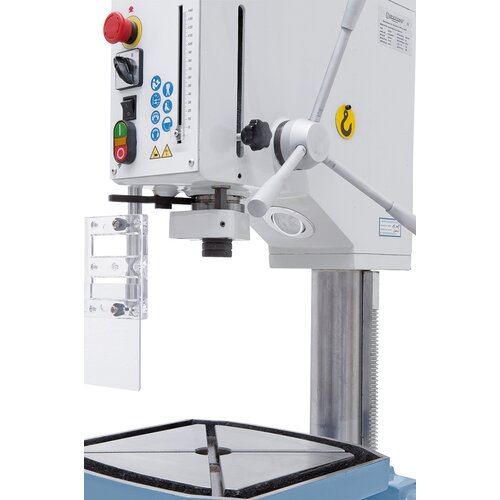

Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.
Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.

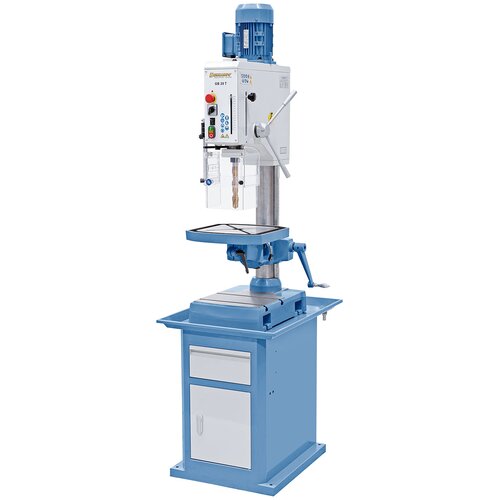

Stand optionally available
Stand optionally available
Stand optionally available
Stand optionally available
Stand optionally available

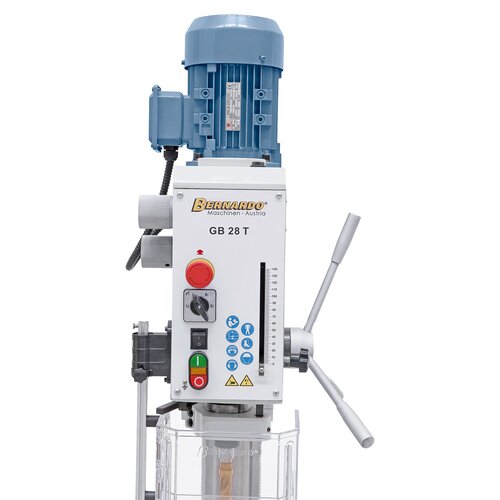

LED working light for optimum lighting

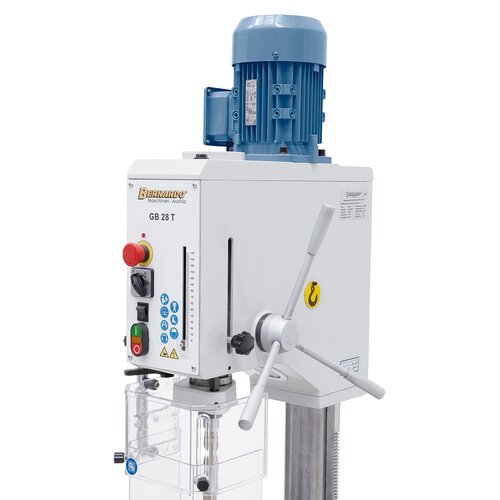

Ergonomically arranged handles guarantee smooth spindle feed.
Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.
Stand optionally available
Stand optionally available

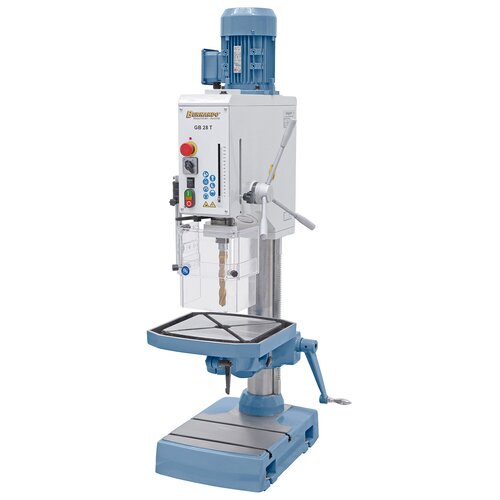

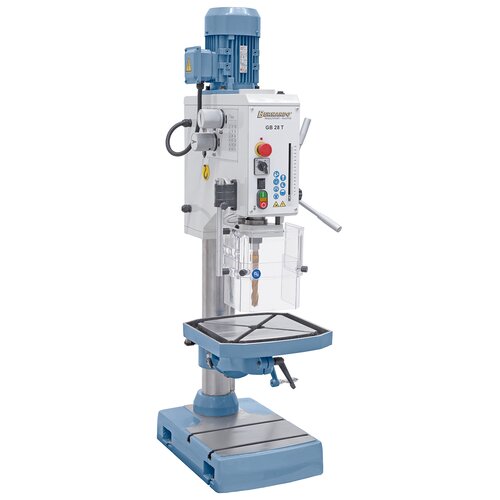

Gearhead drilling machine GB 28 T

Art.Nr.: 01-1246
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 28 T gearhead - table drilling machine offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.

€2,496.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Adjustable drill depth stop includes scale
  • Lever on gear head allows easy speed adjustment
  • High concentricity - spindle runs on high-quality bearings
  • Left and right rotation allows thread cutting
  • Automatic tool release device and LED working light come standard
  • Hardened, polished gear wheels ensure smooth run
  • Absolute concentricity ≤ 0,02 mm, measured at spindle
  • Solid, polished steel column is designed for constant use
  • Grey, cast-iron table includes T-slots and coolant grooves

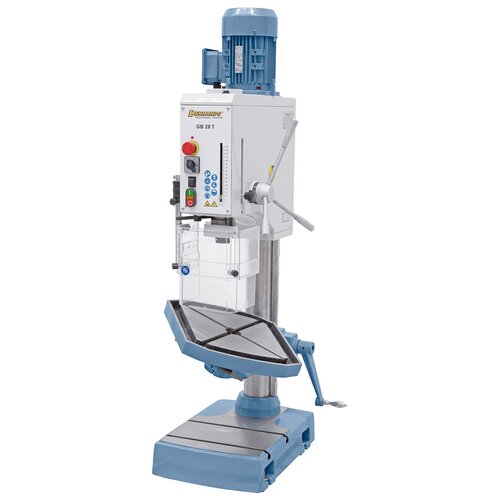

  • Solid work table (360° turnable), tiltable from -45° to +45°

Product Specifications

Drilling capacity max.

28 mm

Thread cutting max.

M12

Drill chuck

1 – 13 mm / B16

Morse taper

MT 3

Spindle speeds

(12) 75 – 3200 rpm

Distance spindle to column

250 mm

Distance spindle to table max.

355 mm

Distance spindle to base

620 mm

Spindle stroke

140 mm

Column diameter

100 mm

Working surface of base

335 x 335 mm

Table size / T-slot size

375 x 375 mm / 14 mm

Motor power putput S1 100%

0,85 kW / 1,1 kW (400 V)

Motor power input S6 40%

1,1 kW / 1,5 kW (400 V)

Machine dimension (W x D x H)*

375 x 620 x 1430 mm

Weight approx.

200 kg




* without stand

Delivery Contents

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2
  • Automatic tool release device
  • Left and right turning
  • Height adjustable protective cover
  • LED machine light
