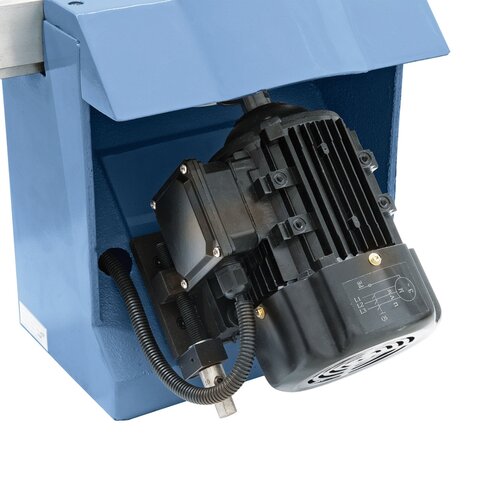

Powerful drive motor is smooth running and performs well

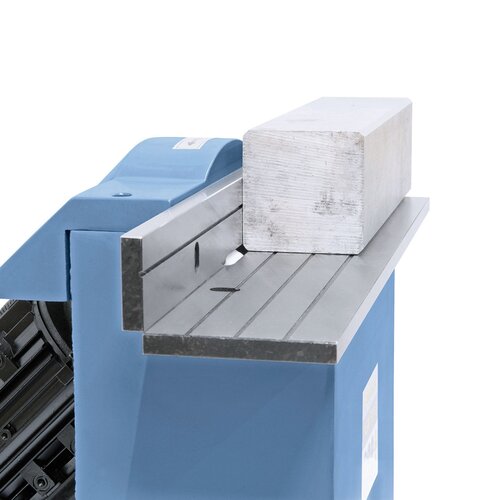

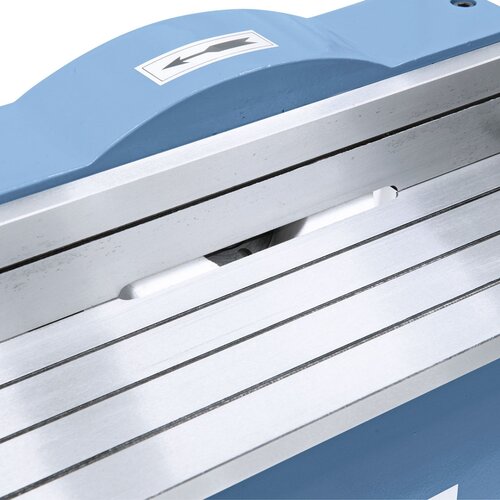

Large guide rail allows for secure workpiece support.

Hardened and grounded guide rails

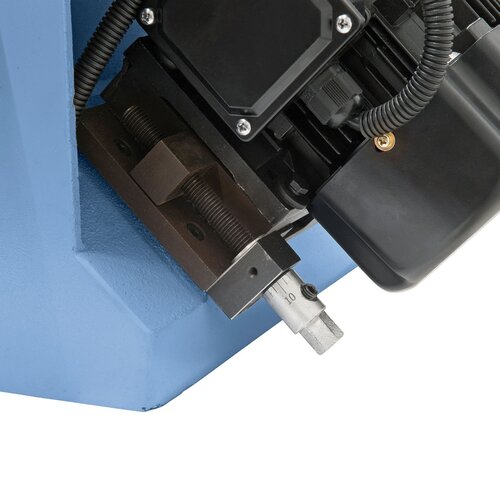

Stepless adjustment of bevel height with adjusting screw

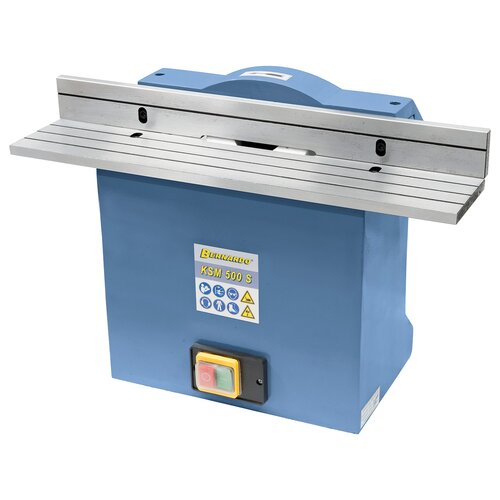

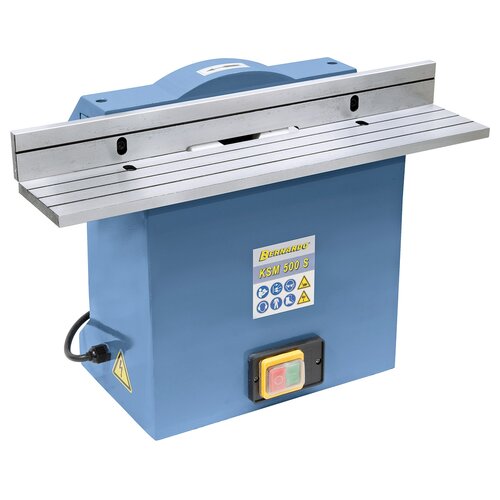

Edge sanding machine KSM 500 S

Art.Nr.: 05-1637

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The grinding wheel chamfer KSM 500 S is used for deburring and chamfering various materials, such as aluminium, copper, brass, plastics, etc., but also especially suitable for hard materials up to HRC63. This model is mainly used in the metal industry.

€949.20

incl. 20% VAT

Availability

Out of Stock

Product Properties

Best suited for deburring and chamfering (45 °) of straight edges

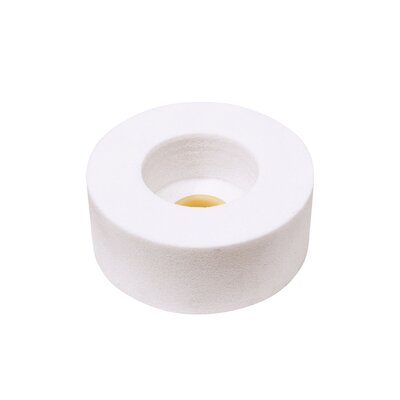

As standard with corundum grinding wheel, ideally suited for hardened materials up to HRC63, but also for aluminum, non-ferrous materials, plastics, etc.
Sturdy and simple grinding wheel chamfer for machining small and medium workpieces from 2 mm thickness
Low cost model for light to mid-range demands
High own weight for vibration-free work

Product Specifications

Max. bevel width at 45°	5 mm
Angle adjustment	45°
Guide rail	500 mm
Speed	2800 rpm
Motor power	0,55 kW
Voltage	400 V
Machine dimension (L x W x H)	500 x 360 x 360 mm
Weight approx.	37 kg
