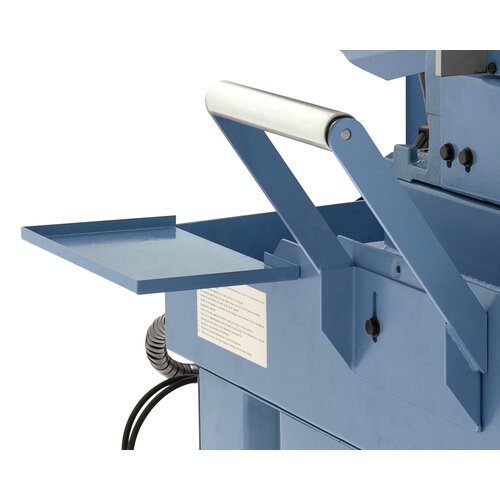

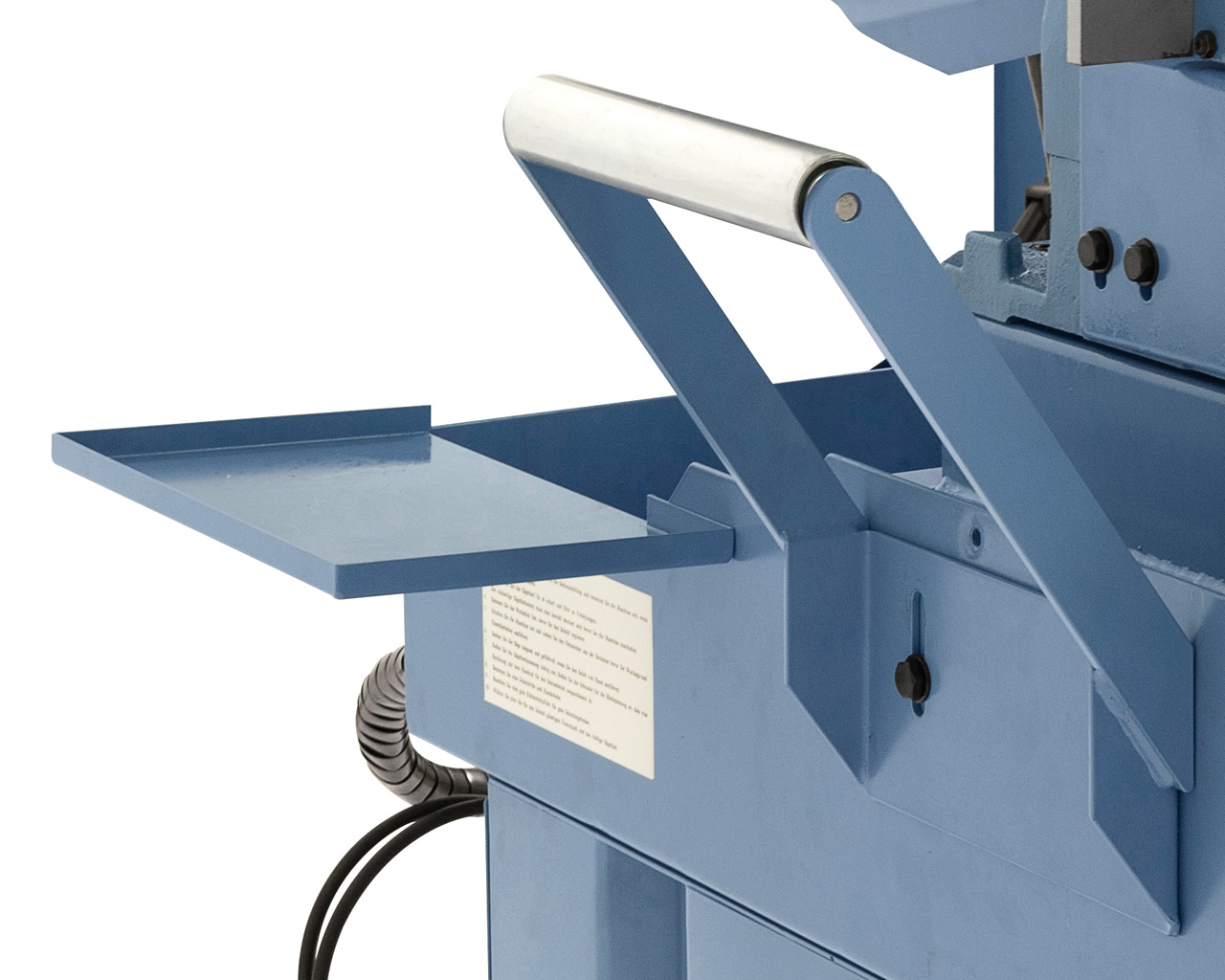

Serially with roller support for holding up workpieces
Serially with roller support for holding up workpieces

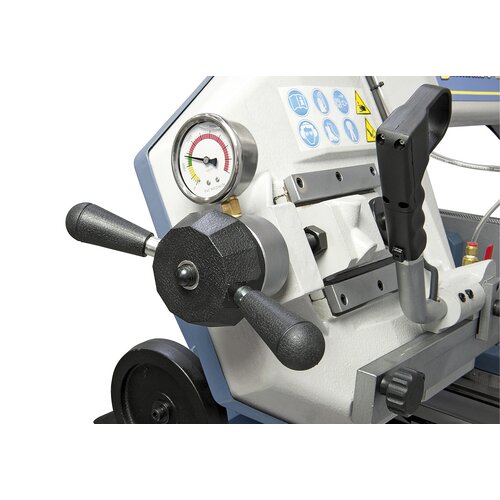

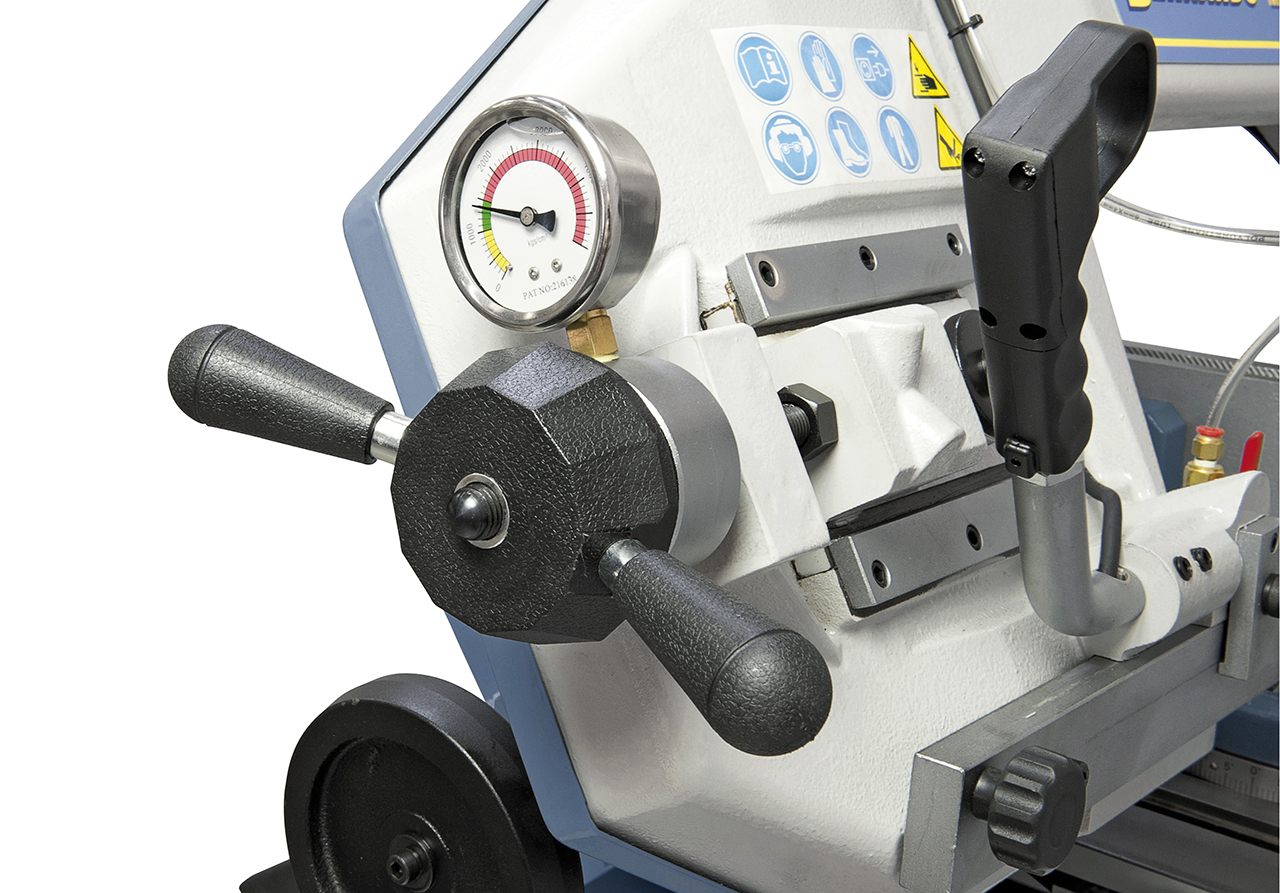

Manometer guarantees correct blade tension.
Manometer guarantees correct blade tension.

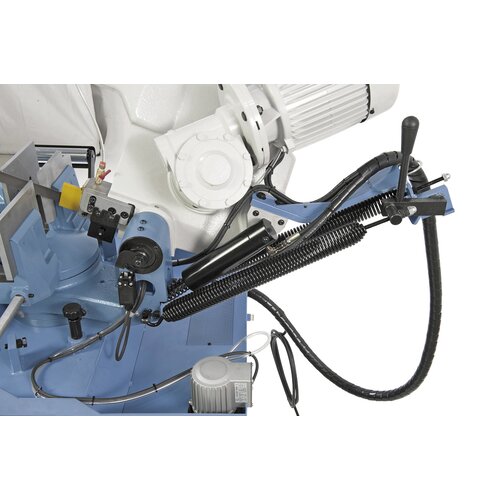

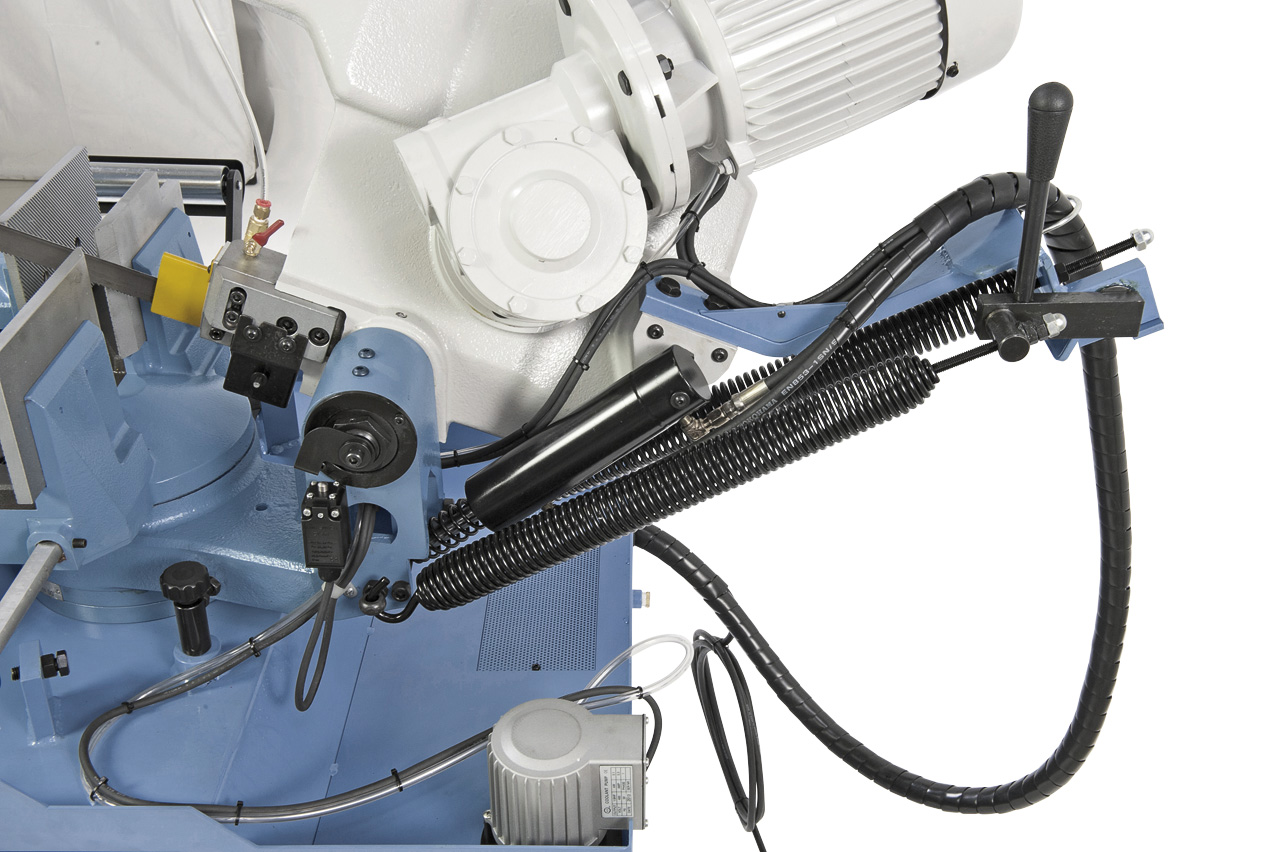

Tension spring with lever allows change to manual mode.
Tension spring with lever allows change to manual mode.

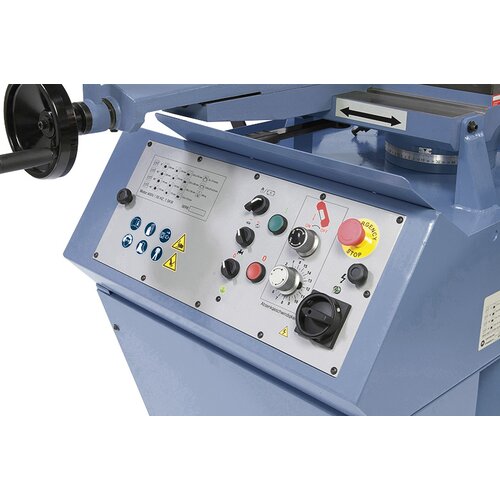

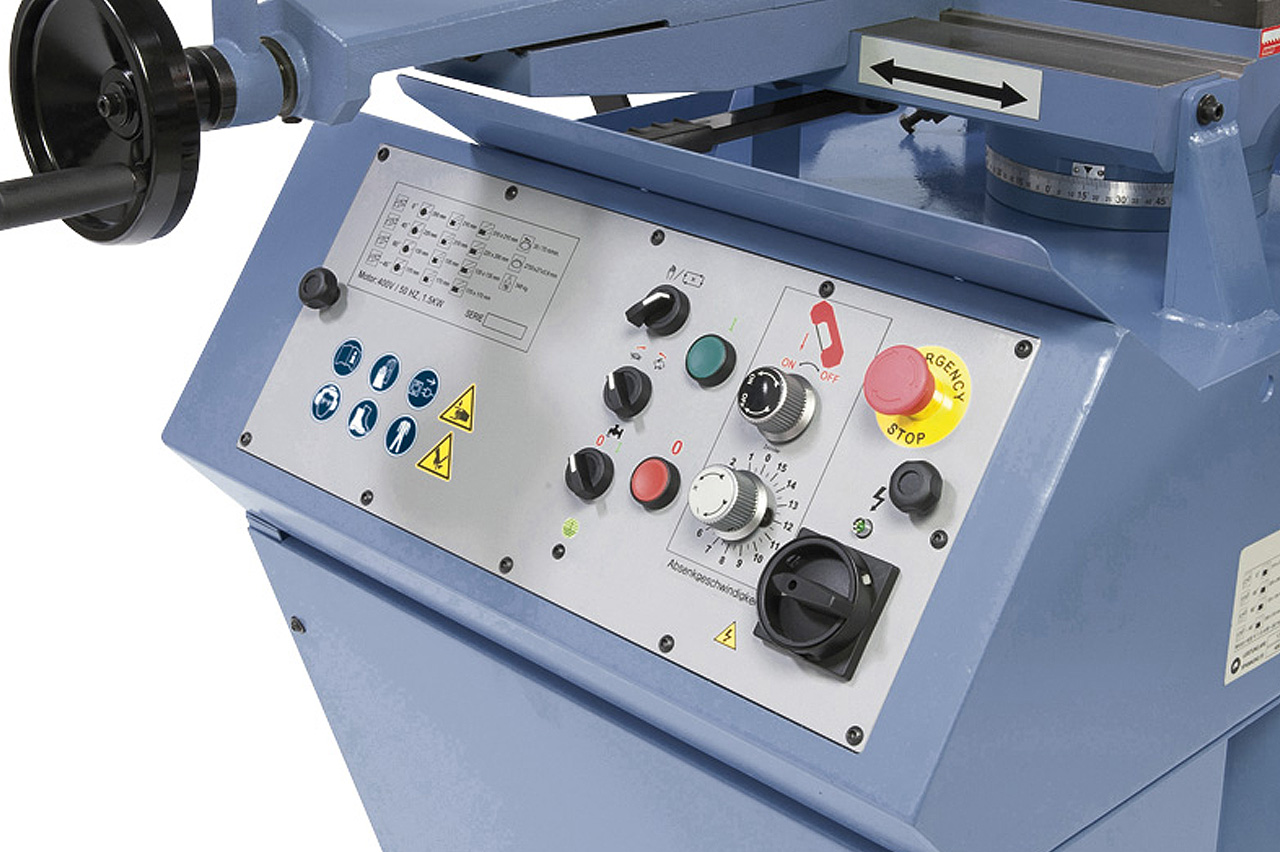

Convenient adjustment of lowering speed of the saw frame
Convenient adjustment of lowering speed of the saw frame

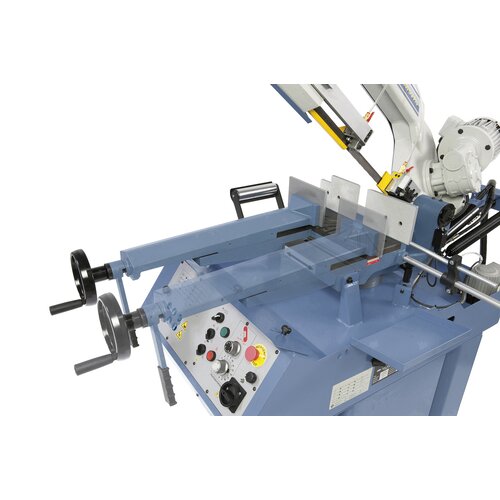

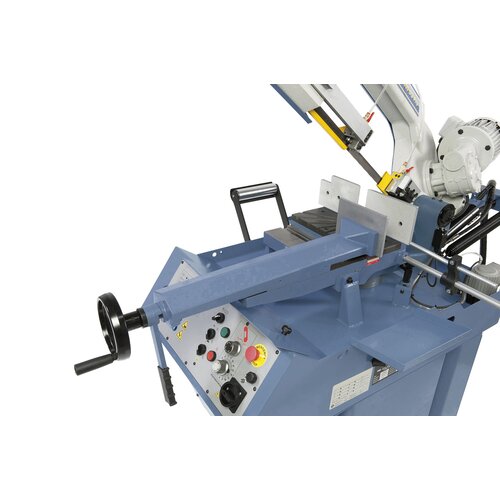

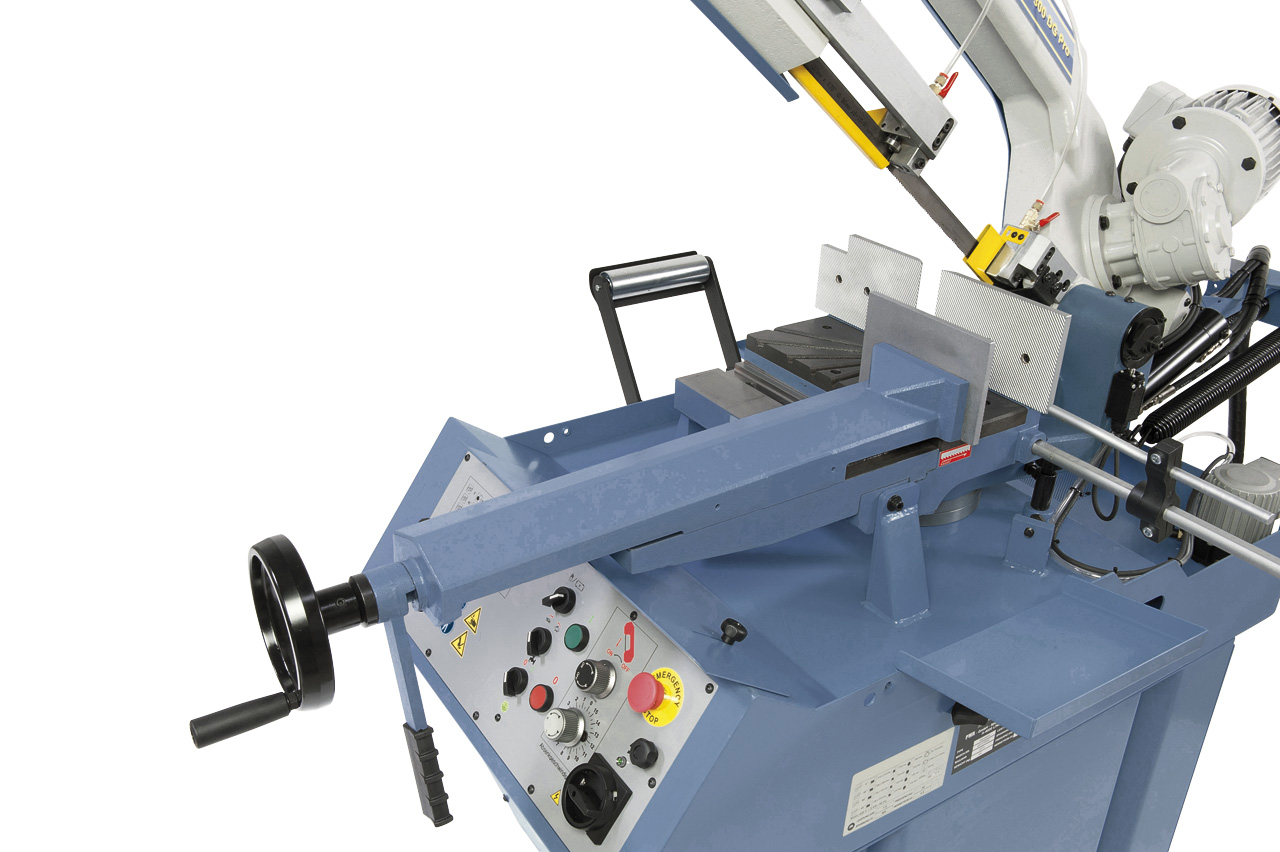

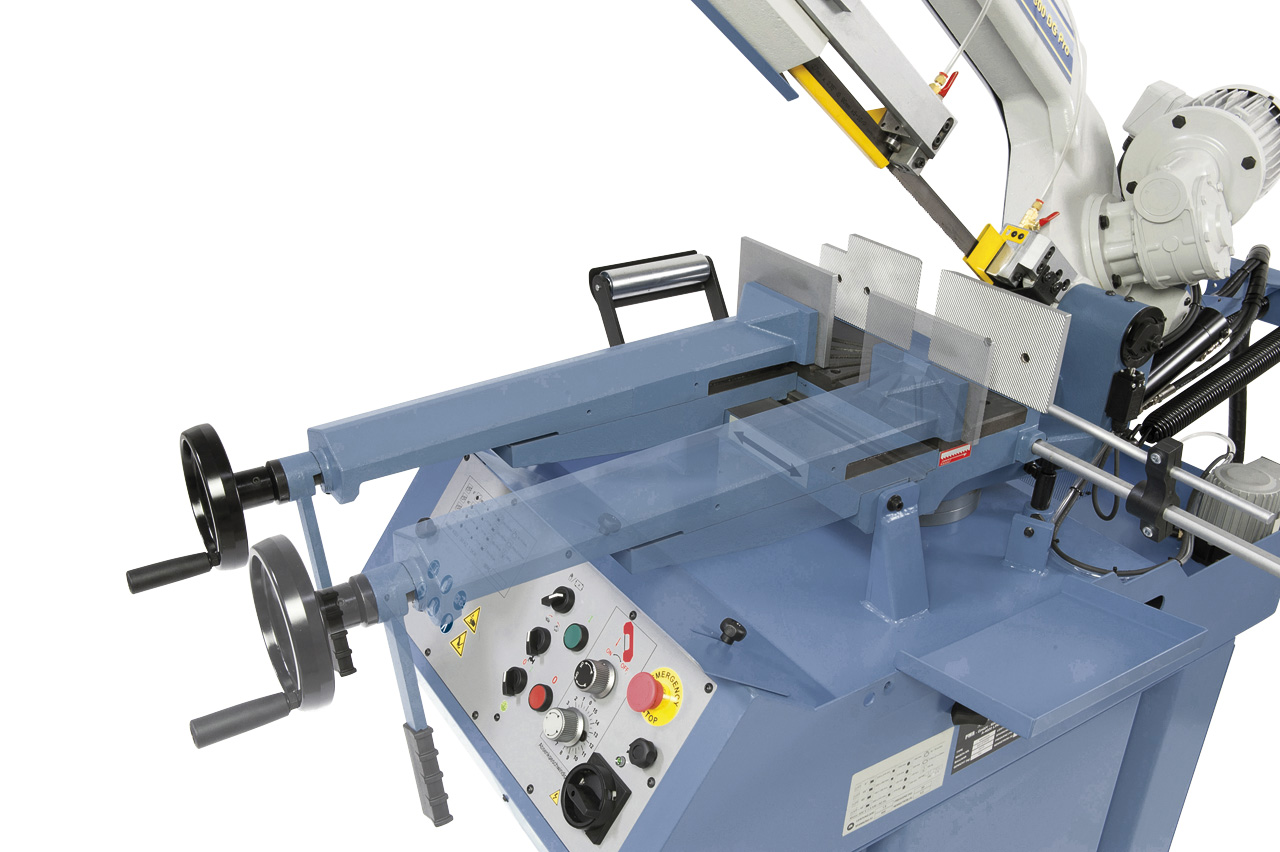

Quick clamp vice can be adjusted for double mitre cutting.
Quick clamp vice can be adjusted for double mitre cutting.

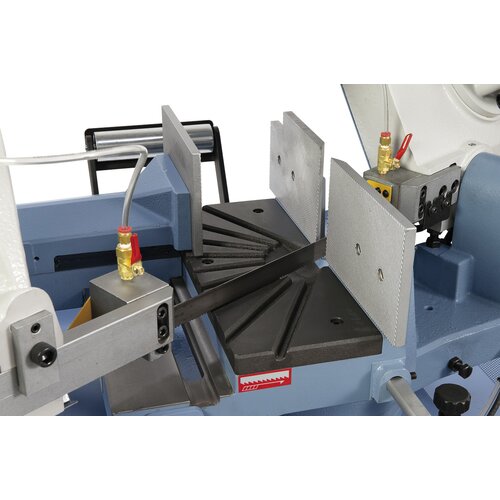

Bandsaw blade guiding with carbide inserts and chip brush to allow for optimal results
Bandsaw blade guiding with carbide inserts and chip brush to allow for optimal results

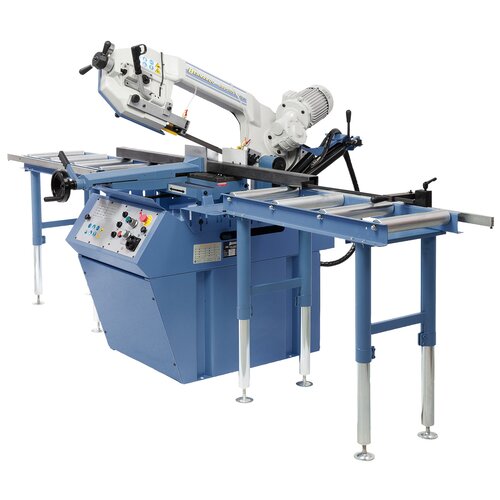

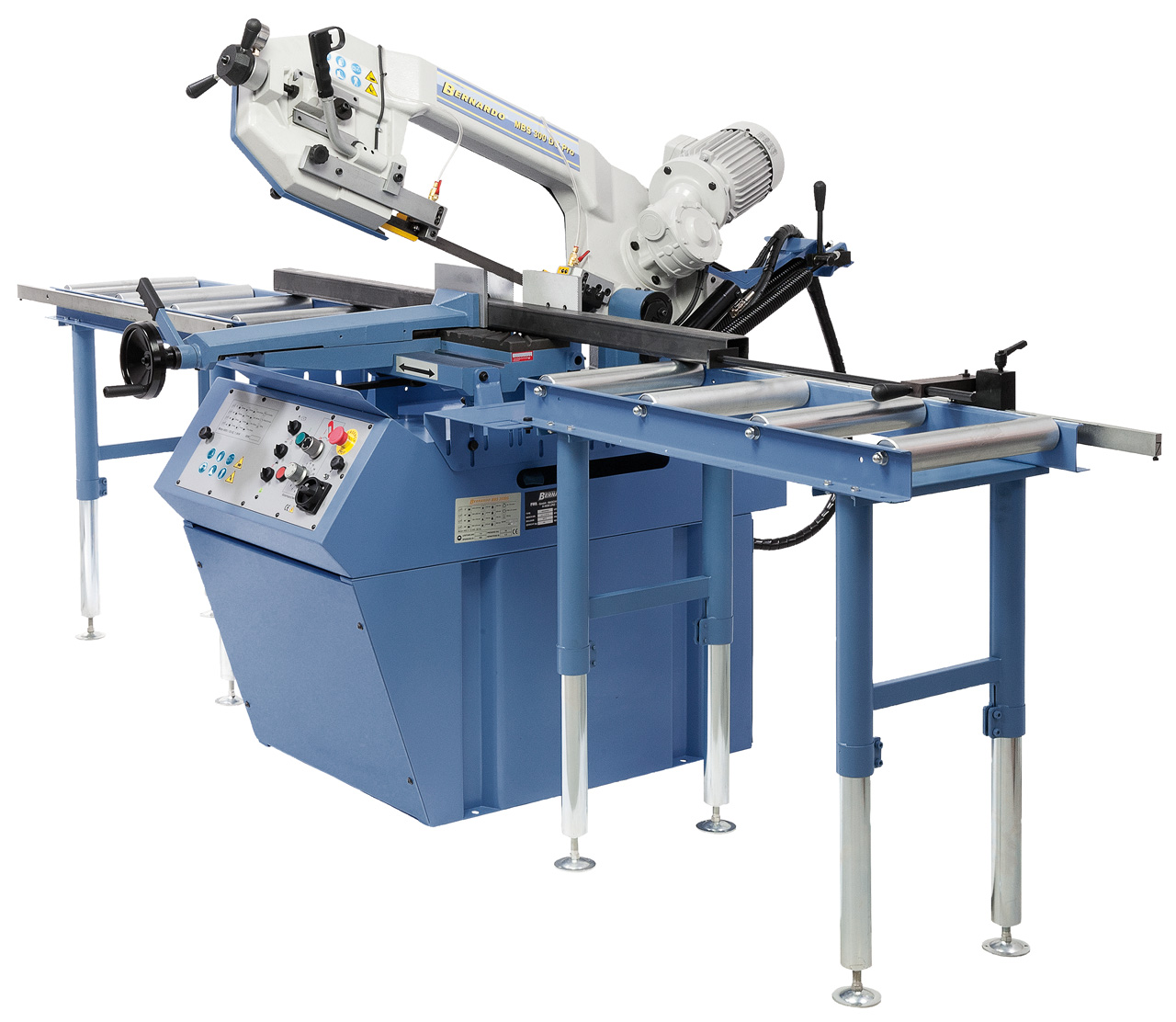

Picture shows roller table, ideal for operating with long workpieces.
Picture shows roller table, ideal for operating with long workpieces.
Serially with roller support for holding up workpieces
Manometer guarantees correct blade tension.
Tension spring with lever allows change to manual mode.
Convenient adjustment of lowering speed of the saw frame

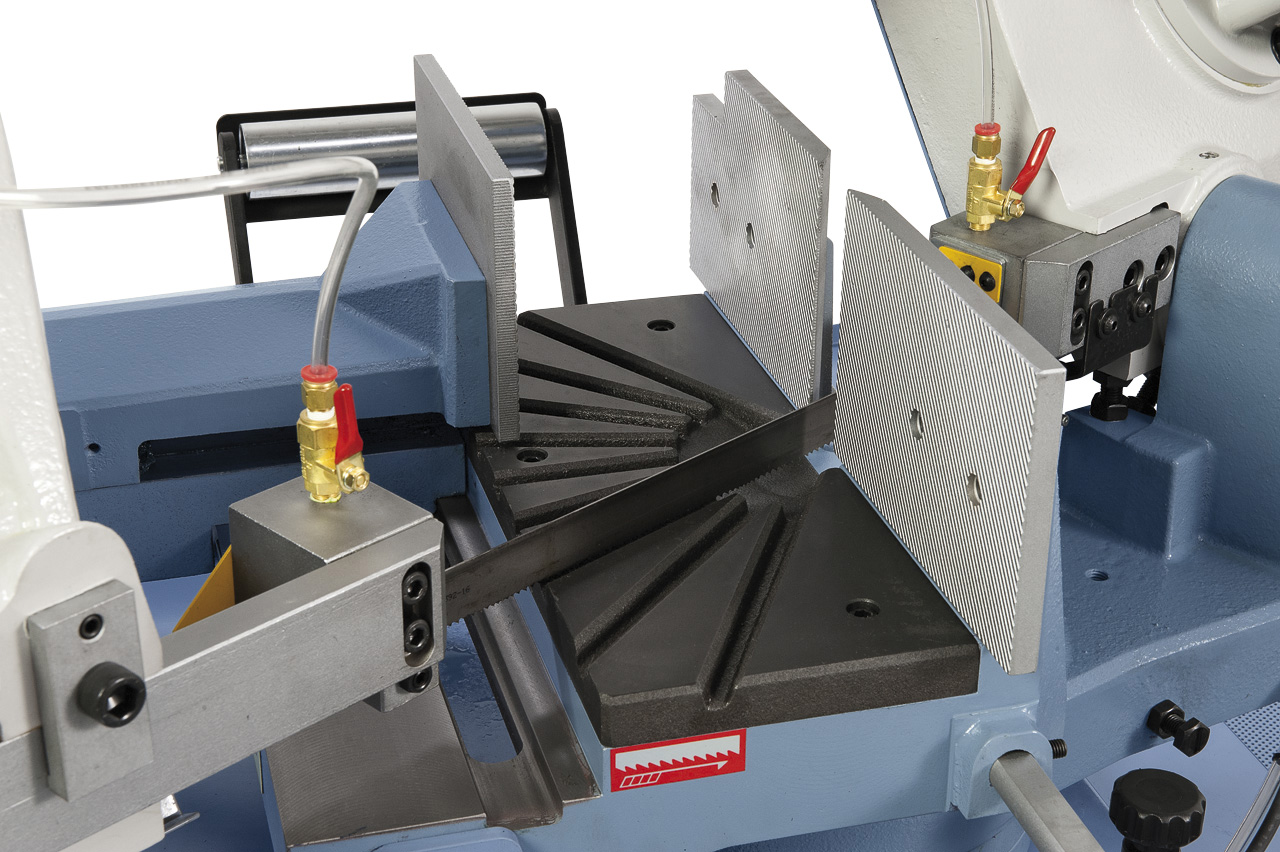

Quick clamp vice can be adjusted for double mitre cutting.
Bandsaw blade guiding with carbide inserts and chip brush to allow for optimal results
Picture shows roller table, ideal for operating with long workpieces.

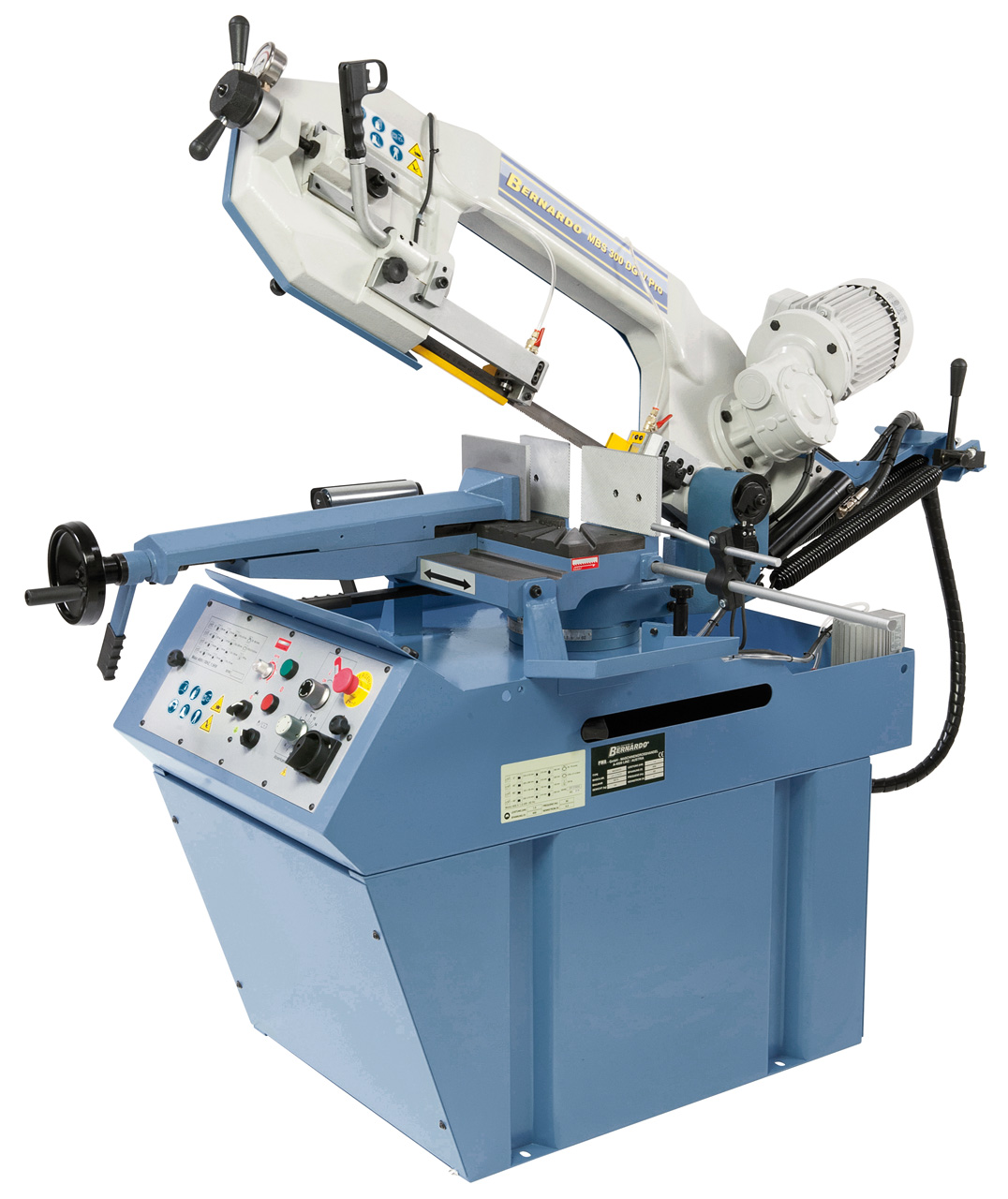

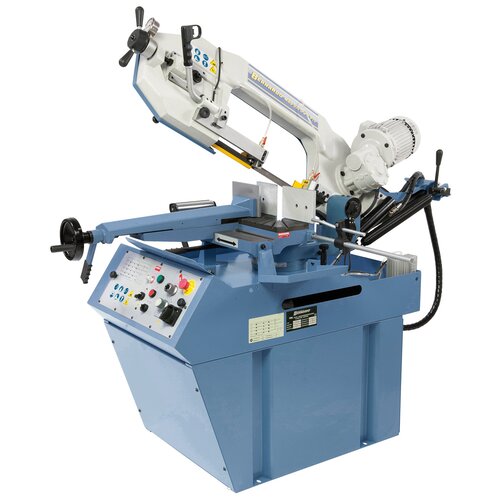

Double mitre bandsaw MBS 300 DG-V PRO / 400 V

Art.Nr.: 04-1708
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 300 DG PRO is a compact double mitre band saw, serially equipped with a device to change to manual mode. Further features include the adjustable quick clamp vice, the band tension manometer an the pressure regulator for the saw frame (via valve), positioned on the front of the machine. Additional, this model comes complete with variable cutting speed for ideal adjustment to each workpiece.

€6,108.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Professional bandsaws for universal use at workshops, locksmith shops etc.
  • For cutting of hollow profile and full rivet material, stainless steel, tool steel, ...
  • Torsion-free, strong spheroidal cast iron saw frame
  • Easy adjustment of variable cutting speed
  • Saw frame pressure regulated by adjustable hydraulic cylinder
  • Saw frame tilts 45° left and 60° right to allow mitre cutting to both sides
  • High-quality materials ensure a quiet, vibration-free run
  • Solid grey cast-iron vice features quick clamping
  • Bandsaw blade guiding with quick adjustment to the workpiece, guarantees optimal results

Product Specifications

Cutting capacity round / square 90°

255 mm / 210 x 210 mm

Cutting capacity flat 90°

310 x 210 mm

Cutting capacity round / square 45° R

220 mm / 210 x 210 mm

Cutting capacity flat 45° R

220 x 200 mm

Cutting capacity round / square 45° L

230 mm / 200 x 200 mm

Cutting capacity flat 45° L

230 x 200 mm

Cutting capacity round / square 60° R

135 mm / 135 x 135 mm

Cutting capacity flat 60° R

135 x 135 mm

Working height

930 mm

Bandsaw blade dimensions

2750 x 27 x 0,9 mm

Cutting speeds

20 – 80 m/min

Coolant pump S1 100%

100 W

Motor power output S1 100%

1,5 kW

Motor power input S6 40%

2,2 kW

Voltage

400 V

Machine dimensions (L x D x H)

2000 x 1250 x 1900 mm

Weight approx.

350 kg

Delivery Contents

  • Bandsaw blade
  • Material fence
  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down
  • Stand
