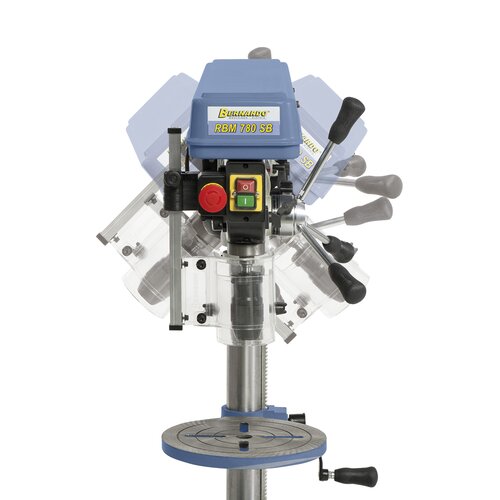

Drill head features stepless tilting device ranging from -90° to +45°
Drill head features stepless tilting device ranging from -90° to +45°

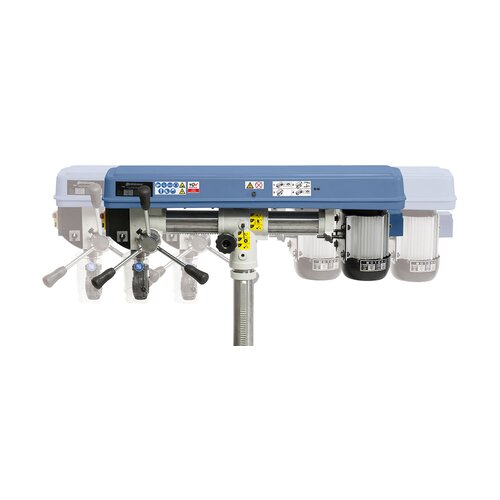

Stepless adjustment of drill head
Stepless adjustment of drill head

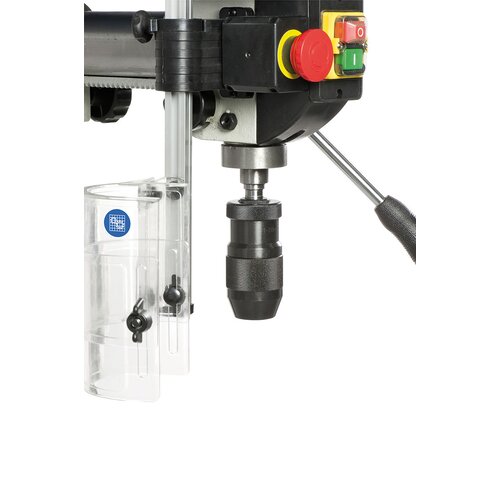

Standard: Keyless drill chuck 1 - 16 mm / B 16
Standard: Keyless drill chuck 1 - 16 mm / B 16

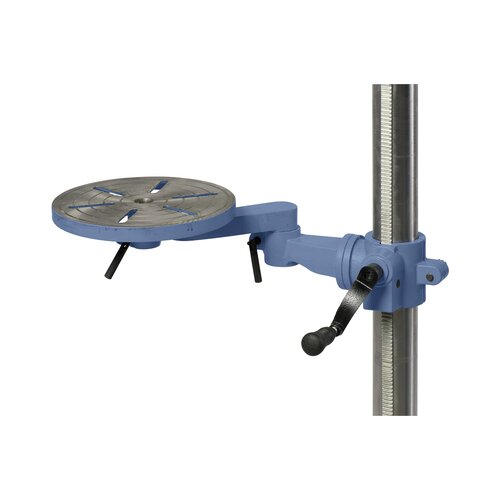

Work table swivel 360° which is ideal for coordinate dilling
Work table swivel 360° which is ideal for coordinate dilling
Drill head features stepless tilting device ranging from -90° to +45°
Stepless adjustment of drill head
Standard: Keyless drill chuck 1 - 16 mm / B 16
Work table swivel 360° which is ideal for coordinate dilling

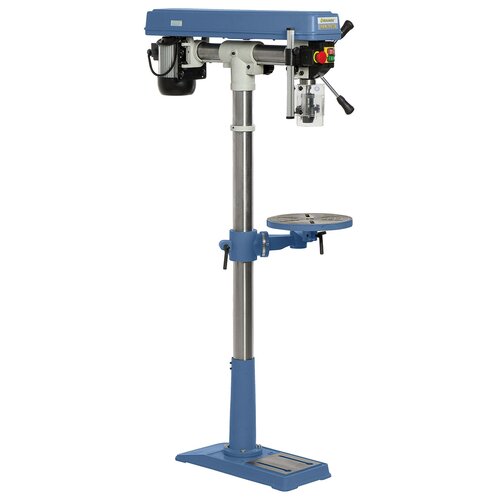

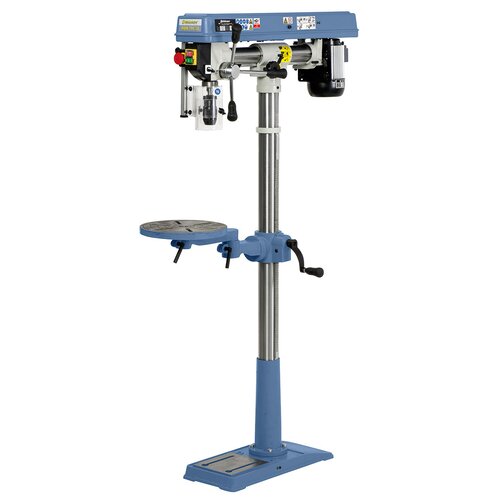

Column drilling machine RBM 780 SB / 230 V

Art.Nr.: 01-1136
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The RBM 780 SB features the same construction as the RBM 780 T. The column guiding guarantees hassle-free processing of larger workpieces.



€550.80

incl. 20% VAT

Availability

Deliverable Soon
Deliverable by Jul 6, 2025

Product Properties

  • High concetricity, spindle seated in precision ball bearings
  • Safety switch in accordance with the IP 54 standard features undervoltage release
  • Solid, smooth steel column comes with gear rack for table height adjustment
  • Work table tilts -45° to +45° and turns 360°
  • High-quality ball bearings ensure high spindle concentricity
  • Large machine base increases stability
  • Extendable, turn- and tiltable drill head ensures high productivity
  • Grey cast iron pulleys ensure smooth operation
  • Ergonomically positioned handles allow for high operating comfort

Product Specifications

Drilling capacity max.

16 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 2

Distance spindle to column min./max.

120 - 380 mm

Spindle speeds

(12) 300 - 2550 rpm

Drill head tiltable

-90° to +45°

Spindle stroke

60 mm

Column diameter

72 mm

Table size

Ø 290 mm

Working surface of base

185 x 200 mm

Motor power output S1 1 100%

0,55 kW

Motor power input S6 40%

0,80 kW

Voltage

230 V

Machine dimension (W x D x H)

320 x 1000 x 1610 mm

Weight approx.

54 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • T-slot nuts
  • Separate emergency stop switch
  • Height adjustable protective cover
  • Tools
