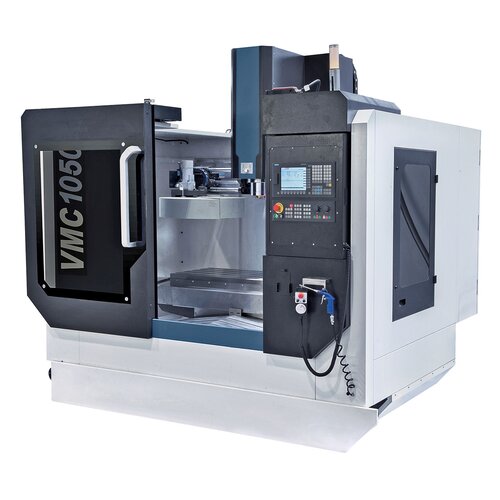

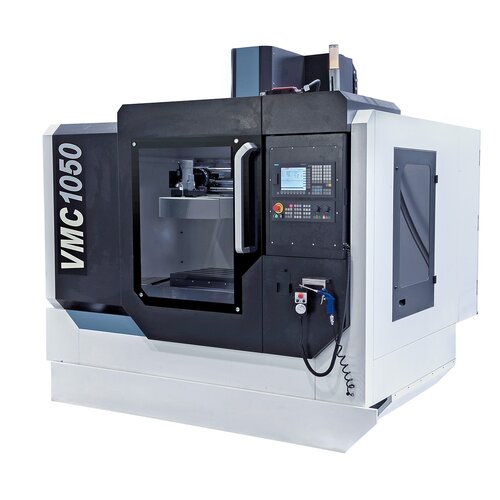

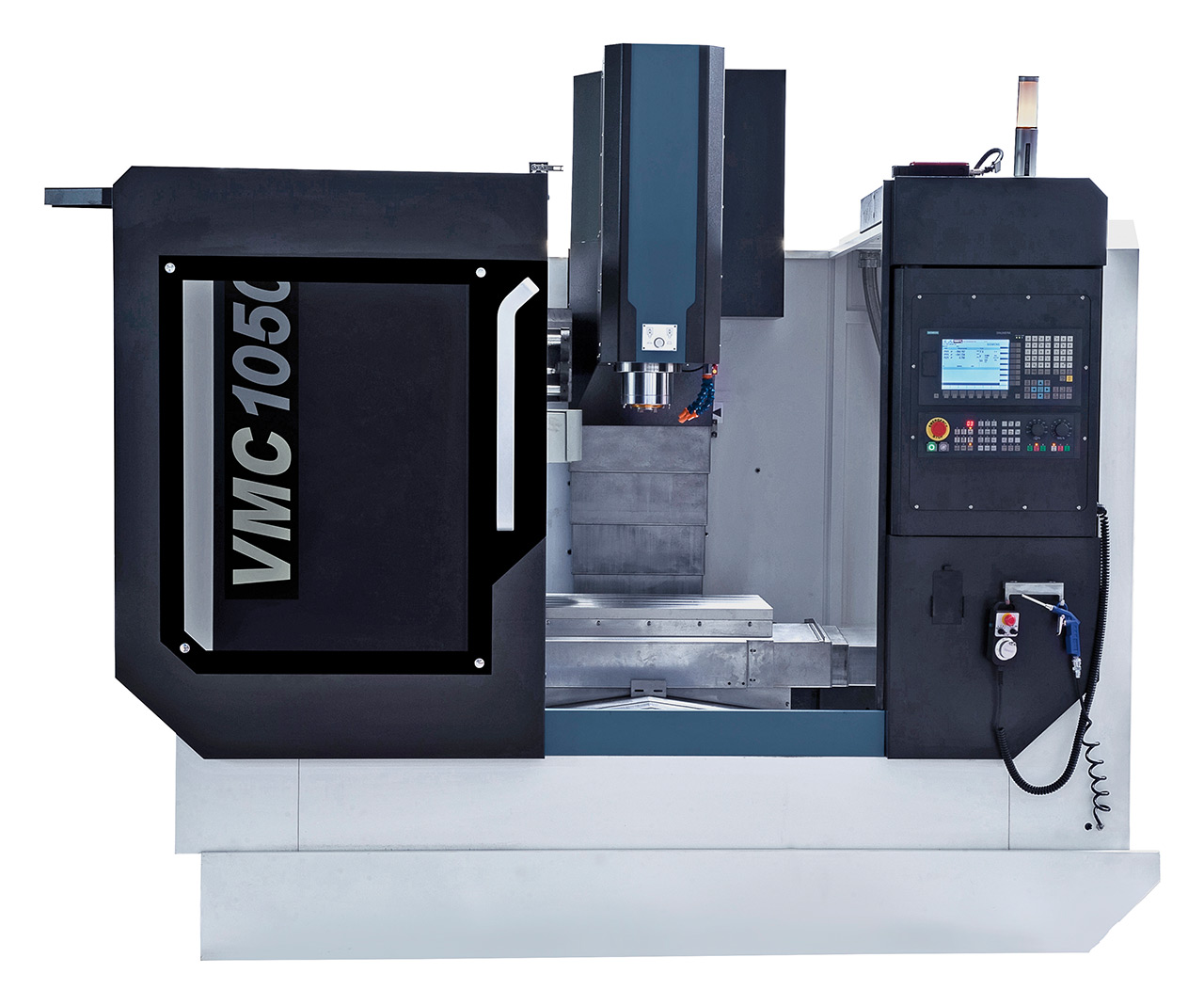

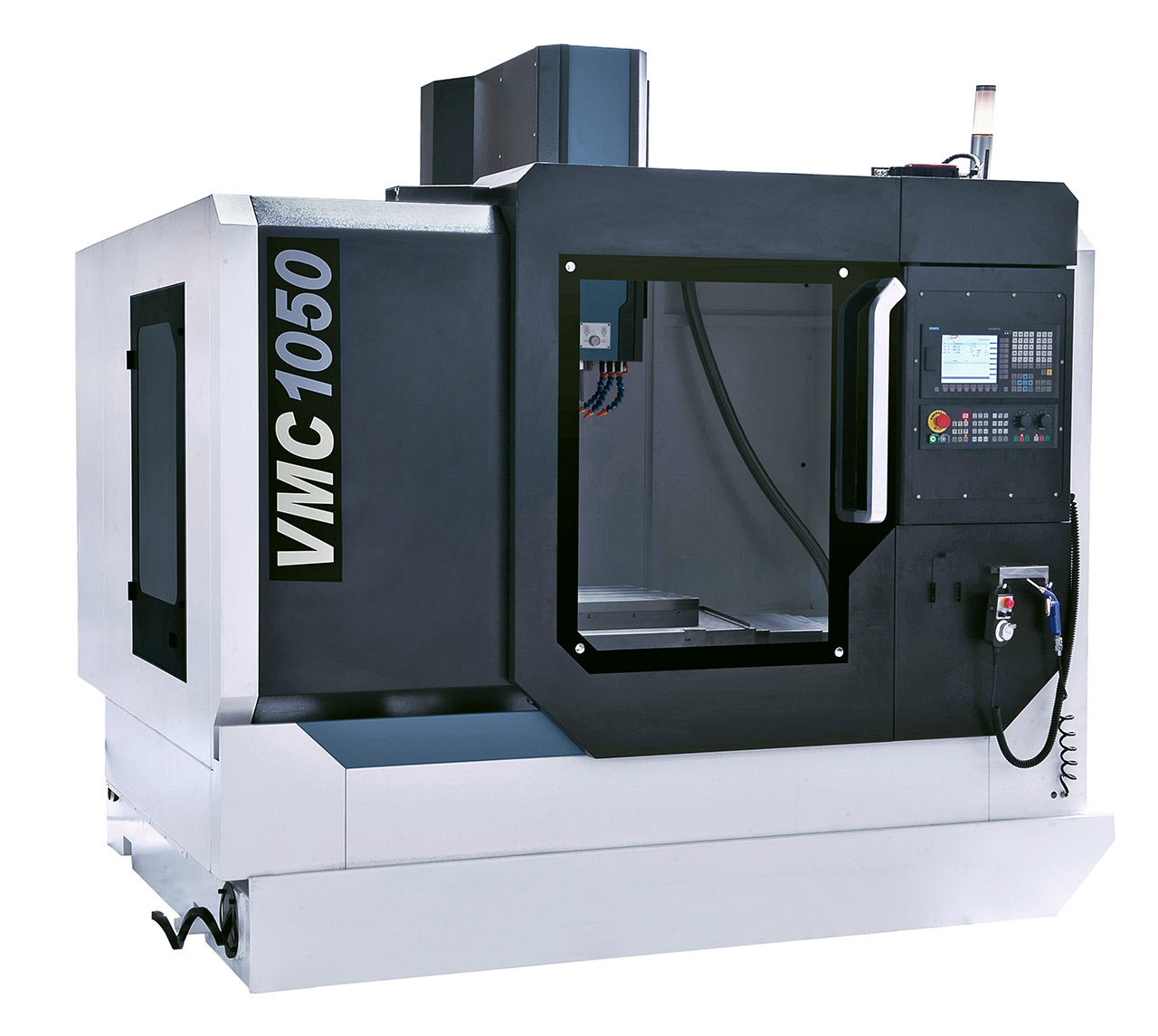

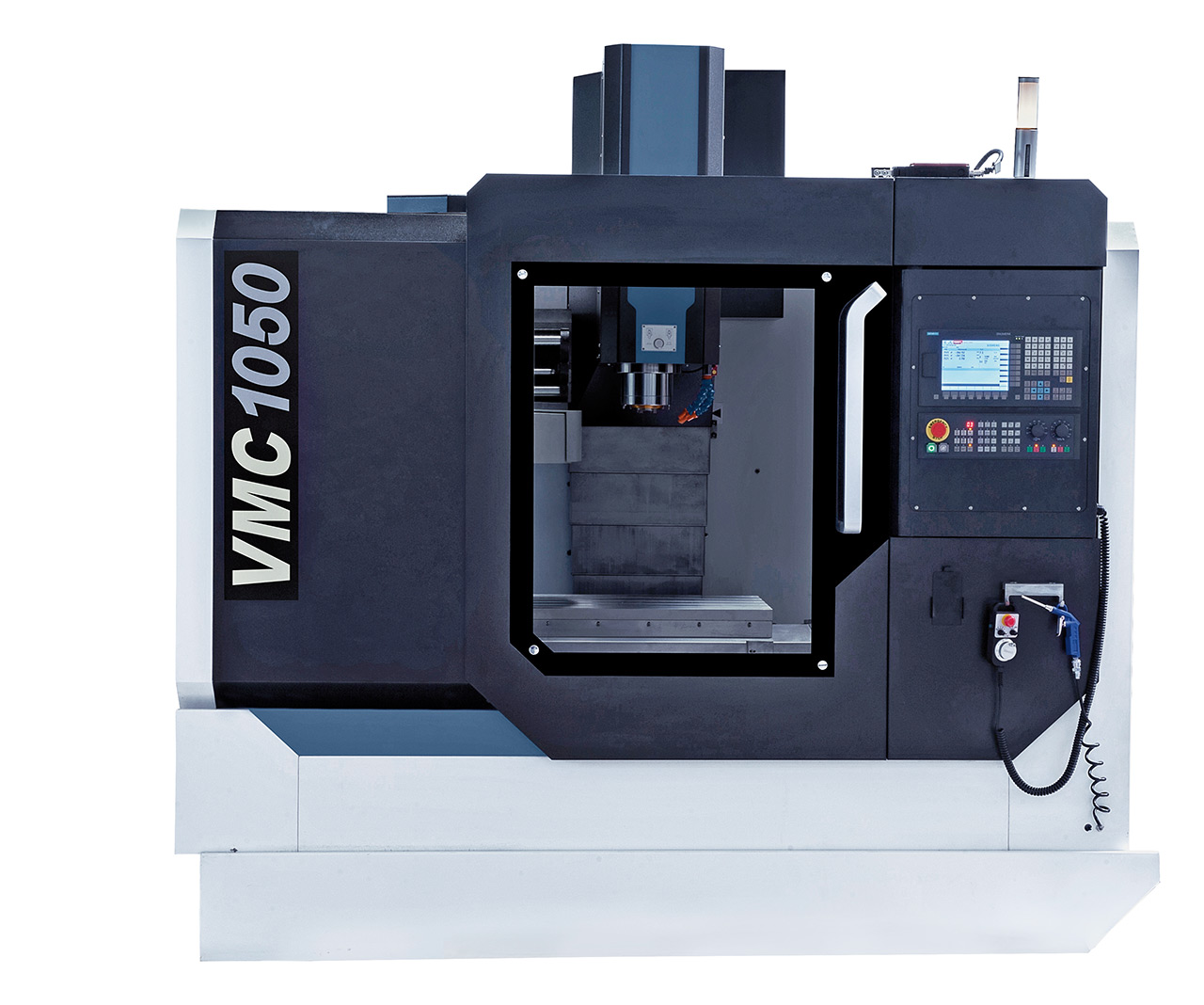

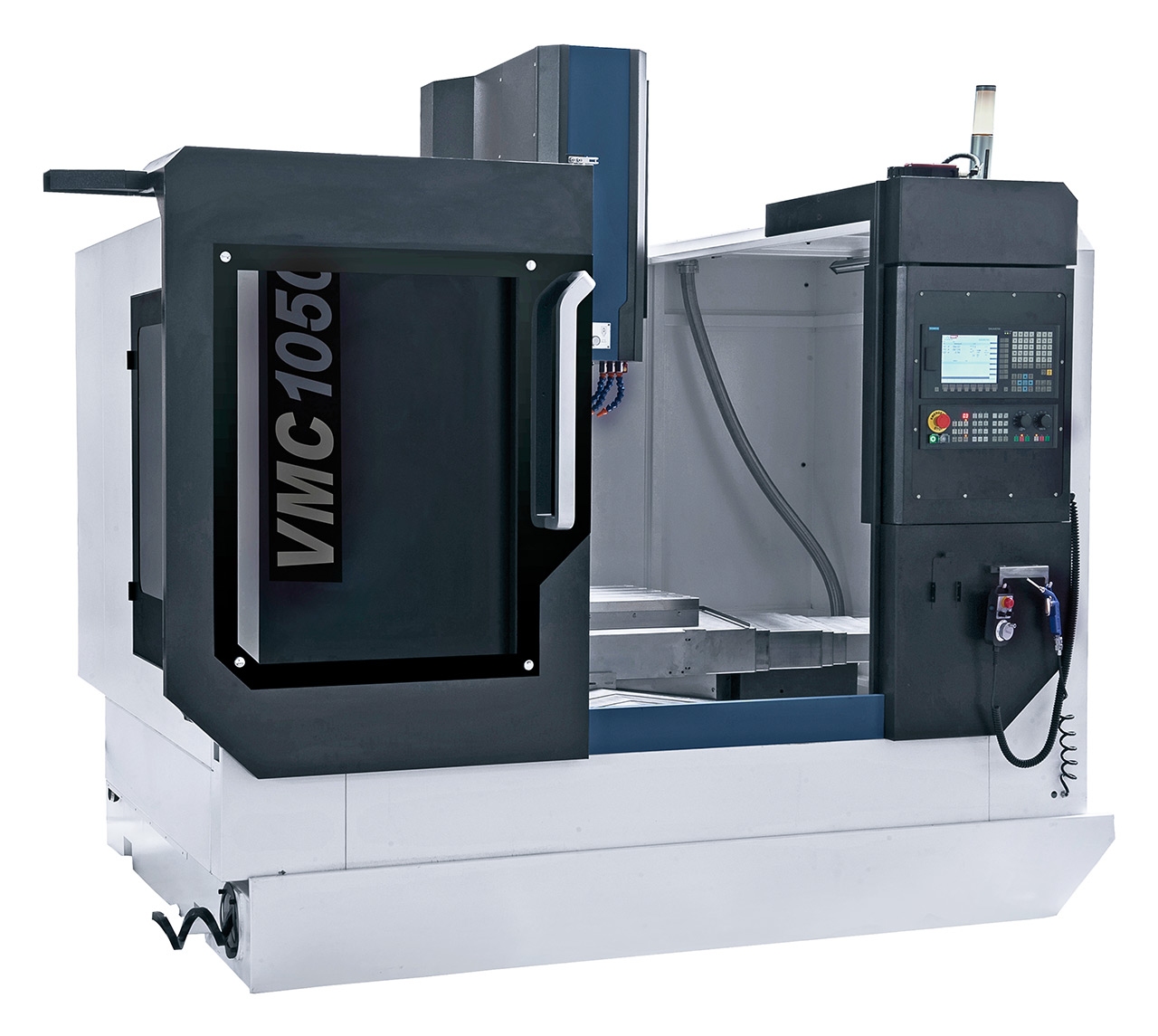

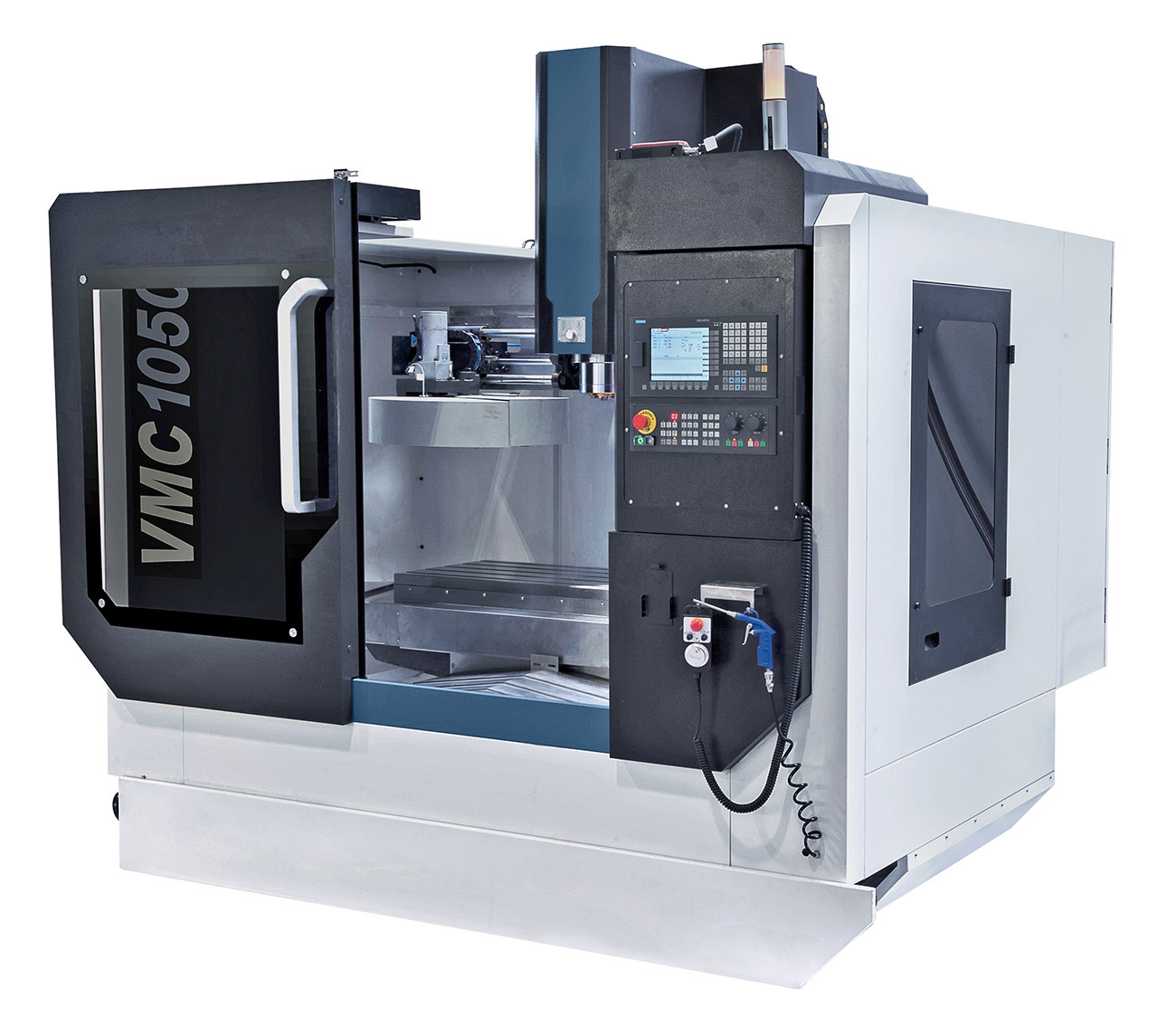

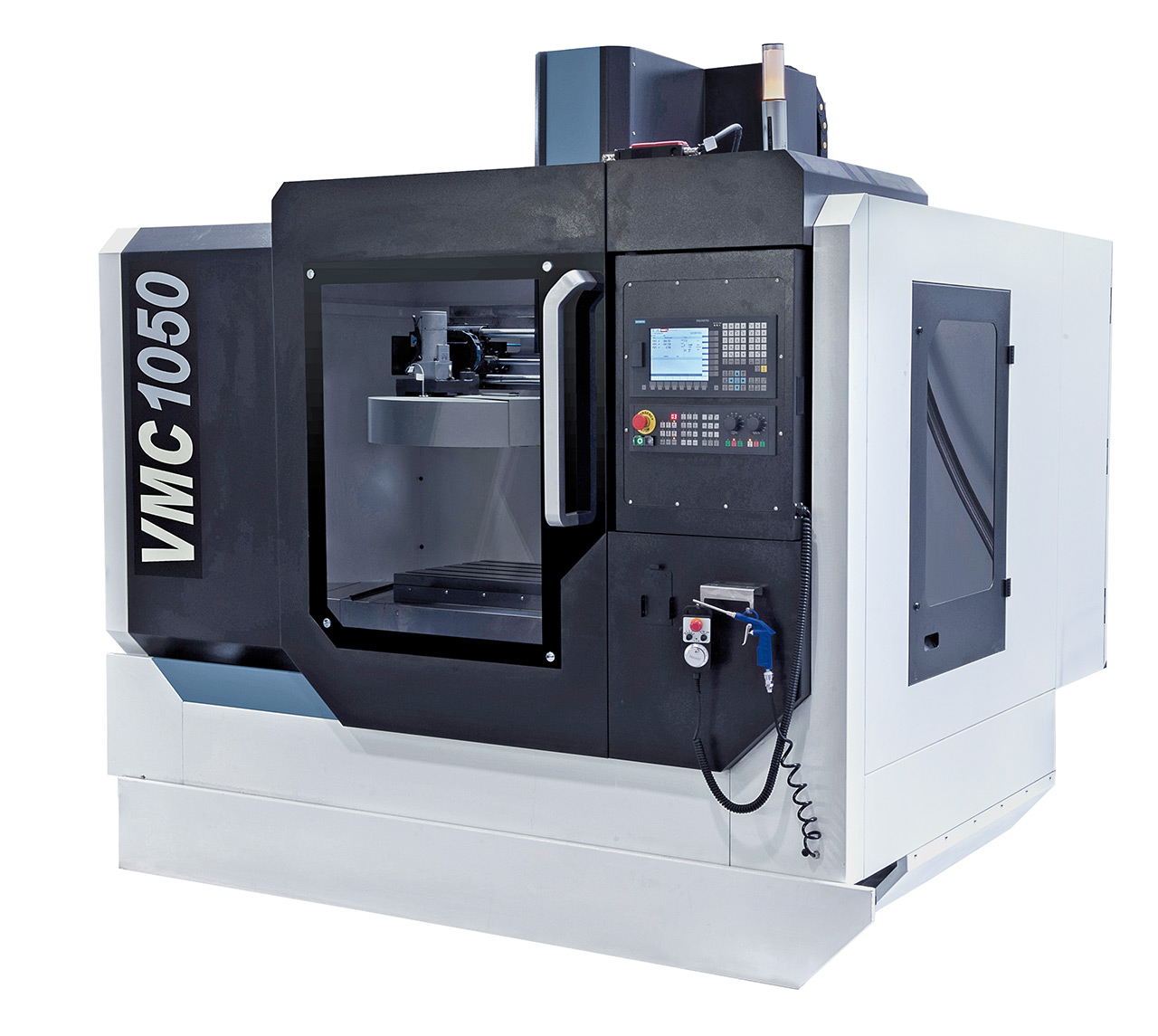

CNC-vertical-machining centre VMC 1050 with Siemens control SINUMERIK 808D Advanced 16
Art.Nr.: 02-1347XLThe CNC vertical machining center VMC 1050 is alternatively equipped with a Siemens Sinumerik 808D Advanced 16 or 828D controller and a 16-station tool changer. Due to the compact design, a table size of 1000 x 500 mm and the large travel distances, this model is ideal for machining small and medium-sized series in production, but also for the production of individual parts in mold and machine construction as well as in the training sector, this model is used successfully.
€58,560.00
incl. 20% VATAvailability
Product Properties
- Precision linear guides and powerful servo drives for high rapid traverse speeds in all axes and high workpiece load
- Machine enclosure with a sliding door and two side doors for easy access
- High efficiency due to the extensive standard equipment as well as a large number of optional accessories
- Stable cast frame in rigid bed construction for smooth running and best milling performance

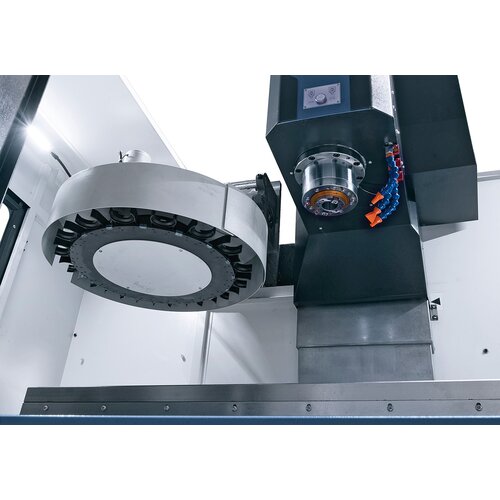

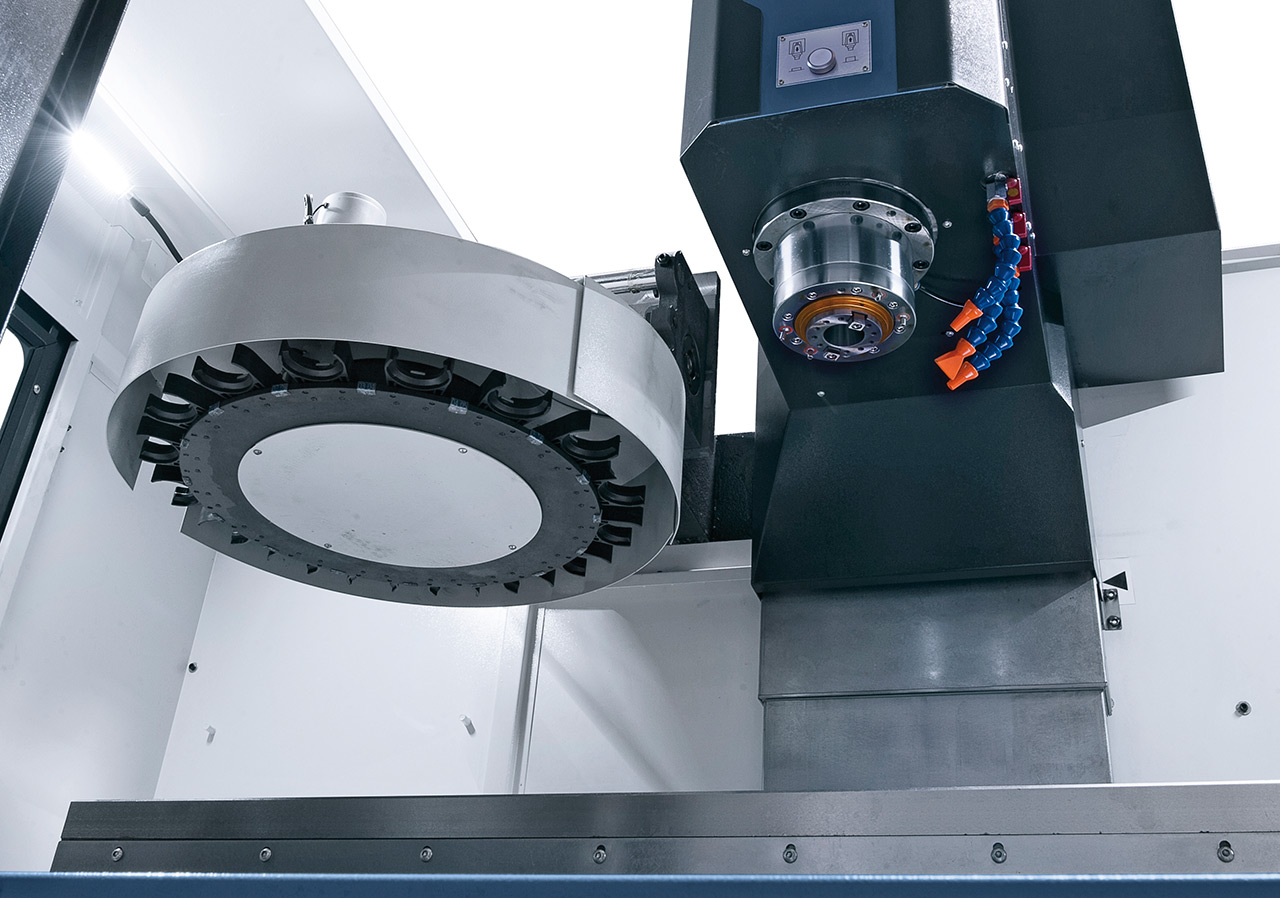

- Automatic 16-station tool changer in carousel construction
- Precision ball screws with preloaded nuts in all 3 axes
- Central lubrication for guide ways and ball screws

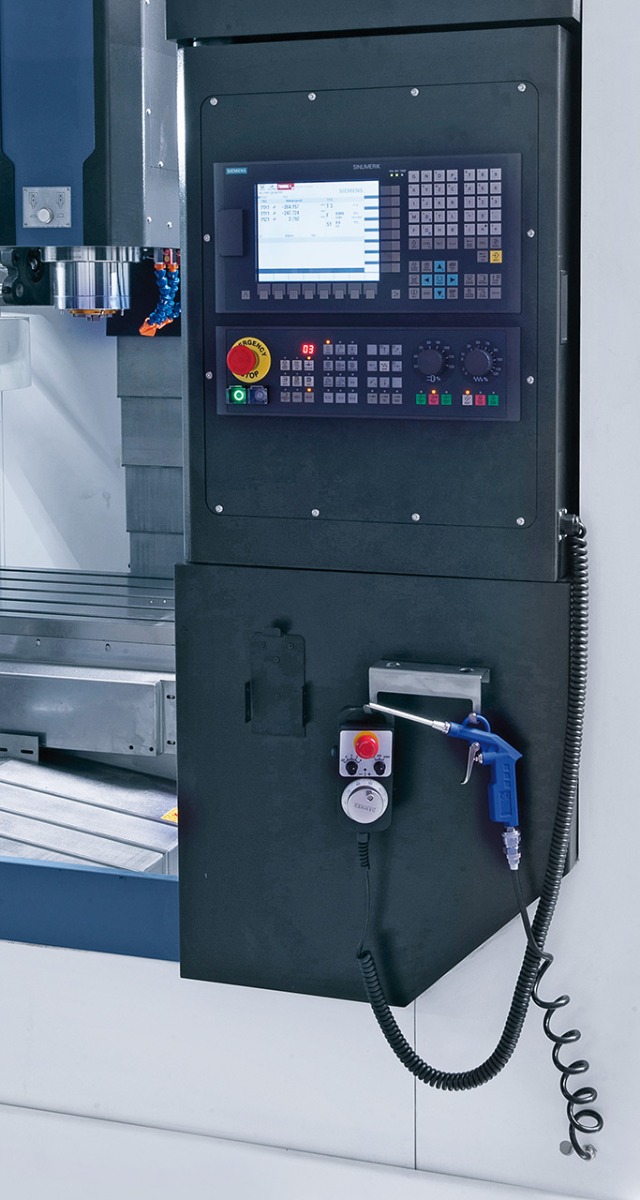

- Ergonomically arranged controls on the swiveling control panel

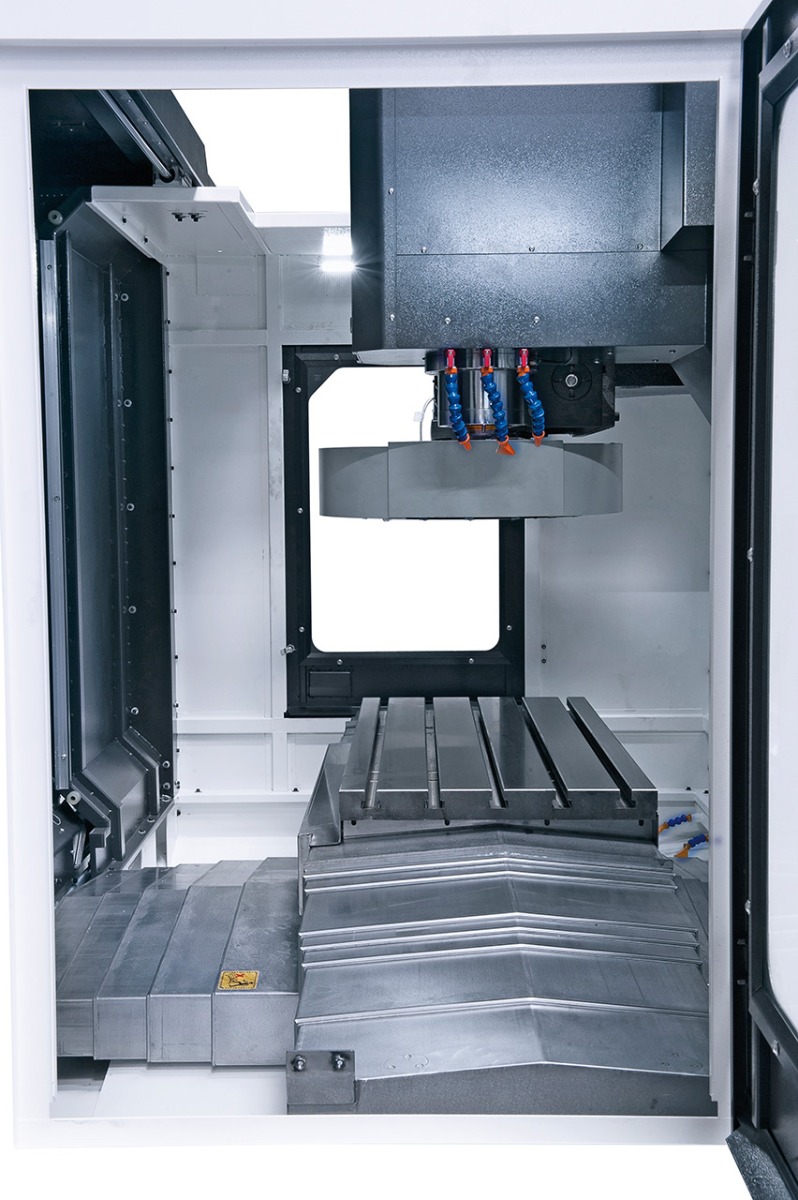

- Large, surface treated, solid cross table
Product Specifications
|
Working area |
|
|
Table size |
1000 x 500 mm |
|
Spindle taper |
BT 40 |
|
Spindle speed, stepless |
40 - 8000 rpm |
|
Travel x-axis |
850 mm |
|
Travel y-axis |
500 mm |
|
Travel z-axis |
500 mm |
|
Distance spindle nose – table surface |
110 - 610 mm |
|
Throat |
560 mm |
|
Table load |
500 kg |
|
T-slot (Quantity / Width / Distance) |
5 / 18 / 100 mm |
|
Feed |
|
|
Working feed for x-, y- and z-axis |
10 - 10.000 mm/min |
|
Rapid feed x- and y-axis |
30.000 mm/min |
|
Rapid feed z-axis |
24.000 mm/min |
|
Accuracy |
|
|
Positioning accuracy |
± 0,005 mm |
|
Repeat accuracy |
± 0,003 mm |
|
Tool holder |
|
|
Number of tool stations |
16 Stk. |
|
Tools size Ø x L max. |
130 x 300 mm |
|
Tool weight max. |
8 kg |
|
Tool-change time tool/tool |
7 sec. |
|
Motor power spindle motor |
11,0 kW |
|
Machine dimension (W x D x H) |
2500 x 2200 x 2400 mm |
|
Weight approx. |
5500 kg |
Delivery Contents
- Siemens Sinumerik control
- Prepared for mounting a 4th axis
- Electronic handwheel with emergency stop button

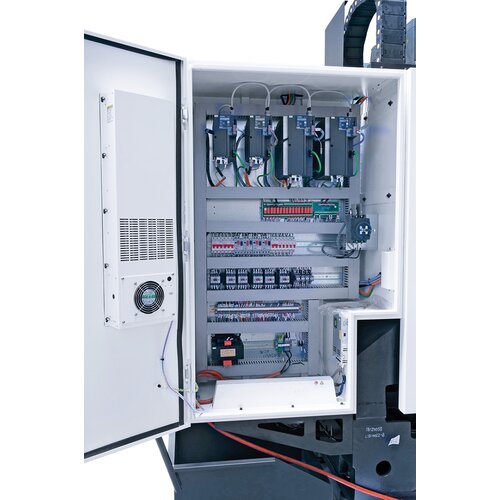

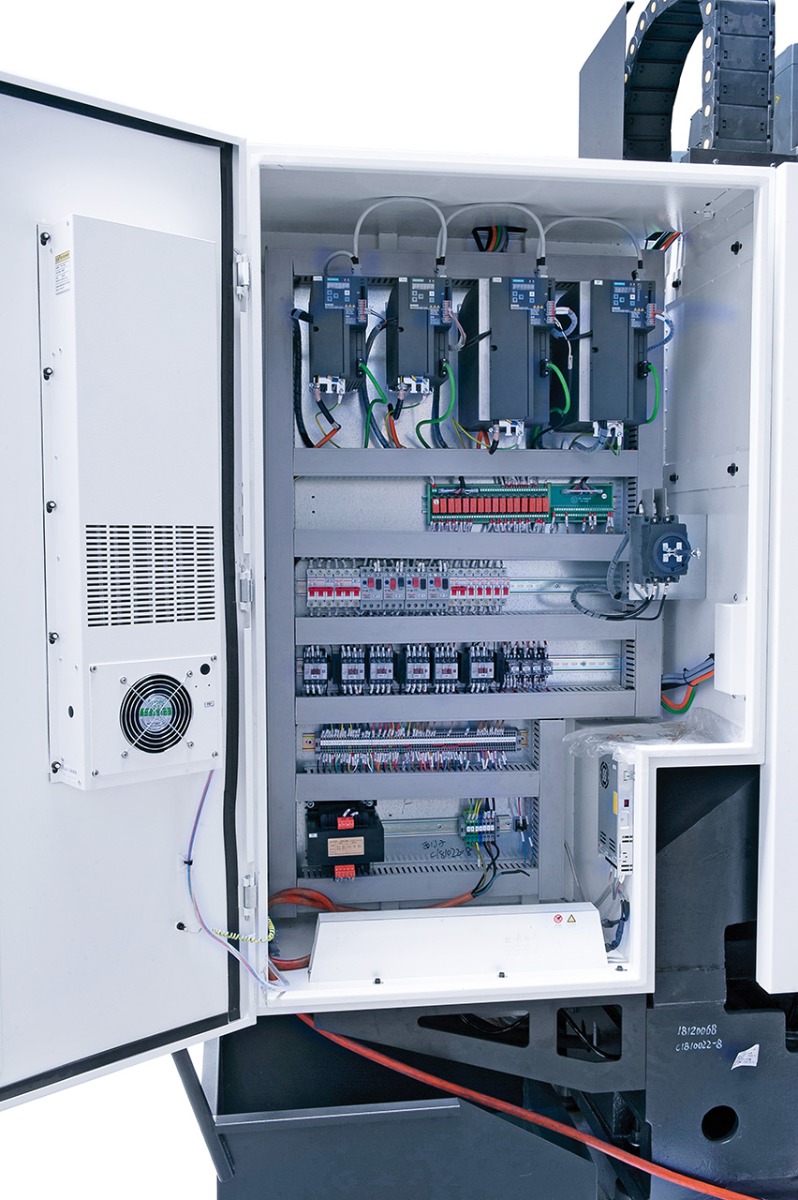

- Siemens servo drives for all 3 axis
- 16-station tool changer
- Spiral type chip conveyer
- Precision linear guiding in all axis
- Automatic spindle blow-out function
- Automatic spindle orientation

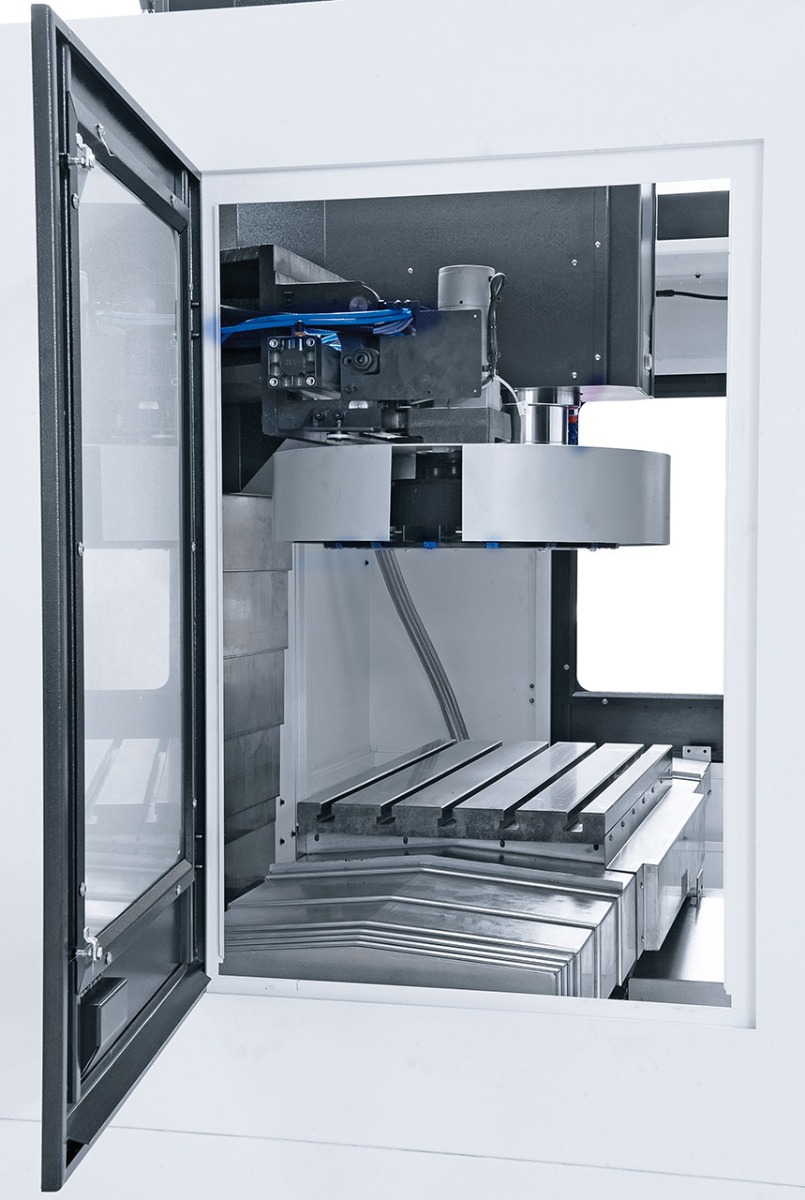

- Machine enclosure with 1 front sliding door
- CE safety glass
- Safety interlock
- LED machine light

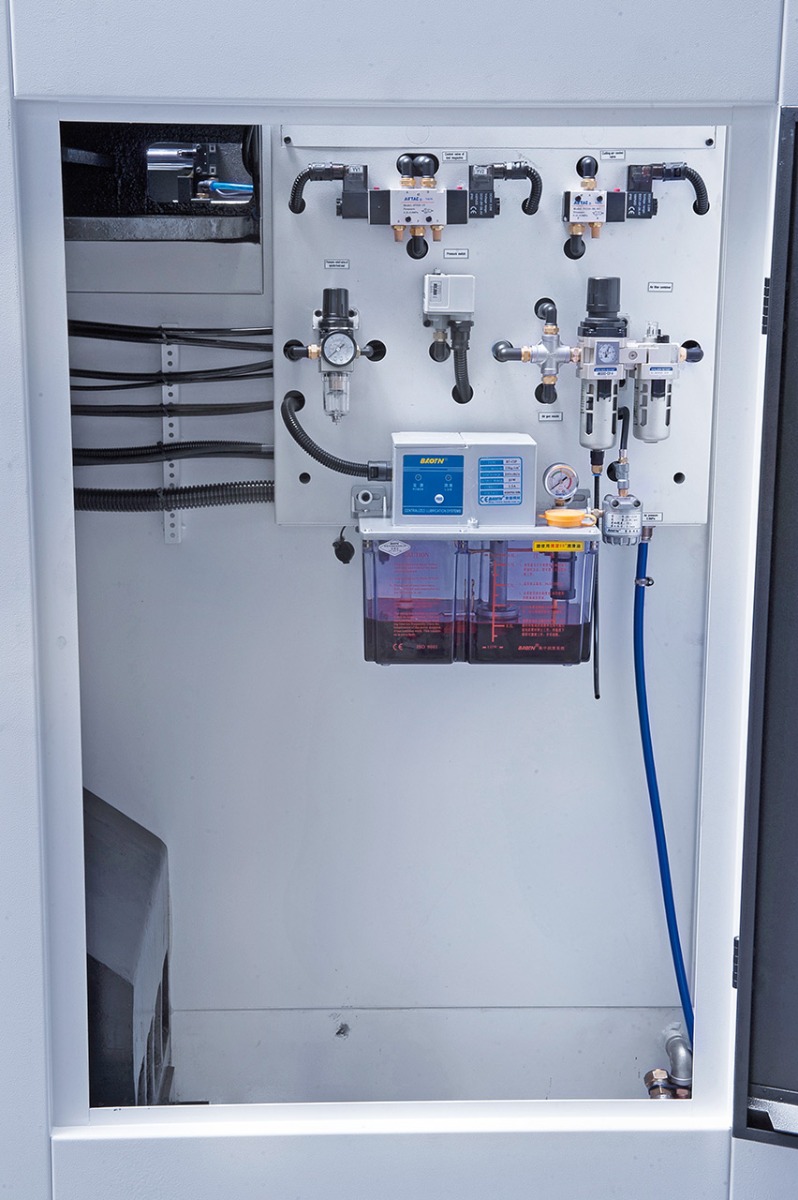

- Automatic central lubrication
- Compressed air hand pistol

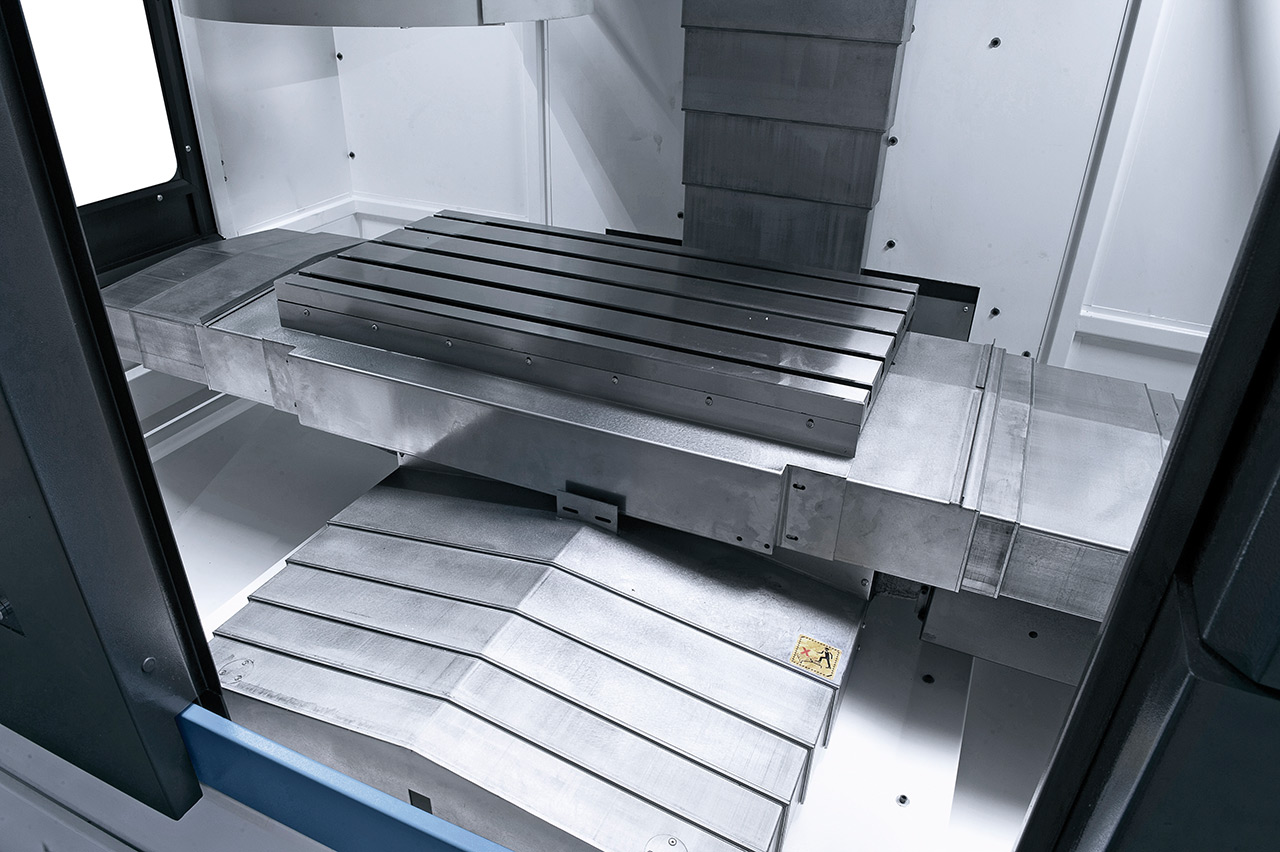

- Telescope cover in x-, y- and z-axis
- Coolant device
