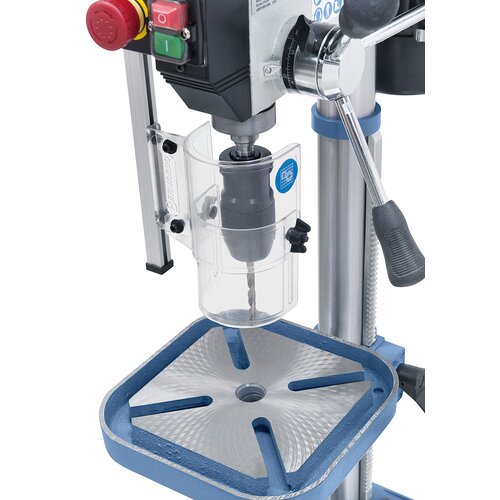

Protective cover in accordance to CE standards, adjustable to the required drill length.
Protective cover in accordance to CE standards, adjustable to the required drill length.

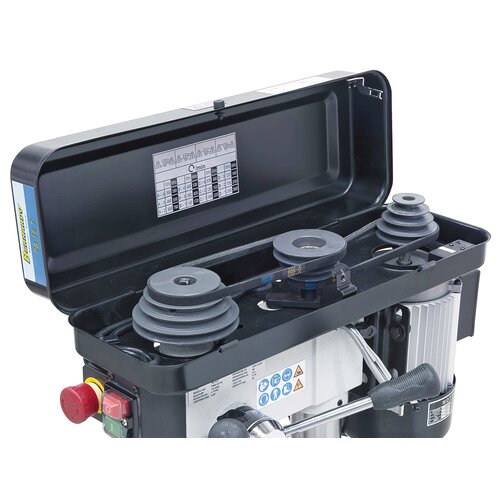

Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.

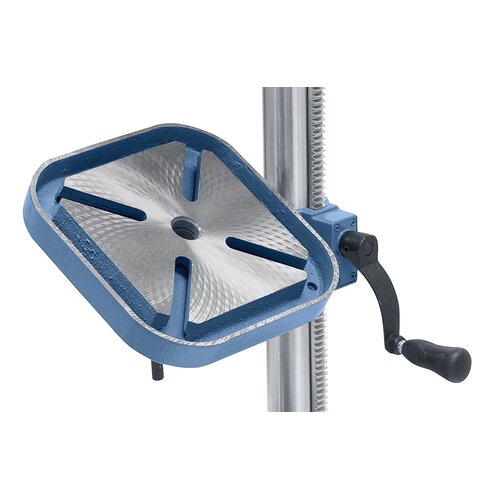

Drill table swivels -45° to +45° and turns 360° around the column.
Drill table swivels -45° to +45° and turns 360° around the column.
Protective cover in accordance to CE standards, adjustable to the required drill length.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Drill table swivels -45° to +45° and turns 360° around the column.

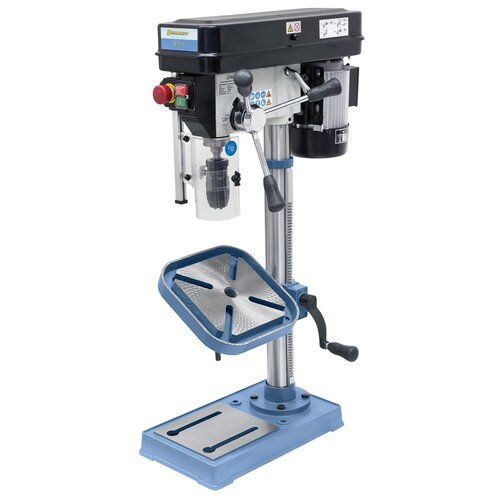

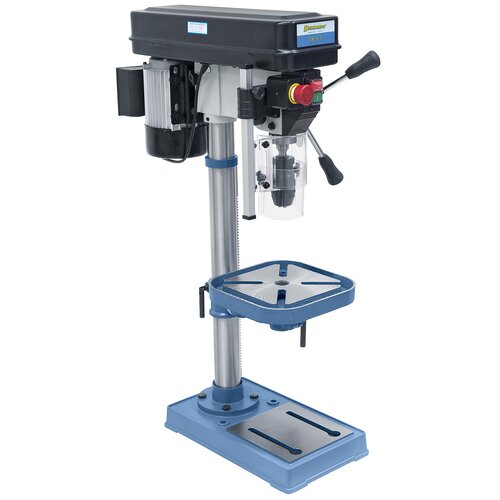

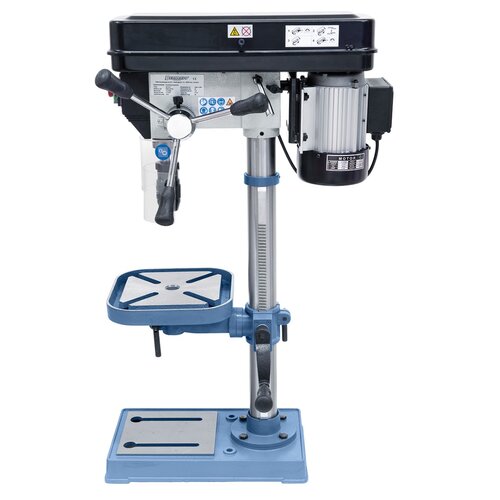

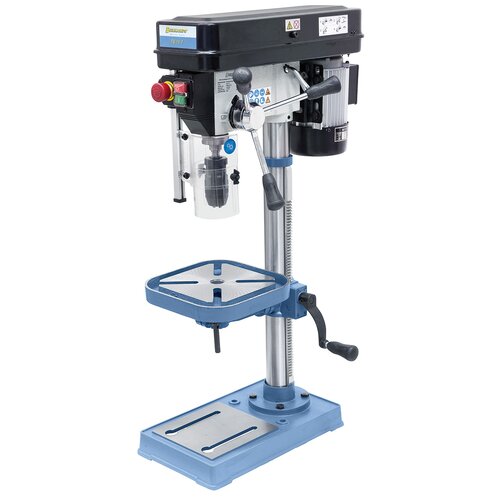

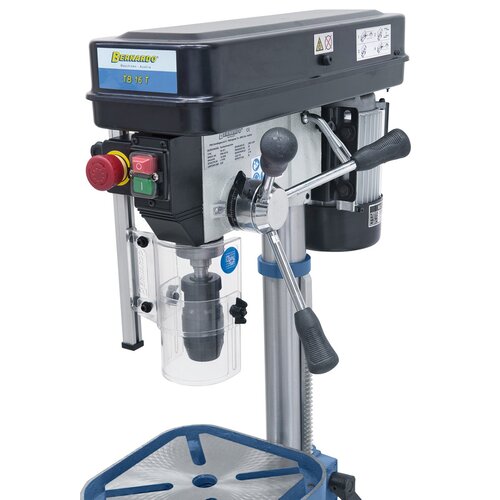

Bench drilling machine TB 16 T / 230 V

Art.Nr.: 01-1031
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The inexpensive bench drilling machine TB 16 T, featuring a V-belt drive, is available with a drilling capacity of 16 mm. The height adjustable protective cover developed by Bernardo cover the drill as well as the drill chuck completely. This increases the safety and making them particulary suitable for craftsmen and training purposes.

€427.20

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Balanced drive wheels and high-quality belt ensure extremely smooth operation
  • Drill table swivels (±45°), height adjustable via gear rack
  • Complete with T-slots in polished base plate
  • Powerful, high-torque aluminium motor in accordance with IP 54
  • Ergonomically arranged handles ensure high work comfort
  • Treated base plate allows clamping of oversize work pieces
  • Top precision keyless drill chuck included

Product Specifications

Drilling capacity max.

16 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 2

Spindle speeds

(12) 300 - 2550 rpm

Distance spindle to column

155 mm

Table tiltable

-45° to 45°

Distance spindle to table max.

445 mm

Distance spindle to base

600 mm

Spindle stroke

65 mm

Column diameter

58 mm

Table size / T-slot size

245 x 245 mm / 16 mm

Working surface of base

185 x 200 mm

Motor power output S1 100%

0,55 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)

400 x 570 x 920 mm

Weight approx.

36 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools
