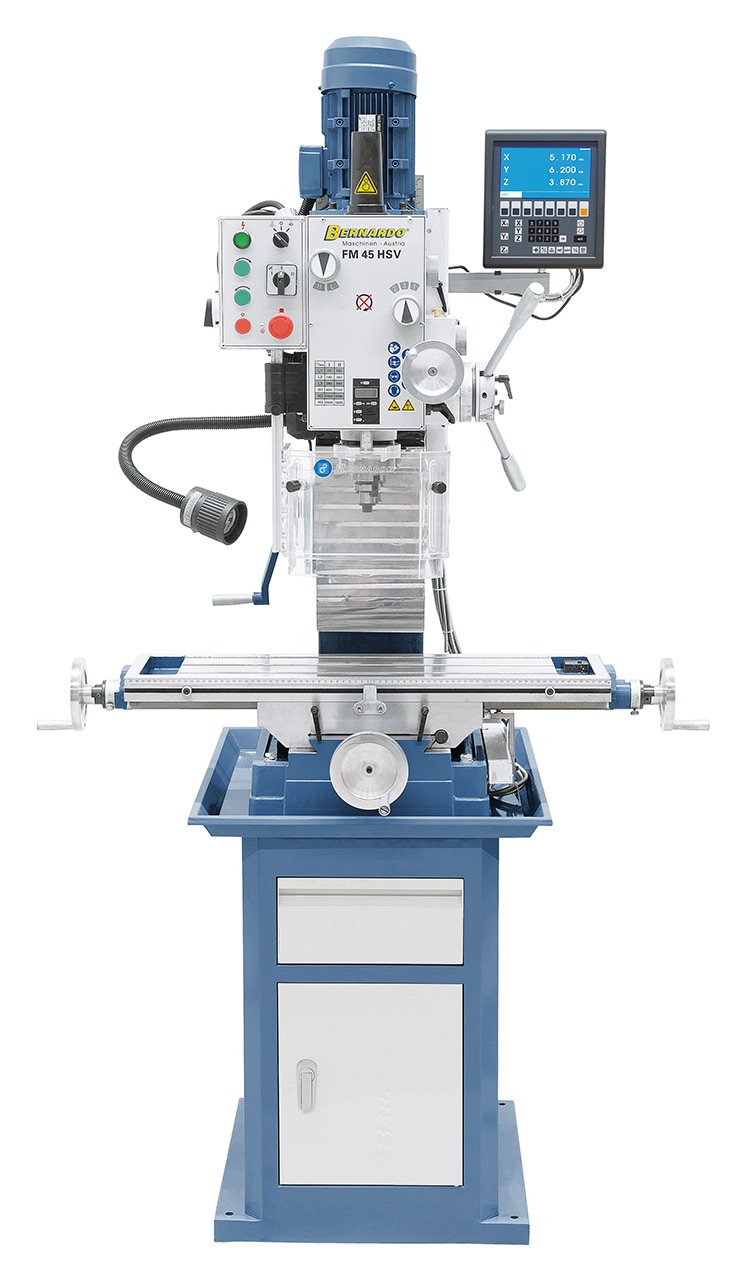

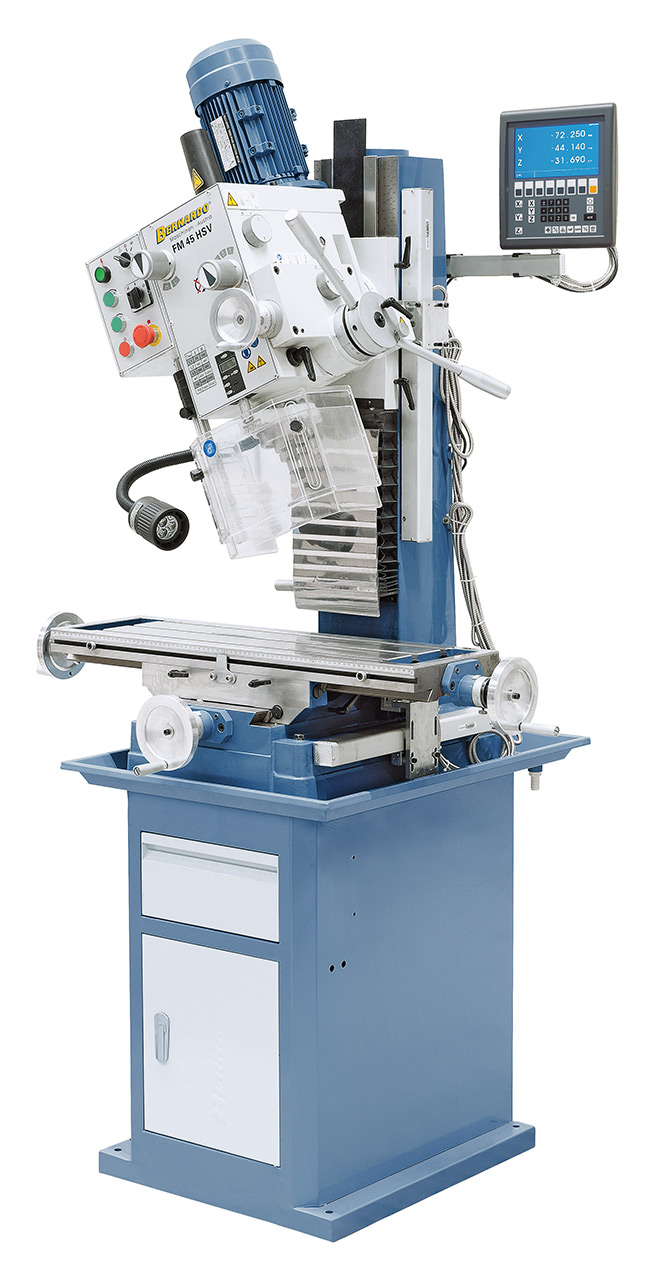

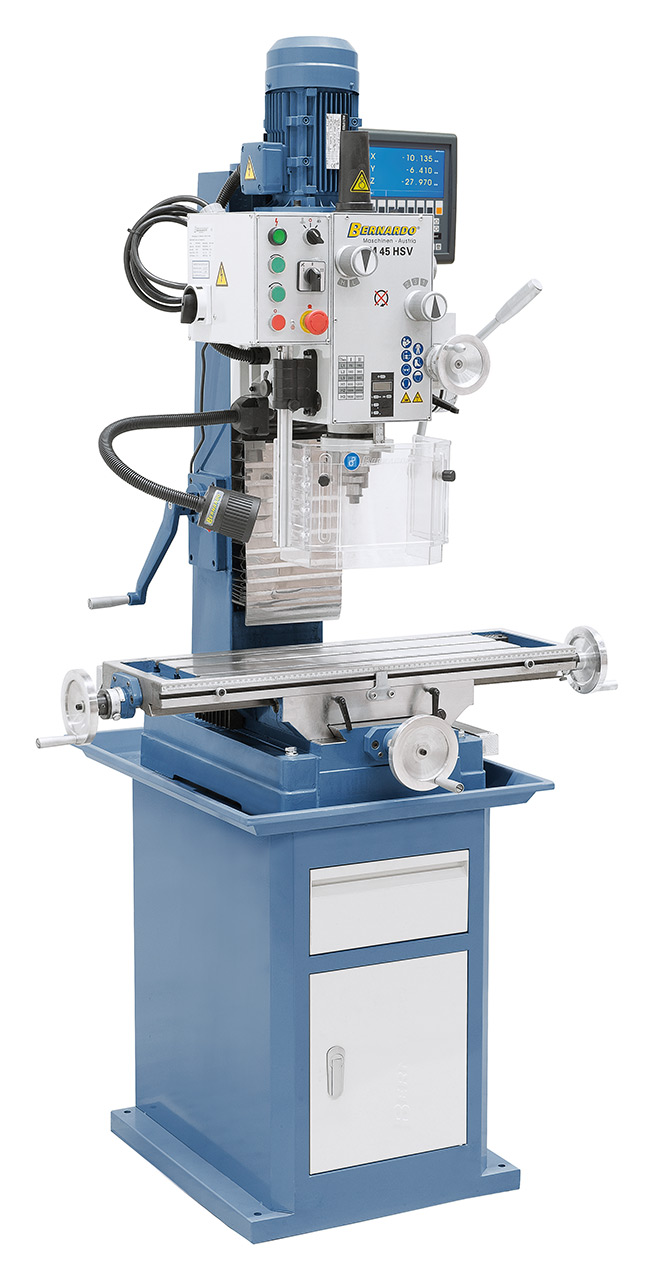

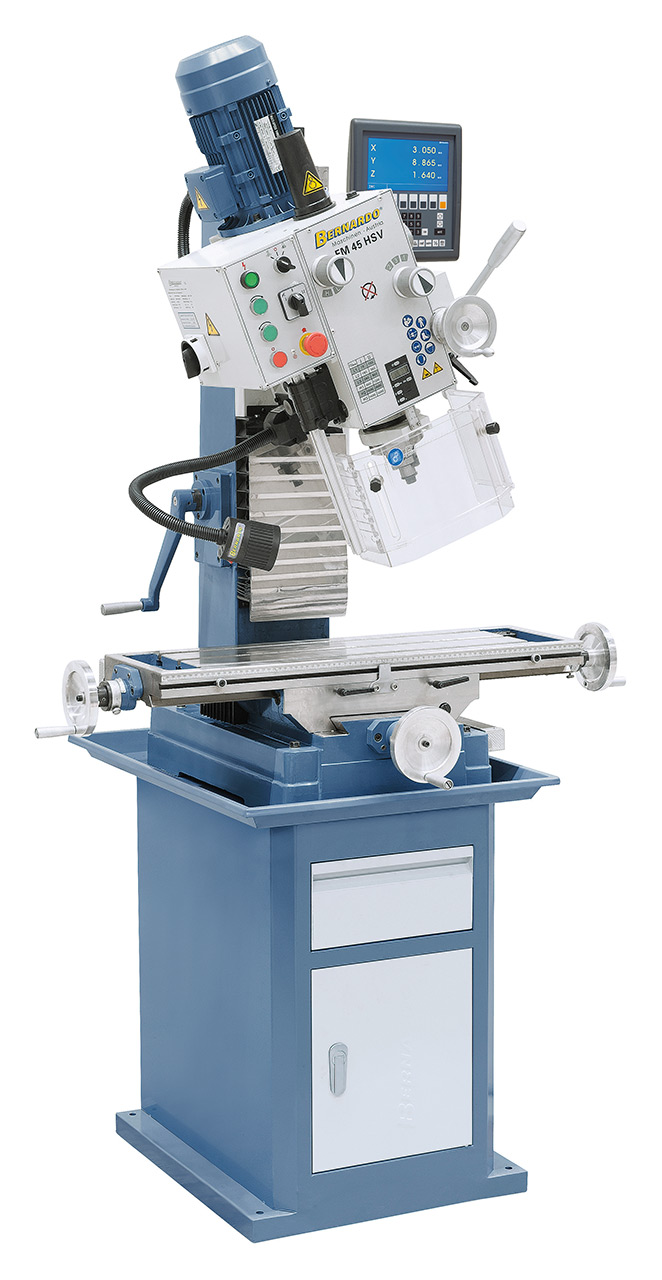

Bohr- und Fräsmaschine FM 45 HSV inkl. 3-Achs-Digitalanzeige ES-12 V
product.detail.art-no: 02-1088The model FM 45 HSV feature a high speed range (75 - 3200 rpm) as well as a large range of standard accessories ( for instance automatic spindle feed, digital spindle stroke indication, LED working light etc.), making this machine ideal for mechanics, repair shops and and for training purposes.
4.452,00 EUR
Availability
Product Properties
- Powerful 2-step motor, speed range 75 - 3200 rpm
- Mill head tilts to both sides for angular boring, milling of bevels etc.

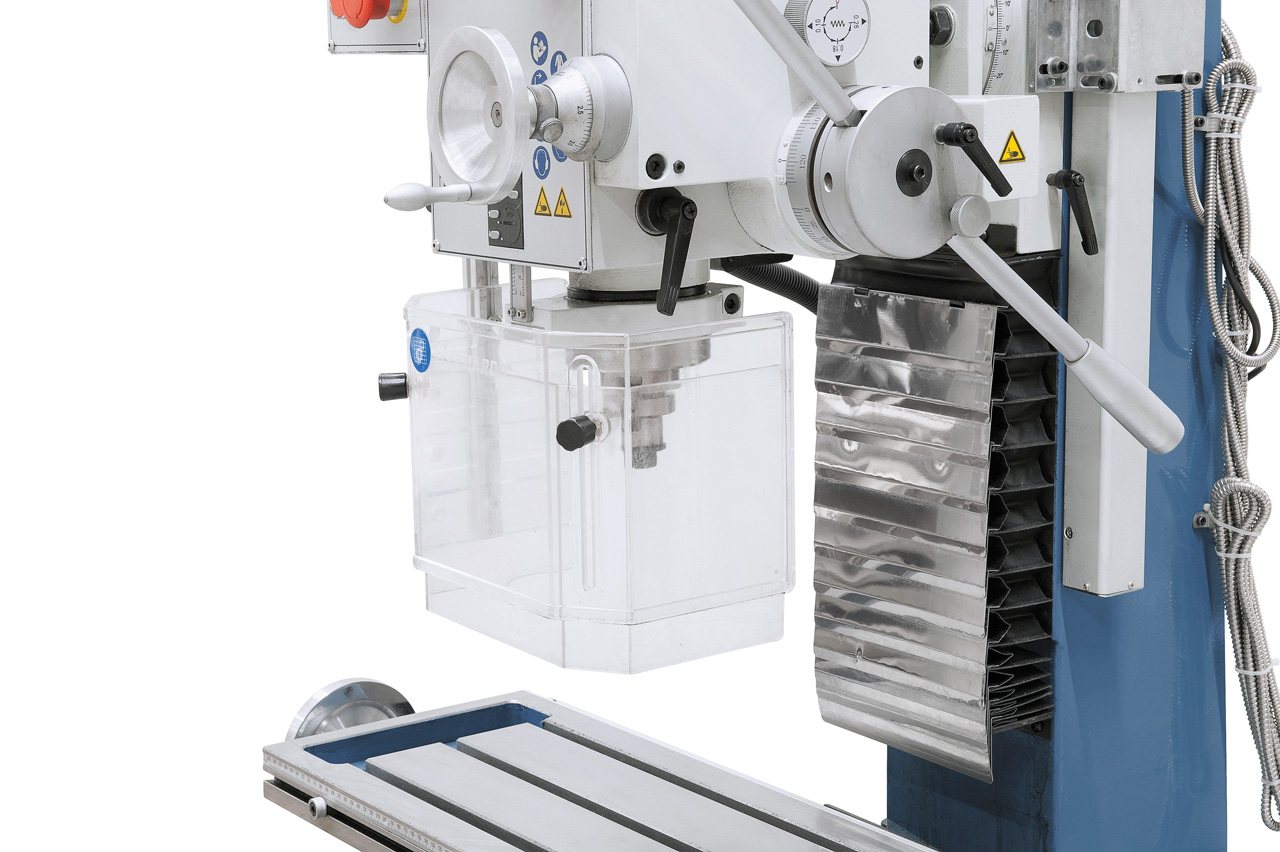

- Height adjustable protective cover with micro switch for increased safety
- Automatic spindle feed and thread cutting device come standard

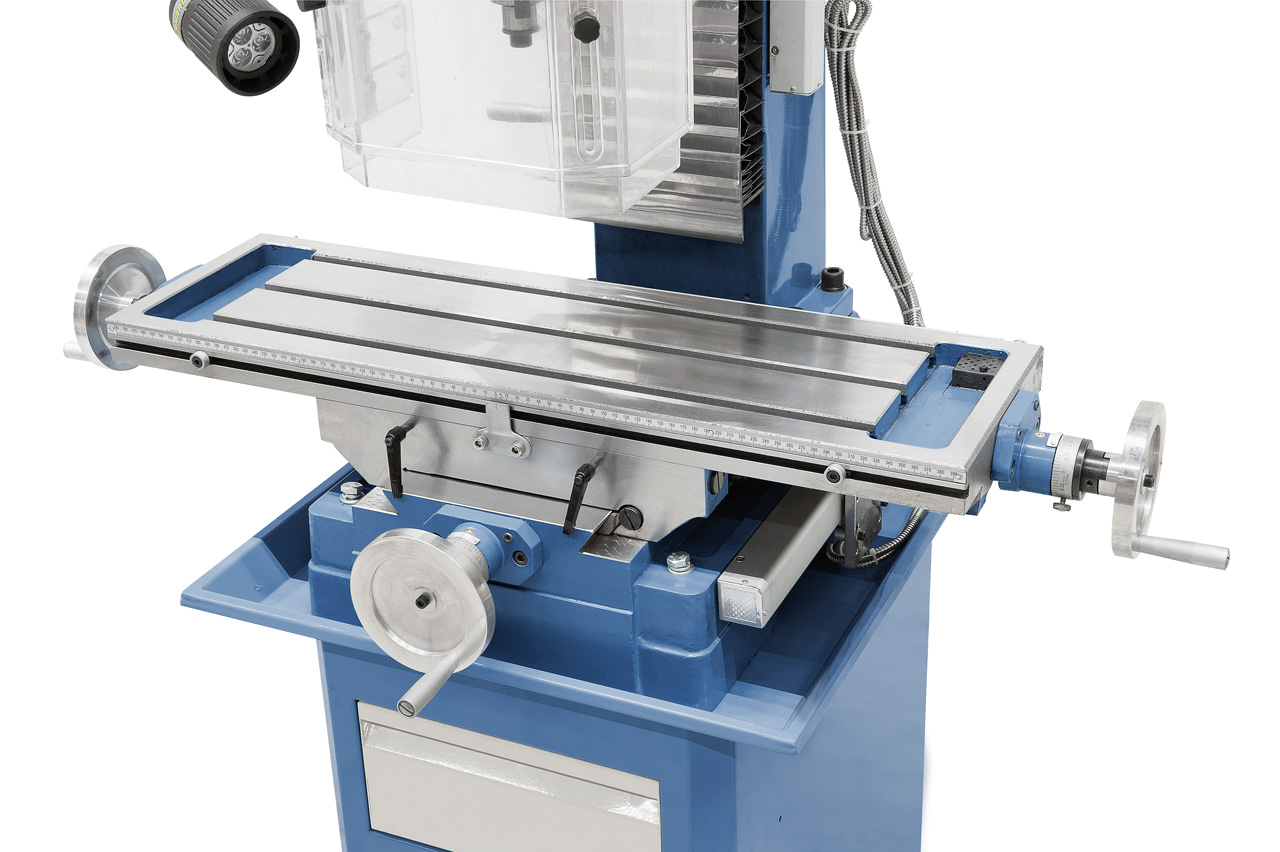

- Dovetail guiding in x- and y-axis, adjustable by gibs

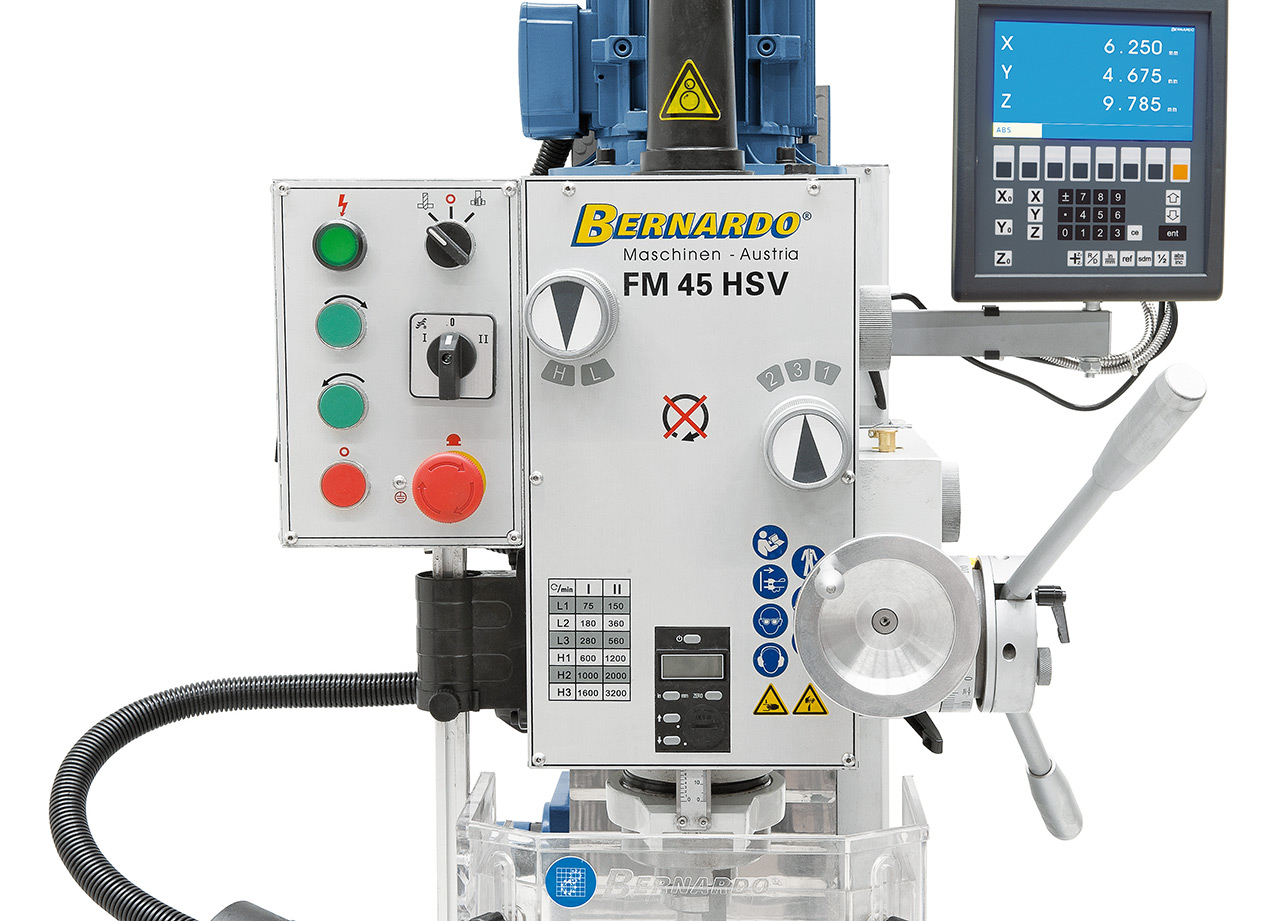

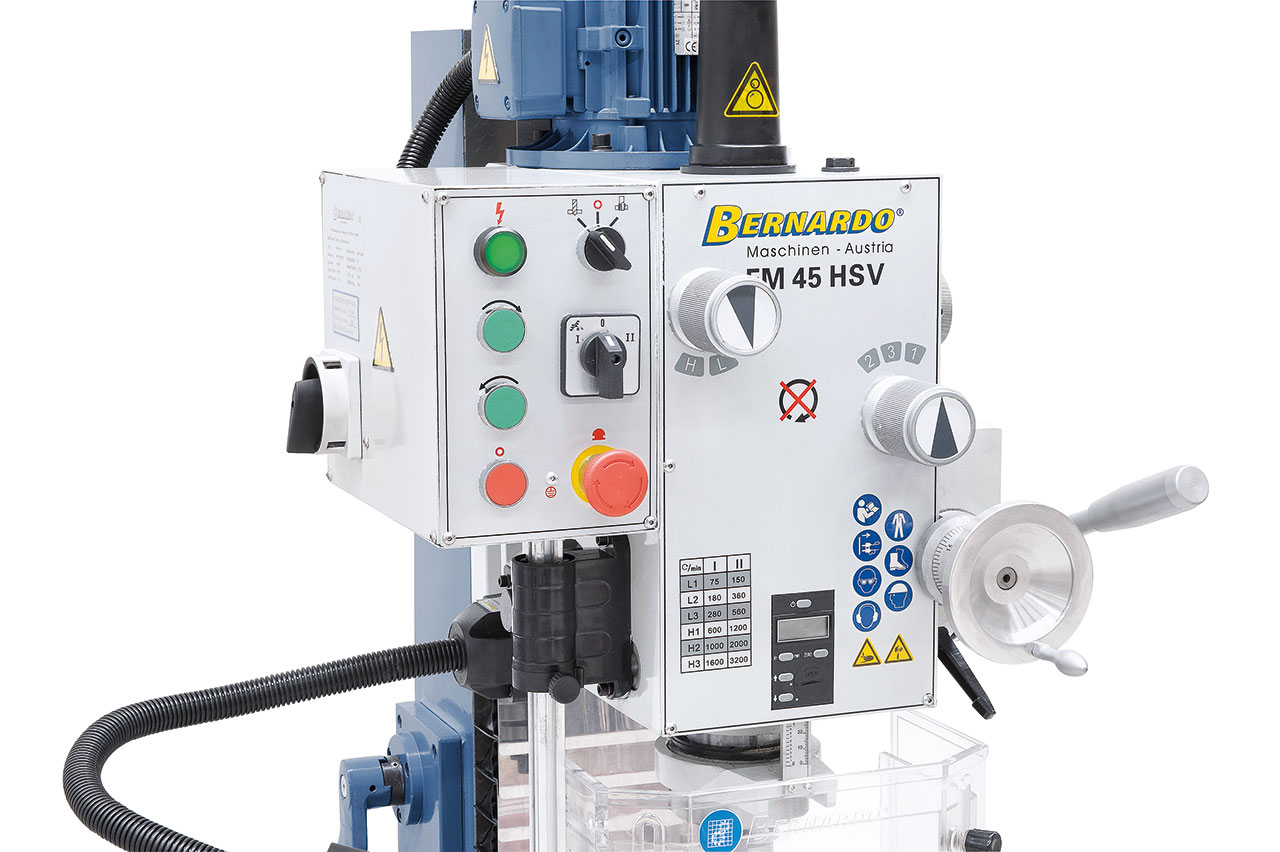

- Gear selector switch allows quick and easy speed change
- Digital display for spindle feed included
- Dovetail guiding of gear head maximizes stability

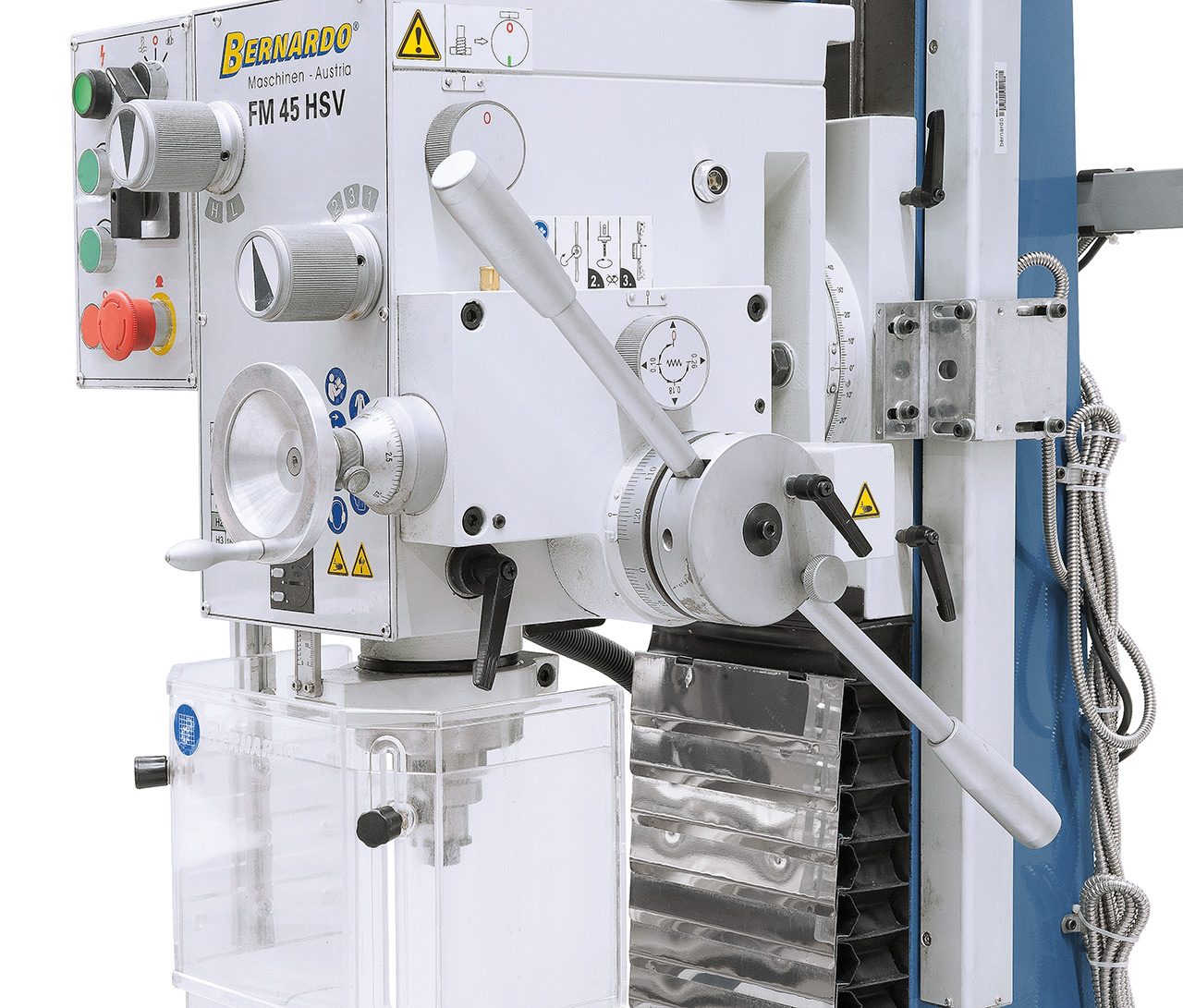

- Handle for spindle adjustment, handwheel for fine feed
- Solid cast-iron construction eliminates most vibrations
Product Specifications
|
Drilling capacity in steel |
32 mm |
|
Drilling capacity in cast iron |
40 mm |
|
Milling head max. |
80 mm |
|
Distance spindle to column |
220 mm |
|
Spindle speeds |
(12) 75 – 3200 rpm |
|
Spindle taper |
MT 4 |
|
Spindle stroke |
120 mm |
|
Spindle feed |
(3) 0,10 / 0,18 / 0,26 mm/rev. |
|
Table size |
800 x 240 mm |
|
Travel (x / y) |
555 / 205 mm |
|
Mill head tiltable |
-60° to +60° |
|
Distance spindle to table |
60 – 485 mm |
|
Height adjustment of mill head |
425 mm |
|
T-slot size |
14 mm |
|
Motor power output S1 100% |
1,1 / 1,5 kW (400 V) |
|
Motor power input S6 40% |
1,5 / 2,2 kW (400 V) |
|
Machine dimension (W x D x H)* |
1140 x 770 x 1500 |
|
Weight approx. |
308 kg |
* without stand
Delivery Contents
- 3-axis digital readout ES-12 V with LCD-display

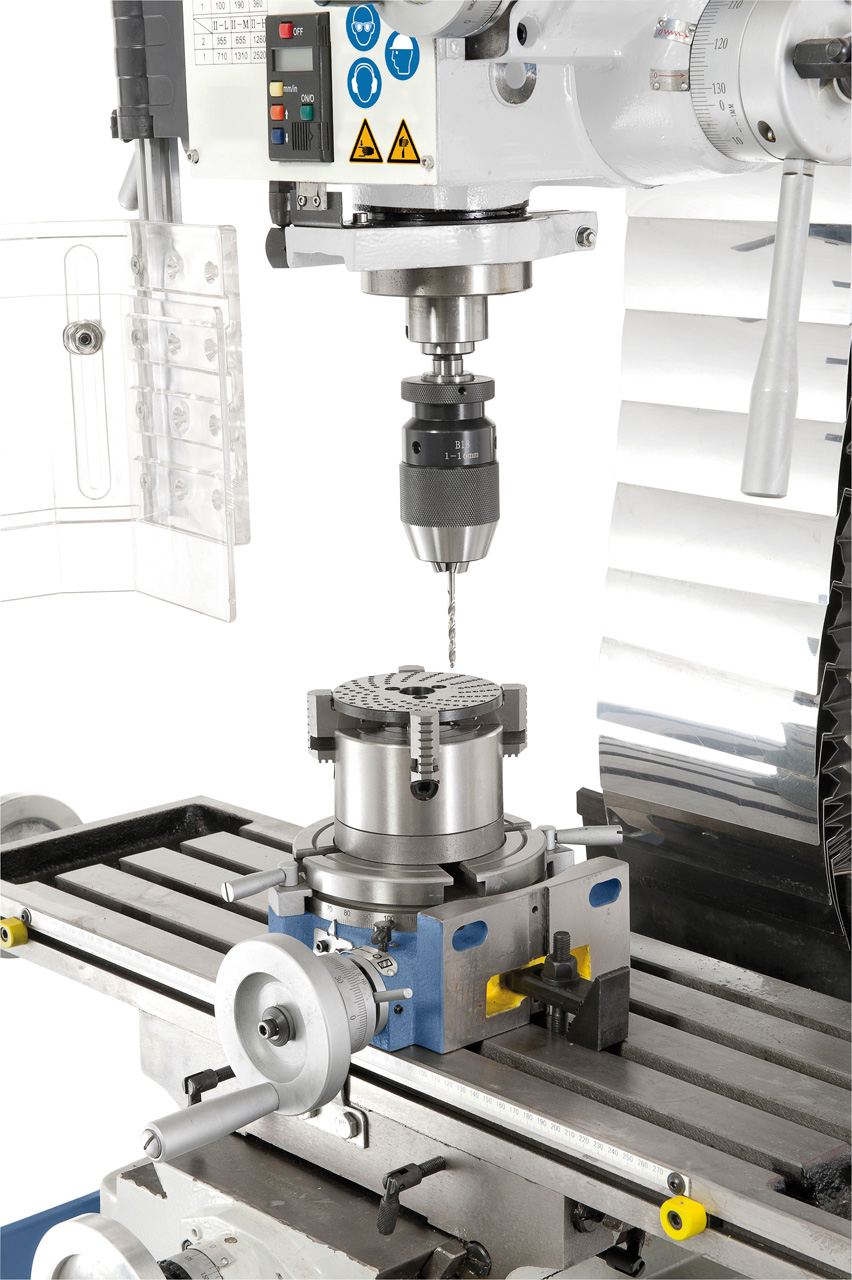

- Keyless drill chuck 3 – 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Drawbar M 16
- Morse taper drill sleeve MT 4/3
- Taper shell end mill holder MT 4 / 27 mm
- Height adjustable protective cover
- Automatic spindle feed
- LED machine light
- Digital spindle stroke indication
- Thread cutting device
- Steel cover
- Longitudinal scale
- Tools
