CNC-vertikaal bewerkingscentrum VMC 600 met Siemens 808D Advanced 16

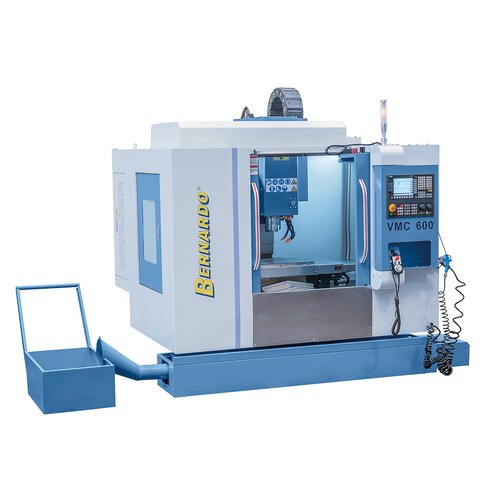

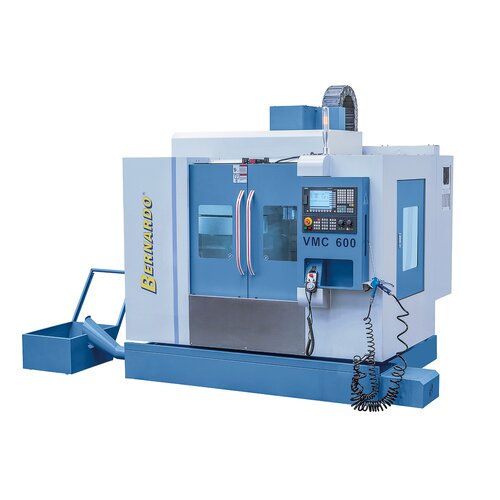

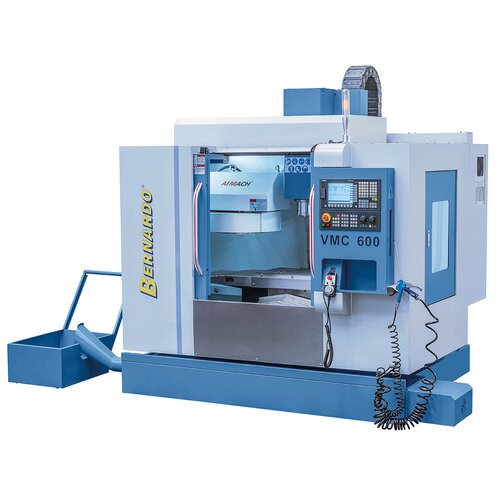

product.detail.art-no: 02-1350XLThe CNC vertical machining centre VMC 600 with the Siemens Sinumerik 808D Advanced control is the ideal machine for the CNC beginner, but is also often used as a secondary machine alongside large CNC centres. Due to the unbeatable price-performance ratio, this model is ideally suited for the production of low-cost small and medium-sized series.
€ 35.760,00
incl. 20% VATAvailability
Product Properties
- Machine enclosure with two sliding doors on the front and two side doors for easy access
- Stable cast frame in rigid bed construction for smooth running and best milling performance
- Precision linear guides and powerful servo drives for high rapid traverse speeds in all axes and high workpiece load
- High efficiency due to the extensive standard equipment as well as a large number of optional accessories
- Central lubrication for guide ways and ball screws
- Ergonomically arranged controls on the swiveling control panel
- Automatic 16-station tool changer in carousel construction
- Precision ball screws with preloaded nuts in all 3 axes
- Large, surface treated, solid cross table
Product Specifications
|
Working area |
|
|
Table size |
600 x 400 mm |
|
Spindle taper |
BT 40 |
|
Spindle speed, stepless |
8000 rpm |
|
Travel x-axis |
500 mm |
|
Travel y-axis |
400 mm |
|
Travel z-axis |
400 mm |
|
Distance spindle nose – table surface |
70 - 470 mm |
|
Throat |
390 mm |
|
Table load |
350 kg |
|
T-slot (Quantity / Width / Distance) |
4 / 14 mm / 85 mm |
|
Feed |
|
|
Working feed for x-, y- and z-axis |
1 - 10.000 mm/min |
|
Rapid feed x- and y-axis |
24 m/min |
|
Rapid feed z-axis |
24 m/min |
|
Accuracy |
|
|
Positioning accuracy |
± 0,005 mm |
|
Repeat accuracy |
± 0,003 mm |
|
Tool holder |
|
|
Number of tool stations |
16 pcs. |
|
Tools size Ø x L max. |
78 x 250 mm |
|
Tool weight max. |
8 kg |
|
Tool-change time tool/tool |
2,3 sec. |
|
|
|
|
Motor power spindle motor |
3,7 kW |
|
Machine dimension (W x D x H) |
2580 x 1960 x 2450 mm |
|
Weight approx. |
2500 kg |
Delivery Contents
- Siemens Sinumerik 808D Advanced control
- Prepared for mounting a 4th axis
- Electronic handwheel with emergency stop button
- Siemens servo drives for all 3 axis
- 16-station tool changer
- Spiral type chip conveyer
- Precision linear guiding in all axis
- Automatic spindle blow-out function
- Automatic spindle orientation
- Machine enclosure with 2 front sliding door
- CE safety glass
- Safety interlock
- Workspace lighting
- Automatic central lubrication
- Compressed air hand pistol
- Coolant hand spray gun
- Electrical control cabinet with air conditioning
- Spindle oil cooling
- Telescope cover in x-, y- and z-axis
- Coolant device
