Serially equipped with a 24-station tool changer.
Comes standard with Siemens Sinumerik 888D Advanced control with LCD color display for high efficiency and easy handling
Double arm gripper for fast changeover times.

CNC-vertikaal bewerkingscentrum VMC 1000 met Siemens 828D

product.detail.art-no: 02-1352XL

The CNC vertical machining center VMC 1000 is equipped with a Siemens Sinumerik 828D controller and a 24-station tool changer. Due to the compact design, a table size of 1000 x 550 mm and the large travel distances, this model is ideal for machining small and
medium-sized series in production, but also for the production of individual parts in mold and machine construction as well as in the training sector, this model is used successfully.

€ 53.760,00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Precision linear guides and powerful servo drives for high rapid traverse speeds in all axes and high workpiece load
  • Machine enclosure with two sliding doors on the front and two side doors for easy access
  • High efficiency due to the extensive standard equipment as well as a large number of optional accessories
  • Stable cast frame in rigid bed construction for smooth running and best milling performance

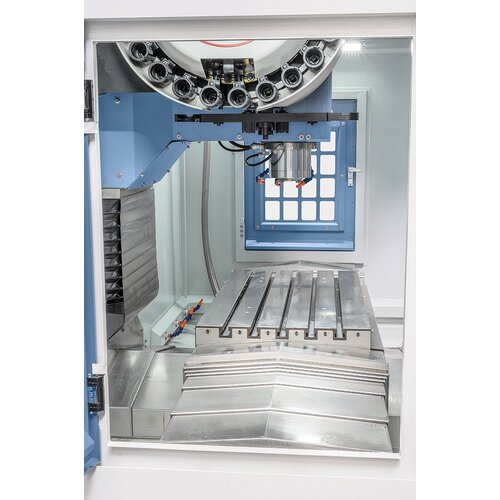

  • Automatic double arm tool changer with 24 tool stations
  • Precision ball screws with preloaded nuts in all 3 axes
  • Central lubrication for guide ways and ball screws
  • Ergonomically arranged controls on the swiveling control panel
  • Large, surface treated, solid cross table

Product Specifications

Working area



Table size

1000 x 550 mm

Spindle taper

BT 40

Spindle speed, stepless

10000 rpm

Travel x-axis

850 mm

Travel y-axis

550 mm

Travel z-axis

550 mm

Distance spindle nose – table surface

120 - 670 mm

Throat

570 mm

Table load

650 kg

T-slot (Quantity / Width / Distance)

5 / 18 mm / 90 mm

Feed



Working feed for x-, y- and z-axis

1 - 10.000 mm/min

Rapid feed x- and y-axis

36 m/min

Rapid feed z-axis

36 m/min

Accuracy



Positioning accuracy

± 0,005 mm

Repeat accuracy

± 0,003 mm

Tool holder



Number of tool stations

24 pcs.

Tools size Ø x L max.

78 x 300 mm

Tool weight max.

8 kg

Tool-change time tool/tool

2,3 sec.





Motor power spindle motor

9,0 kW

Machine dimension (W x D x H)

3900 x 2550 x 2930 mm

Weight approx.

5500 kg

Delivery Contents

  • Siemens Sinumerik 828D Advanced control
  • Prepared for mounting a 4th axis
  • Electronic handwheel with emergency stop button
  • Siemens servo drives for all 3 axis
  • Automatic dual-arm tool changer with 24 tool stations

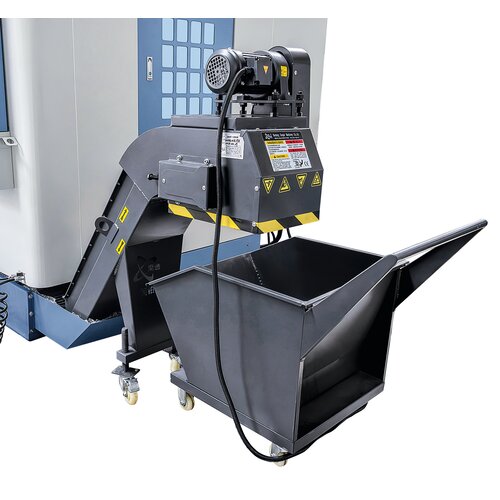

  • Chain chip conveyor with trolley
  • Precision linear guiding in all axis
  • Automatic spindle blow-out function
  • Automatic spindle orientation
  • Machine enclosure with 2 front sliding door
  • CE safety glass
  • Safety interlock
  • Workspace lighting
  • Automatic central lubrication
  • Compressed air hand pistol
  • Coolant hand spray gun
  • Electrical control cabinet with air conditioning
  • Spindle oil cooling
  • Telescope cover in x-, y- and z-axis
  • Coolant device
