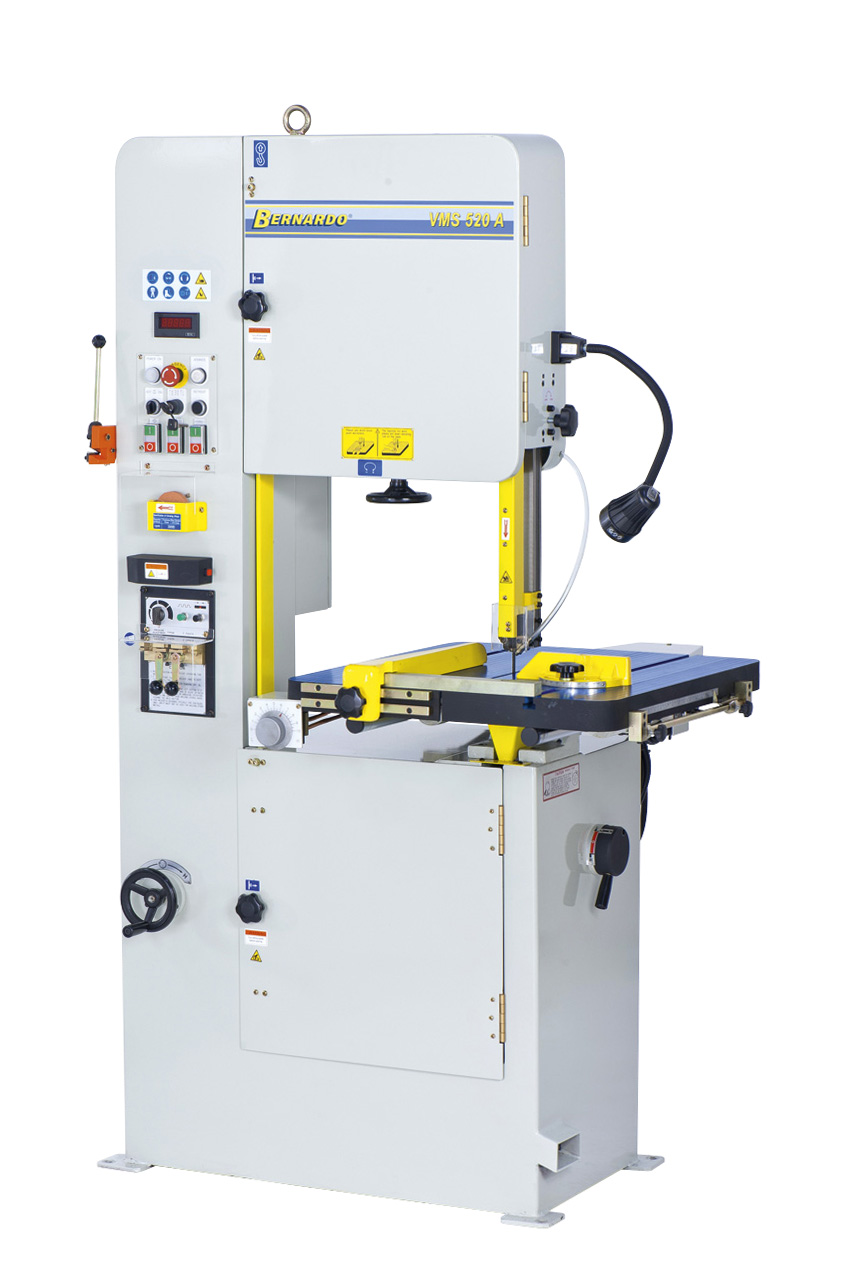

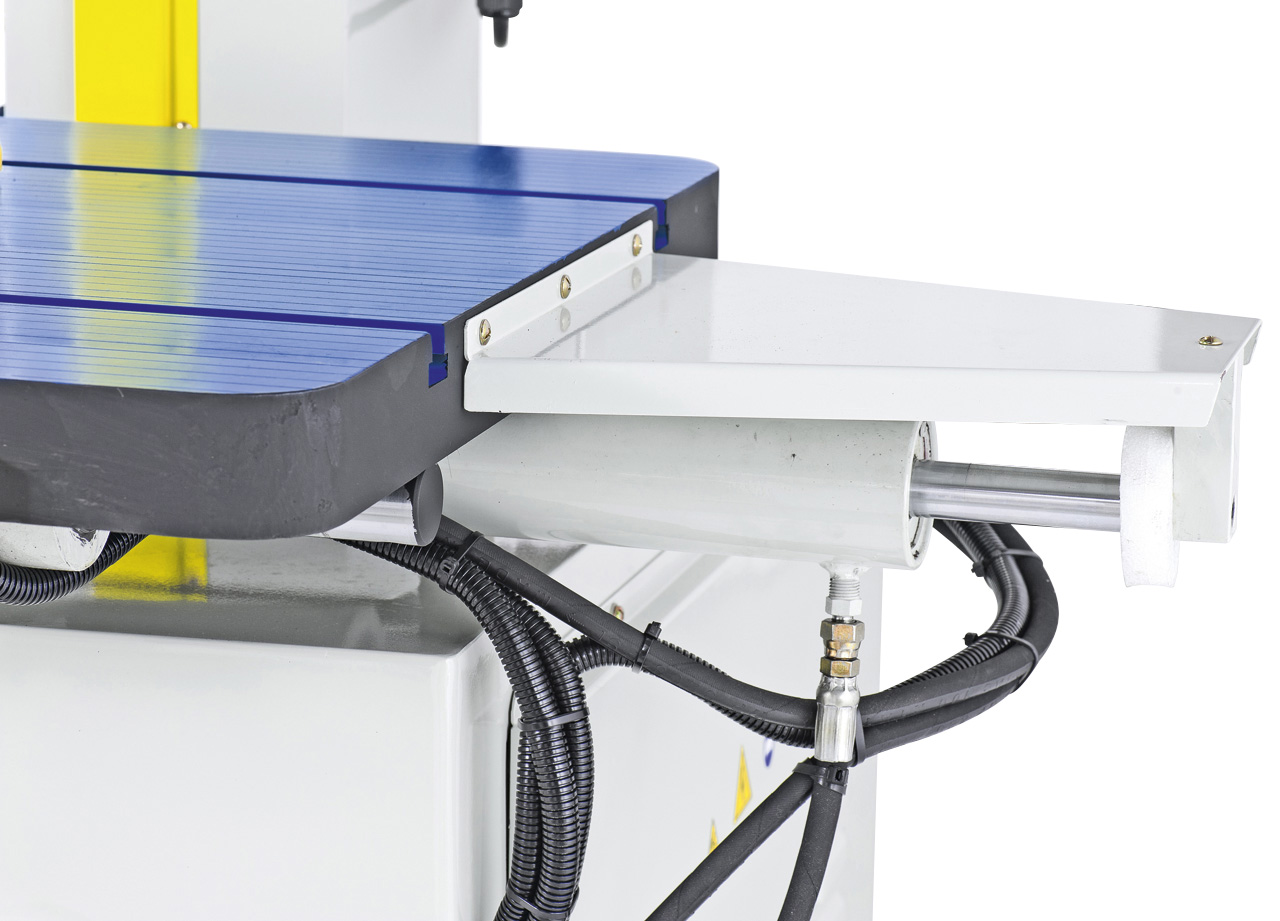

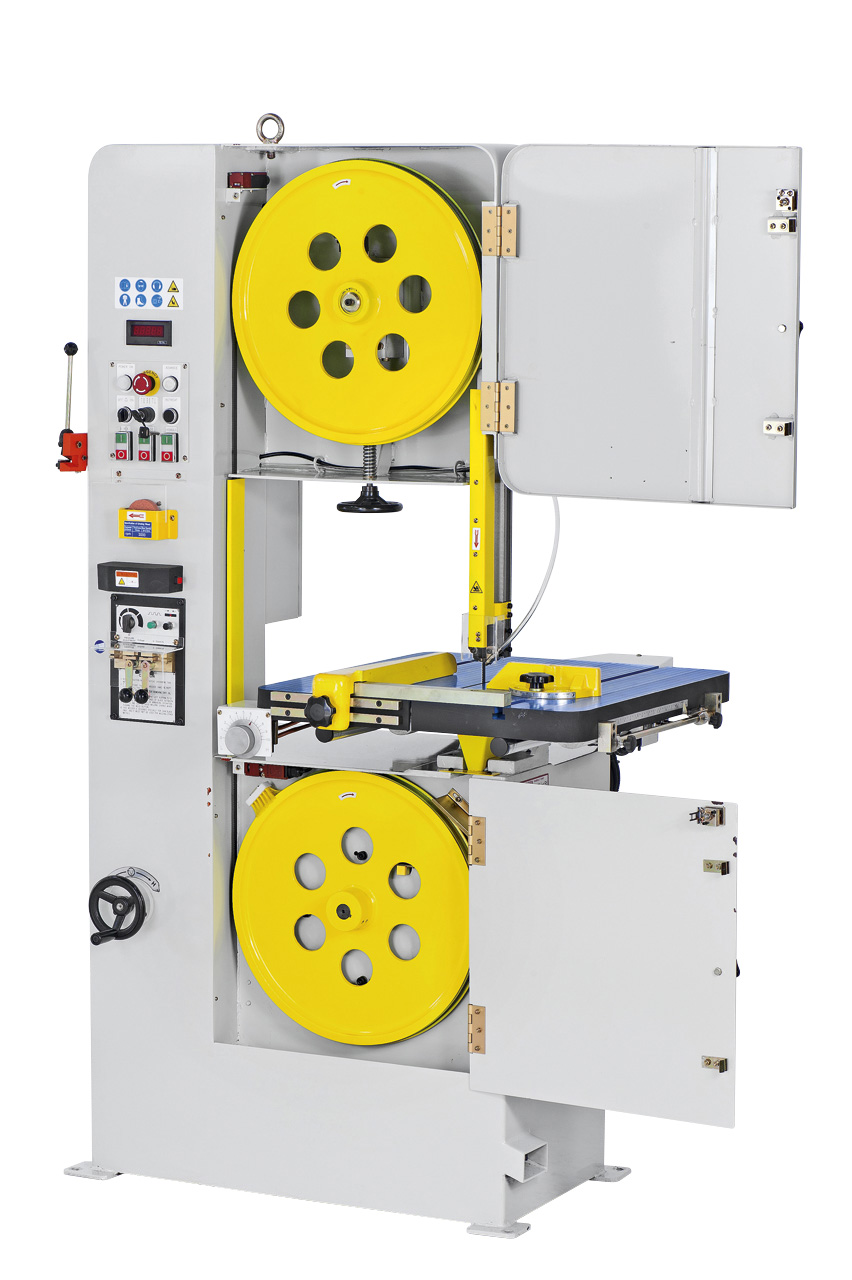

Vertical bandsaw VMS 520 A with table feed **

Art.Nr.: 04-1807

Wishlist Comparison List

The VMS 520 A vertical band saw is equipped with an automatic table feed. The model is suitable for cutting of almost all materials, such as steel, plastics, non-ferrous metals, metal composites etc. This model is predominately used in general production, tool making, fixture construction and productions of punch dies and cutting tools.

€12,168.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

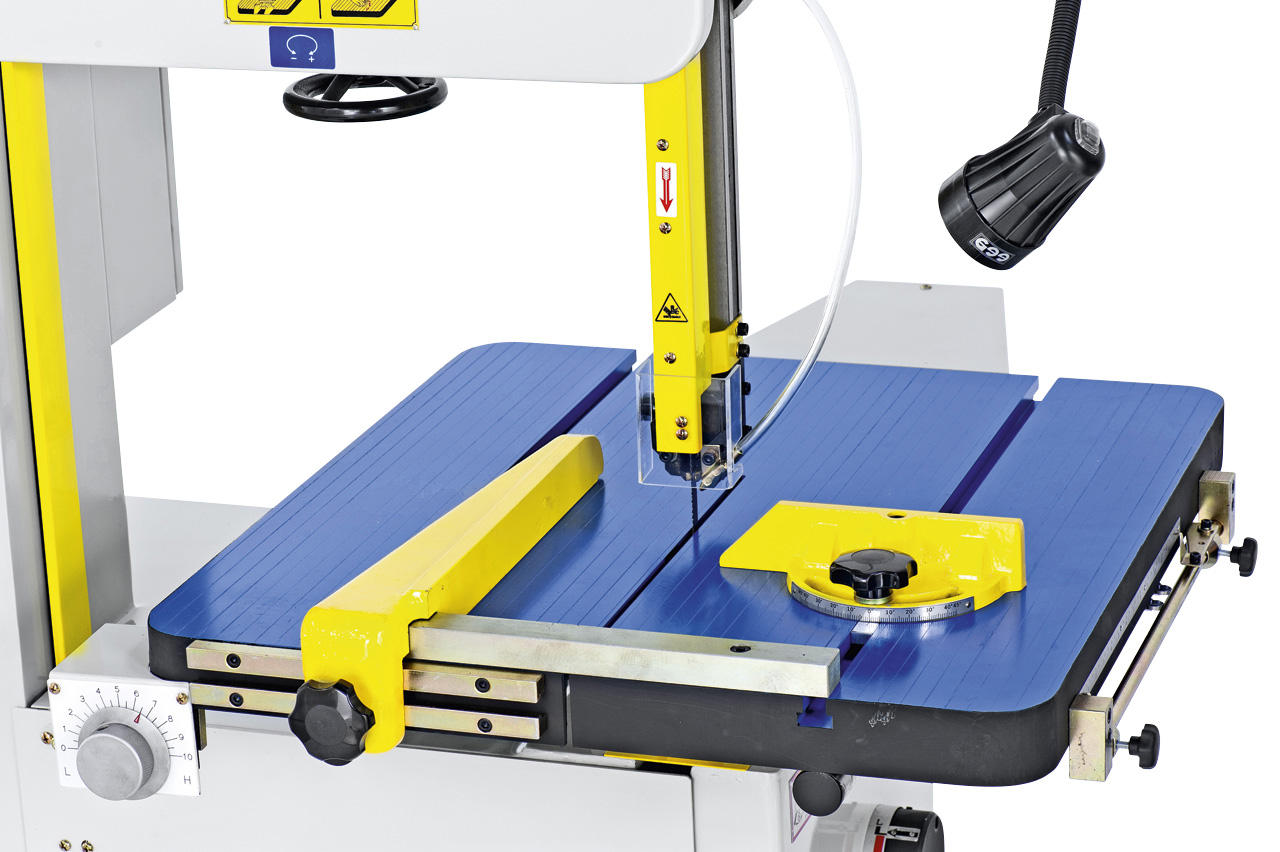

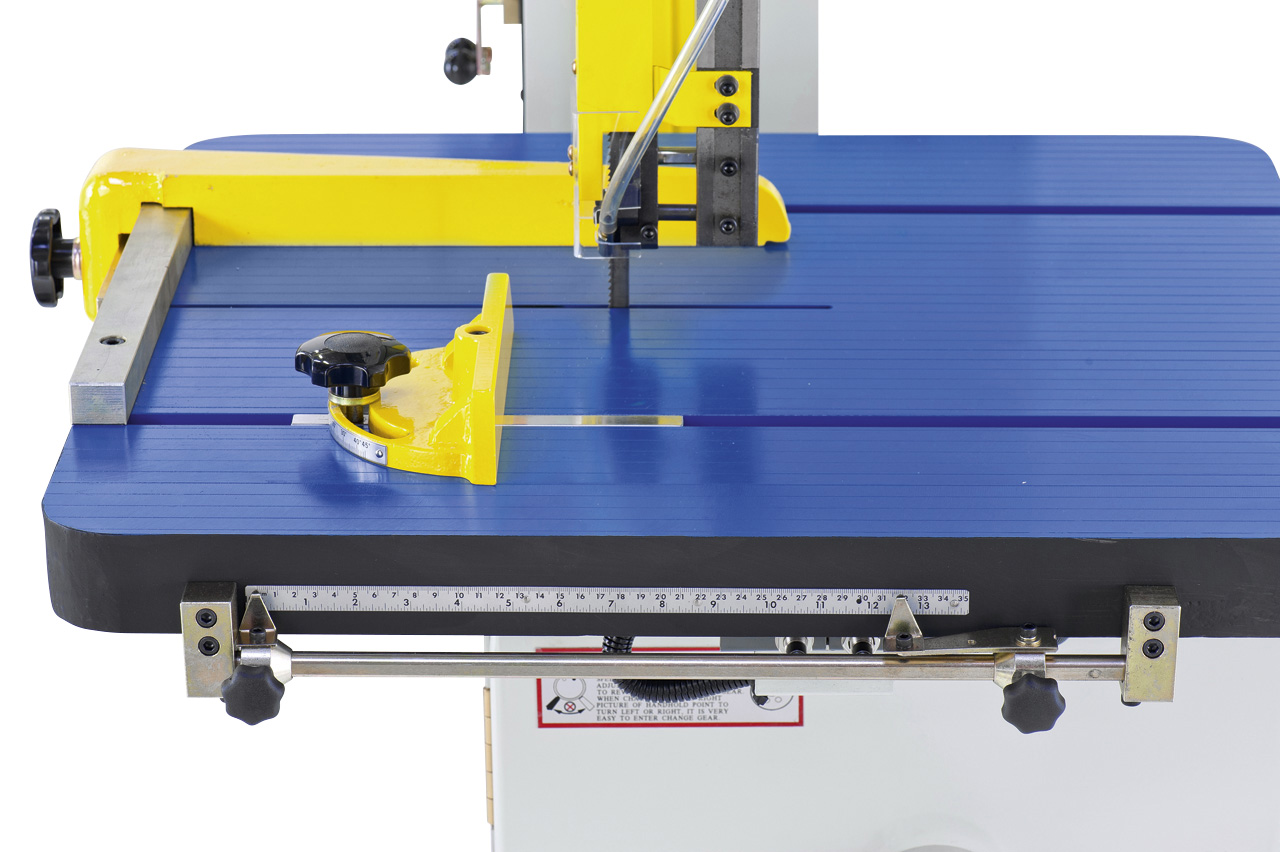

Solid grey cast-iron table, the large work rest ensures high work safety

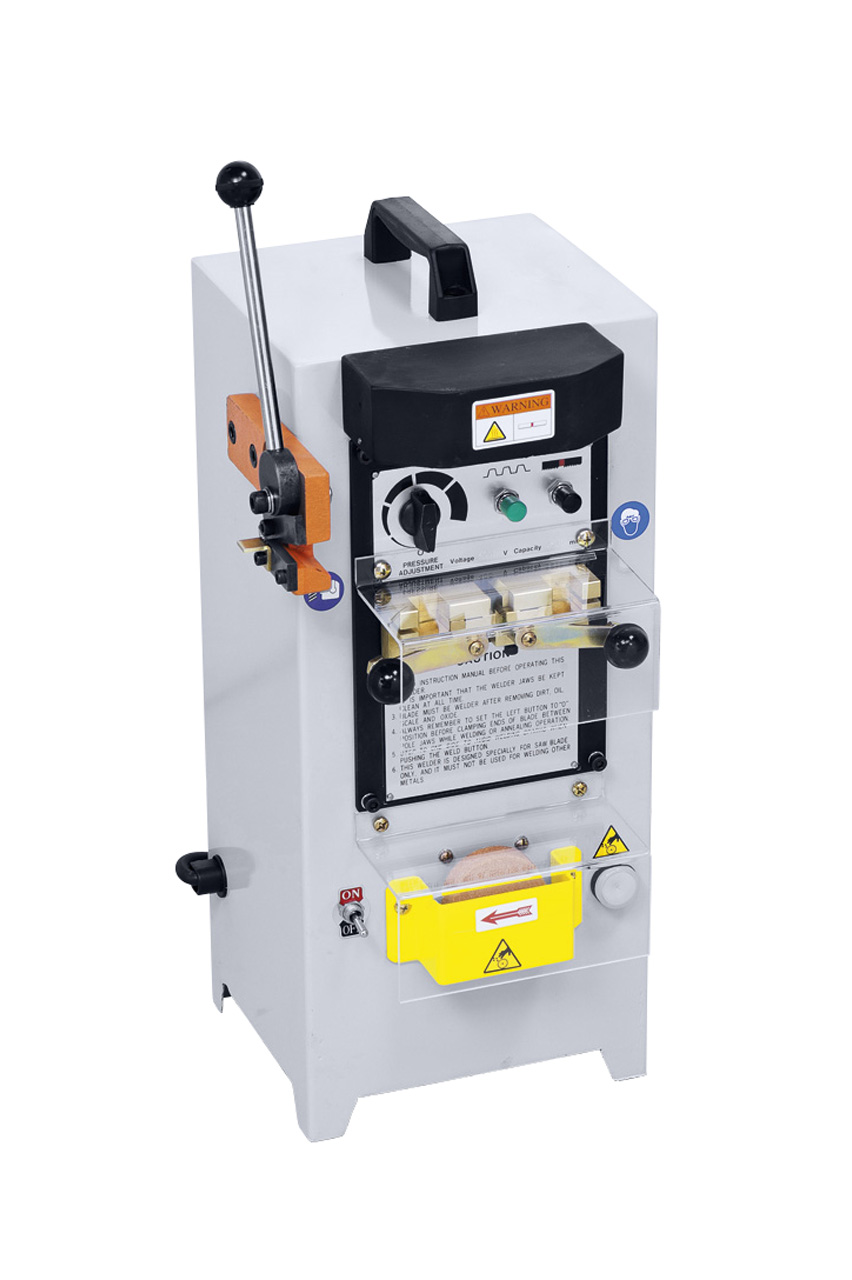

Complete with blade welding device, annealing device, shear and grinder
Equipped with stepless speed adjustment up to 500 m/min
Rigid steel construction of machine body allows for smooth run

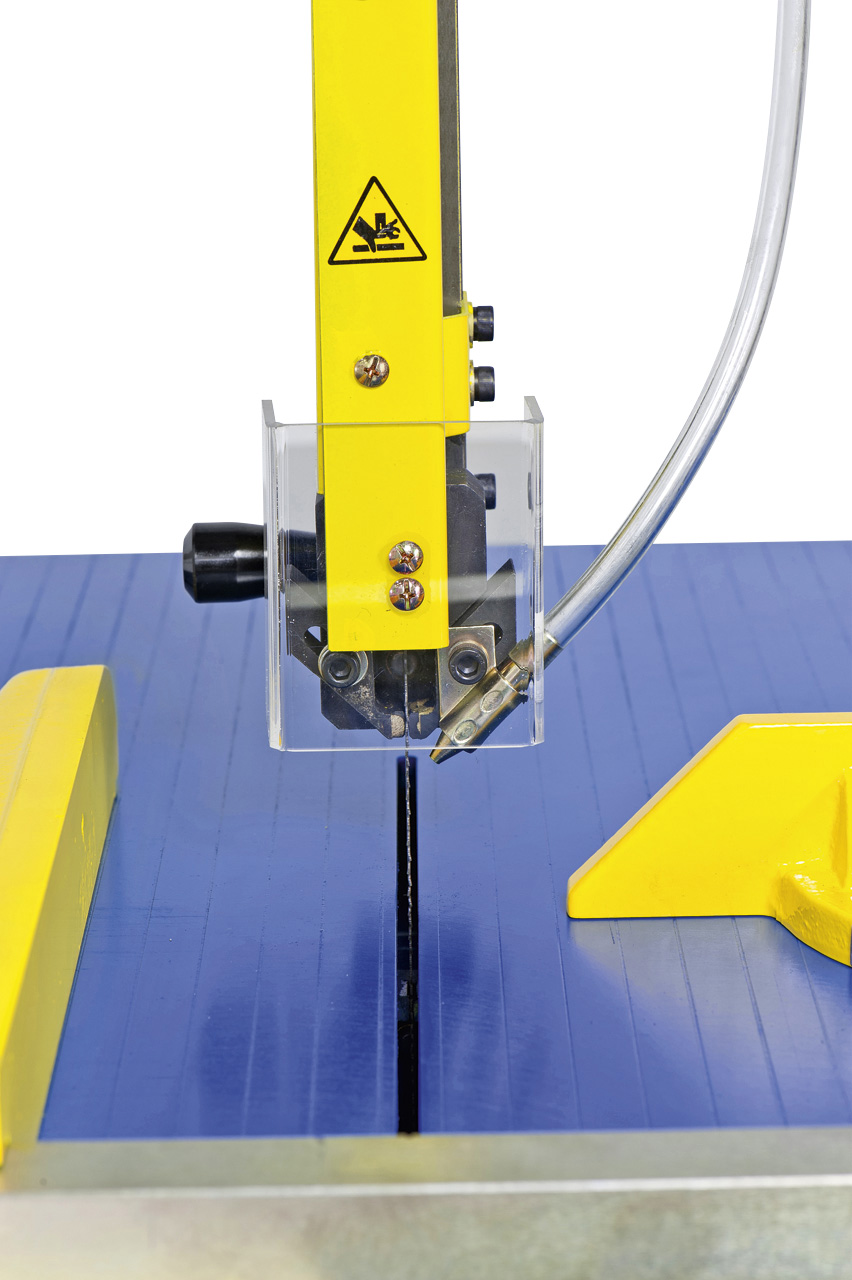

Blade guiding features hardened and polished V-guide pads
Ideal for sawing of complex contours and shapes
Standard accessories include blow gun with compressor
Bandsaw blades starting with a width of 3 mm allow sawing of radii

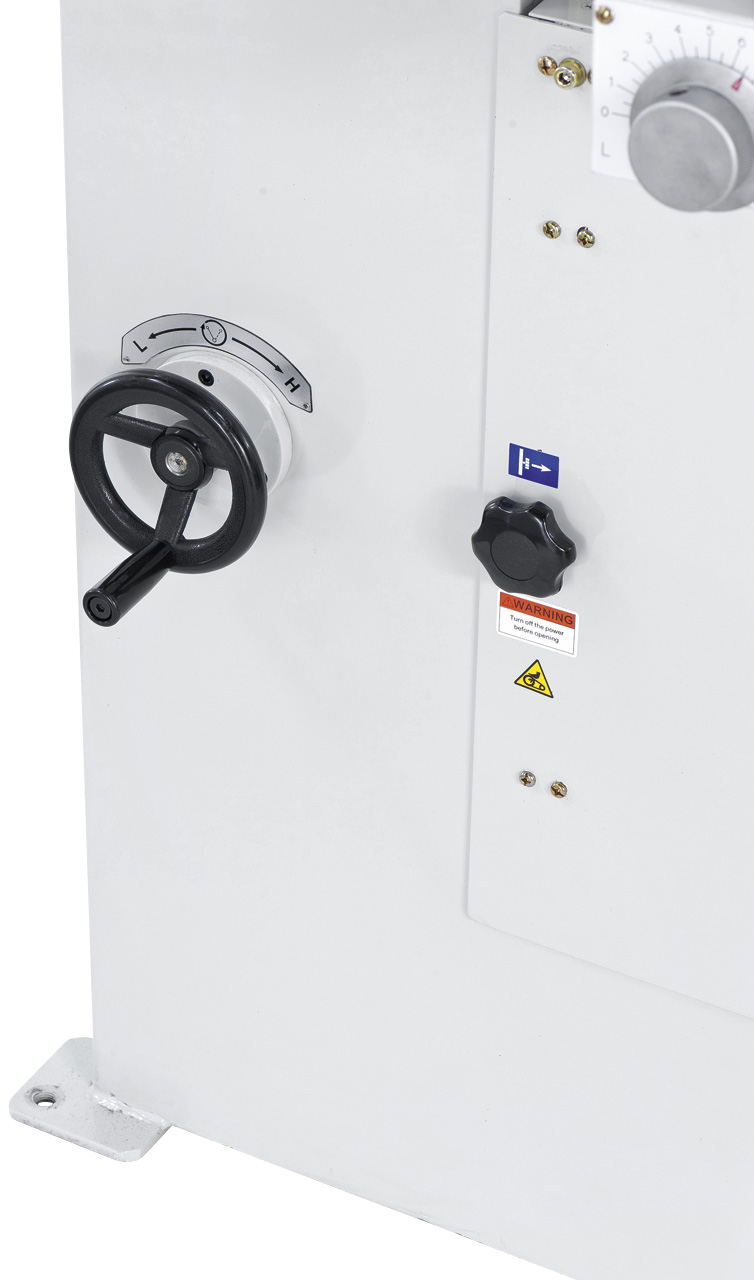

Handwheel allows adjustment of blade tension

Product Specifications

Cutting width	520 mm
Cutting height	310 mm
Working height	1000 mm

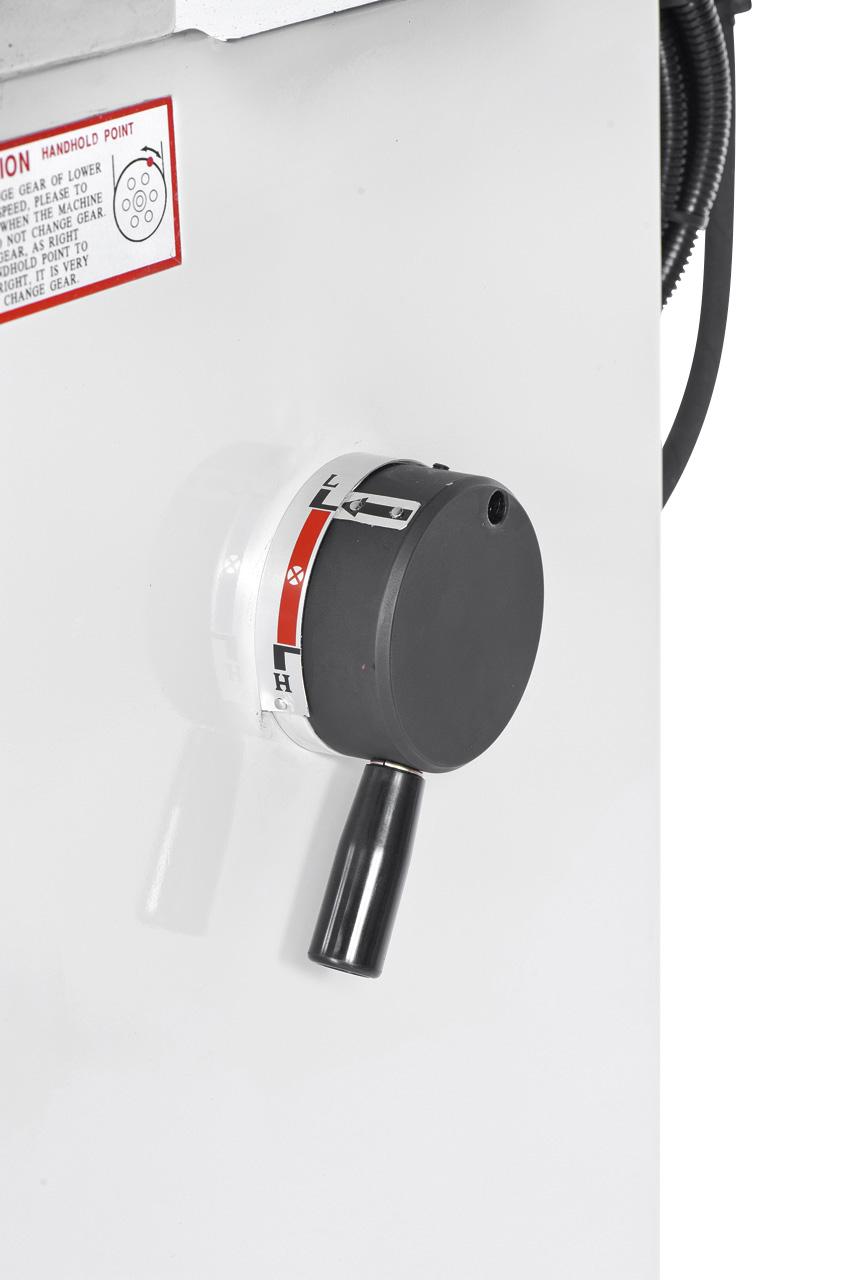

Cutting speed setting 1	20 – 85 m/min
Cutting speed setting 2	120 – 500 m/min
Bandsaw blade length	3880 mm
Bandsaw blade width	3 – 20 mm
Table size	660 x 700 mm
Table tilting range	L 5° / R 15°
Table travel	350 mm
Motor power	1,5 kW
Blade welding device	4,2 kVA
Machine dimension (L x D x H)	1450 x 1100 x 2140 mm
Weight approx.	650 kg
