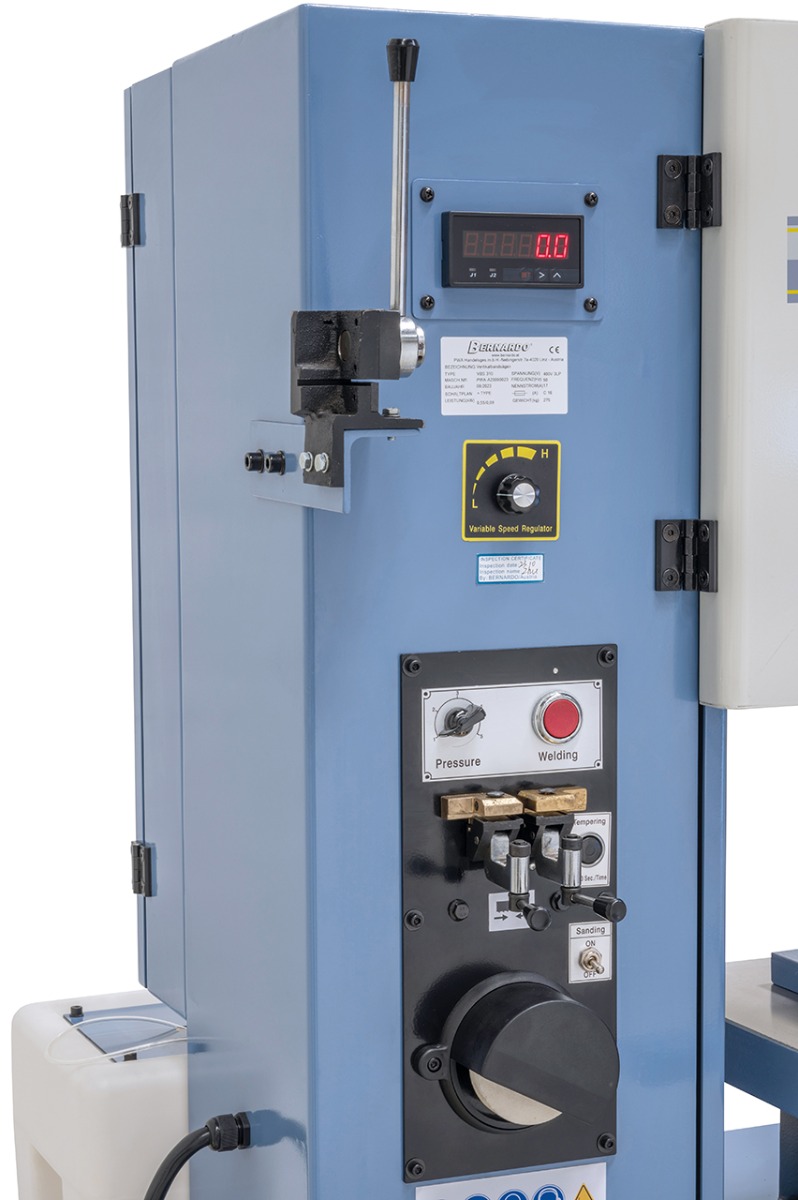

Blade welding unit, shear and grinder as standard

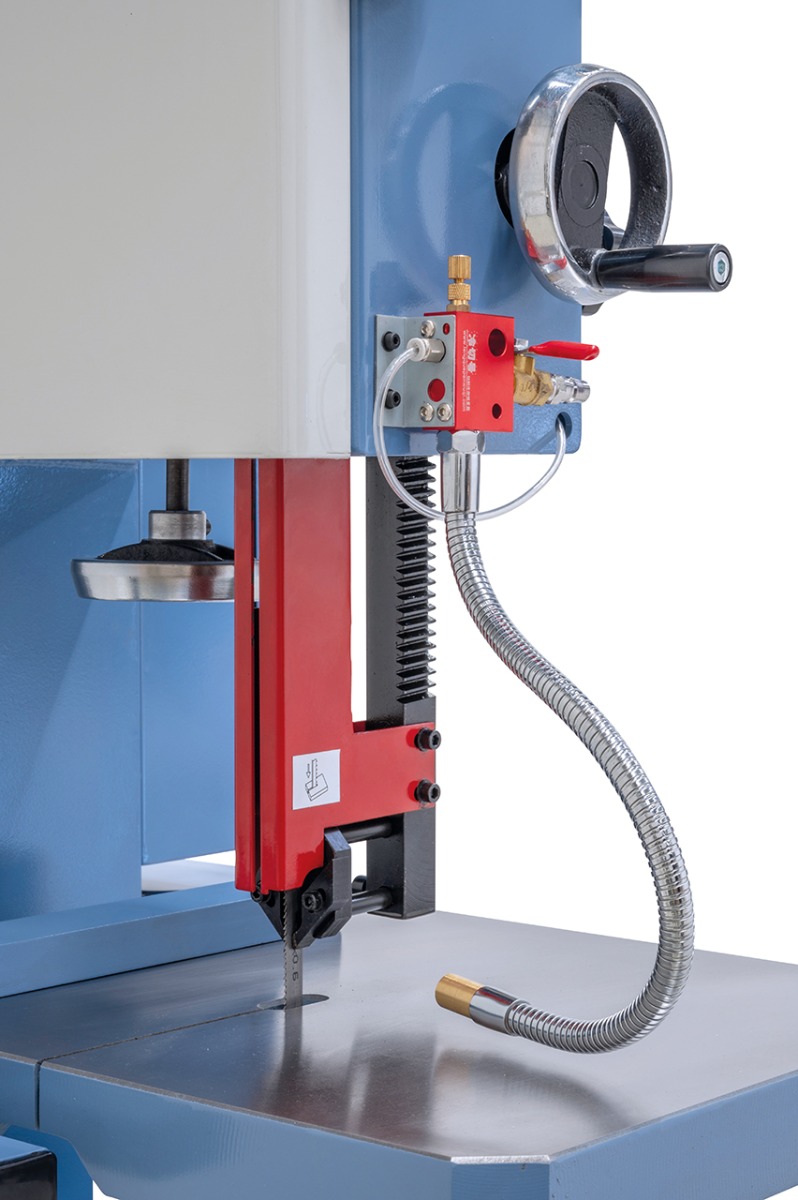

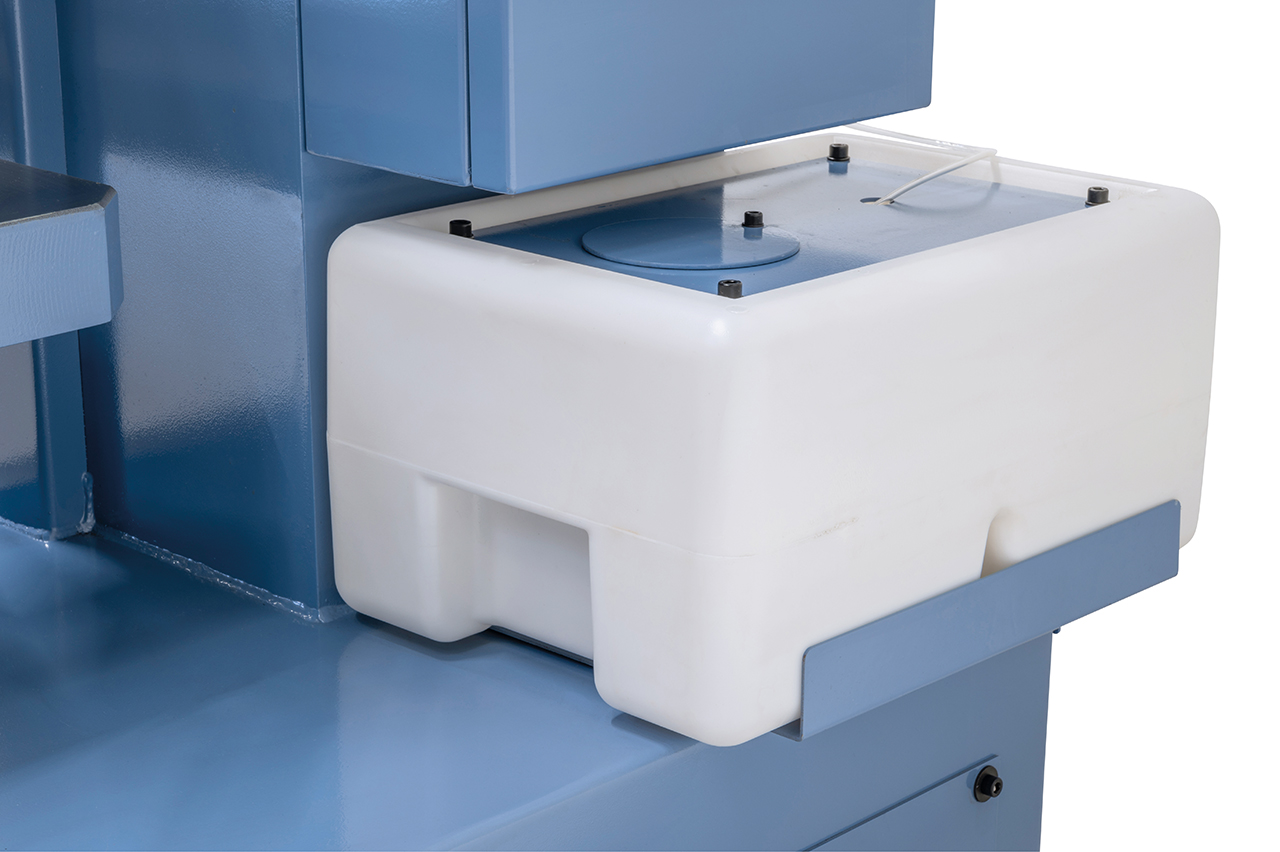

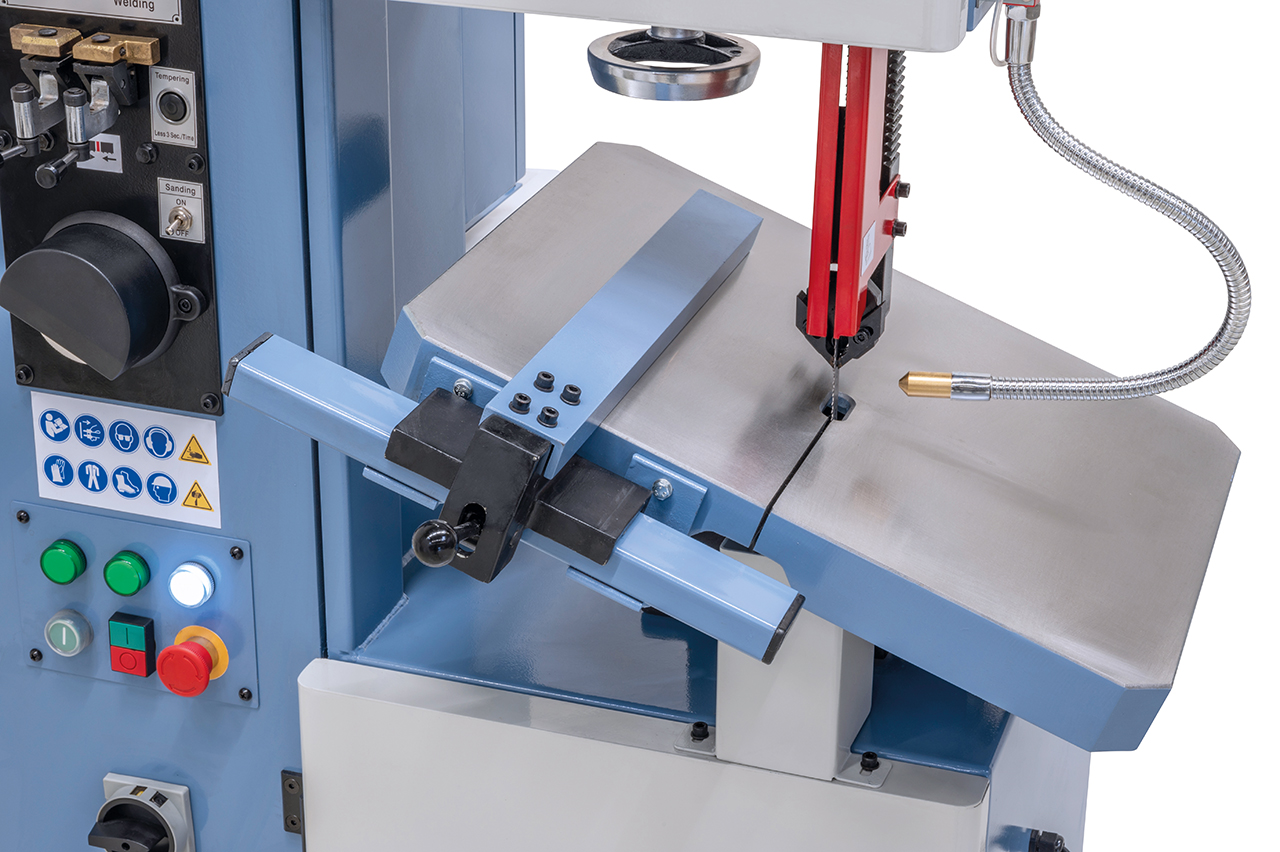

Micro cooling system and rip fence included.

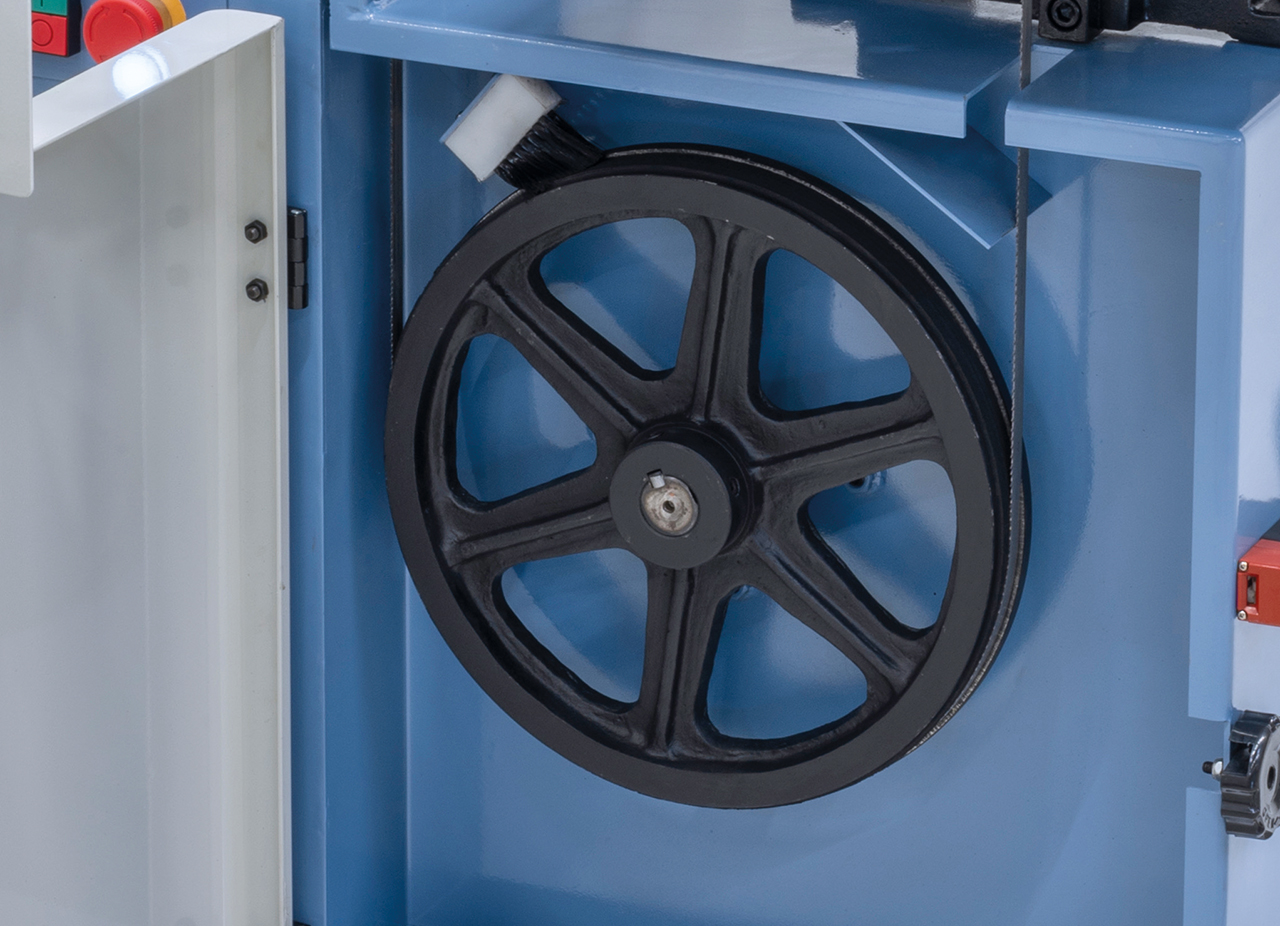

Drive wheel features special rubber band to ensure smooth run and increase life span of blade.

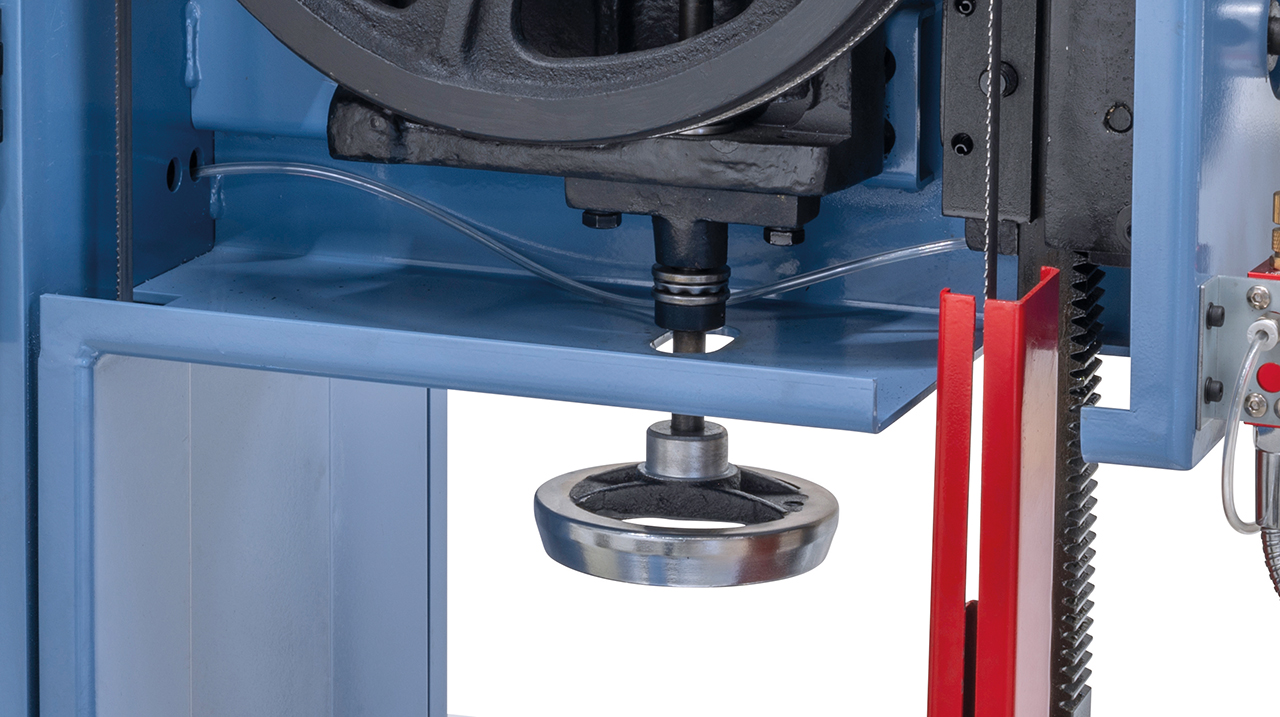

The handwheel allows accurate adjustment of the blade tension.

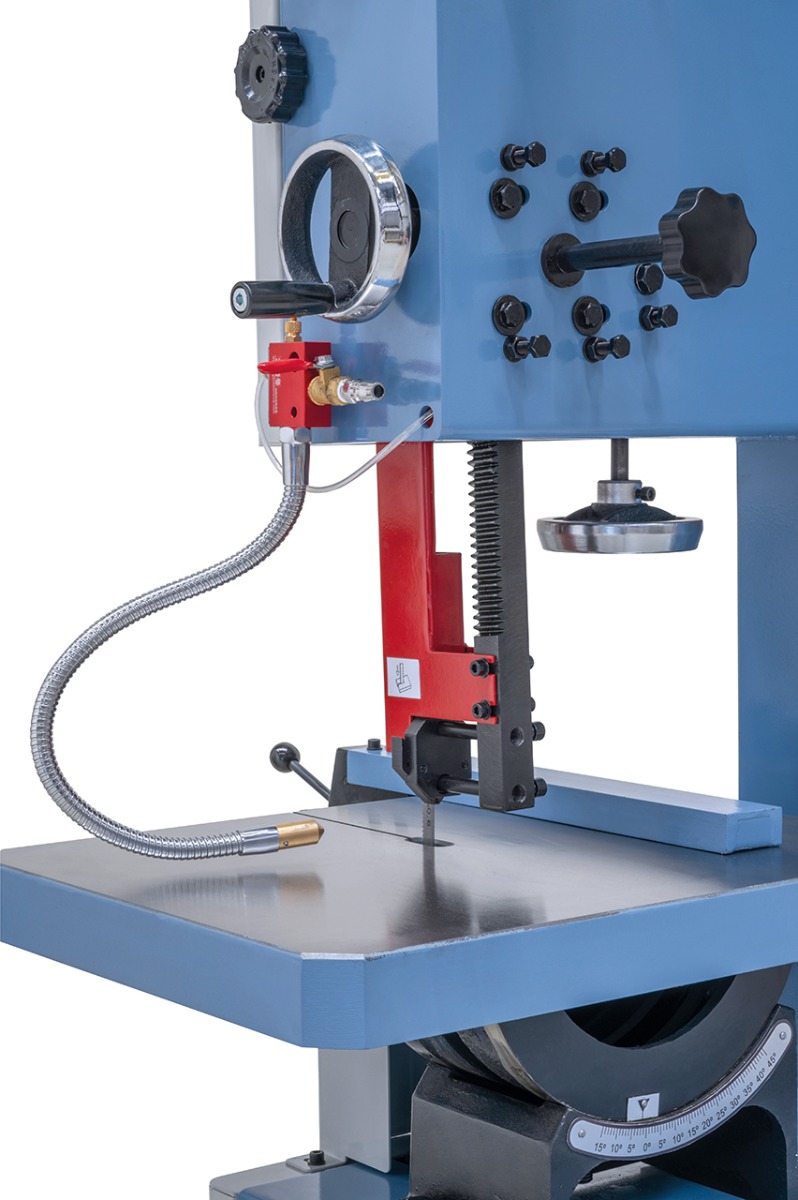

Blade guiding features hardened and polished V-guide pads

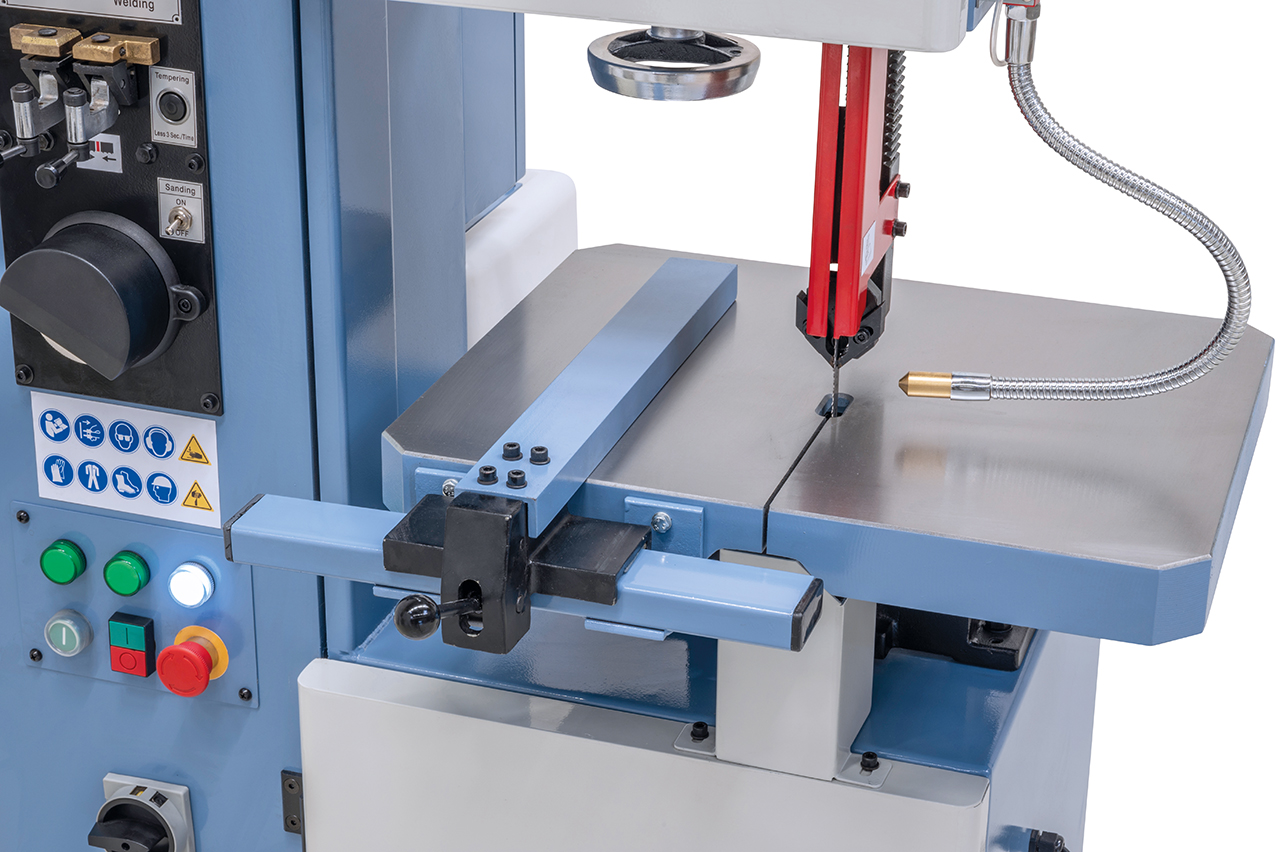

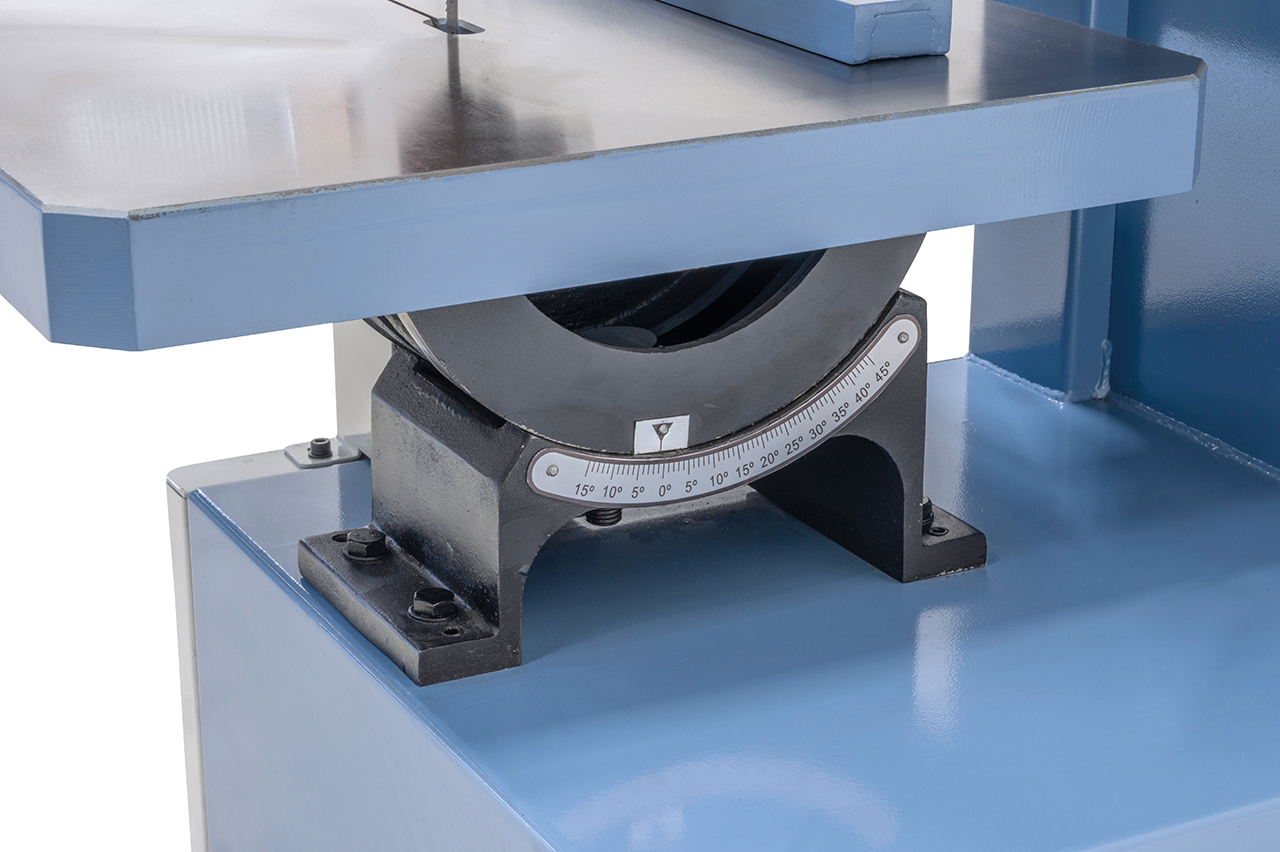

Tiltable work table made of cast iron.

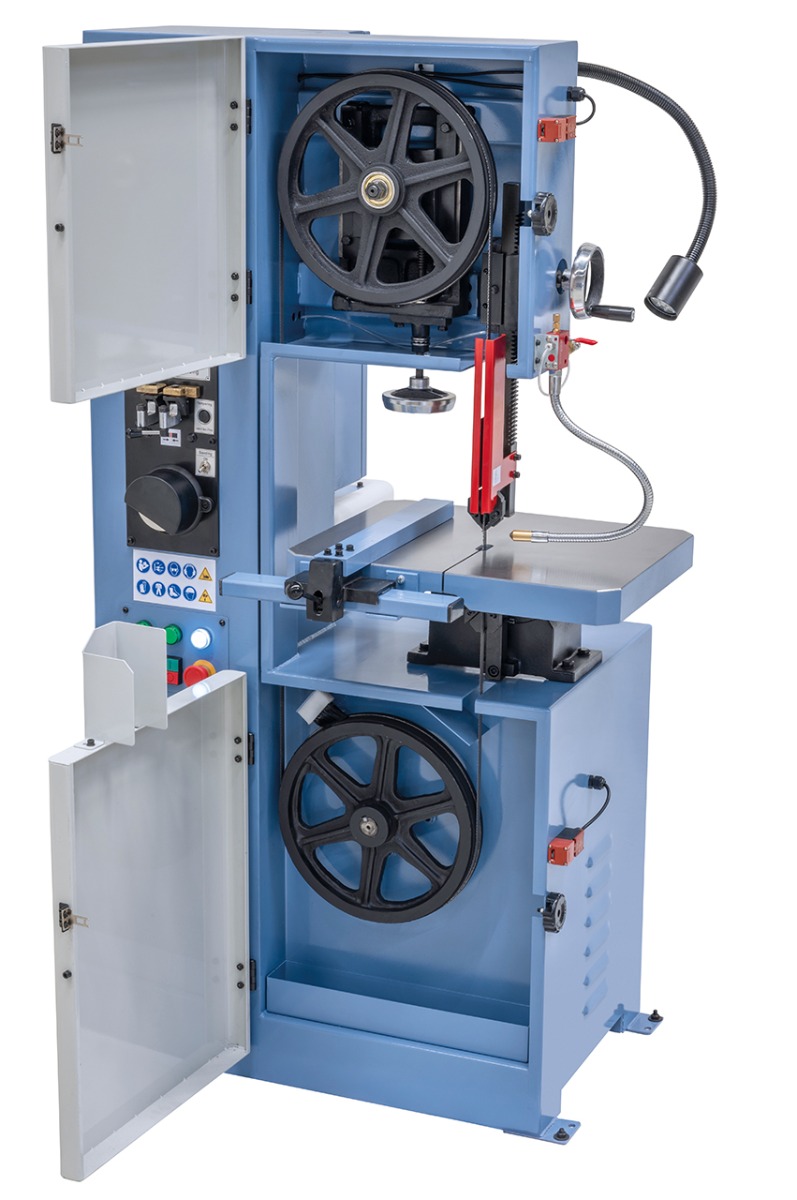

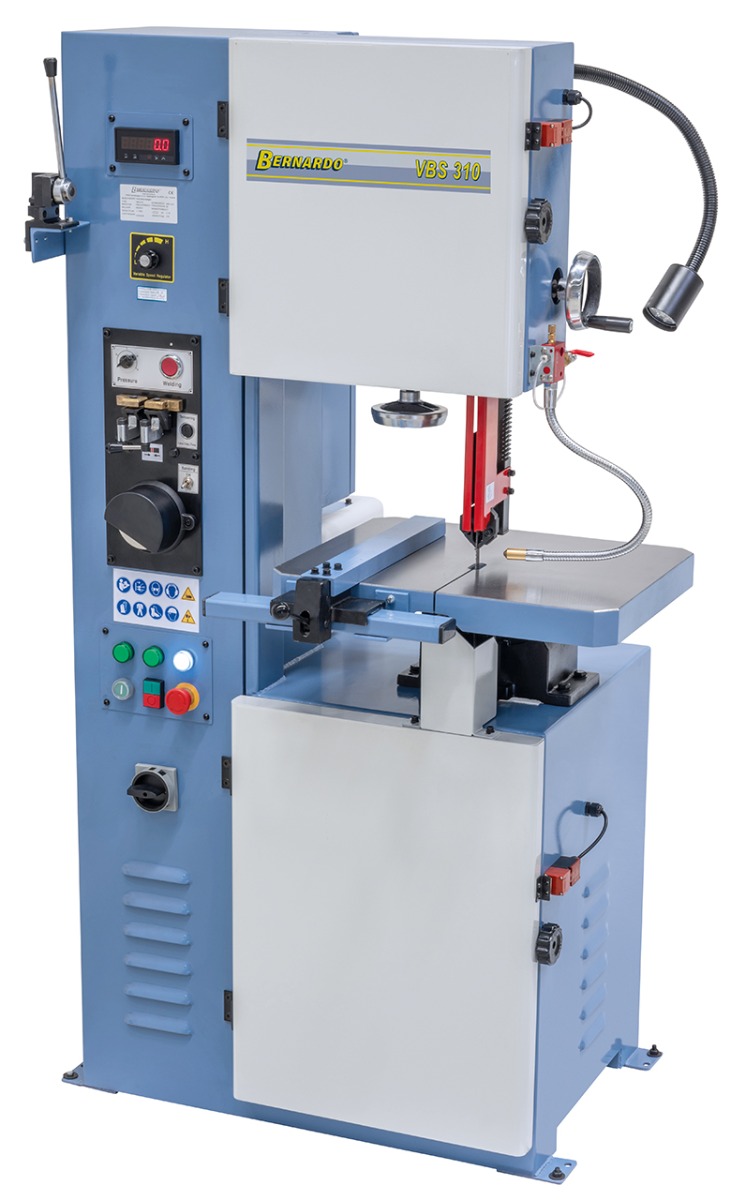

Vertical bandsaw VBS 310 *

Art.Nr.: 04-1785

Wishlist Comparison List

The vertical bandsaws of the VBS-series are designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.) The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.

€3,900.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

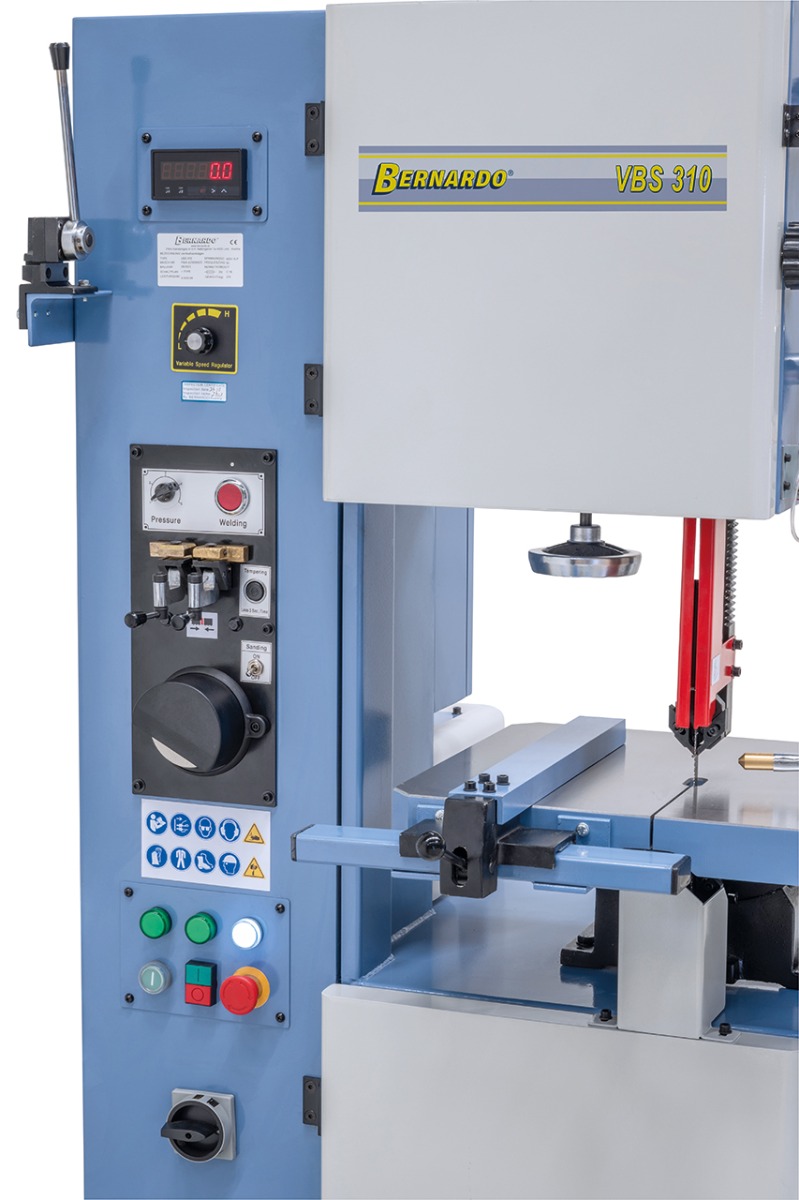

Complete with LED-display to allow for easy speed setting
Solid grey cast-iron table – the large surface improves safety aspects
Blade welding device, annealing device, shear and grinder come standard
Complete with stepless speed adjustment
Solidly constructed steel body ensures smooth running
High-quality bandsaw blade guide guarantees precise results
Convenient cutting of irregular shaped workpieces
3 mm bandsaw blades are optionally available for radius cutting

Product Specifications

Cutting width	315 mm
Cutting height	185 mm
Working height	890 mm
Cutting speed	10 - 180 m/min
Bandsaw blade width	2885 mm
Table size	3 - 16 mm
Size of additional table	500 x 400 mm
Table tilting range (in 4 directions)	-15° to +45°
Motor power	0,55 kW
Blade welding device	2,4 kVA
Machine dimension (L x D x H)	960 x 800 x 1600 mm
Weight approx.	265 kg
