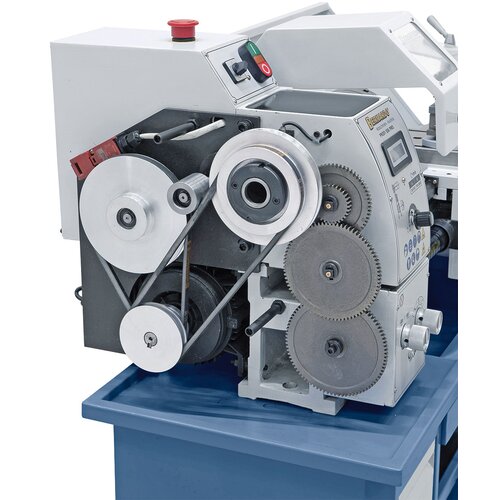

V-belts for easy change of the speed step
V-belts for easy change of the speed step

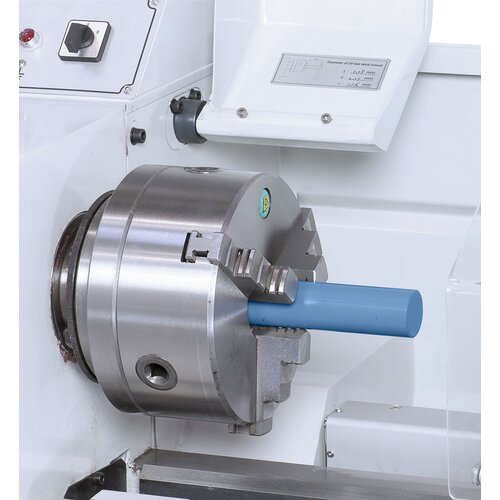

3-jaw steel chuck with hard inside and hard outside solid jaws as standard equipment.
3-jaw steel chuck with hard inside and hard outside solid jaws as standard equipment.

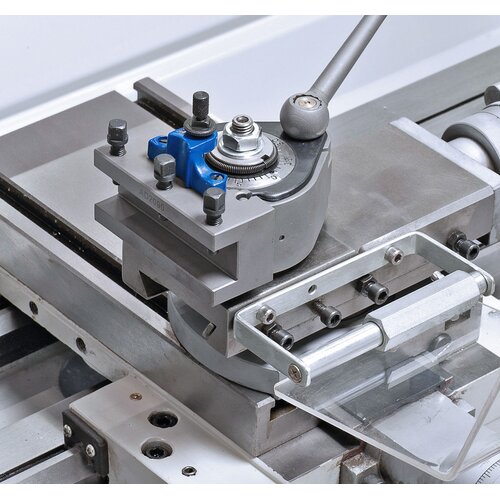

The machine can be equipped with a quick change tool post holder to raise efficiency
The machine can be equipped with a quick change tool post holder to raise efficiency

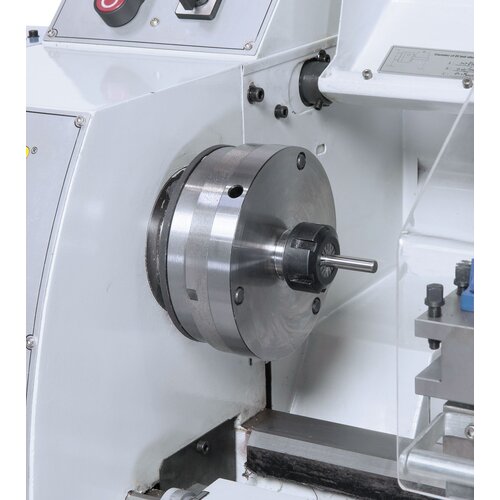

The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.
The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.

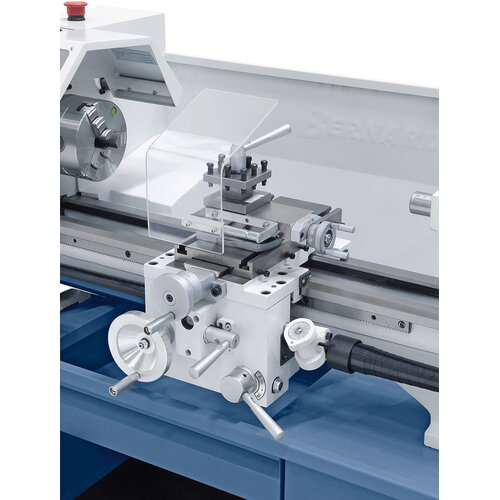

Smoothly-running apron with top support and 4-way tool post holder, handwheels with adjustable metric scale
Smoothly-running apron with top support and 4-way tool post holder, handwheels with adjustable metric scale
V-belts for easy change of the speed step
3-jaw steel chuck with hard inside and hard outside solid jaws as standard equipment.
The machine can be equipped with a quick change tool post holder to raise efficiency
The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.
Smoothly-running apron with top support and 4-way tool post holder, handwheels with adjustable metric scale

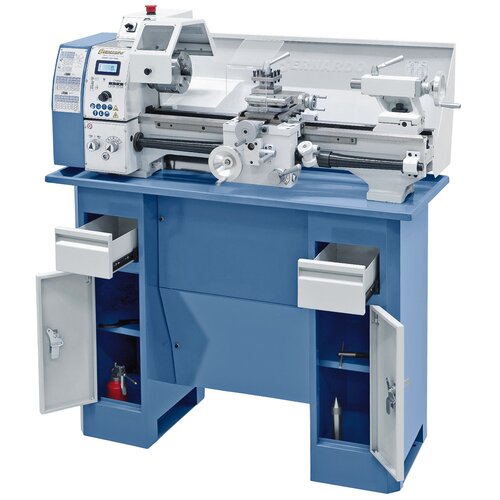

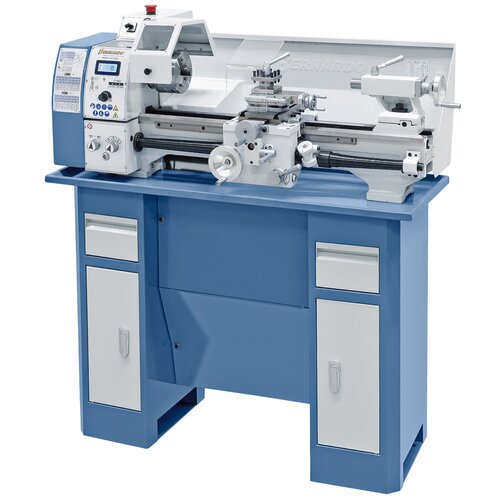

Vario lathe Profi 550 PRO / 230 V

Art.Nr.: 03-1179
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Profi 550 PRO turning lathe feature a high speed range up to 3000 rpm as well as a large range of standard accessories (for instance DC-motor with frequency inverter, main spindle bearing in P5-quality, etc.) making this model ideal for users with high expectations.

€3,168.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Precision 3-jaw steel chuck for speed up to 3000 rpm comes standard
  • Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
  • Main spindle bearing with adjustable taper roller bearing in P5-quality
  • Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
  • Optionally available milling attachment increases range of applications
  • High concentricity of the hardened spindle nose ≤ 0,015 mm
  • Solid machine bed with inductive hardened and polished guideways
  • Top support can be adjusted in x-axis
  • Stepless speed adjustment as part of standard accessories, set speed can be read on digital display

Product Specifications

Distance between centers

550 mm

Center height

125 mm

Swing over bed

250 mm

Bed width

135 mm

Spindle bore

26 mm

Taper at spindle bore

MT 4

Speed range, stepless

30 - 450 / 150 - 3000 rpm

Longitudinal feed

(6) 0,06 - 0,32 mm/rev.

Cross feed

(4) 0,03 - 0,075 mm/rev.

Metric thread

(18) 0,2 - 3,5 mm

Inch thread

(21) 8 - 56 threads/1“

Travel of tailstock sleeve

70 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

1,5 kW / 230 V

Motor power input S6 40%

2,2 kW / 230 V

Machine dimension (W x D x H)*

1210 x 610 x 450 mm

Weight approx.

137 kg




* without stand

Delivery Contents

  • 3-jaw steel chuck PO3-125 mm
  • Flange 125 mm
  • Dead centers
  • Change gears
  • 4-way tool post holder
  • Cross slide with top support
  • Frequency inverter
  • Digital speed indication
  • Thread dial
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
