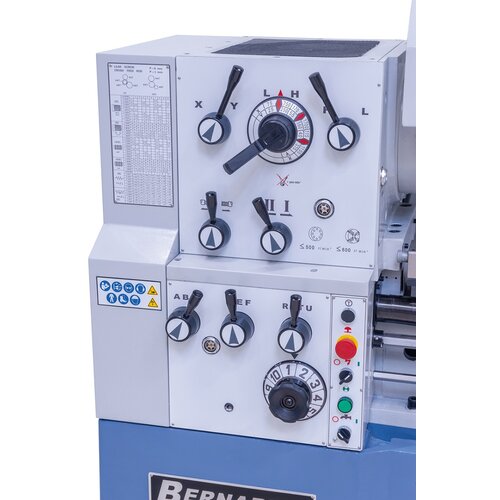

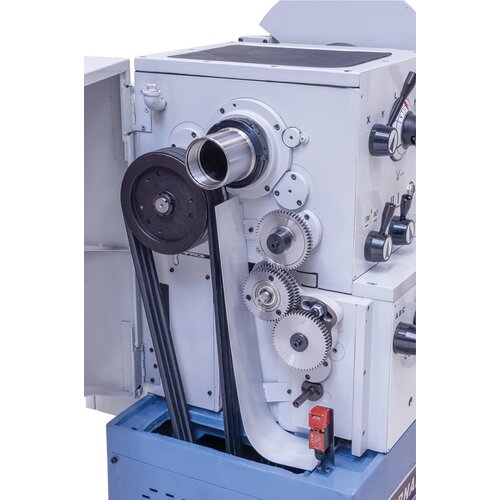

Hardened main spindle with precision taper bearing for high concentricity, teethed Optibelt-V-belt for optimal power transmission.
Hardened main spindle with precision taper bearing for high concentricity, teethed Optibelt-V-belt for optimal power transmission.

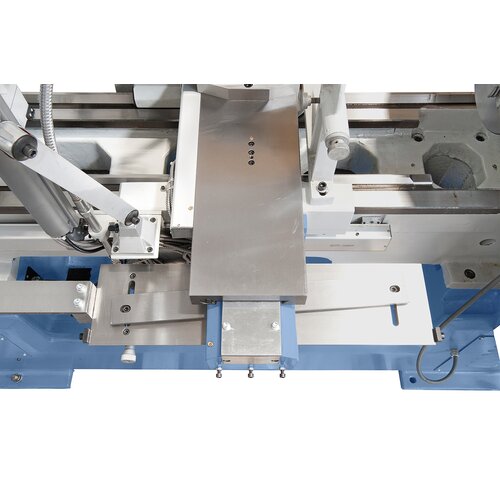

Taper turning attachment optional available, turning length 455 mm, setting angle +/- 8°.
Taper turning attachment optional available, turning length 455 mm, setting angle +/- 8°.

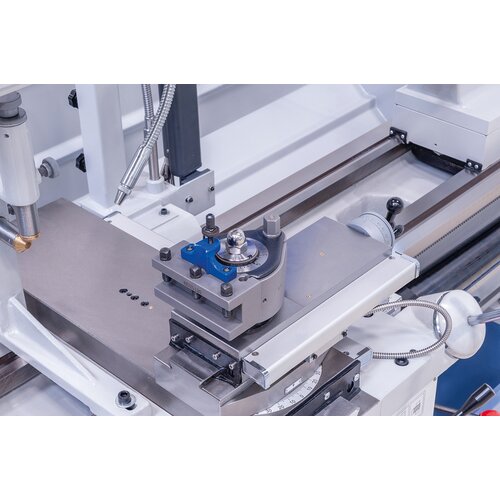

The 40 position tool post and holder set system Multifix raises efficiency and ensures a high repeat accuracy.
The 40 position tool post and holder set system Multifix raises efficiency and ensures a high repeat accuracy.

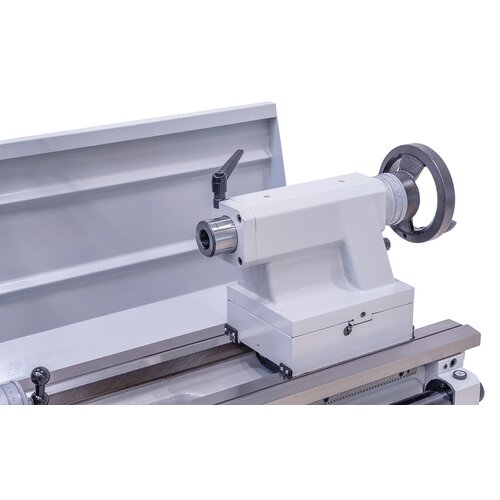

The solid tailstock with spindle taper MT 4 can be adjusted for taper turning.
The solid tailstock with spindle taper MT 4 can be adjusted for taper turning.

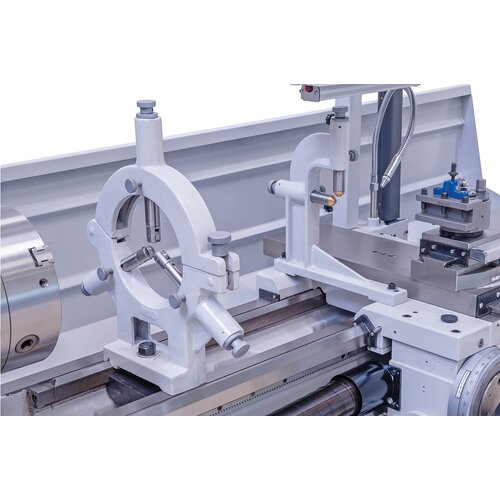

Complete with steady and follow rest to allow for solid support of long workpieces.
Complete with steady and follow rest to allow for solid support of long workpieces.

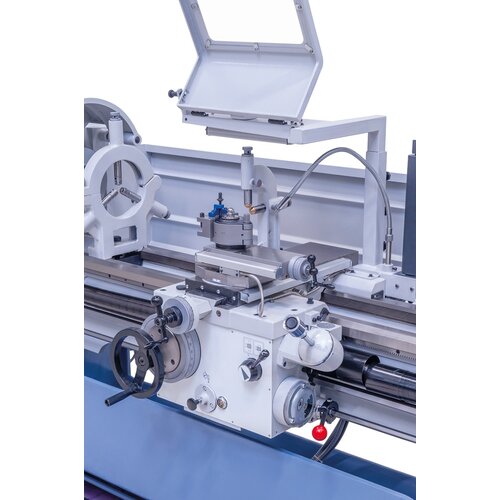

42 freely adjustable feeds are available for the longitudinal and cross travel of the apron and the top support.
42 freely adjustable feeds are available for the longitudinal and cross travel of the apron and the top support.

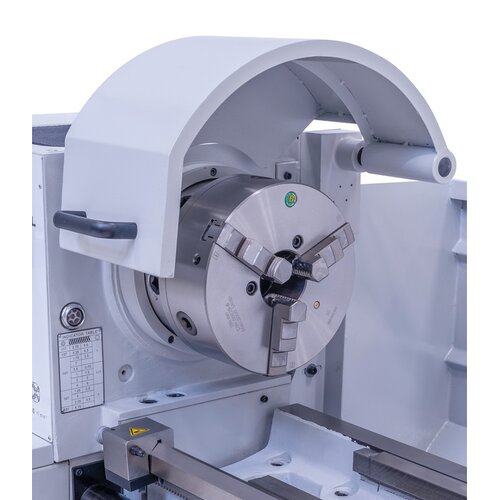

Advantage of Bernardo chuck PS3-250 mm / D8: soft solid jaws, hard master jaws, hard reversible top jaws and soft top jaws are optionally available.
Advantage of Bernardo chuck PS3-250 mm / D8: soft solid jaws, hard master jaws, hard reversible top jaws and soft top jaws are optionally available.
Hardened main spindle with precision taper bearing for high concentricity, teethed Optibelt-V-belt for optimal power transmission.
Taper turning attachment optional available, turning length 455 mm, setting angle +/- 8°.
The 40 position tool post and holder set system Multifix raises efficiency and ensures a high repeat accuracy.
The solid tailstock with spindle taper MT 4 can be adjusted for taper turning.
Complete with steady and follow rest to allow for solid support of long workpieces.
42 freely adjustable feeds are available for the longitudinal and cross travel of the apron and the top support.
Advantage of Bernardo chuck PS3-250 mm / D8: soft solid jaws, hard master jaws, hard reversible top jaws and soft top jaws are optionally available.

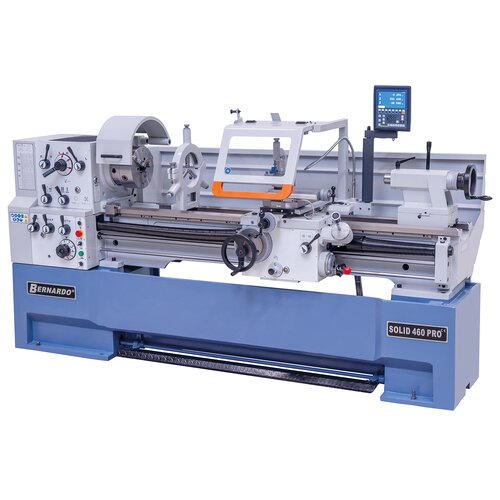

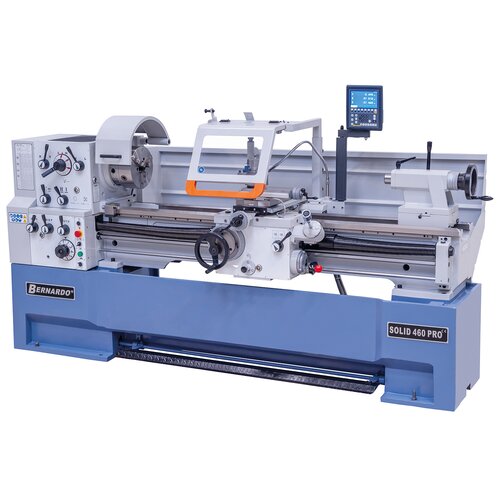

Universal turning lathe Solid 460 x 2000 Pro incl. 3-axis digital readout *

Art.Nr.: 03-1309XL1
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Solid 460 Pro is universal lathe designed for easy and economical production of single parts or small series. A wide range of equipment is included, making these machines highly versatile.

€22,392.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Modern bearing of main spindle with angular ball bearing in precision construction
  • Hardened and ground gears and shafts, even in feed gear unit
  • Central and easy coupling of feeds and threads with leadscrew and feed rod
  • The large gears are hardened and precision-ground
  • Easy, smooth and precisely adjustable speed and feed settings
  • Complete with longitudinal and cross rapid feed to reduce downtime
  • The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning

Product Specifications

Distance between centers

2000 mm

Center height

230 mm

Swing over bed

460 mm

Swing over gap

690 mm

Swing over cross slide

270 mm

Bed width

300 mm

Spindle bore

80 mm

Spindle nose fixture

DIN 55029, D1-8

Speed range

(12) 25 - 1700 rpm

Longitudinal feed

(42) 0,055 - 3,065 mm/rev.

Cross feed

(42) 0,025 - 1,386 mm/rev.

Metric thread

(41) 0,1 - 14 mm

Inch thread

(60) 2 - 112 threads/1“

Diameter of tailstock sleeve

60 mm

Travel of tailstock sleeve

130 mm

Taper of tailstock sleeve

MT 4

Motor power

5,5 kW (7,5 HP)

Machine dimension (W x D x H)

3250 x 1080 x 1600 mm

Weight approx.

1995 kg

Delivery Contents

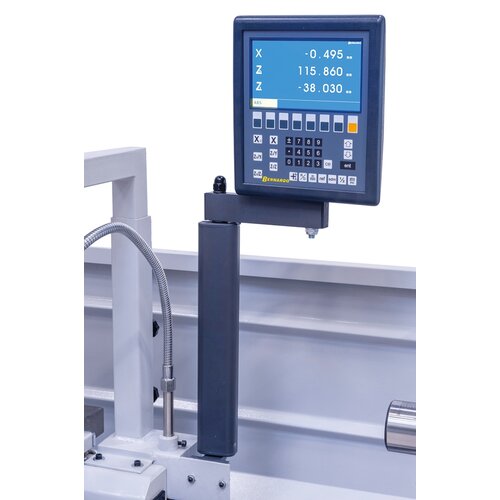

  • 3-axis digital readout ES-12 V with LCD display
  • 3-jaw chuck PS3-250 mm / D8
  • Face plate 450 mm
  • Coolant device
  • Initial filling with Shell Tellus 46
  • Steady rest - Passage up to max. 150 mm
  • Follow rest - Passage up to max. 110 mm
  • 40 pos. tool post and holder set with 4 inserts

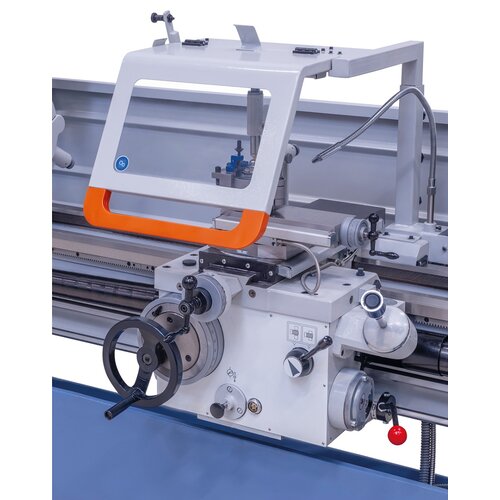

  • Protective device at tool holder
  • Motor with magnetic brake according to CE
  • Foot pedal with brake function according to CE
  • Safety clutch
  • Rapid feed longitudinal and cross
  • Change gears
  • 2 dead centers
  • Morse taper drill sleeve
  • Thread dial

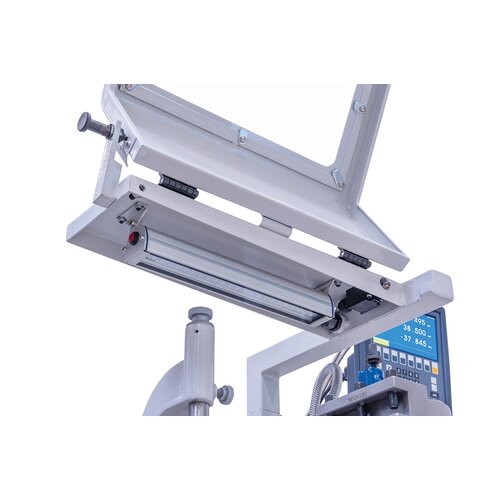

  • LED machine light
  • Splash guard
  • Tools
