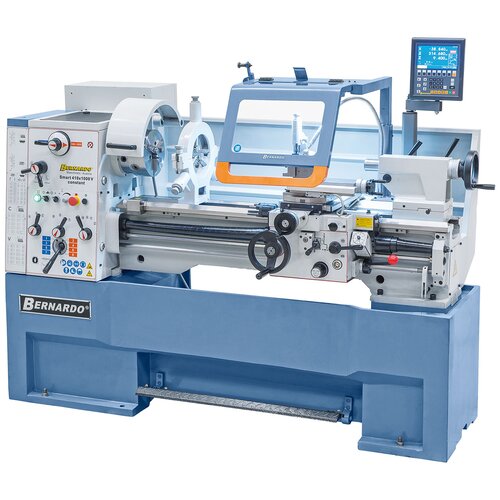

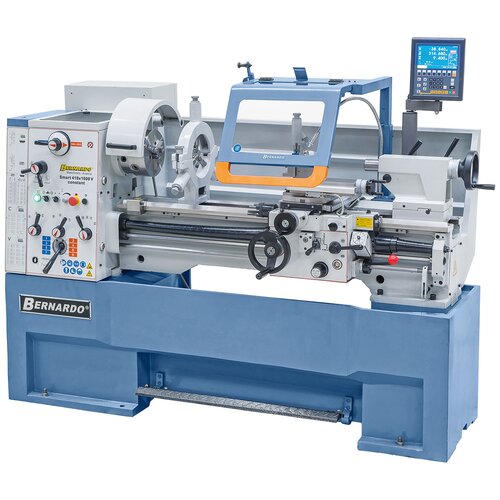

Universal turning lathe Smart 410 x 1500 V-constant *
Art.Nr.: 03-1304XLThe Smart 410 V-constant universal lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards. Furthermore, this model features the additional feature of “constant cutting speed”, allowing excellent results when processing work pieces with inconsistent diameters.
€19,656.00
incl. 20% VATAvailability
Product Properties
- Constant cutting speed when face turning, spindle speed automatically adjusts to diameter of work piece
- High surface quality due to the constant cutting speed when facing turning
- Grey cast iron machine bed, inductively hardened and precisely polished
- Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Complete with frequency inverter and 3-axis digital readout including speed indication
- Hardened, polished gear wheels and shafts, even in feed unit

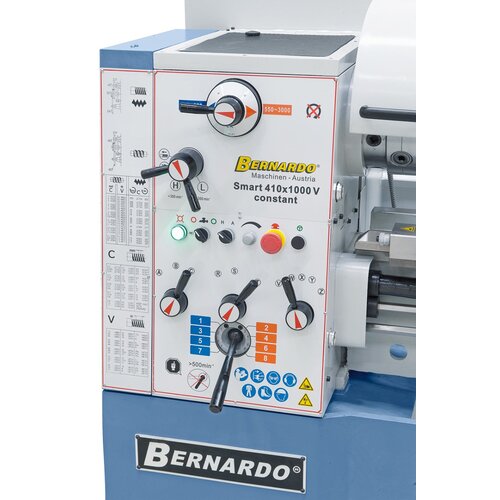

- Clearly arranged, user-friendly, accurate speed and feed change

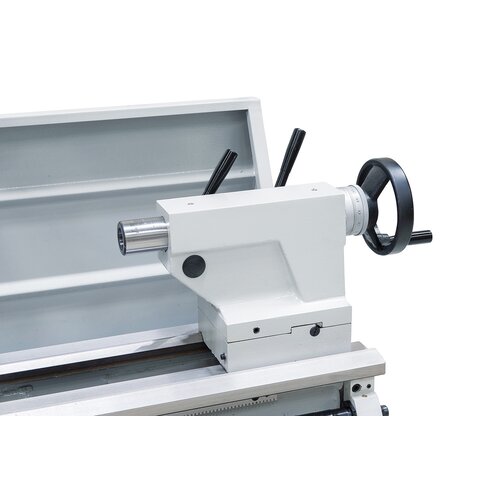

- Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
- Removable bridge allows machining of oversize workpieces
Product Specifications
|
Distance between centers |
1500 mm |
|
Center height |
210 mm |
|
Swing over bed |
420 mm |
|
Swing over gap |
580 mm |
|
Swing over cross slide |
250 mm |
|
Bed width |
250 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1 - 6 |
|
Speed range, stepless |
30 - 550 / 550 - 3000 rpm |
|
Longitudinal feed |
(17) 0,05 - 1,7 mm/rev. |
|
Cross feed |
(17) 0,025 - 0,85 mm/rev. |
|
Metric thread |
(42) 0,2 - 14 mm |
|
Inch thread |
(45) 2 - 72 threads/1“ |
|
Diameter of tailstock sleeve |
50 mm |
|
Travel of tailstock sleeve |
125 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power |
5,5 kW (7,5 HP) |
|
Machine dimension (W x D x H) |
2450 x 1000 x 1580 mm |
|
Weight approx. |
1400 kg |
Delivery Contents

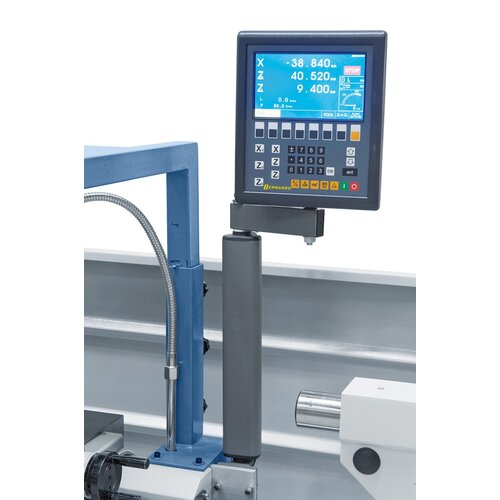

- 3-axis digital readout ES-12 S with LCD-display and speed indication

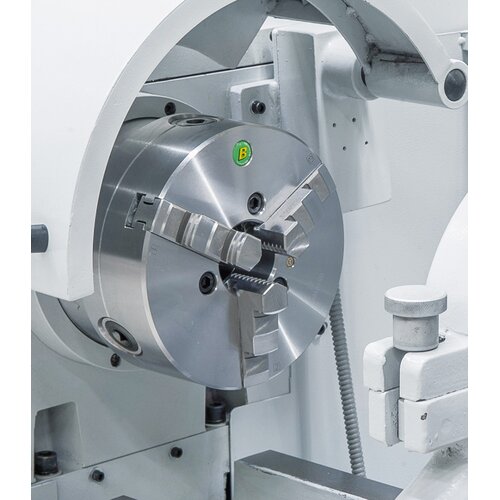

- 3-jaw steel chuck PO3-200 mm / D6
- Face plate 350 mm

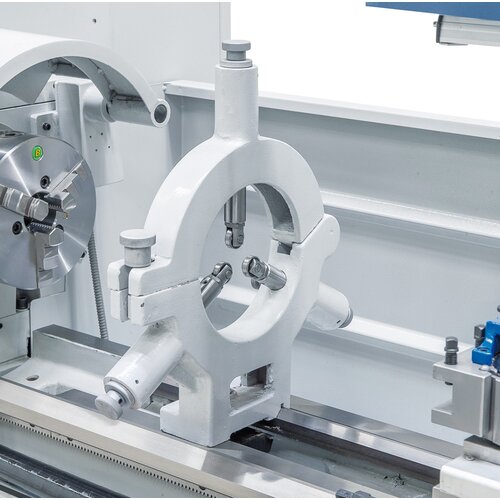

- Steady rest - Passage up to max. 130 mm

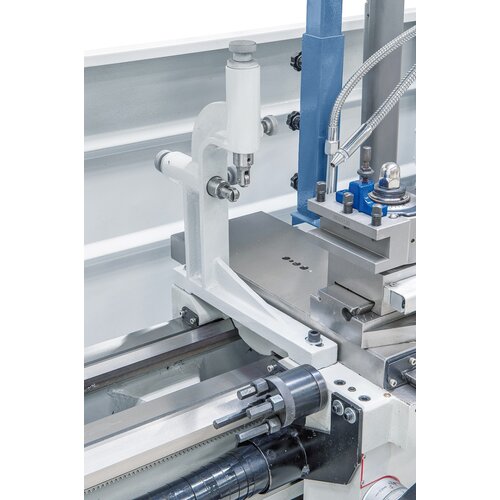

- Follow rest - Passage up to max. 70 mm
- Foot pedal with brake function according to CE

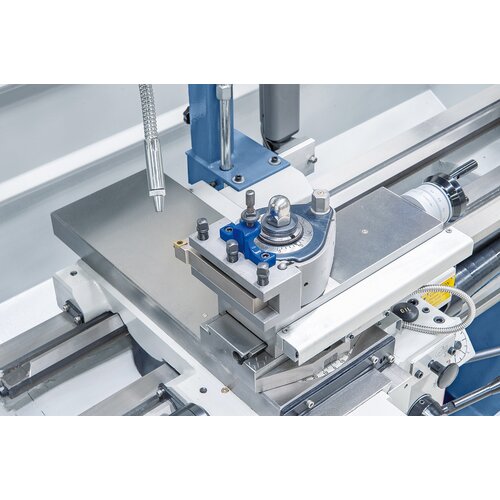

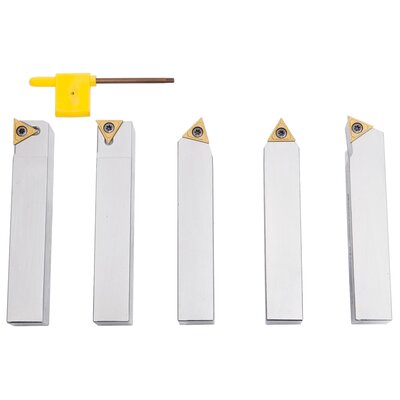

- 40 pos. tool post and holder set with 4 inserts

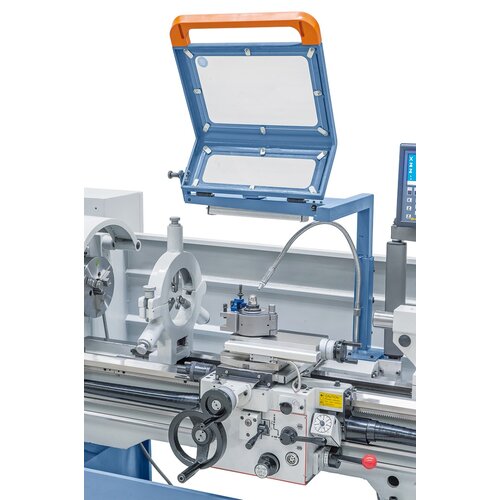

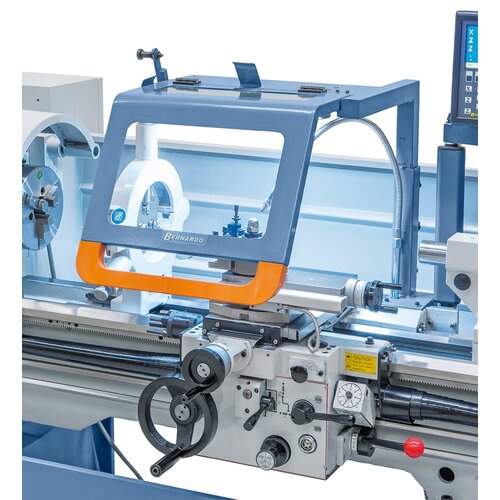

- Protective device at tool holder
- Micrometer longitudinal fence
- Turret fence with fine adjustment

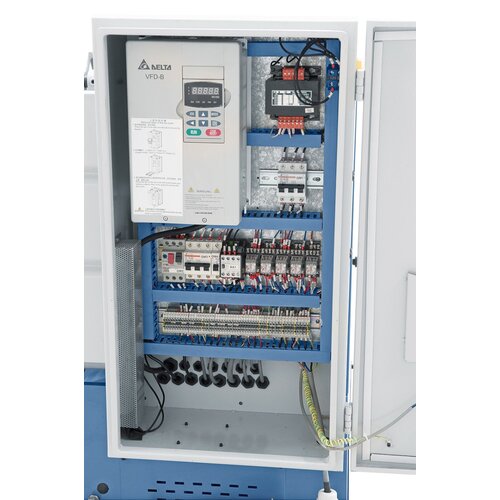

- Frequency inverter
- Initial filling with Shell Tellus 46
- Coolant device
- Safety clutch
- Thread dial

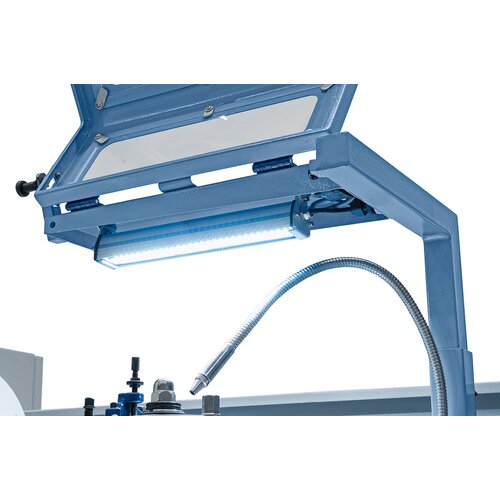

- LED machine light

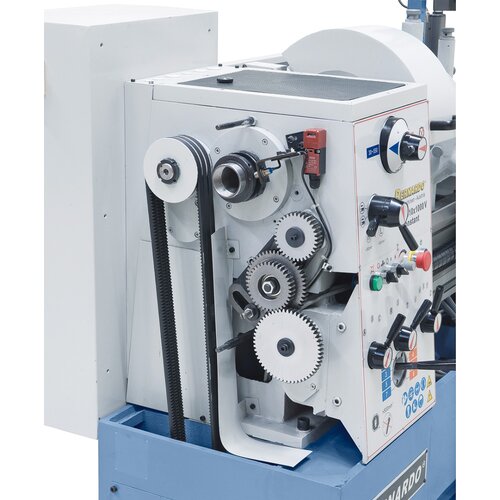

- Change gears
- Morse taper drill sleeve
- 2 dead centers
- Splash guard
- Tools
