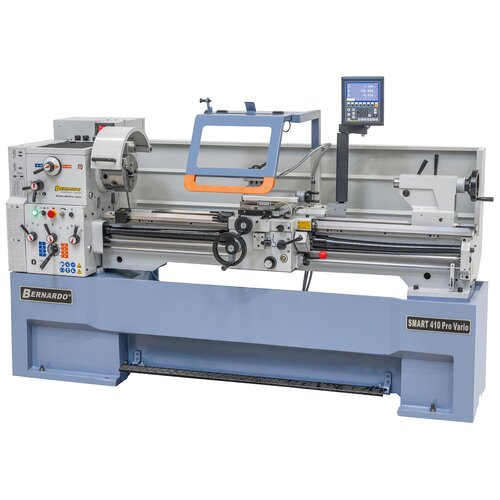

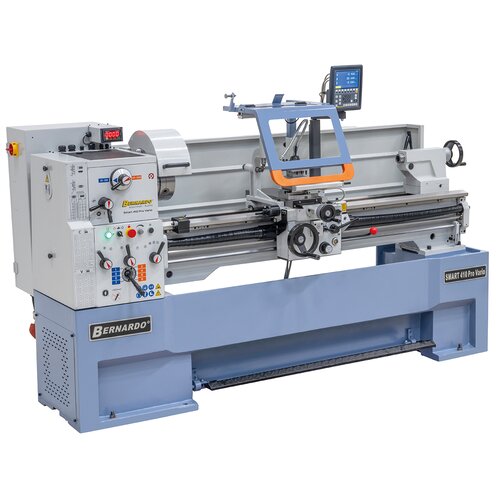

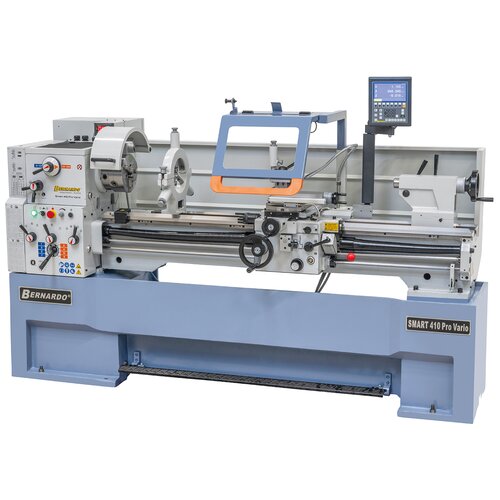

Universal turning lathe Smart 410 x 1000 Pro Vario *
Art.Nr.: 03-1301XL0The Smart 410 Pro Vario universal lathe is suitable for easy to medium difficult turning works. Its wide range of standard equipment, such as the 3-jaw chuck, follow and steady rest, change gears and 3-axis digital readout, makes this model extremely versatile. Furthermore, this model comes equipped with a stepless speed adjustment up to 3000 rpm, allowing the speed to be optimally adjusted to the workpiece and the feed rate.
€16,068.00
incl. 20% VATAvailability
Product Properties
- Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

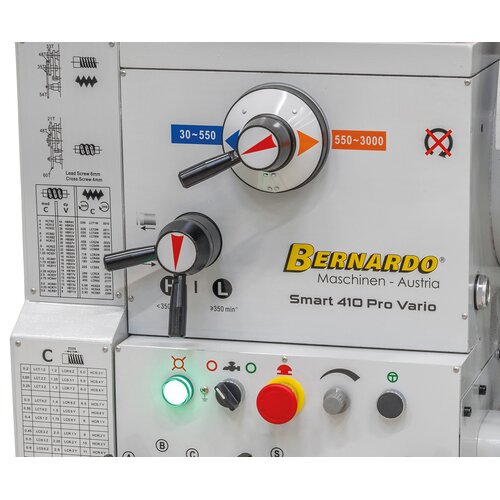

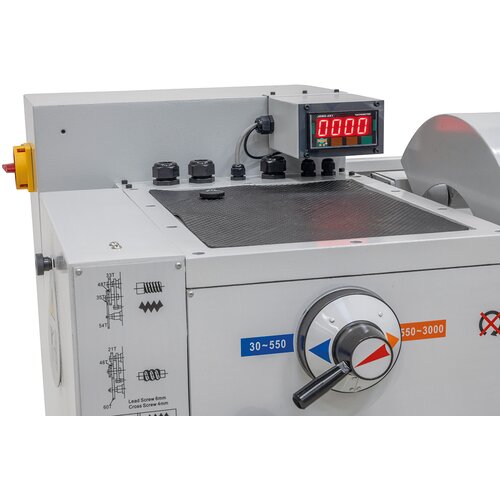

- Stepless speed adjustment, set speed can be read on digital display
- Grey cast iron machine bed, inductively hardened and precisely polished
- Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Complete with frequency inverter and 3-axis digital readout
- Hardened, polished gear wheels and shafts, even in feed unit

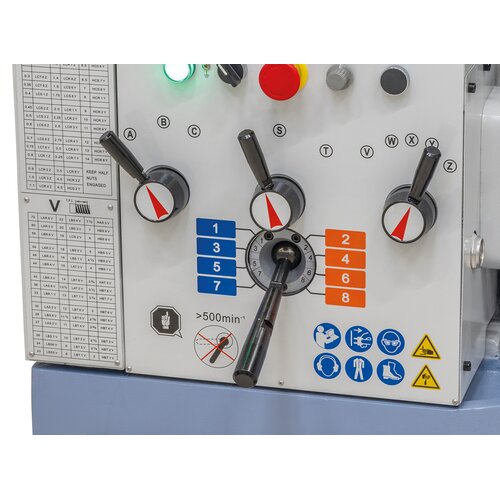

- Clearly arranged, user-friendly, accurate speed and feed change
- Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
- Removable bridge allows machining of oversize workpieces
Product Specifications
|
Distance between centers |
1000 mm |
|
Center height |
210 mm |
|
Swing over bed |
420 mm |
|
Swing over gap |
580 mm |
|
Swing over cross slide |
255 mm |
|
Bed width |
250 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1 - 6 |
|
Speed range, stepless |
30 - 550 / 550 - 3000 rpm |
|
Longitudinal feed |
(17) 0,05 - 1,7 mm/rev. |
|
Cross feed |
(17) 0,025 - 0,85 mm/rev. |
|
Metric thread |
(42) 0,2 - 14 mm |
|
Inch thread |
(45) 2 - 72 threads/1“ |
|
Diameter of tailstock sleeve |
50 mm |
|
Travel of tailstock sleeve |
140 mm |
|
Taper of tailstock sleeve |
MK 4 |
|
Motor power |
5,5 kW (7,5 HP) |
|
Machine dimension (W x D x H) |
2090 x 1050 x 1600 mm |
|
Weight approx. |
1145 kg |
Delivery Contents
- 3-axis digital readout ES-12 V with LCD-display

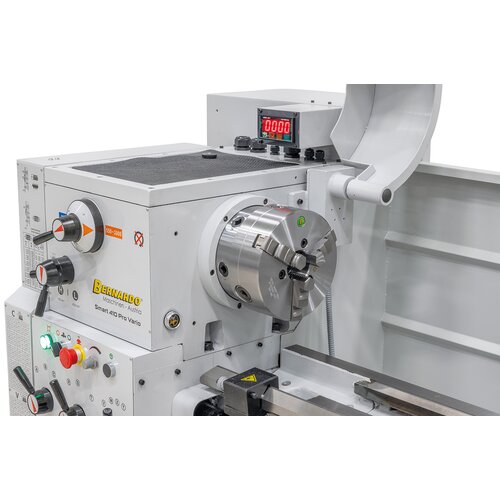

- 3-jaw steel chuck PO3-200 mm / D6
- Face plate 350 mm

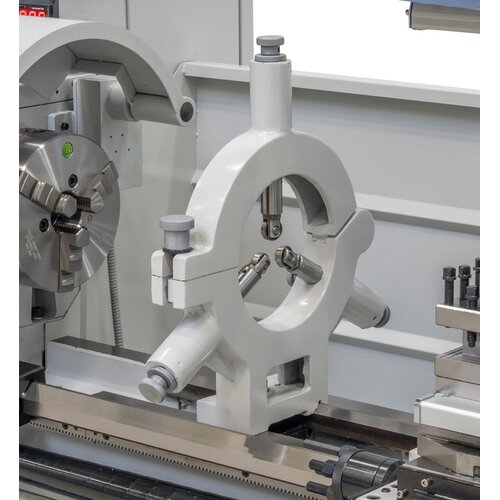

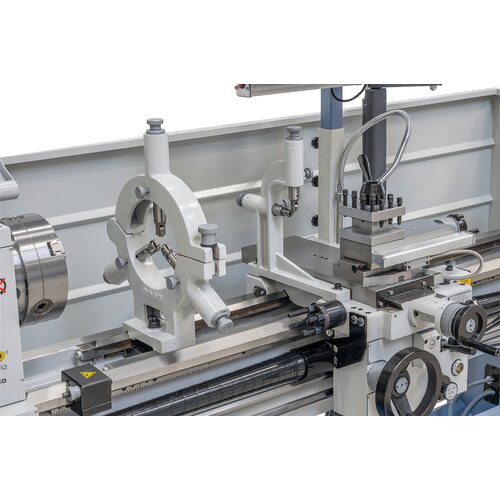

- Steady rest - Passage up to max. 135 mm
- Follow rest - Passage up to max. 65 mm
- Foot pedal with brake function according to CE

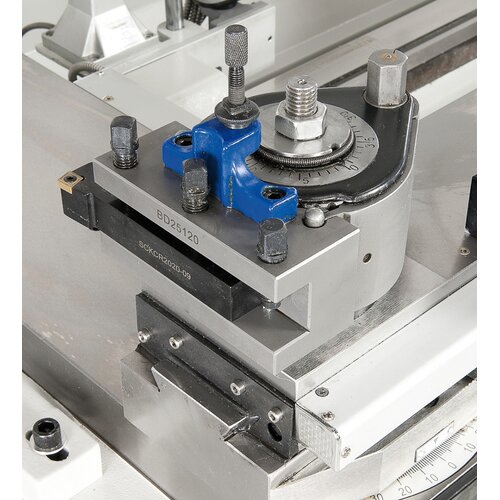

- 4-way tool post holder

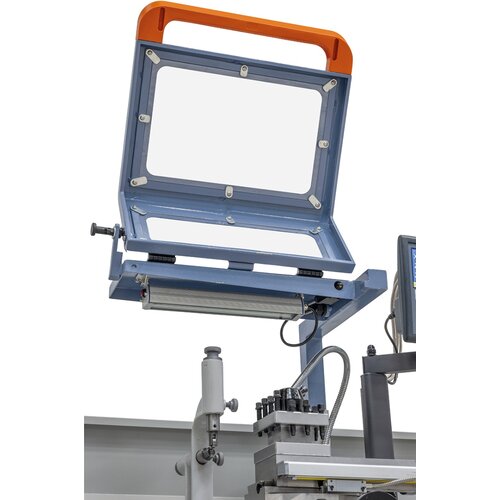

- Protective device at 4-way tool post holder

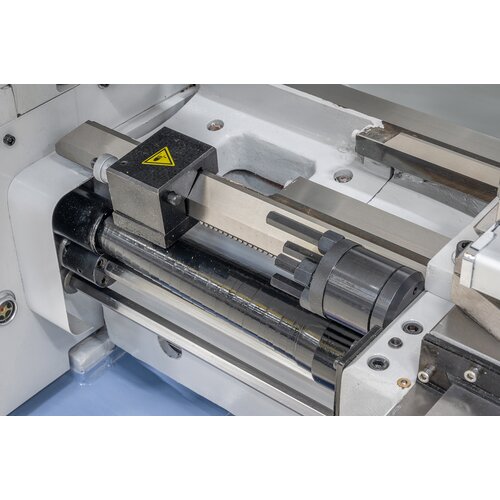

- Micrometer longitudinal fence
- Turret fence with fine adjustment

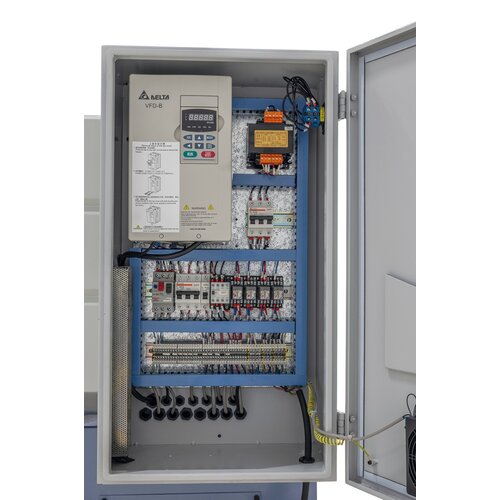

- Frequency inverter
- Initial filling with Shell Tellus 46
- Coolant device
- Safety clutch
- Thread dial
- LED machine light

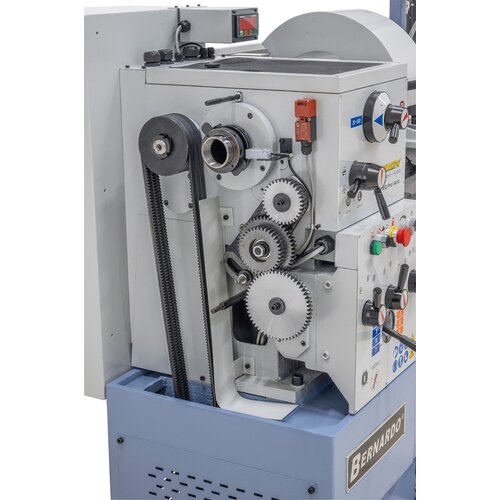

- Change gears
- Morse taper drill sleeve
- 2 dead centers
- Splash guard
- Tools
