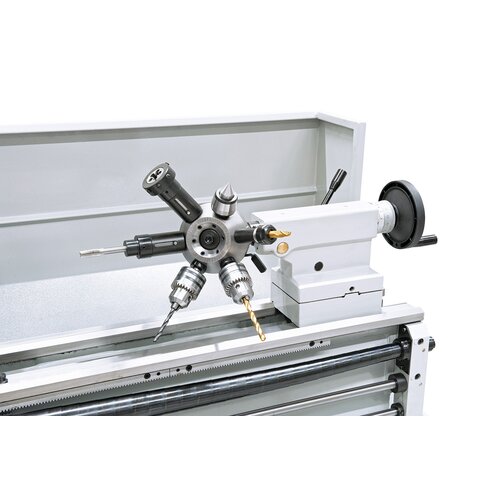

Optionally available: 6-station revolving tailstock turret

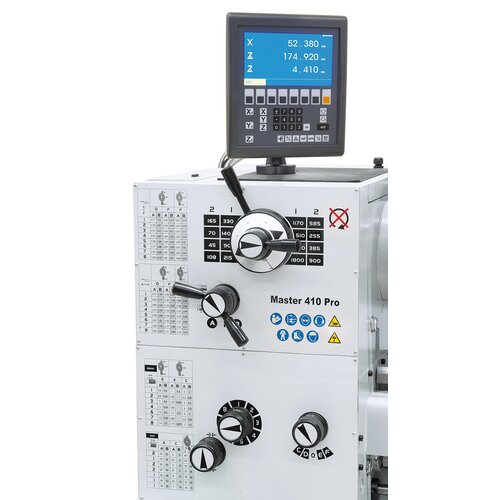

Serially with 3-axis digital readout Bernardo ES-12 V with LCD-display.

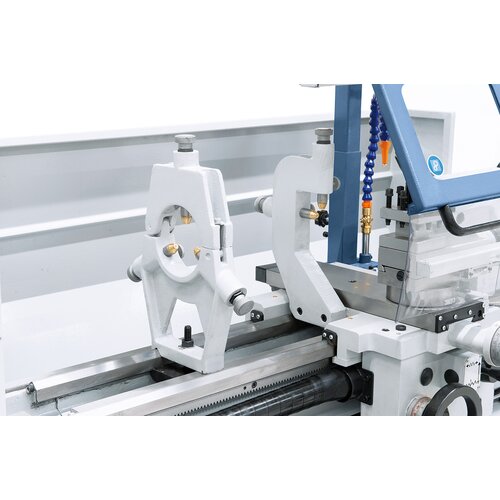

Complete with steady and follow rest to allow for solid support of long workpieces.

The machine can be equipped with a quick change tool post holder to raise efficiency.

Integrated LED machine lampin protective cover for optimal lighting when working.

Ball nose live center 100 mm, ideal for clamping of pipes and hollow parts (optional).

4-jaw chuck 200 mm allows centric clamping of square sections (optional)

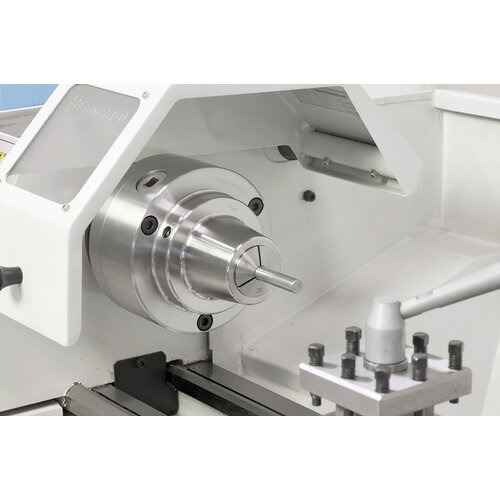

Optionally available: Collet chuck 5C, clamping range 3 - 26 mm

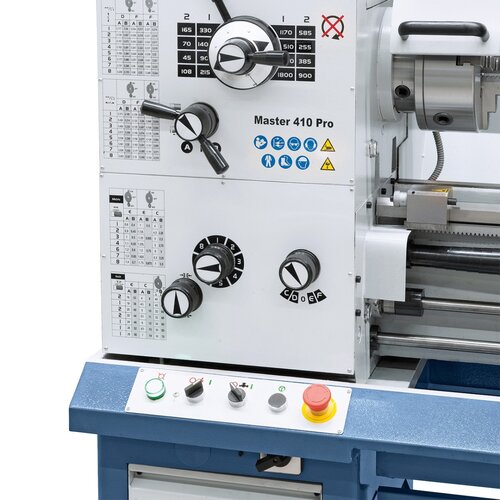

Straightforward feed and speed setting on gear head. Hardened and polished gear wheels saturated in oil ensure smooth operation.

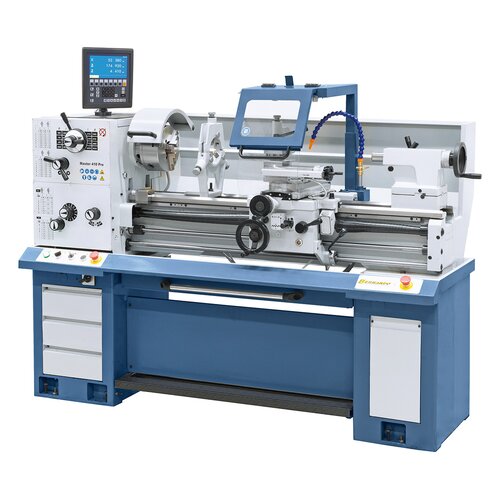

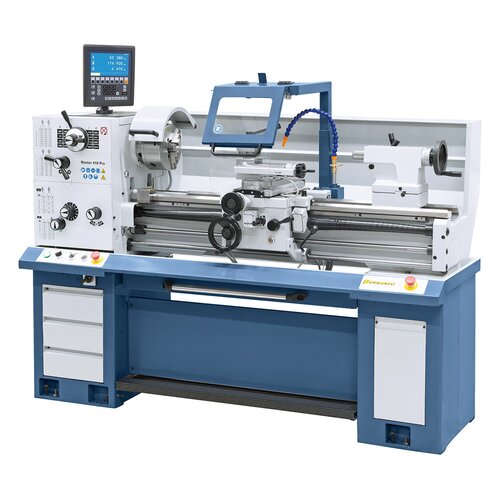

Universal turning lathe Master 410 Pro incl. 3-axis-digital readout ES-12 V

Art.Nr.: 03-1292XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Master 410 Pro precision lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards.

€12,168.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

52 mm spindle bore to machine large shaft diameters comes standard
Perfect machine for technical schools, repair shops and training workshops
Ideal for processing of steel, non-ferrous materials and plastics
Removeable bridge allows machining of workpieces with a big diameter
Chip tray extracts to front, keeping space requirements to a minimum
Clear arranged speed and feed control settings, smooth operation and accurate control
Electro-magnetic foot brake reduces downtime
State-of-the-art spindle bedding with high-quality, angular ball bearings
Grey cast-iron machine bed, inductive hardened and polished
One-hand clamping for tailstock, adjustable for taper turning
High spindle concentricity (≤ 0,015 mm)
Hardened and polished spindle runs in oil bath
Tailstock, spindle stock and all guides are adjustable

Product Specifications

Distance between centers	1000 mm
Center height	205 mm
Swing over bed	410 mm
Swing over gap*	530 mm
Swing over cross slide	260 mm
Bed width	205 mm
Spindle bore	52 mm
Spindle nose fixture	DIN 55029, D1-5
Speed range	(16) 45 – 1800 rpm
Longitudinal feed	(48) 0,043 – 0,653 mm/rev.
Cross feed	(48) 0,014 – 0,206 mm/rev.
Metric thread	(36) 0,4 – 7,0 mm
Inch thread	(28) 4 – 56 threads/1“
Diameter of tailstock sleeve	45 mm
Travel of tailstock sleeve	125 mm
Taper of tailstock sleeve	MT 3
Motor power	1,5 / 2,4 kW
Machine dimension (W x D x H)	1820 x 920 x 1500 mm
Weight approx.	760 kg

* Removeable bed length: 235 mm

Delivery Contents

3-axis digital readout ES-12 V with LCD-display

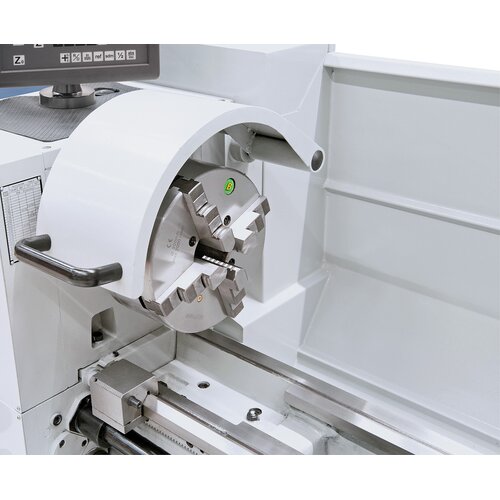

3-jaw chuck DK11-200 mm / D5
Steady rest - Passage up to 70 mm
Follow rest - Passage up to max. 60 mm
Coolant device
Initial filling with Shell Tellus 46
Extractable chip tray
Face plate 280 mm

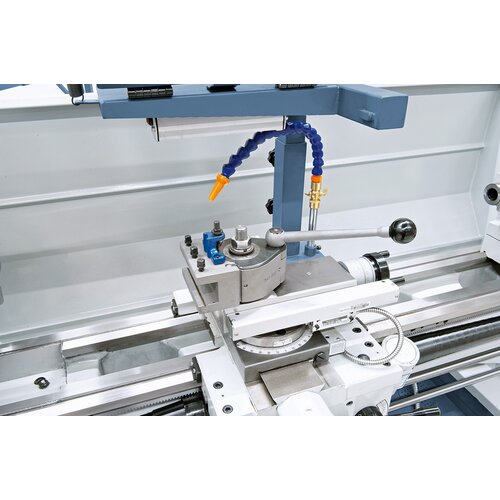

4-way tool post holder

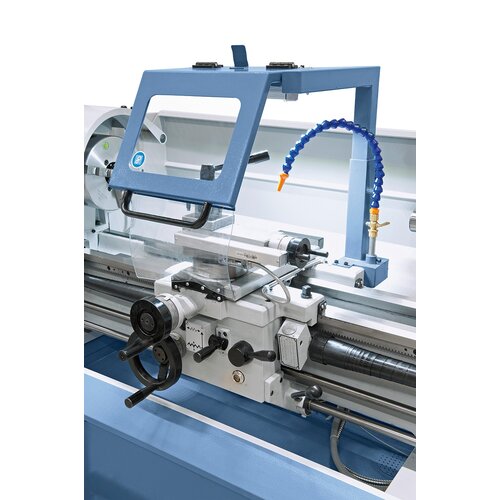

Protective cover at 4-way tool post holder
Safety clutch
Micrometer longitudinal fence
Thread dial
LED machine light
Morse taper drill sleeve

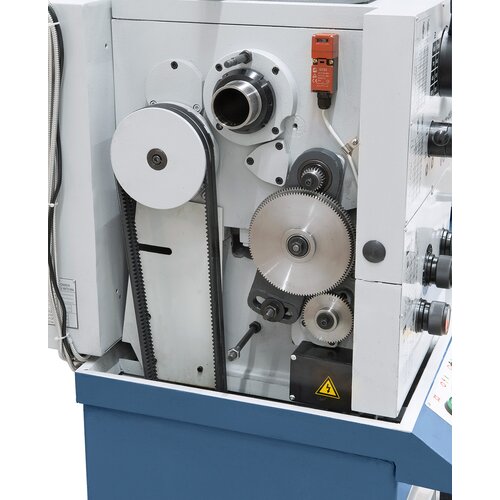

Change gears
2 dead centers
Foot pedal with brake function according to CE
Motor with magnetic brake according to CE
Splash guard
Stand
Tools

Suitable accessories

5C round hole collets set, 3 - 26 mm, 24 pcs.

Art.Nr. : 22-1097

€354.00
