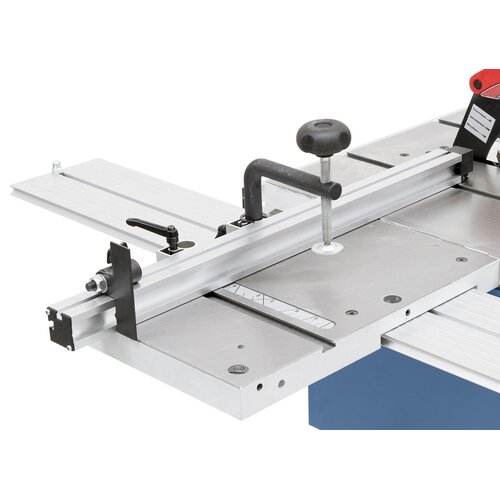

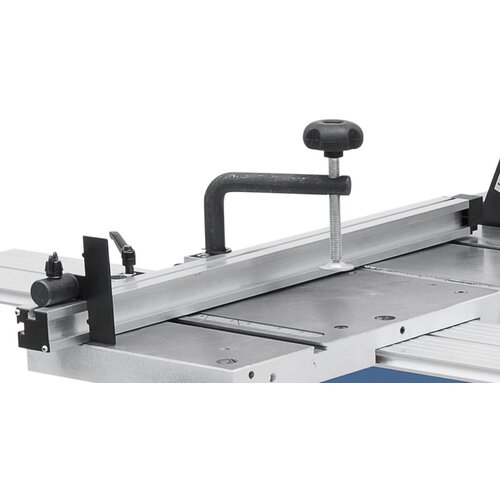

Aluminium fence with end stop and downholder is part of standard equipment.

Ergonomically arranged handwheels on machine body allow for adjustment of saw unit.

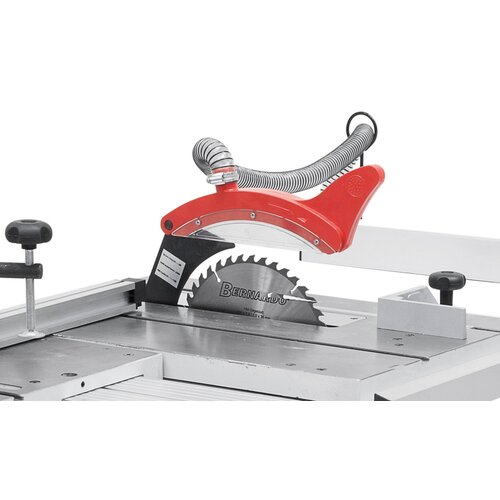

Protective sawblade cover with integrated dust port connected on riving knife.

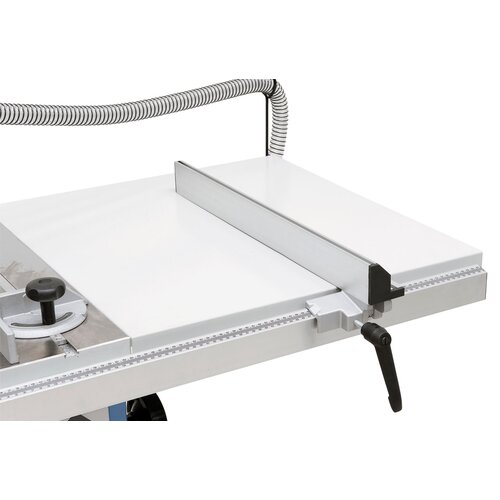

Table extension for cutting width up to 700 mm comes standard.

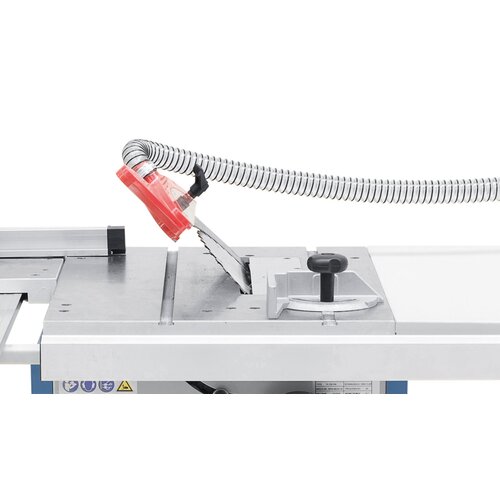

Left tilting sawblade improves handling at bevel cuts.

Grey cast-iron roller table, manufactured with precision and polished

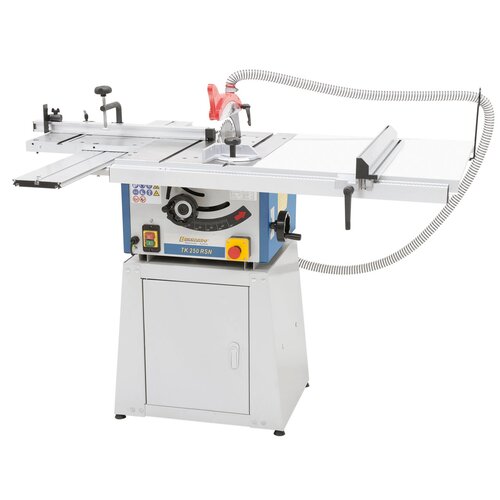

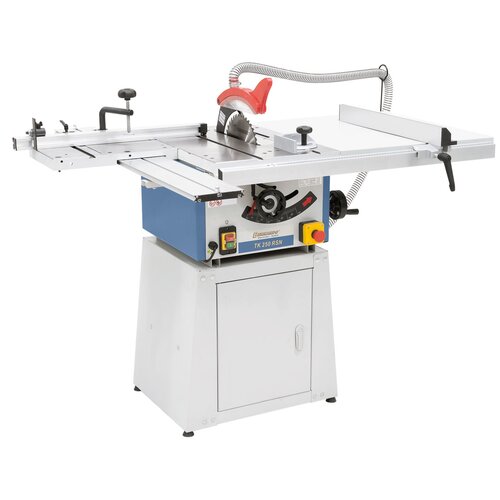

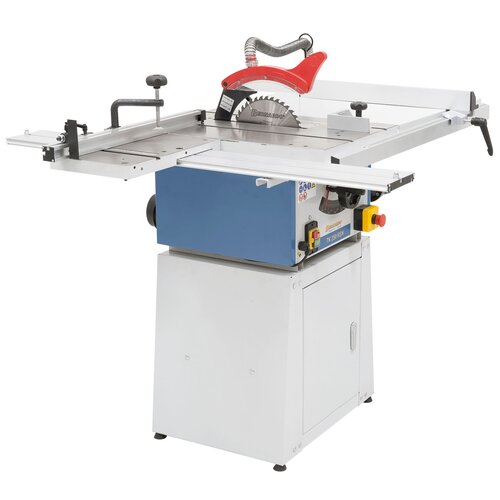

Table saw TK 250 RSN with closed stand

Art.Nr.: 09-1044

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The TK 250 RSN mainly differs from the RN-model with regard to the closed machine base which increases the rigidity and stability of the machine significantly.

€972.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid and easily adjustable saw unit, tilts from 90º to 45º
Solid grey cast-iron table with T-slots for cutting with the mitre fence left and right of sawblade
Complete with roller table featuring aluminium fence
Table extension for better support of larger sheets comes standard
ON-OFF switch in accordance with IP 54 features undervoltage release and separate emergency stop
Mitre fence for angle cuts up to 45º is part of standard equipment
Ergonomically arranged handwheels allow for convenient setting of cutting height and the cutting angle
Left tilting sawblade ensures better cutting guide on longitudinal fence

Product Specifications

Table size	630 x 430 mm
Roller table	400 x 250 mm
Travel of roller table	920 mm
Max. sawblade diameter	250 x 30 mm
Max. cutting height 90° / 45°	80 / 60 mm
Cutting width on rip fence	700 mm
Table height	900 mm
Table extension	635 x 600 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	1,5 kW (2,0 HP)
Motor power input S₆ 40%	2,1 kW (2,85 HP)
Voltage	230 V
Machine dimension (W x D x H)	1500 x 1200 x 1100 mm
Weight approx.	101 kg
