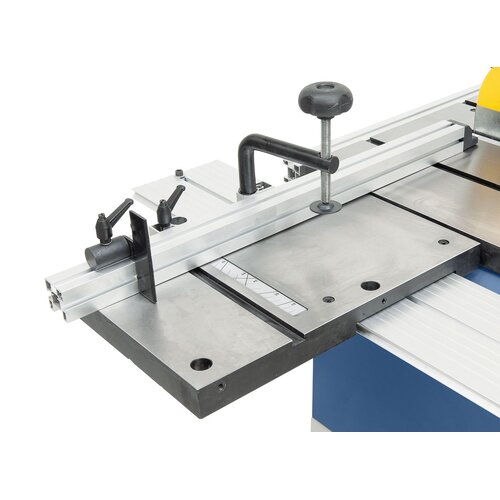

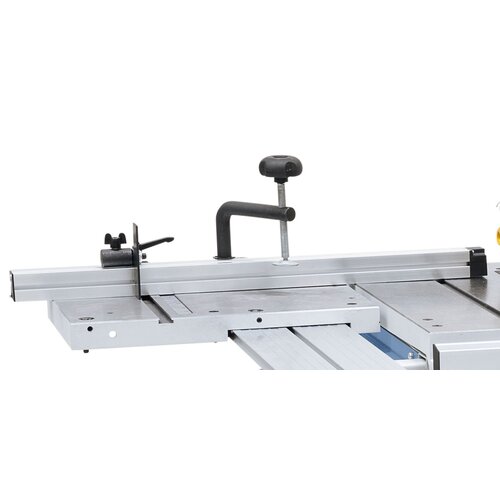

Aluminium fence with end stop and downholder is part of standard equipment.

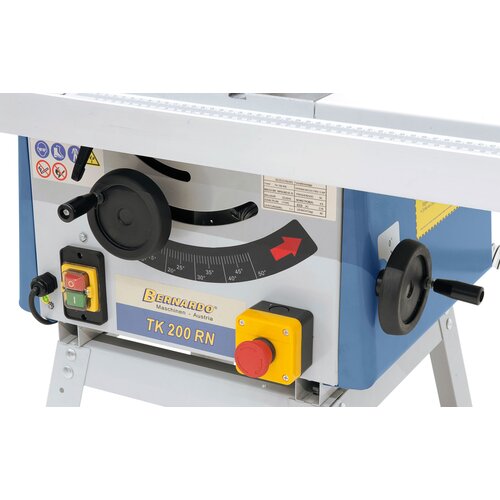

Ergonomically arranged handwheels on machine body allow for adjustment of saw unit.

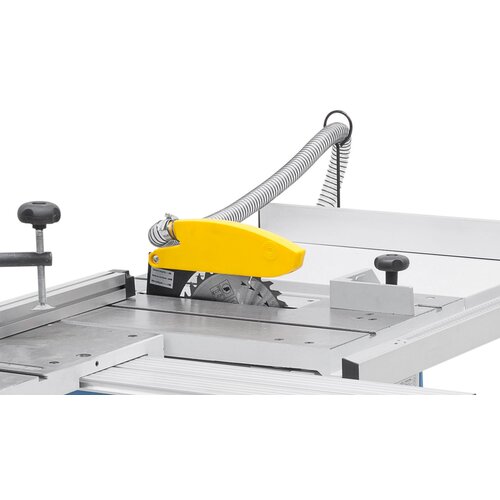

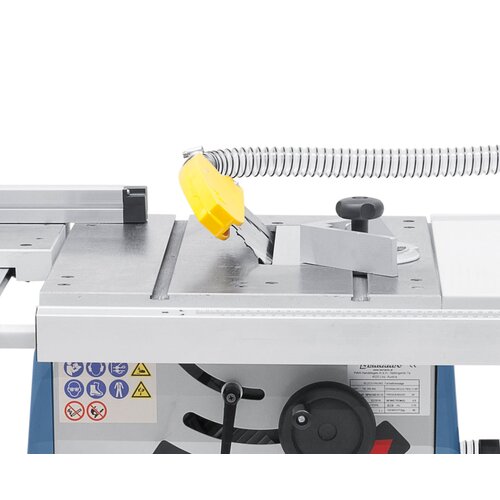

Protective sawblade cover with integrated dust port connected on riving knife.

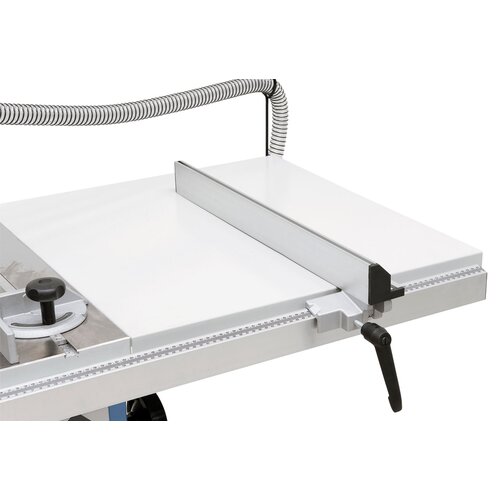

Table extension for cutting width up to 720 mm comes standard.

Left tilting sawblade improves handling at bevel cuts.

Grey cast-iron roller table, manufactured with precision and polished

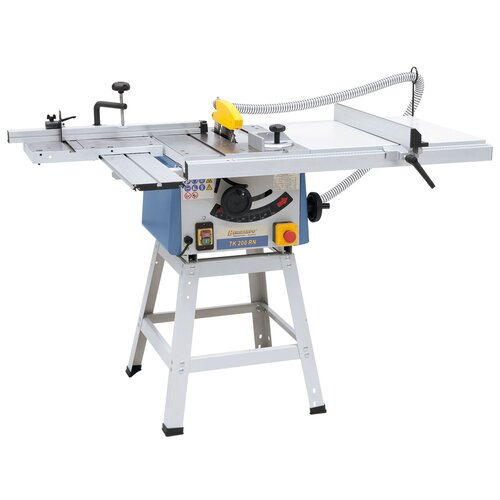

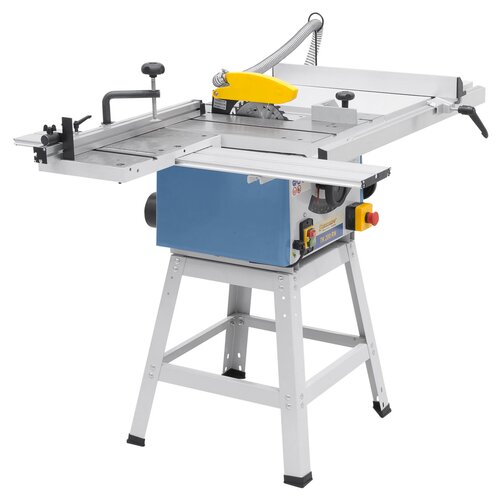

Table saw TK 200 RN

Art.Nr.: 09-1041

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The ideal table saws featuring a large number of applications for amateurs, combining high cutting capacity and top precision on limited space. Comes complete with roller table to increase user comfort even more.

€672.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid and easily adjustable saw unit, tilts from 90º to 45º
Solid grey cast-iron table with T-slots for cutting with the mitre fence left and right of sawblade
Complete with roller table featuring aluminium fence
Table extension for better support of larger panels comes standard
ON-OFF switch in accordance with IP 54 features undervoltage release and separate emergency stop
Mitre fence for angle cuts up to 45º is part of standard equipment
Ergonomically arranged handwheels allow for convenient setting of cutting height and the cutting angle
Left tilting sawblade ensures better cutting guide on longitudinal fence

Product Specifications

Table size	530 x 400 mm
Roller table	400 x 250 mm
Travel of roller table	720 mm
Max. sawblade diameter	200 x 30 mm
Max. cutting height 90° / 45°	55 / 42 mm
Cutting width on rip fence	730 mm
Table height	890 mm
Table extension	530 x 600 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	1,1 kW (1,5 HP)
Motor power input S₆ 40%	1,5 kW (2,0 HP)
Voltage	230 V
Machine dimension (W x D x H)	1520 x 1000 x 1050 mm
Weight approx.	72 kg
