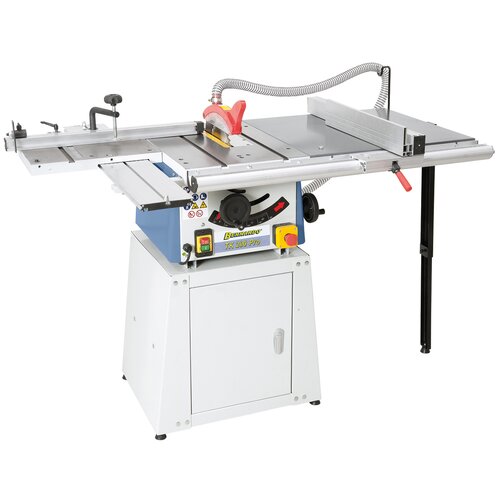

Picture TK 200 PRO with optional roller table, extension table and closed stand.

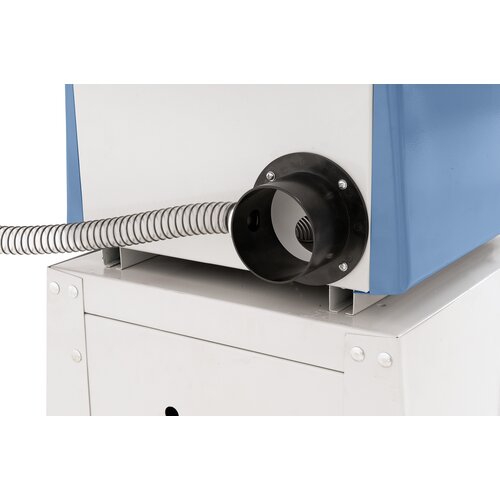

Ensure optimal work conditions by connecting a dust collector to the 100 mm dust port.

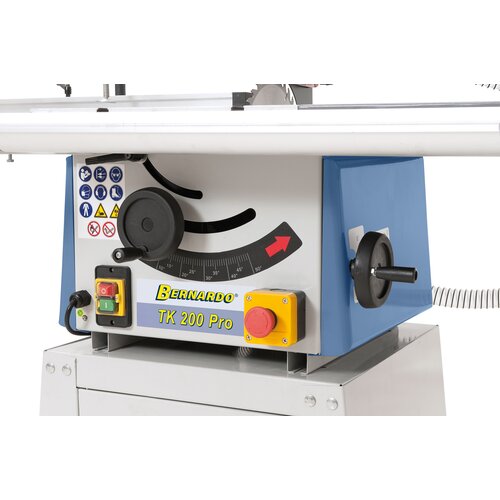

ON-OFF switch in accordance to IP 54 features undervoltage release and separate emergency stop.

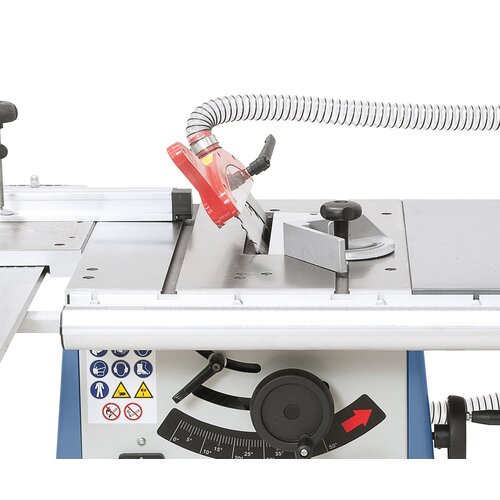

Left tilting sawblade enables workpiece to be guided more easily during cut.

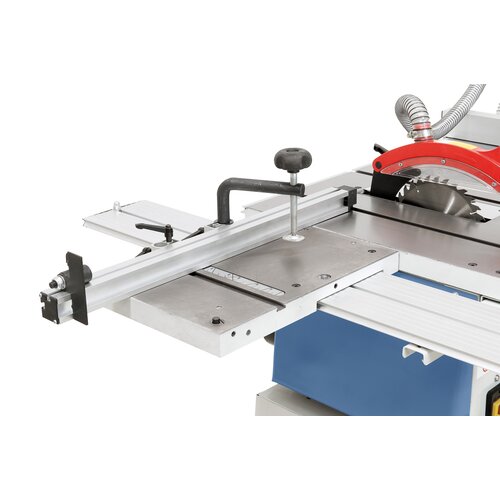

The optionally available roller table with aluminium fence and eccentric holder widens the application range additionally.

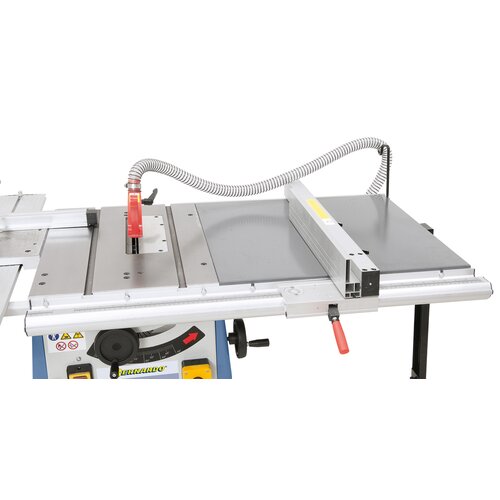

The optional extension table ensure a cutting width up to 725 mm.

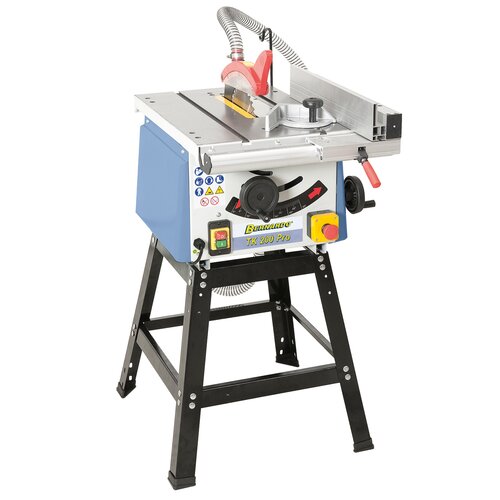

Base model with open stand

Picture TK 250 PRO with optional roller table and closed stand.

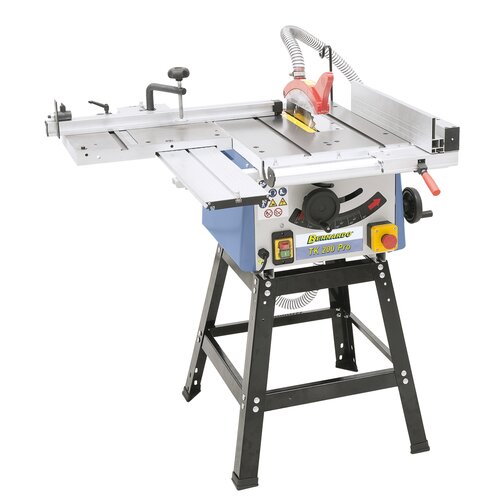

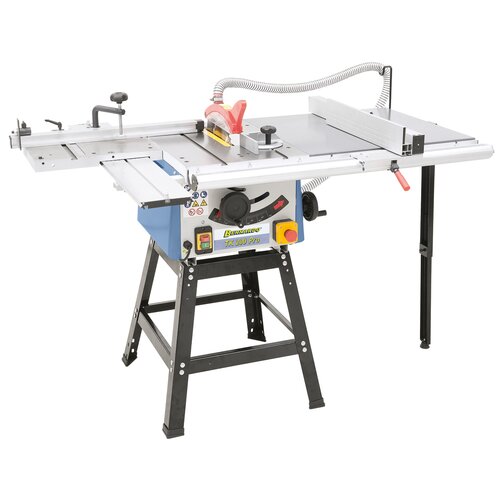

Picture TK 250 PRO with optional roller table, extension table and open stand.

Table saw TK 200 PRO / 230 V

Art.Nr.: 09-1048

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The table saw TK 200 PRO is a cost-effective base model for quick machining of small workpieces. Through the extensive range of accessories (roller table, extension table, open and closed stand, this machine allowing individual adaption to suits the needs of the user and can be expanded at any time.

€576.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Mitre fence either usable on right or left of sawblade, suitable for angle cuts up to 45°
Powerful drive motor ensures constant cutting speed, even at 80 mm cutting height
ON-OFF switch in accordance with IP 54 features undervoltage release and separate emergency stop
Cost-effective base model, extensive range of accessories for expanded use
Left tilting sawblade ensures better cutting guide on longitudinal fence
Casting machine table features high accuracy and two T-slots
Standard accessories include mitre fence and sawblade
Including rip fence for cutting of narrow and thin workpieces
Handwheel allows for tilting of saw unit up to 45°

Product Specifications

Table size	560 x 400 mm
Roller table*	400 x 250 mm
Travel of roller table*	720 mm
Max. sawblade diameter	200 x 30 mm
Max. cutting height 90° / 45°	60 / 45 mm
Cutting width on rip fence	200 mm**
Table height	350 mm
Table extension*	560 x 600 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	1,1 kW (1,5 HP)
Motor power input S₆ 40%	1,5 kW (2,0 HP)
Voltage	230 V
Machine dimension (W x D x H)	770 x 540 x 520 mm
Weight approx.	55 kg
