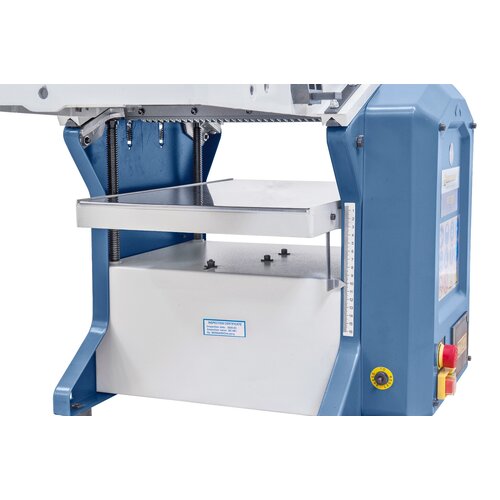

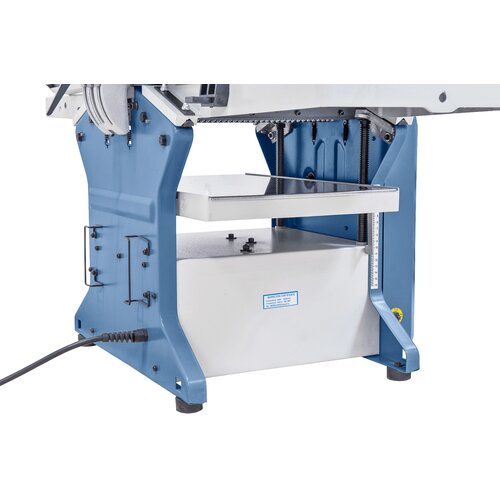

Thicknessing table is guided on four threads. The height can be read on the scale.

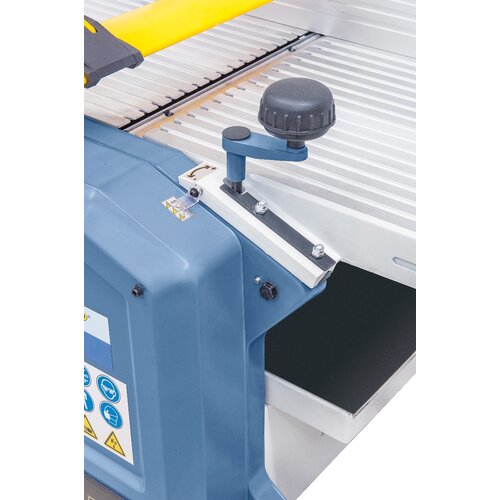

Quick and easy adjustment of chip removal (up to 2 mm).

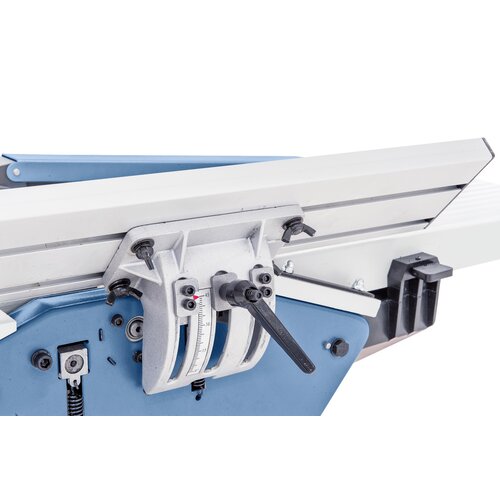

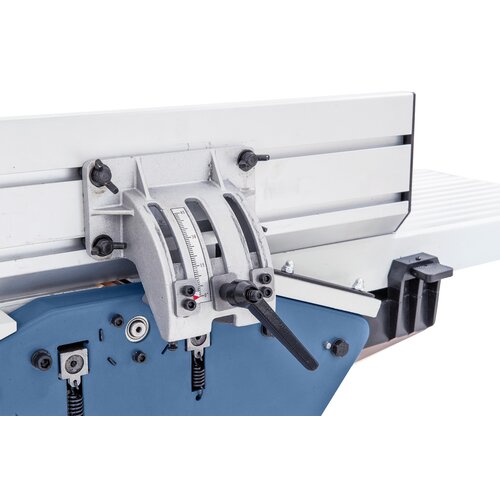

Aluminium planing fence can be used from 90° to 45°.

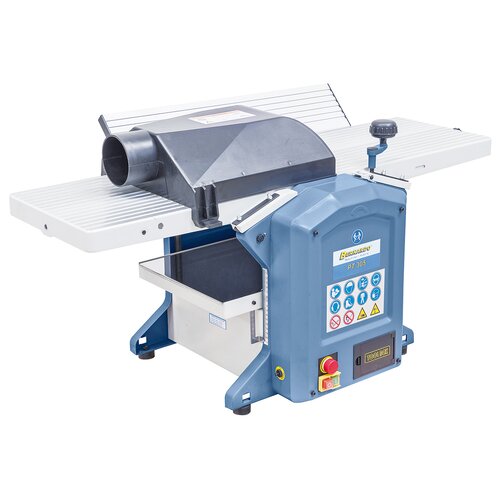

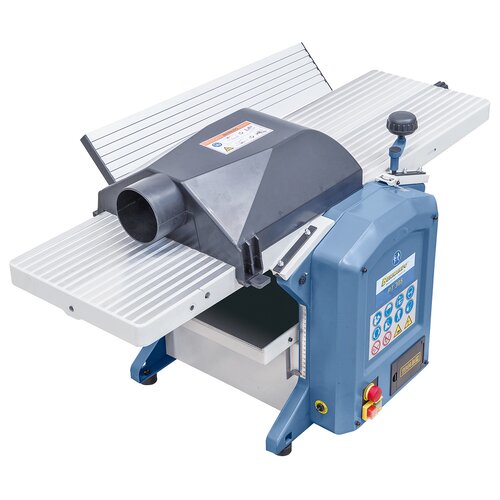

Combined dust hood can be used for surface planing or thicknessing.

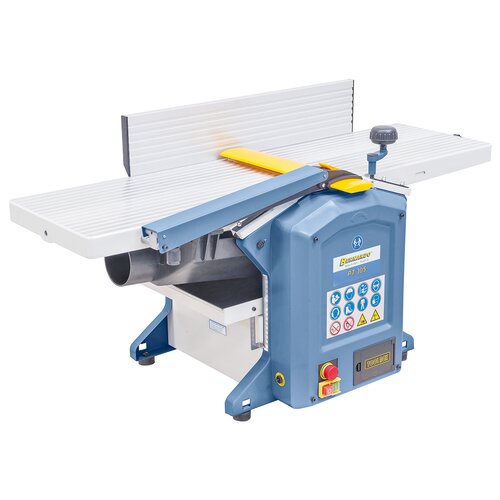

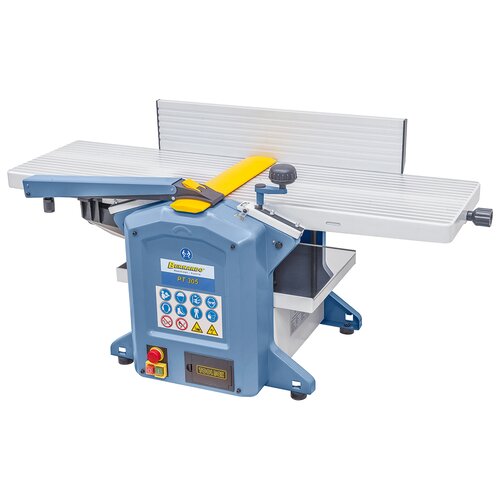

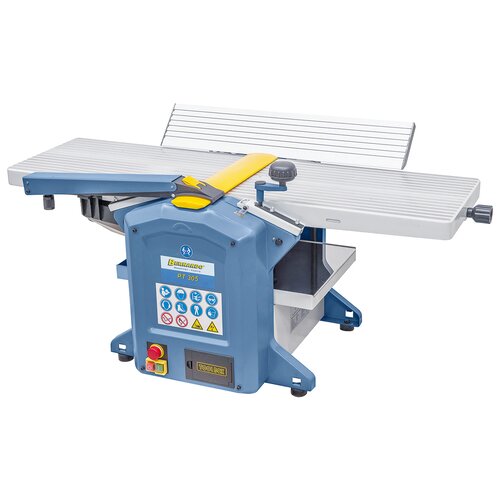

Surface planer and thicknesser PT 305 / 230 V

Art.Nr.: 08-1009

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 305 compact surface planer and thicknesser features a working thickness of up to 150 mm, making it the ideal model for planing of boards, planks and beams. This compact model is solidly constructed, making this machine ideal for amateurs.

€878.40

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

The table is designed with slots on both sides to minimize the noise level
Quick and easy adjustment of chip removal
Stable planer fence, tiltable from 90° to 45°
Precisely manufactured, aluminium planing tables for accurate results
Precisely mounted 2-knife cutterblock incl. cutter knives in HSS-quality
Cutterblock cover according to CE-standards ensure safety
Powerful motor guarantees best result
Combined dust hood can be used for planing or thicknessing
Ideal for craftsmen and amateurs
Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.

Product Specifications

Planer
Planing width	305 mm
Table length	1075 mm
Shaft rotation speed	9500 rpm
Cutter knives	2 pcs.
Planer shaft diameter	51 mm
Planer fence	640 x 125 mm
Fence tiltable	90° to 45°
Max. cutting depth	2 mm
Thicknesser
Table length	500 mm
Working width	300 mm
Working thickness, min./max.	5 - 150 mm
Max. cutting depth	1 mm
Feed speed	7 m/min

Dust extraction outlet	100 mm
Motor power output S1 100%	1,8 kW (2,4 HP)
Motor power input S6 40%	2,5 kW (3,4 HP)
Voltage	230 V
Machine dimension (L x W x H)	1125 x 560 x 575 mm
Weight approx.	46 kg
