On-Off switch in according to IP 54 and separate emergency stop button according to CE standards.

The dynamically balanced spiral cutter head ensures smooth, vibration-free planing, guarantees best results.

Thicknessing table on four guides, height adjustable on clearly designed scale.

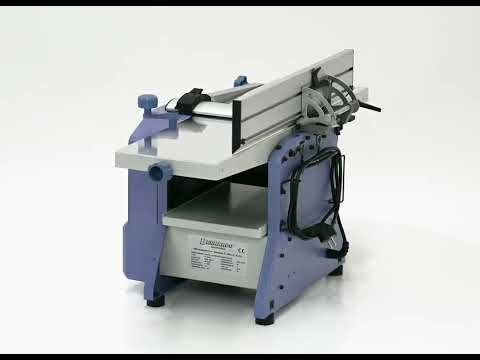

Surface planer and thicknesser PT 200 S / 230 V

Art. No.: 08-10050

Wishlist Comparison List

The PT 200 S surface planer and thicknesser features a small and compact construction to allow for easy transport and use on different sites. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

€564.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Cutterblock cover in accordance with CE-standards guarantees high safety
Ideal for craftsmen and home users
Quick and easy setting of chip removal
Precise aluminium planing tables to achieve high accuracy
Combined dust hood can be used for planing or thicknessing
Powerful drive motor for optimal planing results

Product Specifications

Abrichthobel
Abrichtbreite	205 mm
Tischlänge	740 mm
Hobelwellendrehzahl	8000 U/min
HM-Wendeplatten	18 Stk.
Hobelwellendurchmesser	50 mm
Abrichtanschlag	540 x 100 mm
Abrichtanschlag schwenkbar	90° bis 45°
Max. Spanabnahme	2 mm
Dickenhobel
Tischlänge	250 mm
Hobelbreite	200 mm
Dickendurchlass, min./max.	5 - 120 mm
Max. Spanabnahme	2 mm
Vorschubgeschwindigkeit	6,5 m/min

Absauganschluss Ø	60 mm
Motor-Abgabeleistung S₁ 100%	1,5 kW (2,0 PS)
Motor-Aufnahmeleistung S₆ 40%	2,1 kW (2,8 PS)
Spannung	230 V
Maschinenabmessung (L x B x H)	790 x 460 x 480 mm
Gewicht ca.	27 kg
