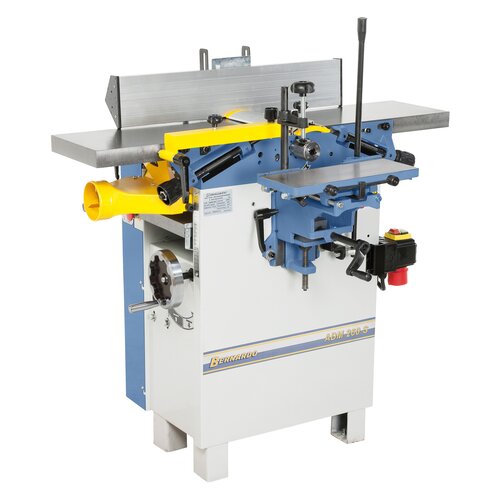

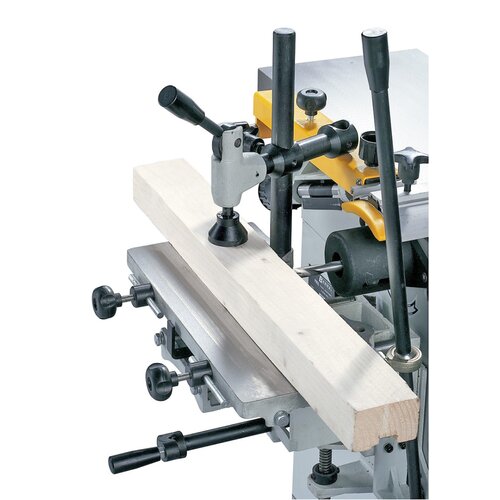

The optional mortising unit is optimal for slots, dowel pin and inclined bore, ...

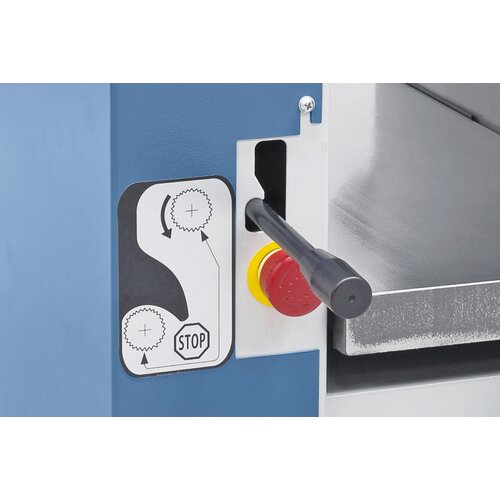

The infeed function can be switched off when planing.

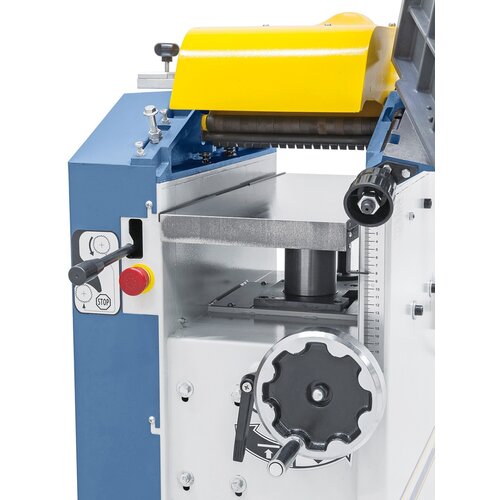

Cast iron thicknessing table with center column and clamping, for planing of workpieces up to 190 mm in height.

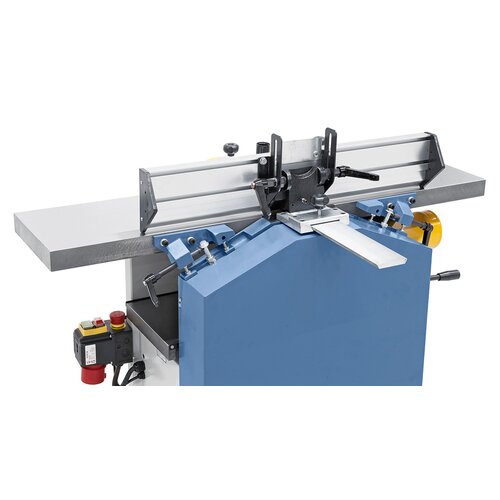

The solid planer fence with prism guide is tiltable up to 45°.

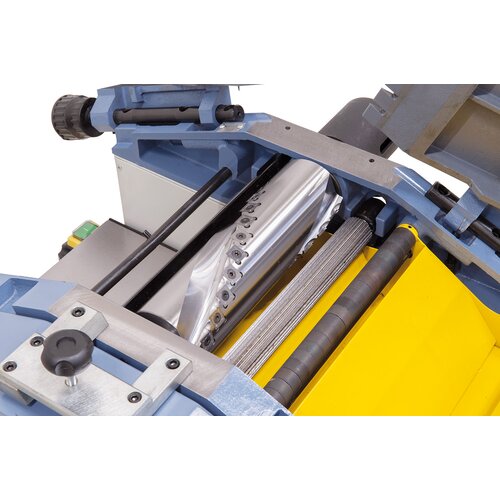

The dynamically balanced spiral cutter head ensures smooth, vibration-free planing, guarantees best results.

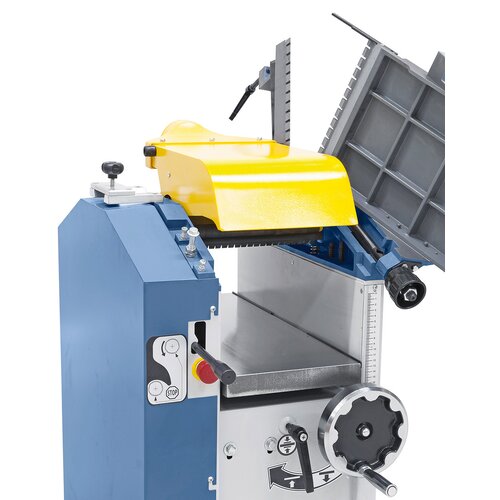

When thicknessing, the folding tables allow precise and safe working even of short workpieces.

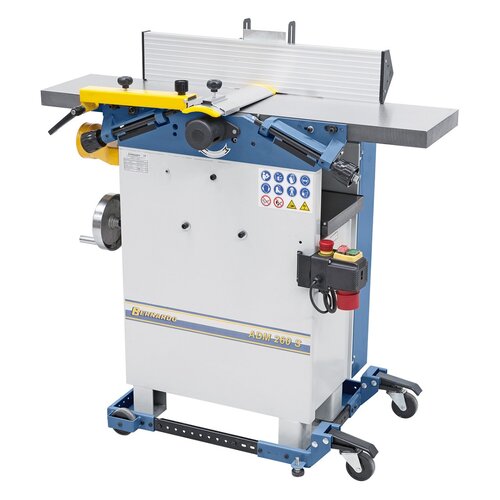

Optionally available universal base allows for easy transport.

The optional mortising unit is optimal for slots, dowel pin and inclined bore, ...

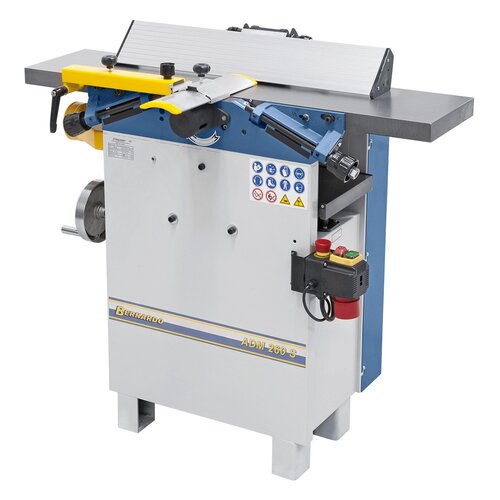

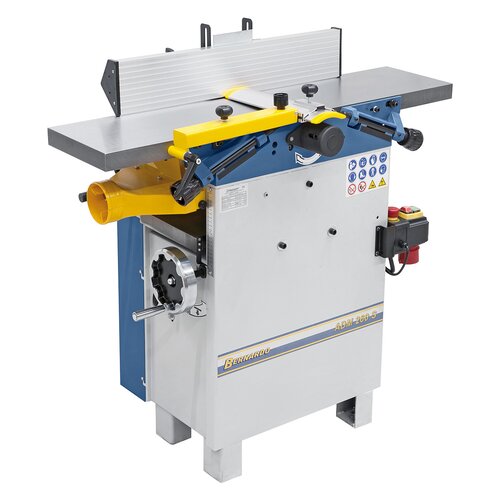

Surface planer and thicknesser ADM 260 S / 400 V *

Art.Nr.: 08-1037

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The machine for the professional home user with an optimal price-to-performance ratio. It meets demands such as stability, high performance and safety. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

€1,512.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

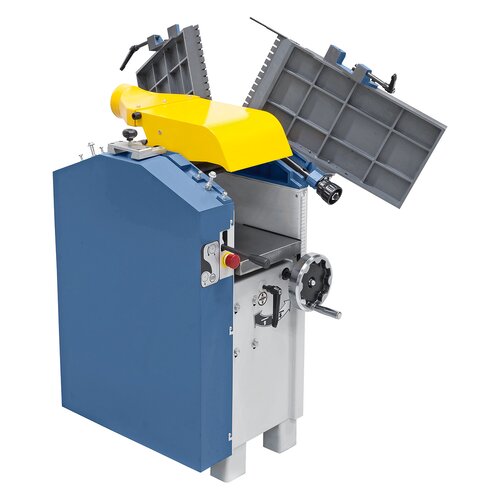

Folding planer tables allow quick and easy conversion from planing to thicknessing
Integrated, tiltable dust hood, extraction outlet 100 mm
Both planing tables feature fine adjustment and are designed with table lips to keep noise level down
Thicknessing table with central column and support allow precise planing
The solid planer fence with prism guide can be tilted from 90° to 45°

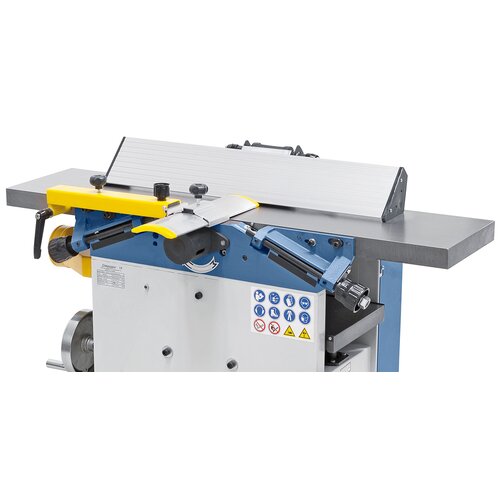

Torsion-free, cast iron planing tables guarantees best results

Product Specifications

Planer
Planing width	250 mm
Table length	1080 mm
Table height	990 mm
Shaft rotation speed	3750 rpm
TCT-blades	24 pcs.
Planer shaft diameter	75 mm
Planer fence	700 x 145 mm
Fence tiltable	90° to 45°
Max. cutting depth	5 mm
Thicknesser
Table length	600 mm
Working width	250 mm
Working thickness, min./max.	5 - 190 mm
Max. cutting depth	1,8 mm
Feed speed	8 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,0 kW (2,7 HP)
Motor power input S₆ 40%	2,8 kW (3,8 HP)
Voltage	400 V
Machine dimension (L x W x H)	1100 x 750 x 1180 mm
Weight approx.	160 kg
