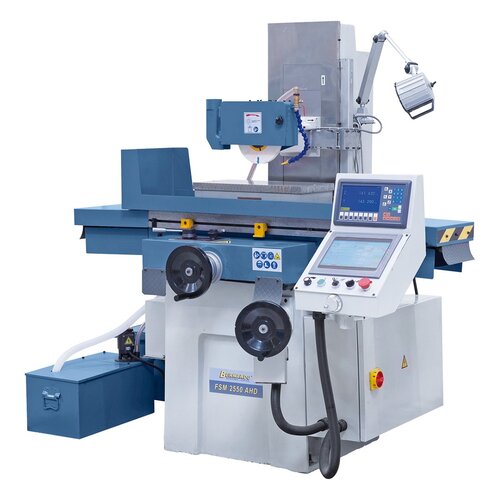

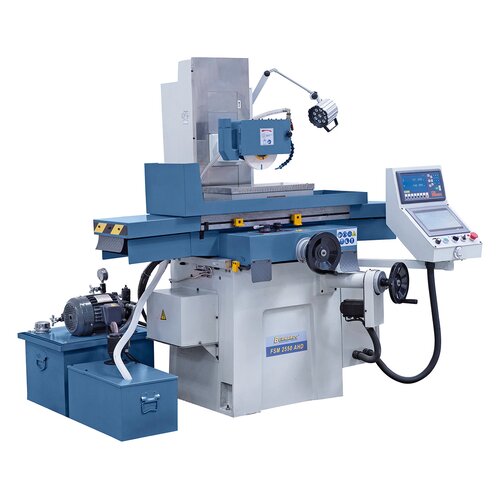

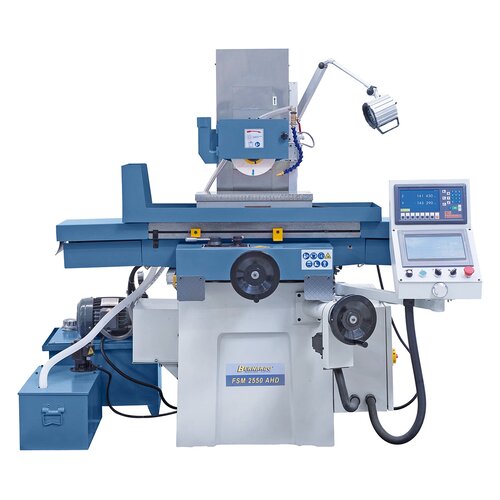

Surface grinding machine FSM 2550 AHD **

Art.Nr.: 05-1406

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FSM-AHD-series are solidly-built surface grinding machines featuring automatic vertical feed. The extensive range of standard equipment ensures optimal performance eg. computer automated vertical feed, magnetic clamping plate with demagnetization device, control via touchscreen and a electronic handwheel.

€17,880.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
V-flat longitudinal table guide, double-V cross table guide
Spindle features axial and radial, clearance-free, pre-tensioned bearings
Solidly constructed and well supported structure assures high stability

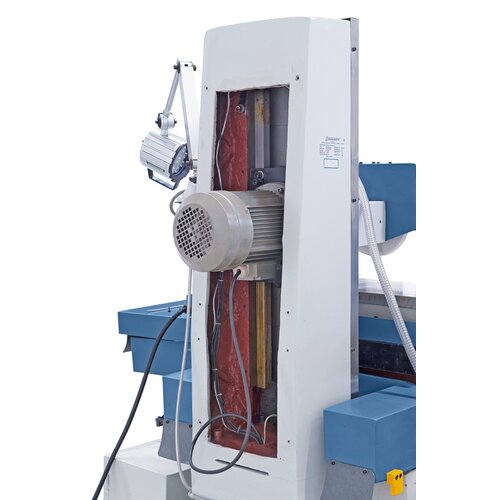

Digitally controlled, automatic vertical feed with servo motor

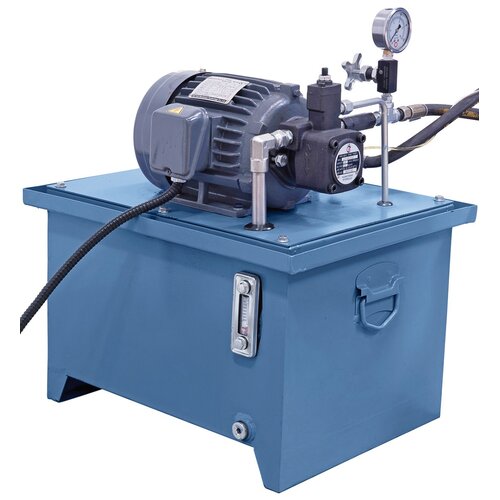

State of the art hydraulic system guarantees soft table traverse even at high work load
Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end
Adjustable longitudinal and cross table movement via end stops

Product Specifications

Table dimensions	250 x 520 mm
T-slot quantity / width	1 / 14 mm

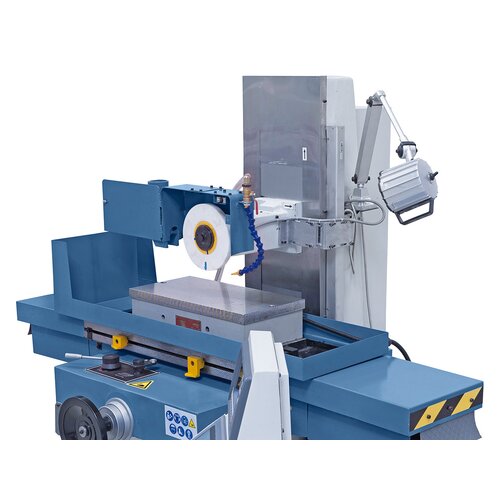

Electric magnet clamping plate	250 x 500 mm
Max. travel, longitudinal	560 mm
Max. travel, cross	260 mm
Max. distance spindle / table	450 mm
Max. workpiece weight*	150 kg

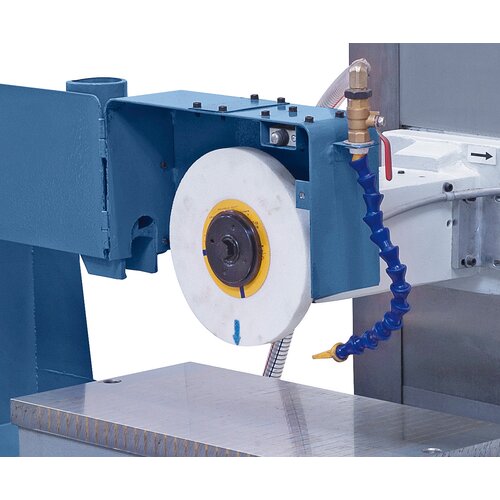

Grinding wheel	200 x 20 x 31,75 mm
Table speed, hydraulic	2 - 18 m/min
Cross adjustment
Automatic adjustment, cross	0,5 – 10 mm/Stroke
Rapid feed, cross	990 mm/min
Adjustment per handwheel rotation	4 mm/rev.
Scale division on handwheel	0,02 mm
Vertical adjustment
Automatic adjustment, vertical	0,01 / 0,1 mm
Rapid feed, vertical	360 mm/min
Adjustment per handhwheel rotation	2 mm/rev.
Scale division on handwheel	0,01 mm
Motor power of sanding spindle	1,5 kW
Spindle speed	2850 rpm
Motor power of hydraulic pump	1,5 kW
Motor power of vertical feed	0,75 kW
Length	1700 mm
Depth	1400 mm
Height	1750 mm
Weight approx.	1100 kg

* with magnet clamping plate

Delivery Contents

2-axis digital readout ES-12 H with LCD-display

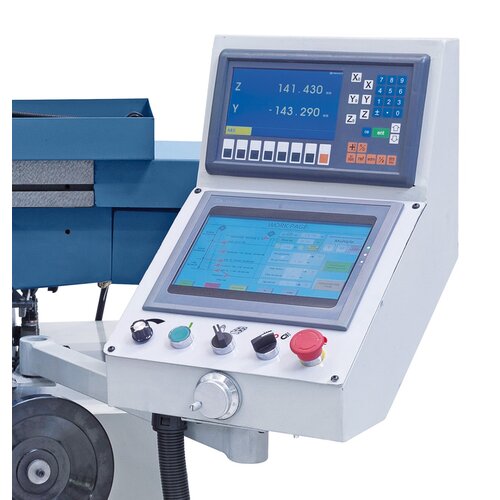

Control with touch operation
Electronic handwheel
Grinding wheel
Flange
LED machine light
Electric magnet clamping plate
Balancing stand
Balancing arbor
Protective covers
Demagnetization device

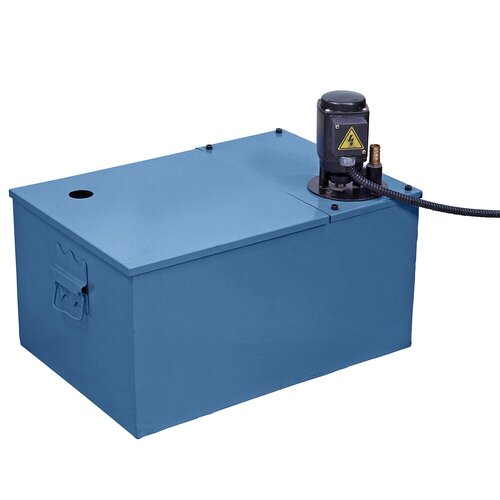

Coolant device
Dressing diamond
Machine feet

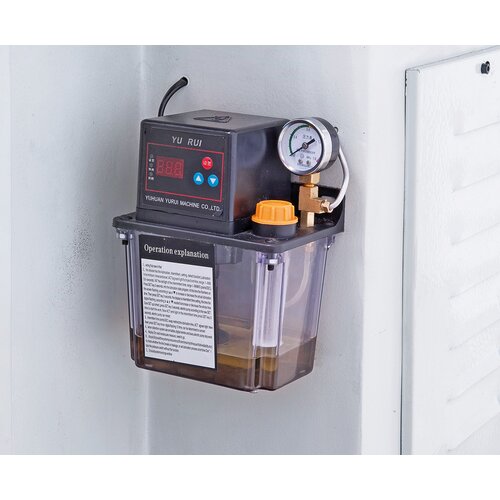

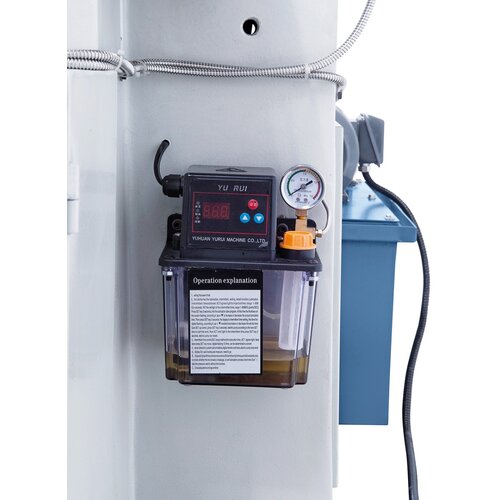

Central lubrication
Tools
