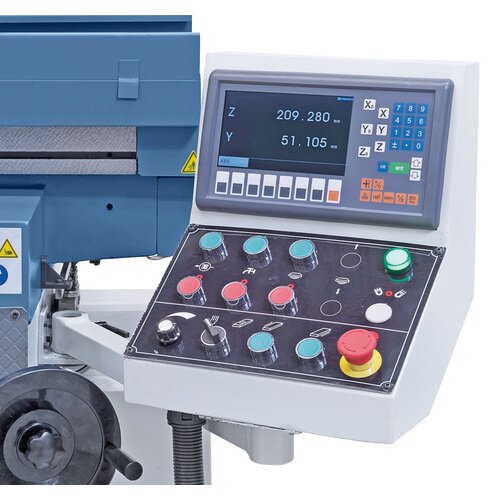

Clearly arranged control elements at the tiltable control panel

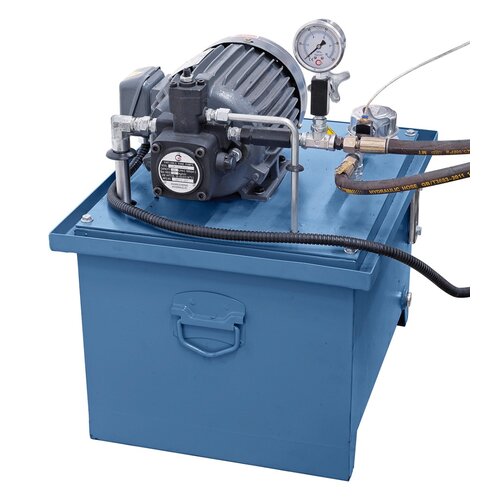

Separate hydraulic unit to eliminates vibrations and thermal strain.

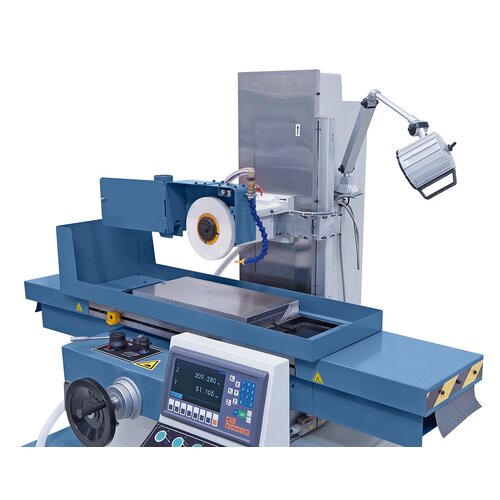

The pre-tensioned special bearings of the spindle assure a vibration-free run and highest accuracy.

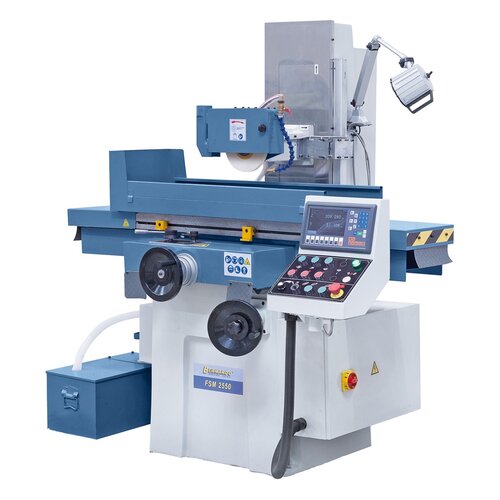

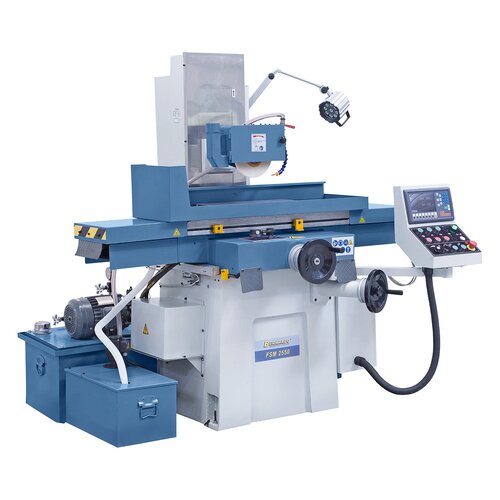

Surface grinding machine FSM 2550 **

Art.Nr.: 05-1405

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The surface grinding machine FSM 2550 assured with its robust construction. All main parts, like stand, base and apron are made of high-quality grey cast iron. The wide range of accessories make this model very cost-effective for tool and die making.

€14,880.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
V-flat longitudinal table guide, double-V cross table guide
Spindle features axial and radial, clearance-free, pre-tensioned bearings
Seperate hydraulic unit with heat exchanger to omit vibrations and thermal load
Solidly constructed and well supported structure assures high stability
State of the art hydraulic system guarantees soft table traverse even at high work load
Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
Central lubrication of all guide rails

Product Specifications

Table dimensions	250 x 520 mm
T-slot quantity / width	1 / 14 mm
Permanent magnet clamping plate	250 x 500 mm
Max. travel, longitudinal	560 mm
Max. travel, cross	260 mm
Max. distance spindle / table	450 mm
Max. workpiece weight*	150 kg
Grinding wheel	200 x 20 x 31,75 mm
Table speed, hydraulic	3 – 20 m/min
Cross adjustment
Adjustment per handwheel rotation	4 mm/rev.
Scale division on handwheel	0,02 mm
Vertical adjustment
Adjustment per handhwheel rotation	2 mm/rev.
Scale division on handwheel	0,01 mm
Motor power of sanding spindle	1,5 kW
Spindle speed	2850 rpm
Motor power of hydraulic pump	1,5 kW
Length	1700 mm
Depth	1400 mm
Height	1750 mm
Weight approx.	1010 kg

* with magnet clamping plate

Delivery Contents

2-axis digital readout ES-12 H with LCD-display

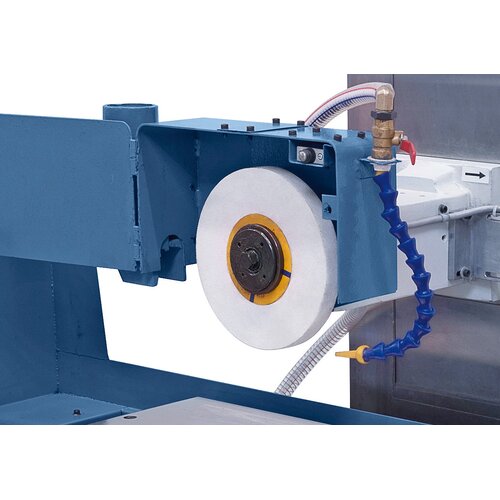

Grinding wheel
Flange
LED machine light
Permanent magnet clamping plate
Balancing stand
Balancing arbor
Protective covers
Demagnetization device

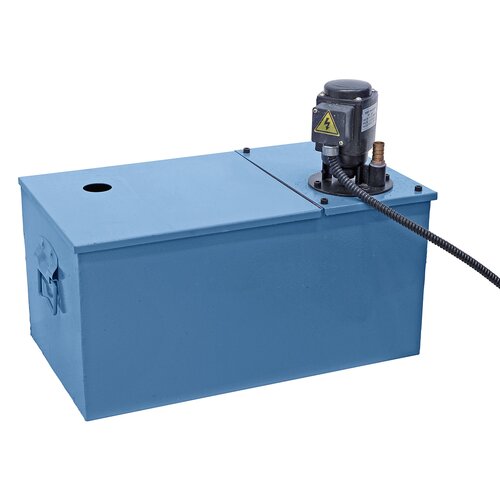

Coolant device
Dressing diamond
Machine feet
Central lubrication
Tools
