The optionally available roller table increases the range of applications significantly.
The optionally available roller table increases the range of applications significantly.

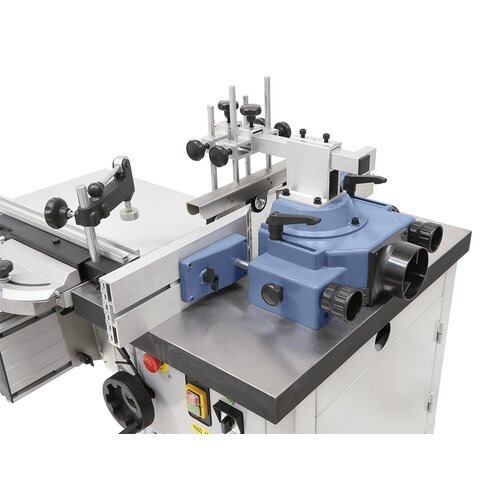

Complete with integral safety guides to ensure optimal safety.
Complete with integral safety guides to ensure optimal safety.

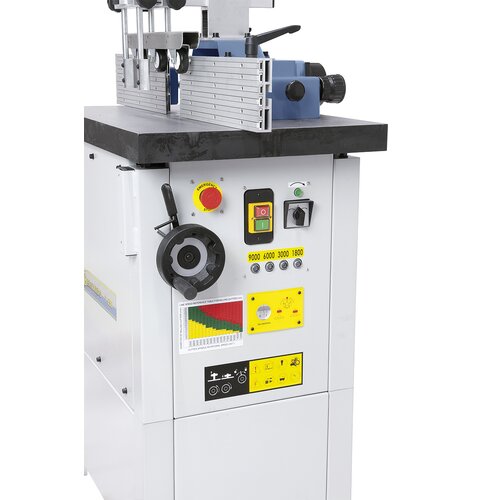

Essential control elements and switches are all clearly arranged on right side of machine.
Essential control elements and switches are all clearly arranged on right side of machine.

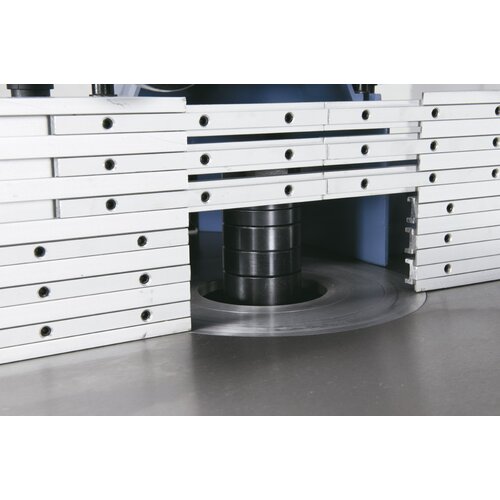

The solid moulding fence can be adjusted for tools up to 200 mm. Stop bars on both sides feature fine adjustment.
The solid moulding fence can be adjusted for tools up to 200 mm. Stop bars on both sides feature fine adjustment.

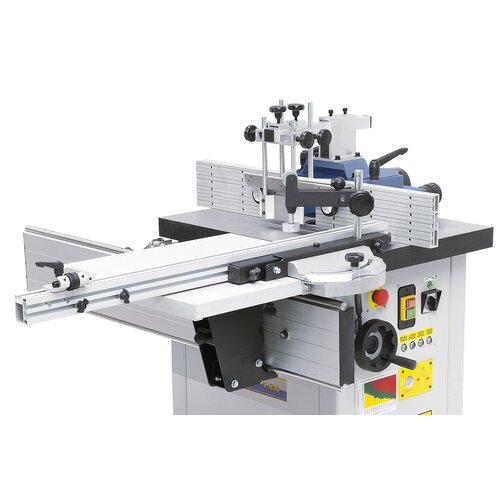

The optionally available roller table increases the range of applications significantly.
The optionally available roller table increases the range of applications significantly.
The optionally available roller table increases the range of applications significantly.
Complete with integral safety guides to ensure optimal safety.
Essential control elements and switches are all clearly arranged on right side of machine.
The solid moulding fence can be adjusted for tools up to 200 mm. Stop bars on both sides feature fine adjustment.
The optionally available roller table increases the range of applications significantly.

Spindle moulder T 650 / 230 V *

Art.Nr.: 09-1260
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

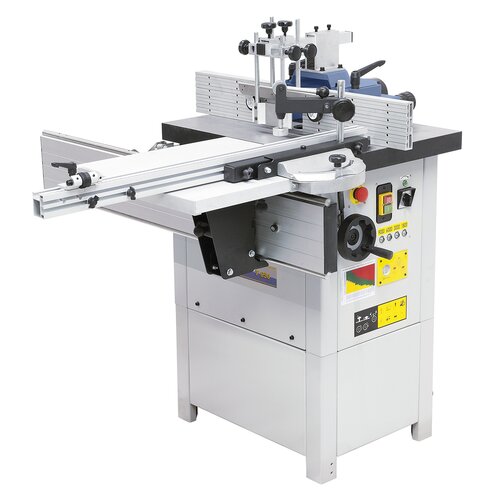

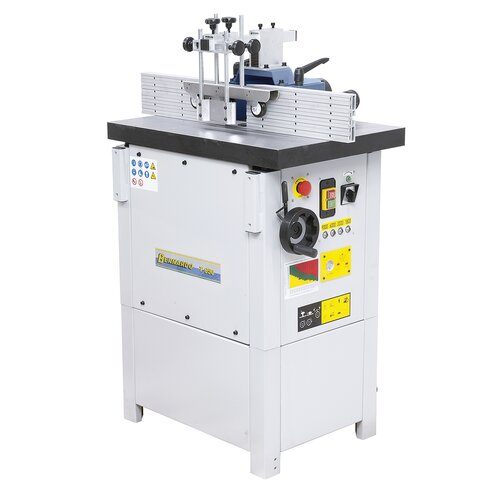

The T 650 table spindle moulder comes complete with 4 speed settings and a right and left turning device to allow for optimal adjustment to each workpiece. The optionally available roller table makes the processing of large workpieces significantly easier.



€1,800.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Electronic LED speed display, quick and easy to read
  • Moulding fence features finely adjustable aluminium stop bars on both sides
  • Machine body consists of torsion-free steel construction
  • Complete with moulding fence featuring a dust port (diameter 100 mm) and sanding sleeve (diameter 75 mm)
  • Large speed range – 4 settings from 1800 - 9000 rpm
  • Amply sized grey cast-iron moulder unit
  • Dynamically balanced moulder spindle ensures accurate run

Product Specifications

Table size

690 x 480 mm

Roller table (optional)

500 x 480 mm

Working height

900 mm

Spindle diameter

30 mm

Height adjustment of spindle

100 mm

Working lenght of spindle

105 mm

Max. tool diameter

200 mm

Max. tool diameter concealed

180 mm

Table opening

200 mm

Spindle speed

1800 / 3000 / 6000 / 9000 rpm

Dust extraction outlet

100 mm

Motor power output S1 100%

2,8 kW (3,8 HP)

Motor power input S6 40%

3,9 kW (5,3 HP)

Voltage

230 V

Machine dimension (W x D x H)

770 x 480 x 1200 mm

Weight approx.

160 kg



Delivery Contents

  • Electric speed indication
  • Sanding sleeve diam. 75 mm
  • Left and right turning
  • Integral safety guides
  • Protective and pressing device
