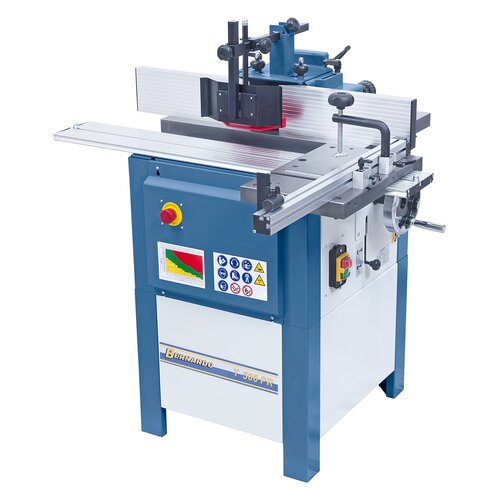

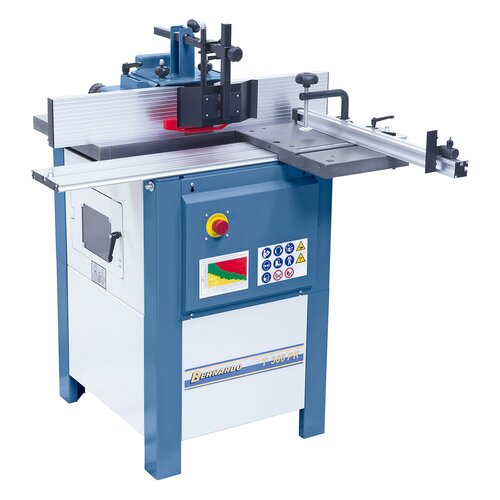

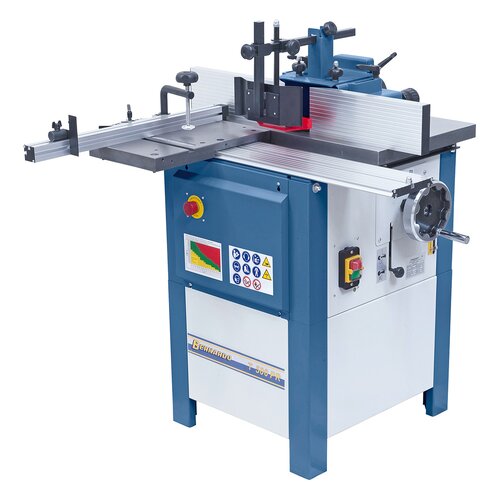

Spindle moulder T 500 PR / 400 V
Art.Nr.: 09-1255BThe ideal table spindle moulder for craftsmen looking for a combination of high performance and precision at minimum space requirements. Comes complete with roller table to raise user comfort significantly.
€1,332.00
incl. 20% VATAvailability
Product Properties

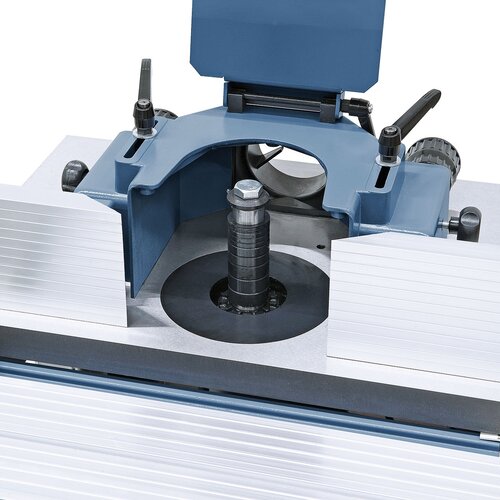

- Solid moulding fence features finely adjustable aluminium stop bars

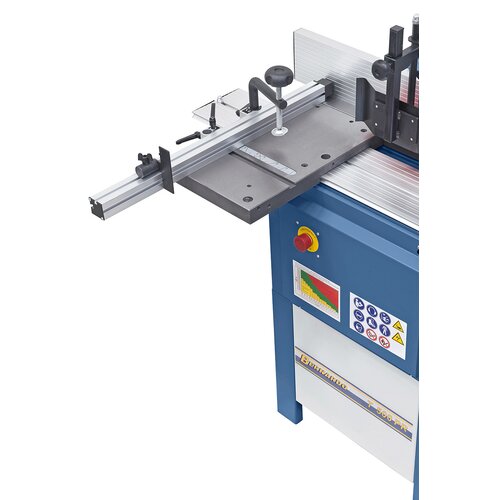

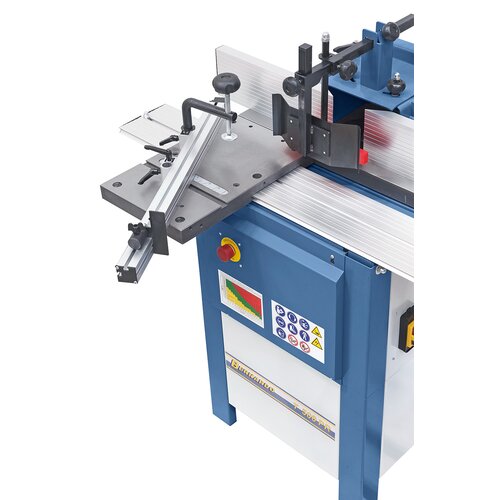

- Roller table, as standard, for maximum operating comfort
- Torsion-free, grey cast-iron machine table for maximum accuracy

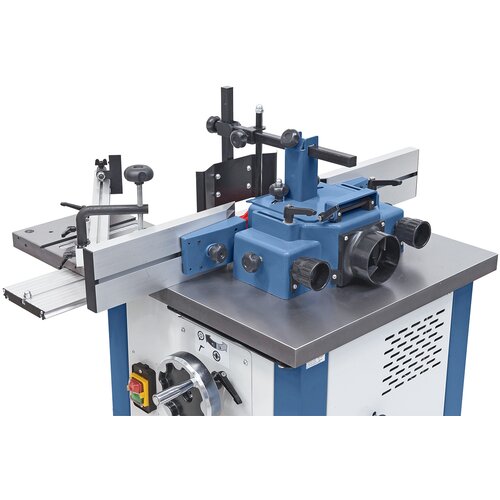

- Amply sized moulding fence with dust extraction outlet 100 mm

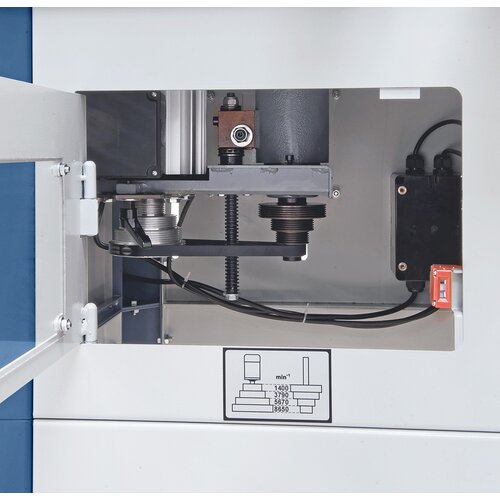

- V-belt allows for fast and convenient speed change

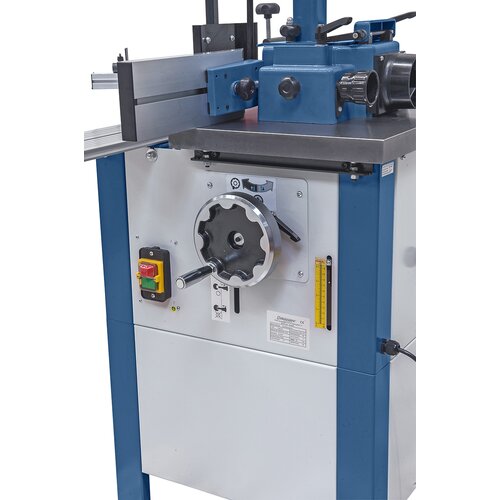

- Ergonomically arranged switches and control elements guarantee high work comfort
- Generous, grey cast-iron construction of moulder unit
Product Specifications
|
Table size |
600 x 400 mm |
|
Table size roller table |
400 x 250 mm |
|
Working height |
820 mm |
|
Spindle diameter |
30 mm |
|
Height adjustment of spindle |
110 mm |
|
Working length of spindle |
105 mm |
|
Max. tool diameter |
160 mm |
|
Max. tool diameter concealed |
160 mm |
|
Spindle speed |
1400 / 3790 / 5670 / 8650 rpm |
|
Dust extraction outlet |
100 mm
|
|
Motor power output S1 100% |
1, 5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 KW (2,8 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
1040 x 1070 x 1130 mm |
|
Weight approx. |
99 kg |
Delivery Contents
- Roller table
- Downholder
- Stop bar
- Protective and pressing device
