The sliding table features a generous size and runs smoothly on hardened prism guide ways.

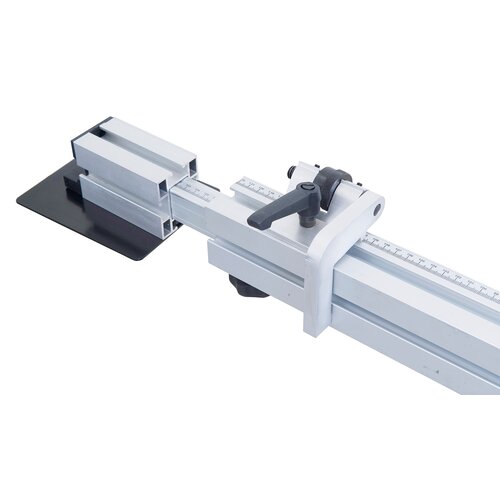

Extractable telescopic fence up to 2260 mm and stop featuring fine adjustment.

Handwheel allows for saw unit (tiltable up to 45º) to be set to a cutting height of up to 100 mm.

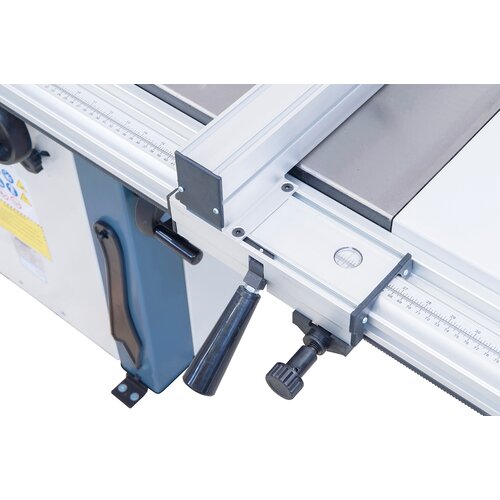

The magnifying glass on the rip fence ensures an easy read out of mm-scale hence allowing precise adjustment of cutting width.

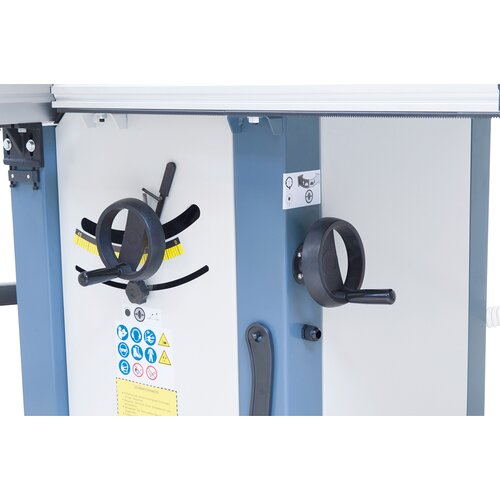

Ergonomically arranged handwheels on machine body allow for saw unit adjustment.

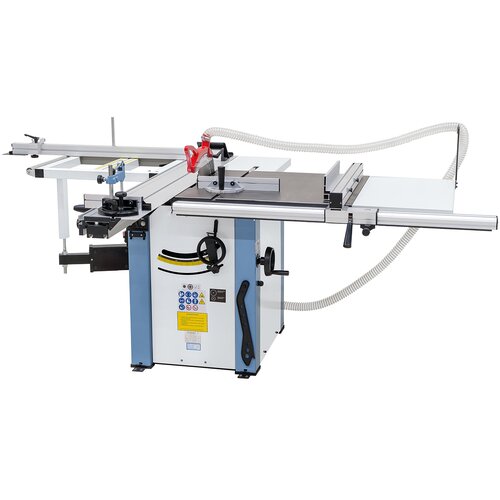

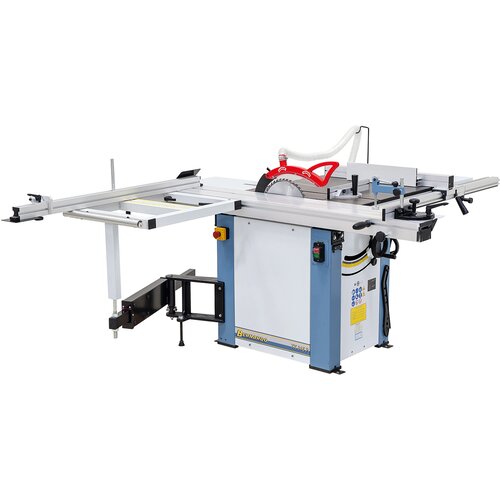

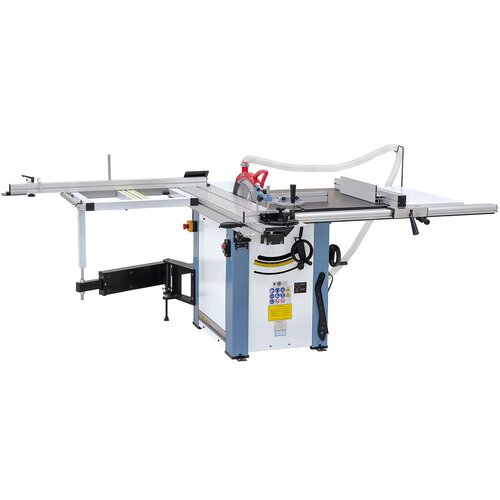

Sliding table saw TK 315 P - 1800 / 230 V

Art.Nr.: 09-11081

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The TK 315 P sliding table saw is available with a table length of 1600 mm / 1800 mm or 2000 mm. Part of the standard equipment is a 3.0 kW motor, a sawblade (diameter 315 mm) for cutting height up to 100 mm and scoring unit for smooth processing of coated materials.

€2,892.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted

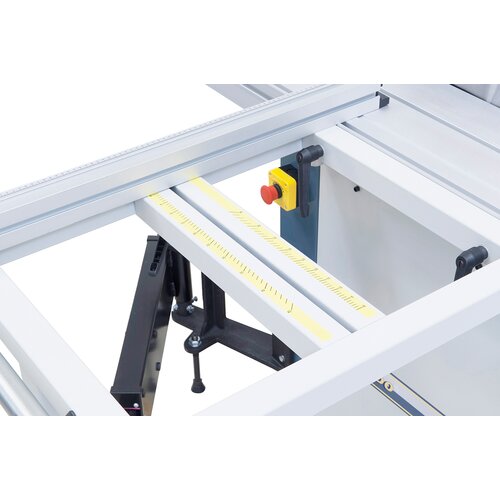

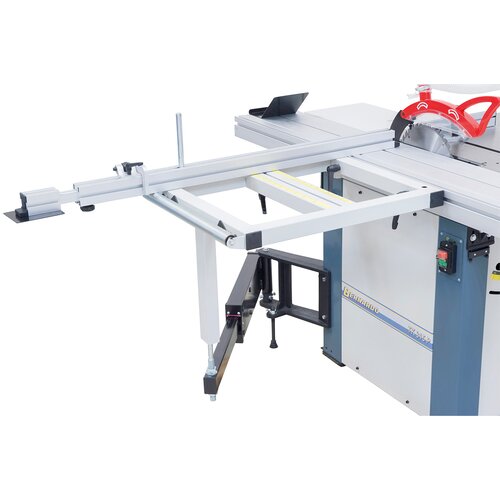

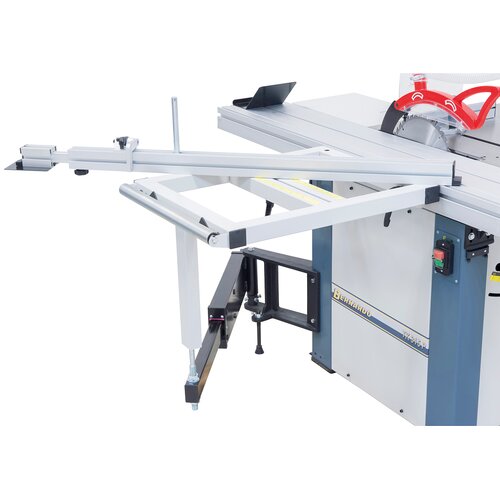

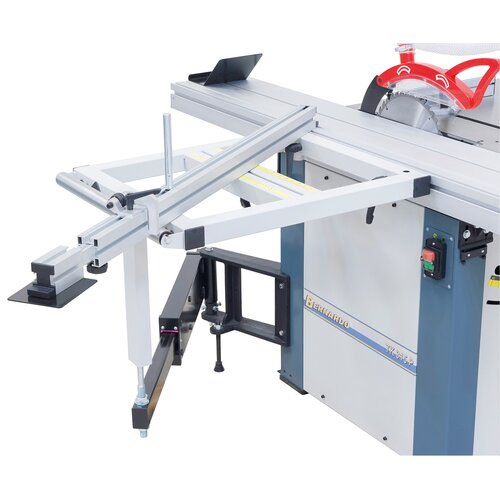

Solid square table with roller and telescopic arm guarantee high stability
Anodized aluminium sliding table available in three lengths
Powerful drive motor for constant cutting speed, even at cutting height of 100 mm

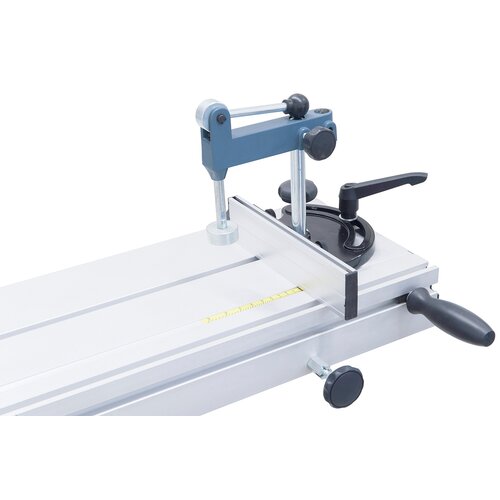

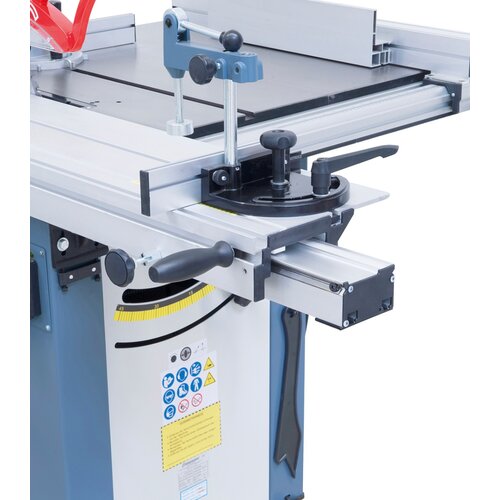

Mitre fence and downholder can be moved along entire table length
Amply sized work table and table extensions for cutting width up to 1240 mm come standard
Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º

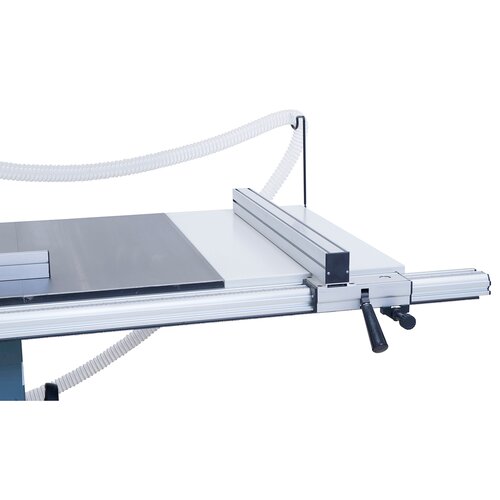

Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass

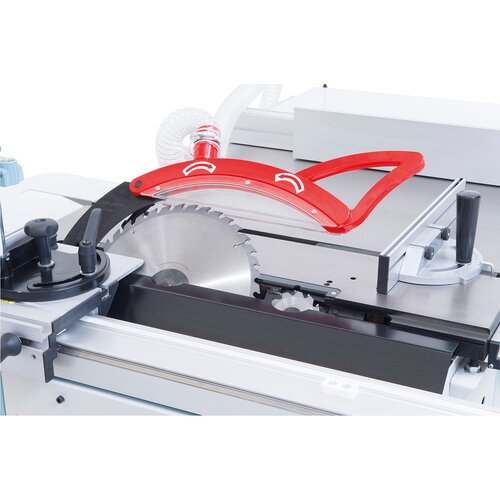

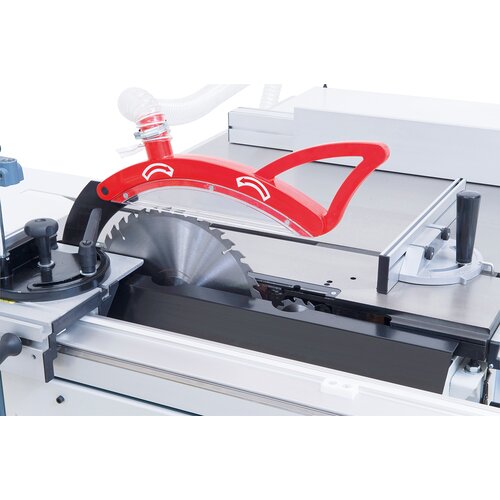

Solid saw unit guarantees precise work, free from vibrations

Product Specifications

Table size	825 x 800 mm
Sliding table	1800 x 270 mm
Cutting length	1800 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on rip fence	1240 mm
Table height	870 mm
Table extension	500 x 310 mm
Table enlargement	800 x 440 mm
Square table with roll	700 x 580 mm
Speed main sawblade	4000 rpm
Speed scoring sawblade	5800 rpm
Scoring sawblade	90 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	230 V
Machine dimension (W x D x H)	1800 x 2870 x 1140 mm
Weight approx.	248 kg
