Saw frame swings to both sides, allowing mitre cutting up to 60°.

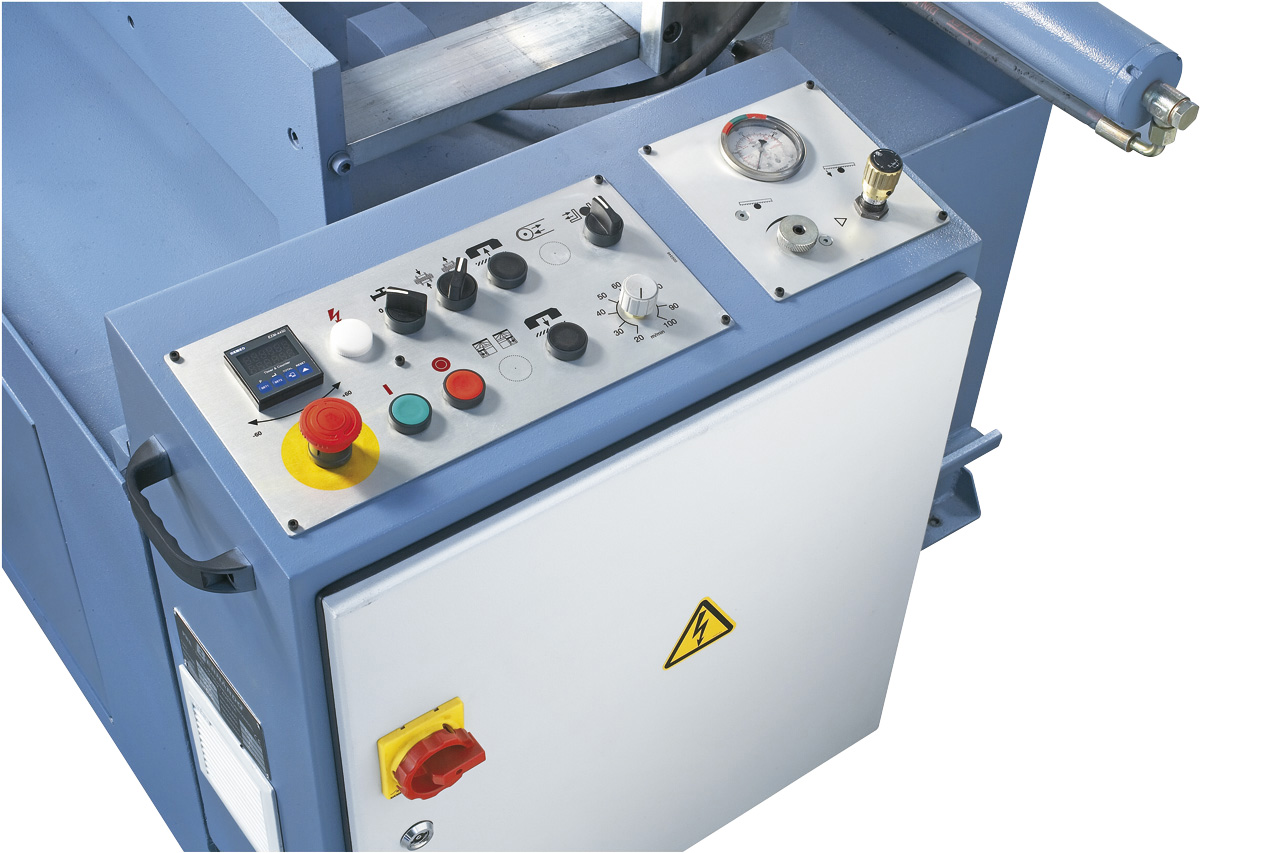

Clearly arranged switch box on the front side of the machine, making operating very user-friendly.

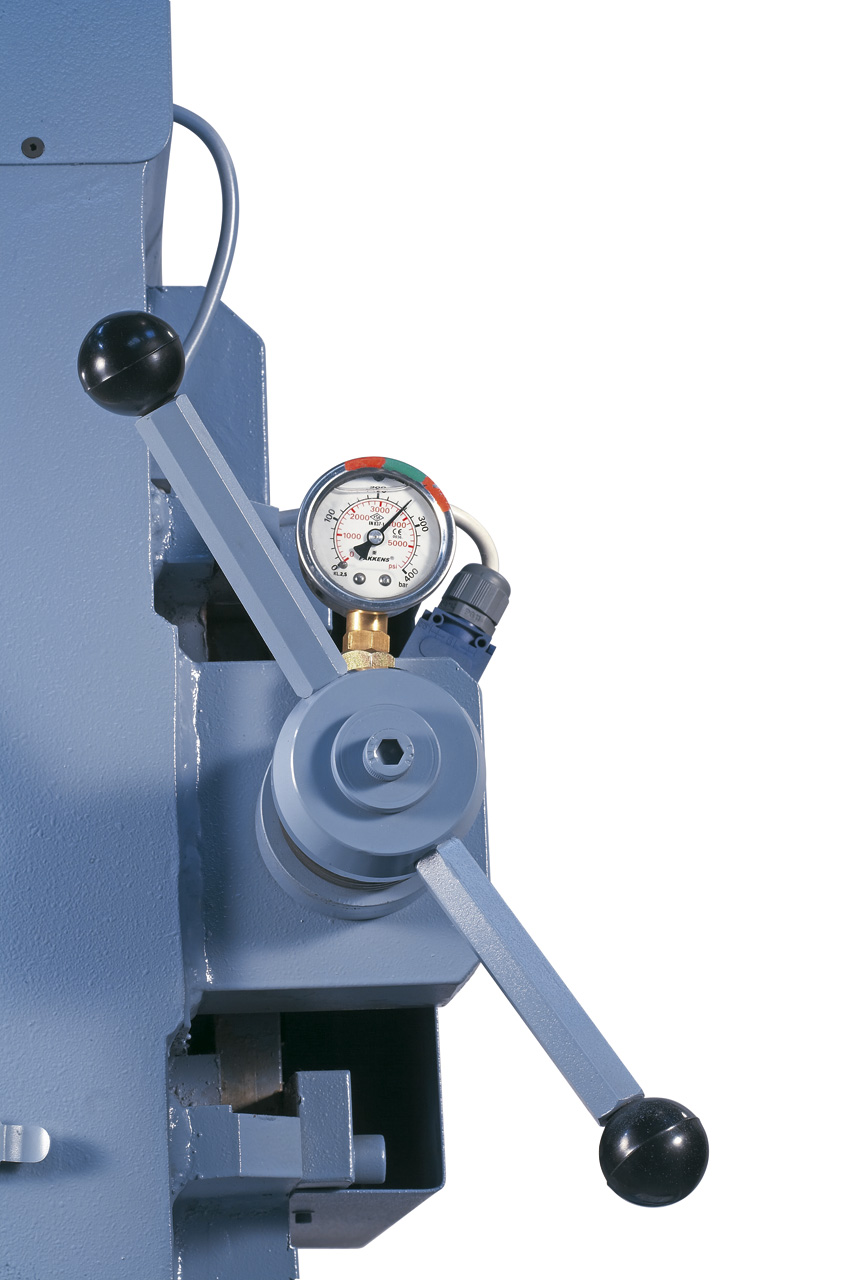

The serial manometer assures precise adjustment of the blade tension.

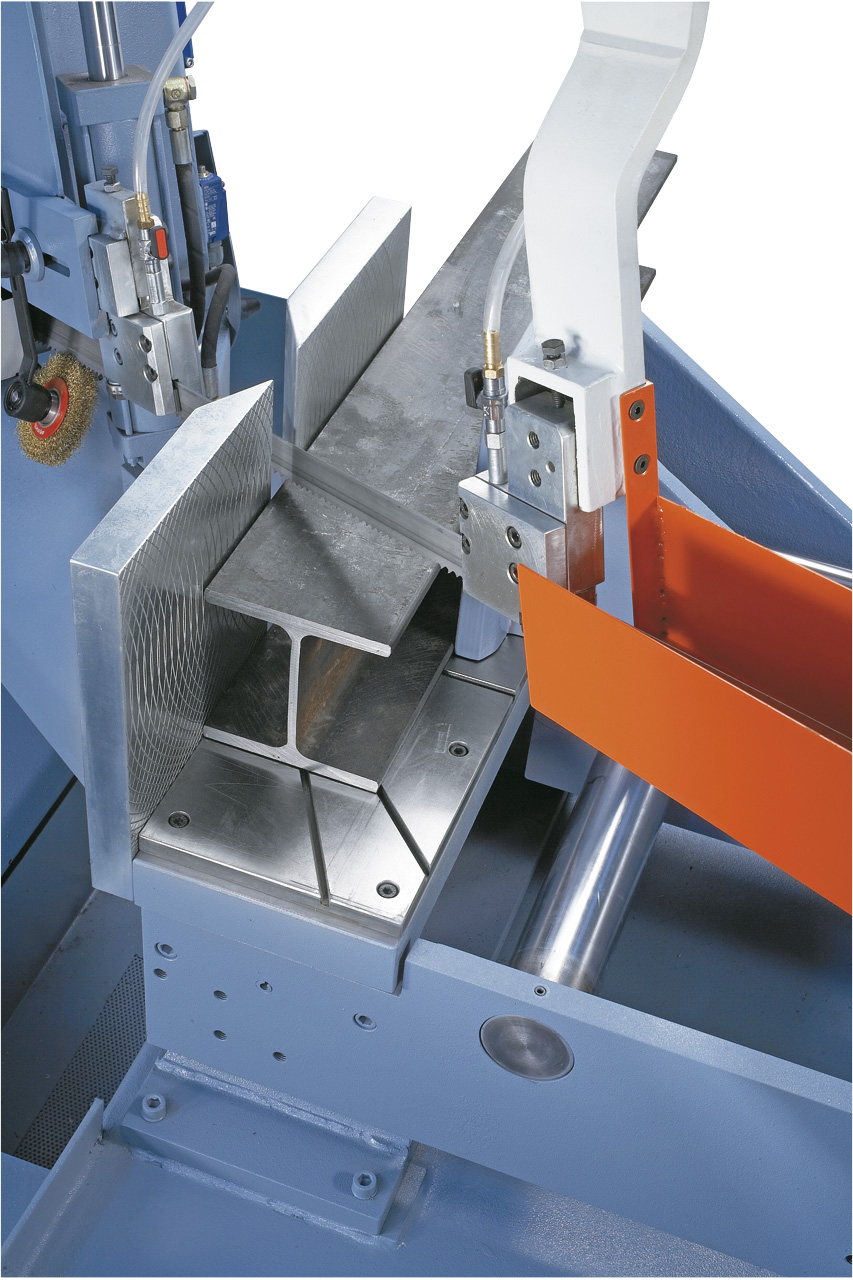

Bandsaw blade guide features quick adjustment to the width of the workpiece to ensure accurate results.

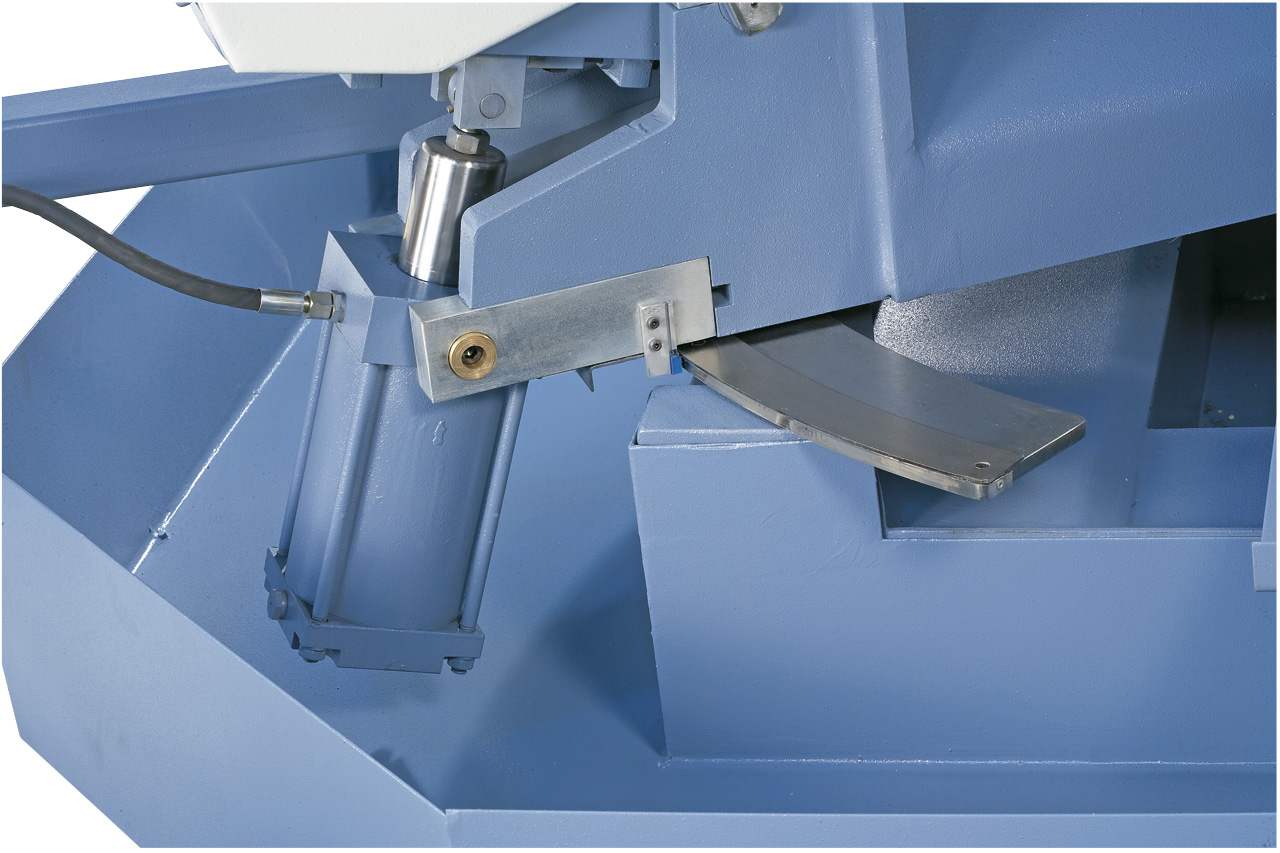

The hydraulic cylinder clamps the saw frame at the adjusted cutting angle.

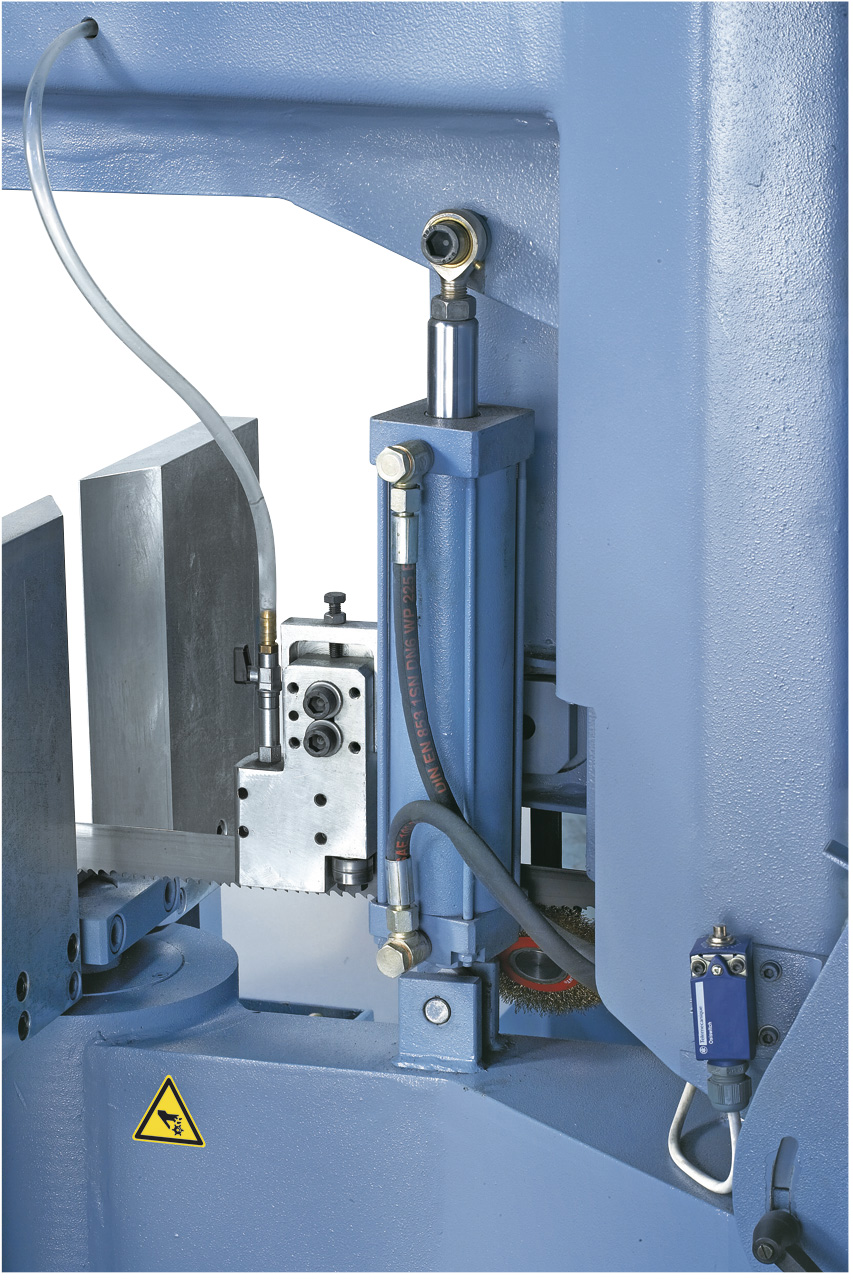

The robust hydraulic cylinder allows sensitive lowering of the saw frame.

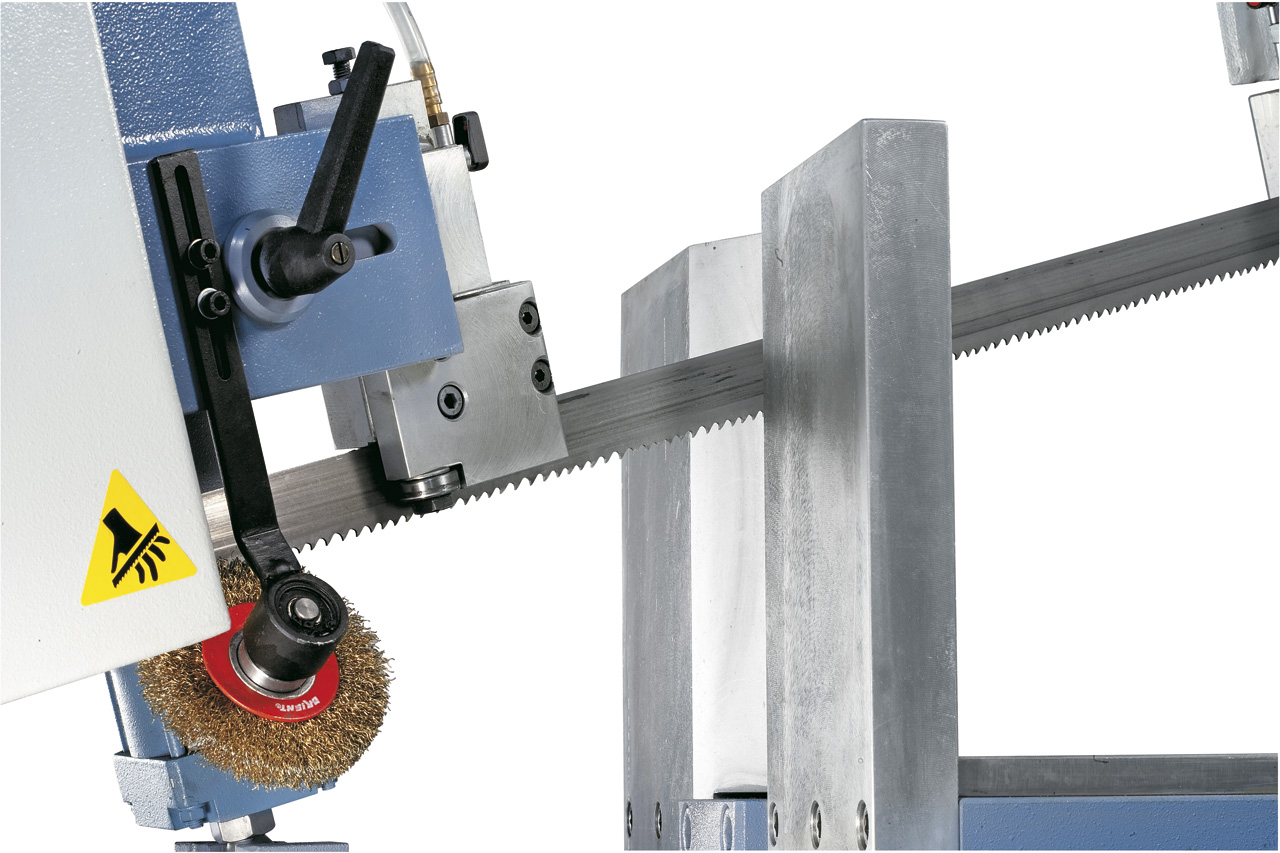

Bandsaw blade guiding features ball bearings and a height-adjustable chip brush, both guaranteeing long blade life.

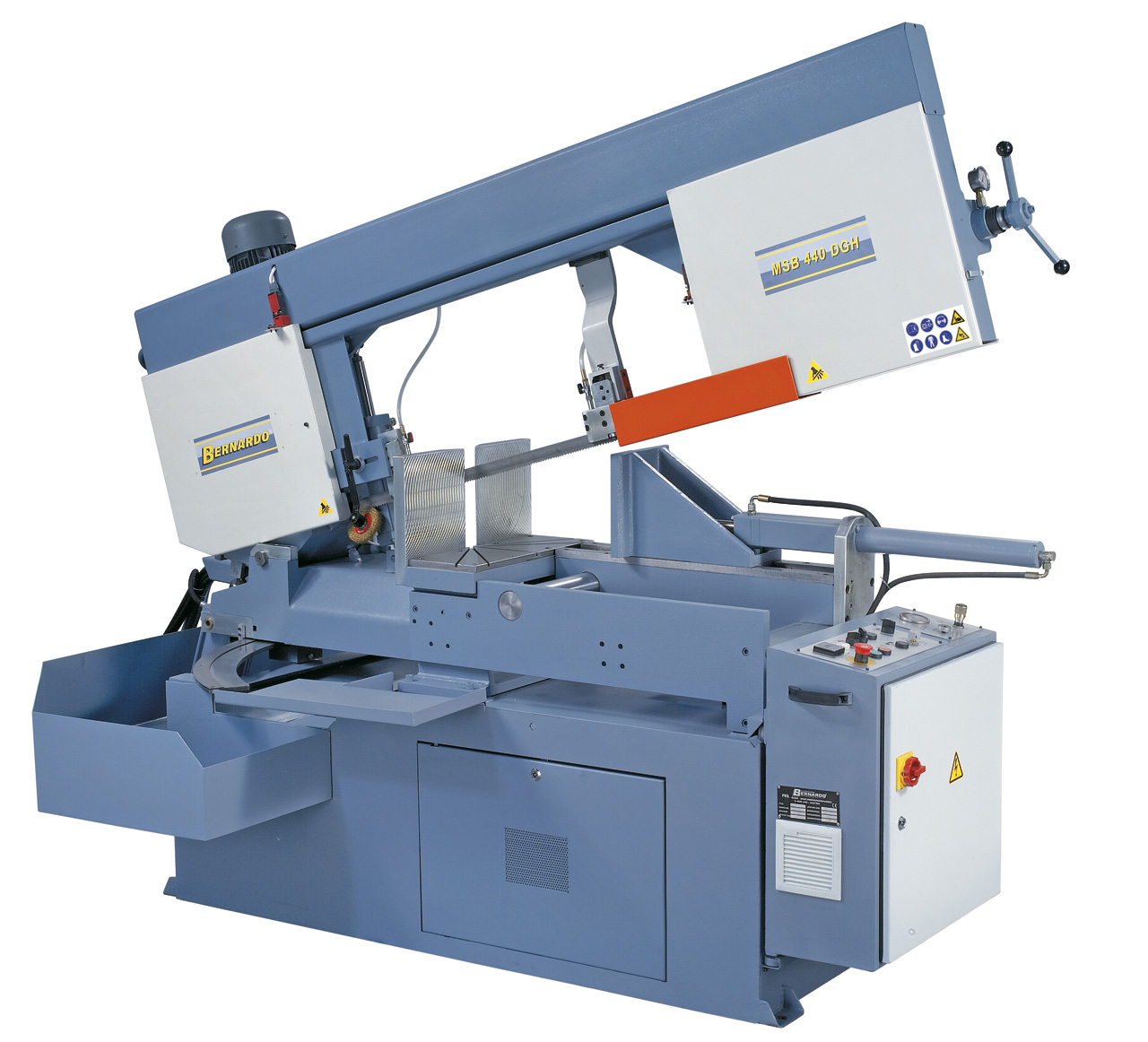

Semi-automatic double mitre bandsaw MSB 440 DGH **

Art.Nr.: 04-1765XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The model MSB 440 DGH is a semi-automatic double mitre saw for mitre cutting up to 60°. The stepless cutting speed and the hydraulic vice ensure comfortable working. The application area of this machine is predominantly targeted at locksmith shops, repair shops and tool construction.

Price on request

Request product now

Availability

Out of Stock

Product Properties

Cutting of pofiles, pipes, full rivet iron and non-ferrous materials
The semi-automatic function increases productivity
Complete with hydraulic vice for easy clamping of the workpiece
Stepless cutting speed for optimal adjustment to the workpiece
A manometer assures accurate blade tension
Automatic regulation of the cutting pressure
Saw frame swings to both sides for mitre cutting up to 60°
Robust and vibration-free construction for professional use

Semi-automatic operating mode:

Hydraulic clamping of the vice
Hydraulic lowering of the saw frame
Lifting of the saw frame

Product Specifications

Cutting capacity round / square 90°	440 mm / 440 x 440 mm
Cutting capacity flat 90°	610 x 440 mm
Cutting capacity round / square 45°	410 mm / 410 x 410 mm
Cutting capacity flat 45°	440 x 410 mm
Cutting capacity round / square 60°	320 mm / 290 x 290 mm
Cutting capacity flat 60°	440 x 290 mm
Working height	860 mm
Cutting speed, stepless	20 - 100 m/min
Bandsaw blade dimensions	5200 x 34 x 1,1 mm
Coolant pump	120 W
Motor power	3,0 kW
Machine dimensions (L x D x H)	2800 x 1210 x 1870 mm
Weight approx.	1500 kg
