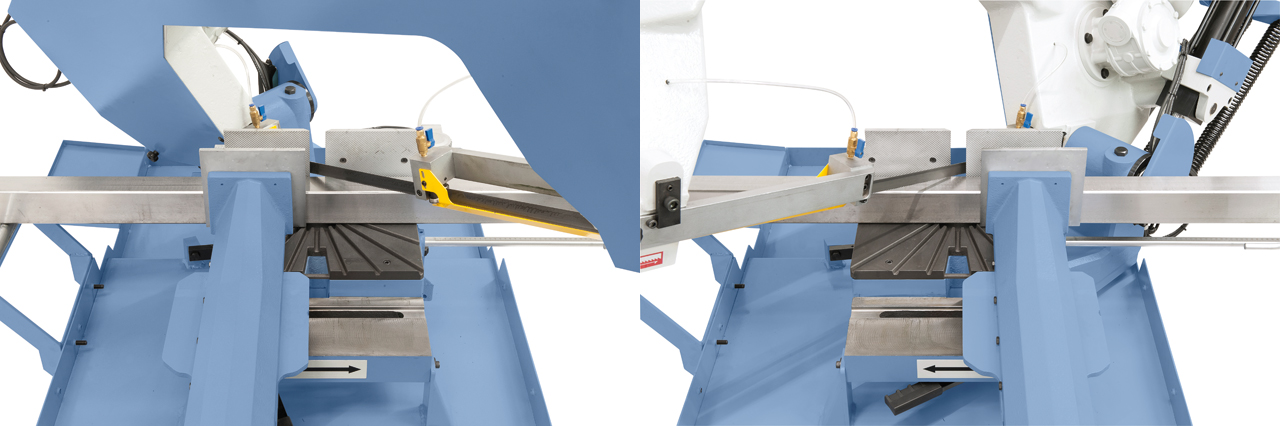

For double mitre cutting the position of the quick clamp vice can be changed.

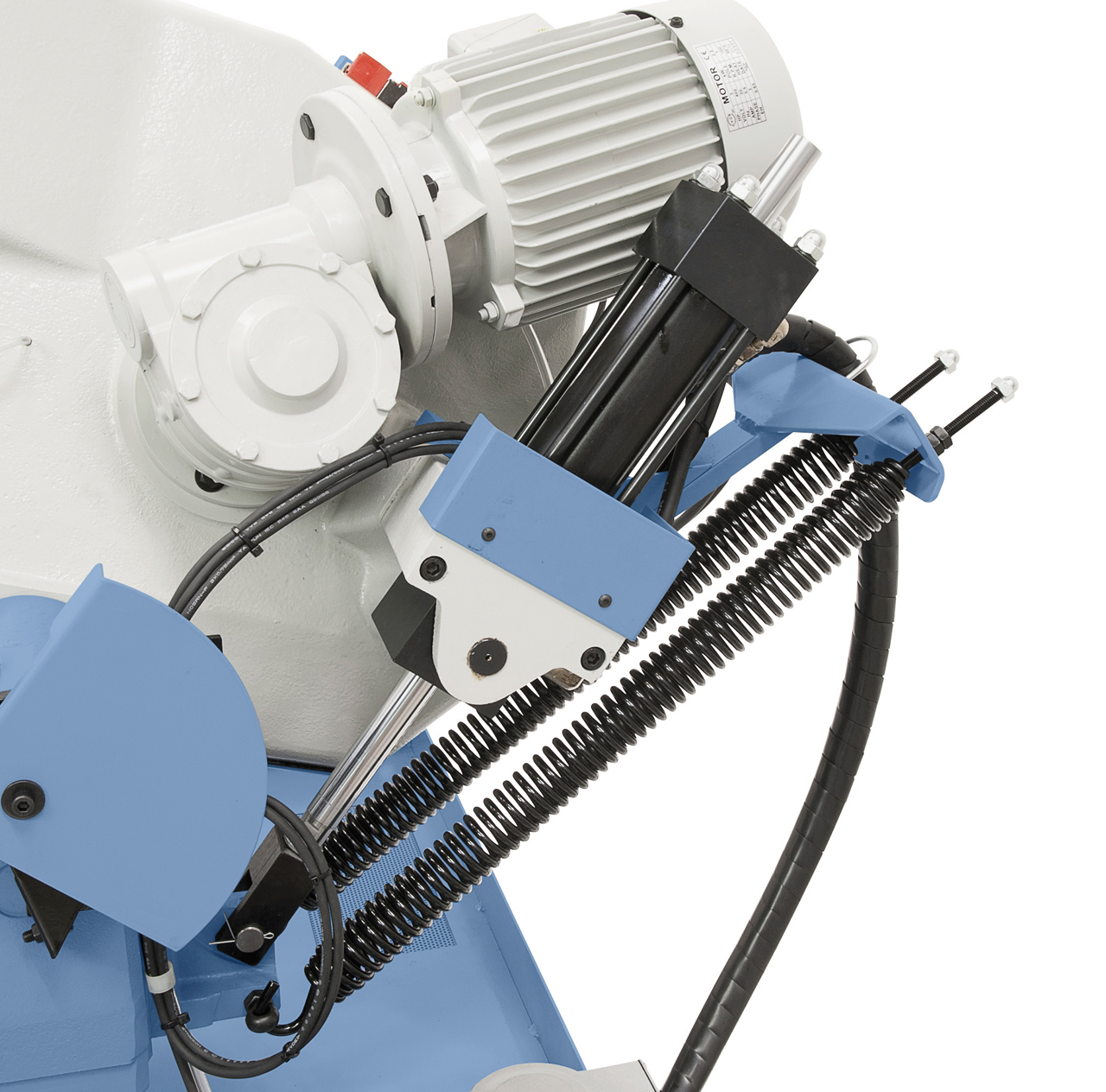

Serially with hydraulic lowering cylinder for stepless lowering of saw arm and automatic shut down at cutting end.

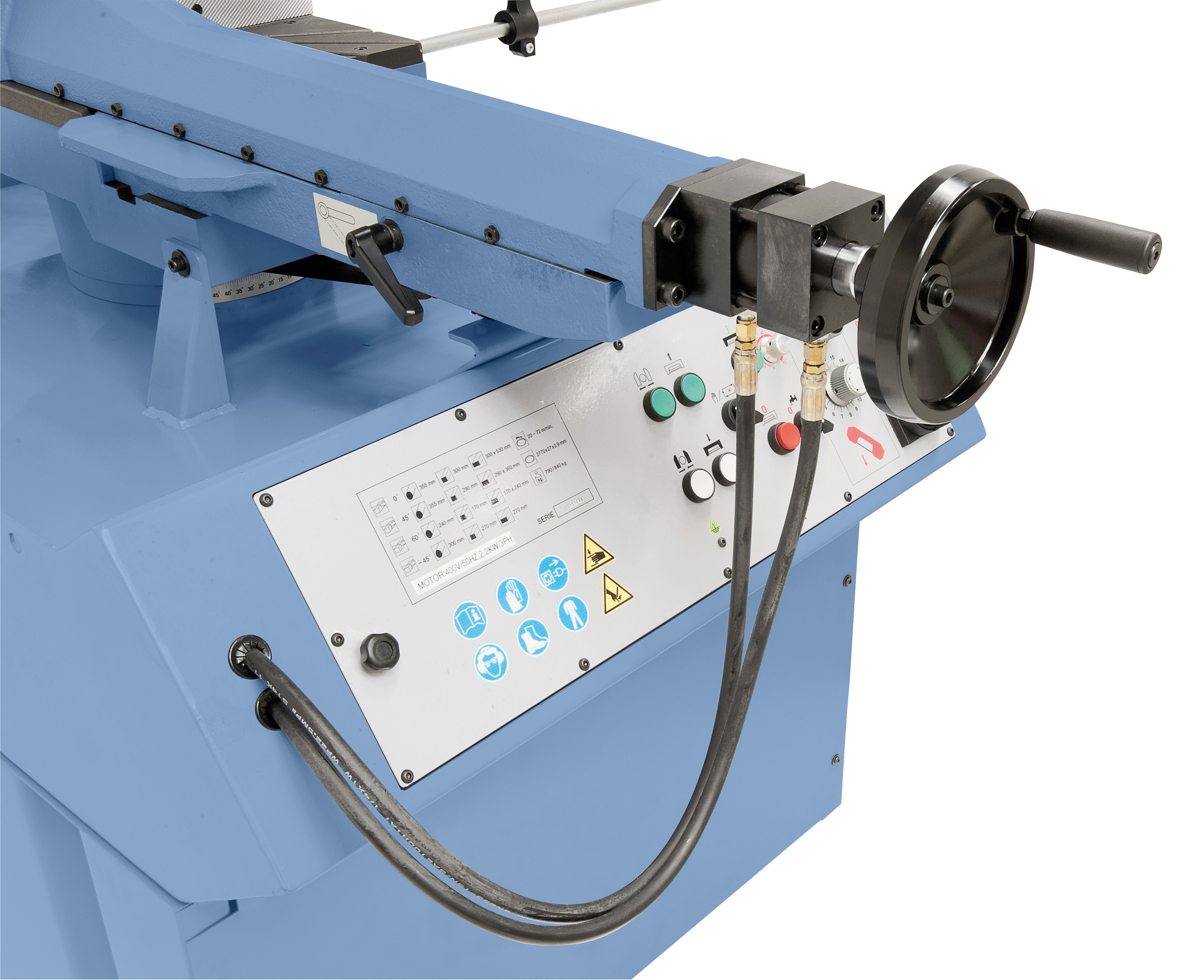

Relocatable vice, manual or hydraulic clamping.

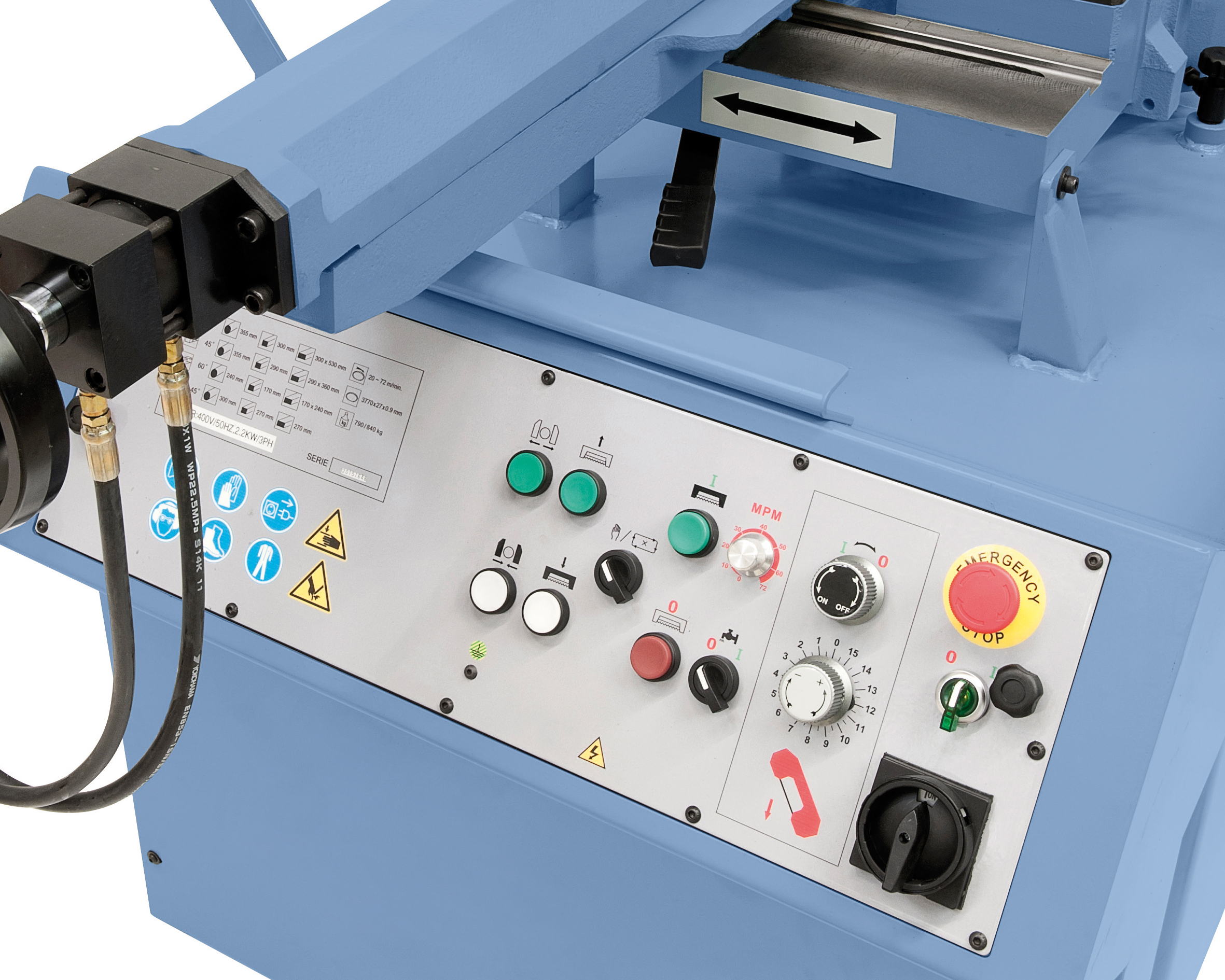

Rotary switch for stepless cutting speed and control valve for the support pressure at the ergonomic mounted operator panel.

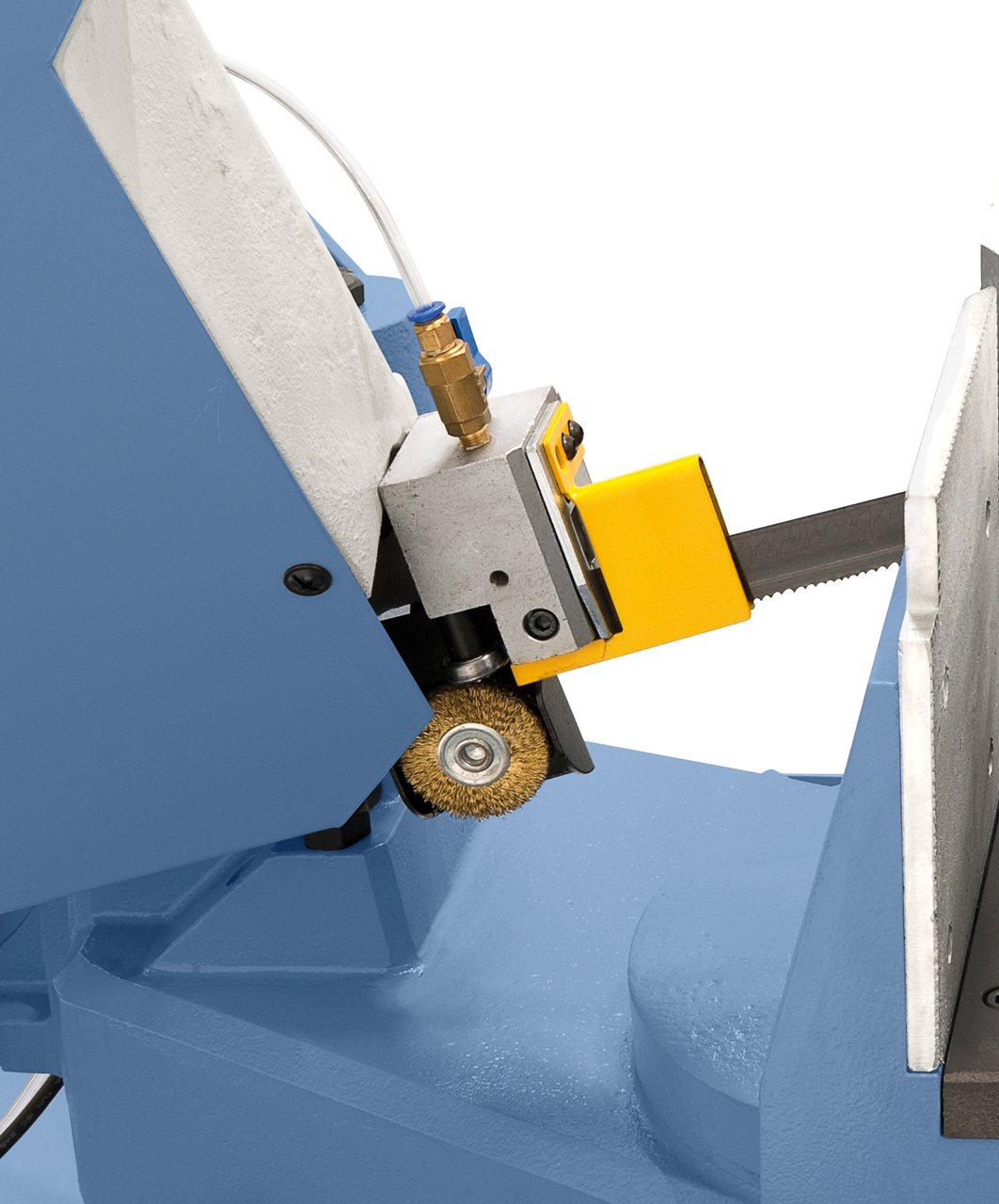

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts.

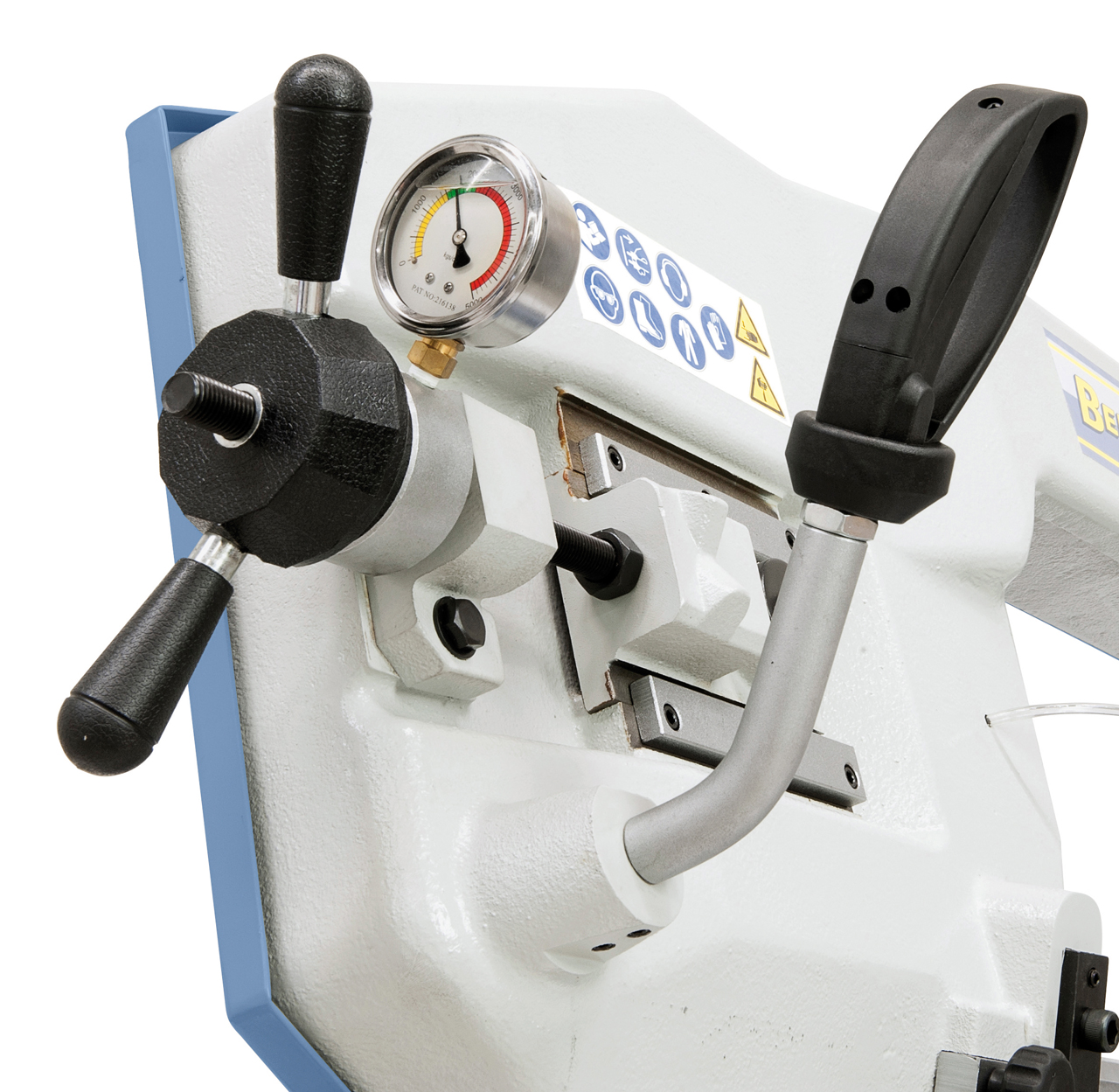

The serial manometer ensures optimal adjustment of the bandsaw blade tension.

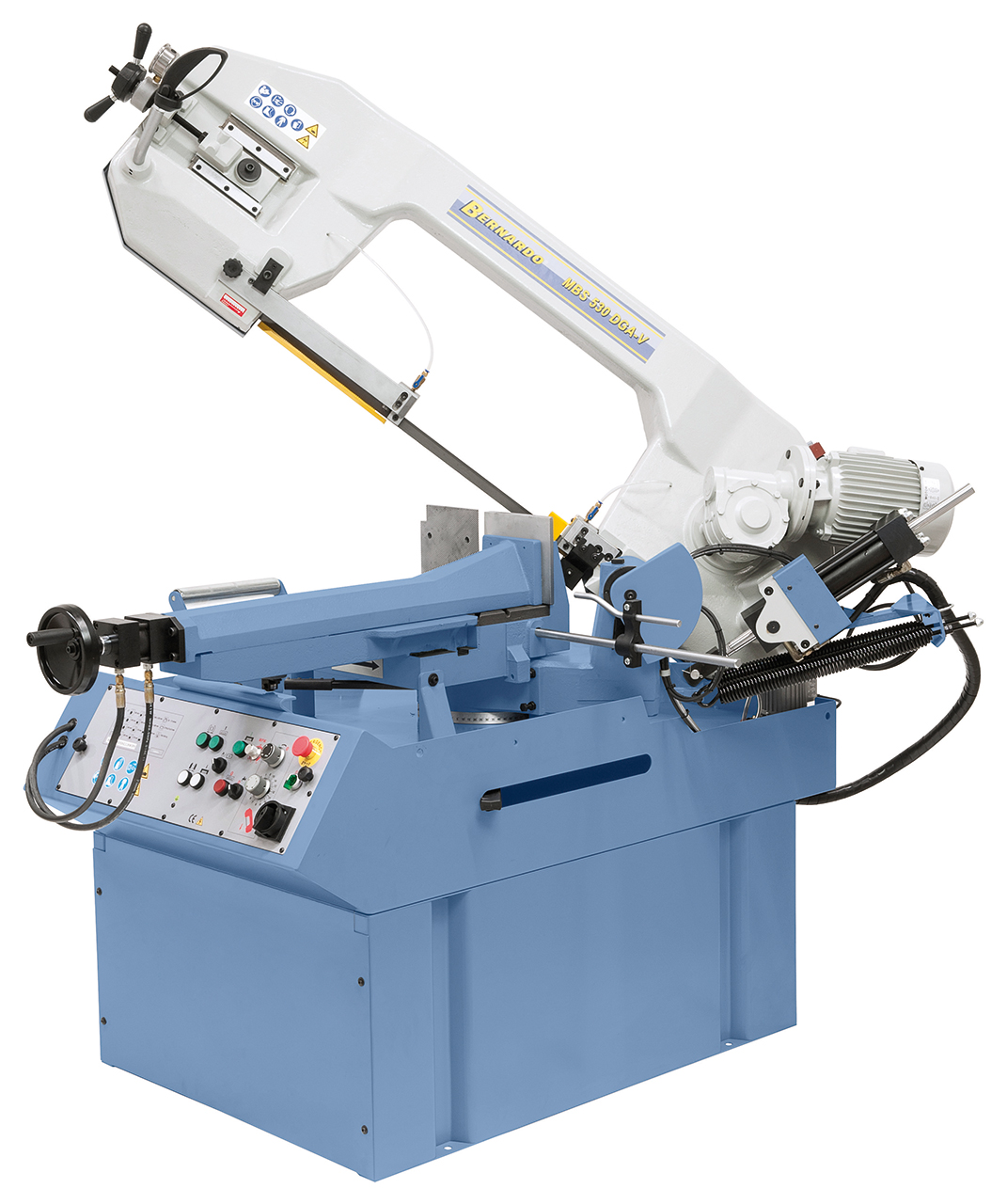

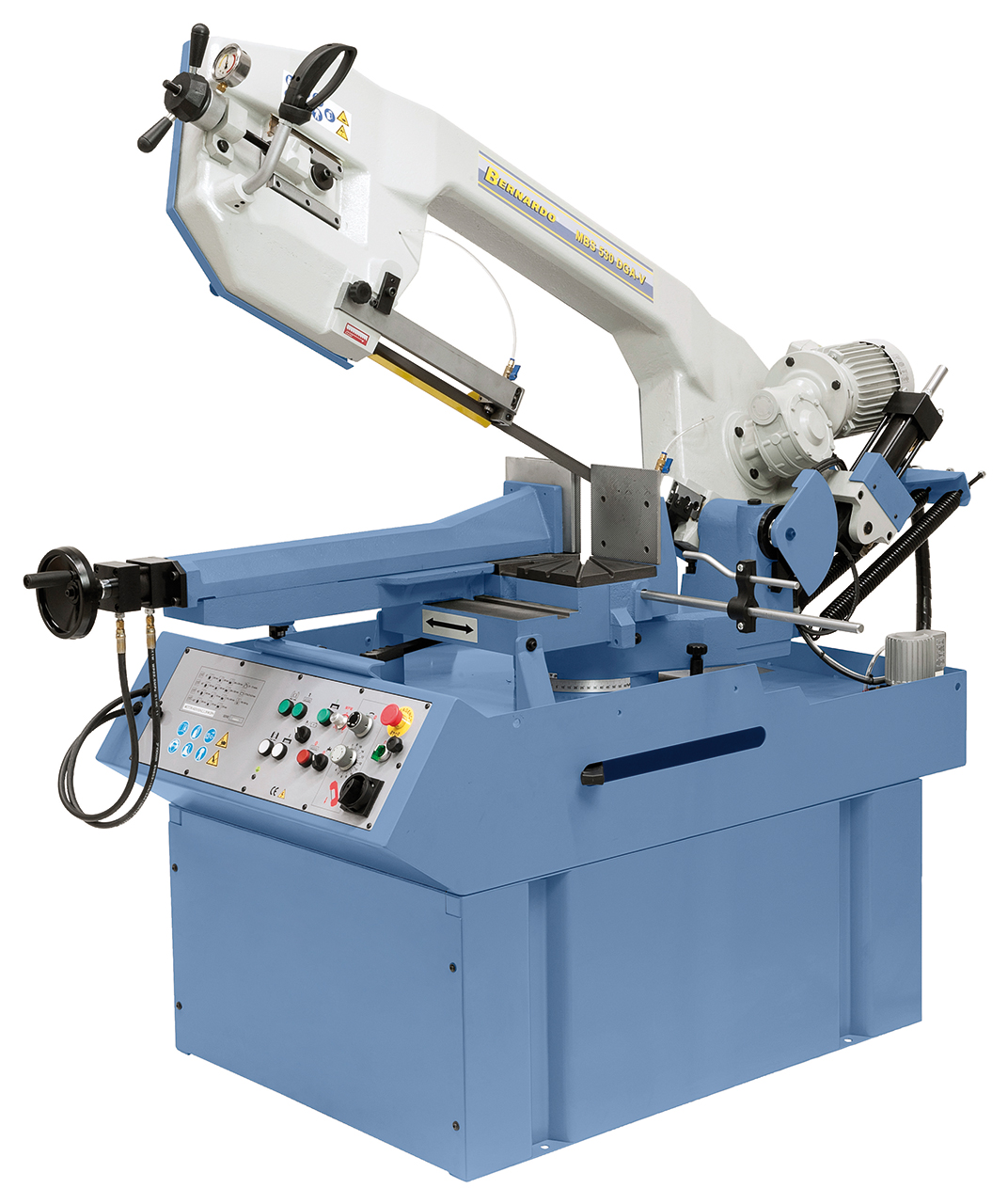

Semi-automatic double mitre bandsaw MBS 530 DGA-V

Art.Nr.: 04-1712

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The model MSB 530 DGA-V is a semi-automatic double mitresaw for mitre cutting up to 60°. The stepless cutting speed and the hydraulic vice ensure comfortable working. This model features a solid construction allowing precise cutting of hollow profiles, full rivet material, stainless steel etc. The application area of this machine is predominantly targeted at locksmith shops, repair shops and tool construction.

€11,496.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
For mitre cutting the saw frame tilts 45° to the left and 60° to the right
Stepless cutting speed allows for ideal adjustment to each workpiece (0- 72 m/min)
The semi-automatic function increases productivity significantly
Optional manual or semi-automatic operation
Relocatable vice, manual or hydraulic clamping
Professional bandsaw with unbeatable price-to-performance ratio
Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
Adjustable hydraulic cylinder for pressure regulation of the saw frame
Cutting of profiles, pipes, full rivet iron and non-ferrous materials

Semi-automatic operating mode:

Hydraulic clamping of the vice
Hydraulic lowering of the saw frame
Lifting of the saw frame

Product Specifications

Cutting capacity round / square 90°	355 mm / 300 x 300 mm
Cutting capacity flat 90°	530 x 300 mm
Cutting capacity round / square 45° R	355 mm / 290 x 290 mm
Cutting capacity flat 45° R	360 x 290 mm
Cutting capacity round / square 45° L	300 mm / 270 x 270 mm
Cutting capacity flat 45° L	270 x 270 mm
Cutting capacity round / square 60° R	240 mm / 170 x 170 mm
Working height	965 mm
Bandsaw blade dimension	3770 x 34 x 1,1 mm
Cutting speed, stepless	20 – 70 m/min
Coolant pump	100 W
Motor power output S₁ 100%	2,2 kW
Motor power input S₆ 40%	3,0 kW
Voltage	400 V
Machine dimension (L x D x H)	2200 x 1400 x 2050 mm
Weight approx.	640 kg
