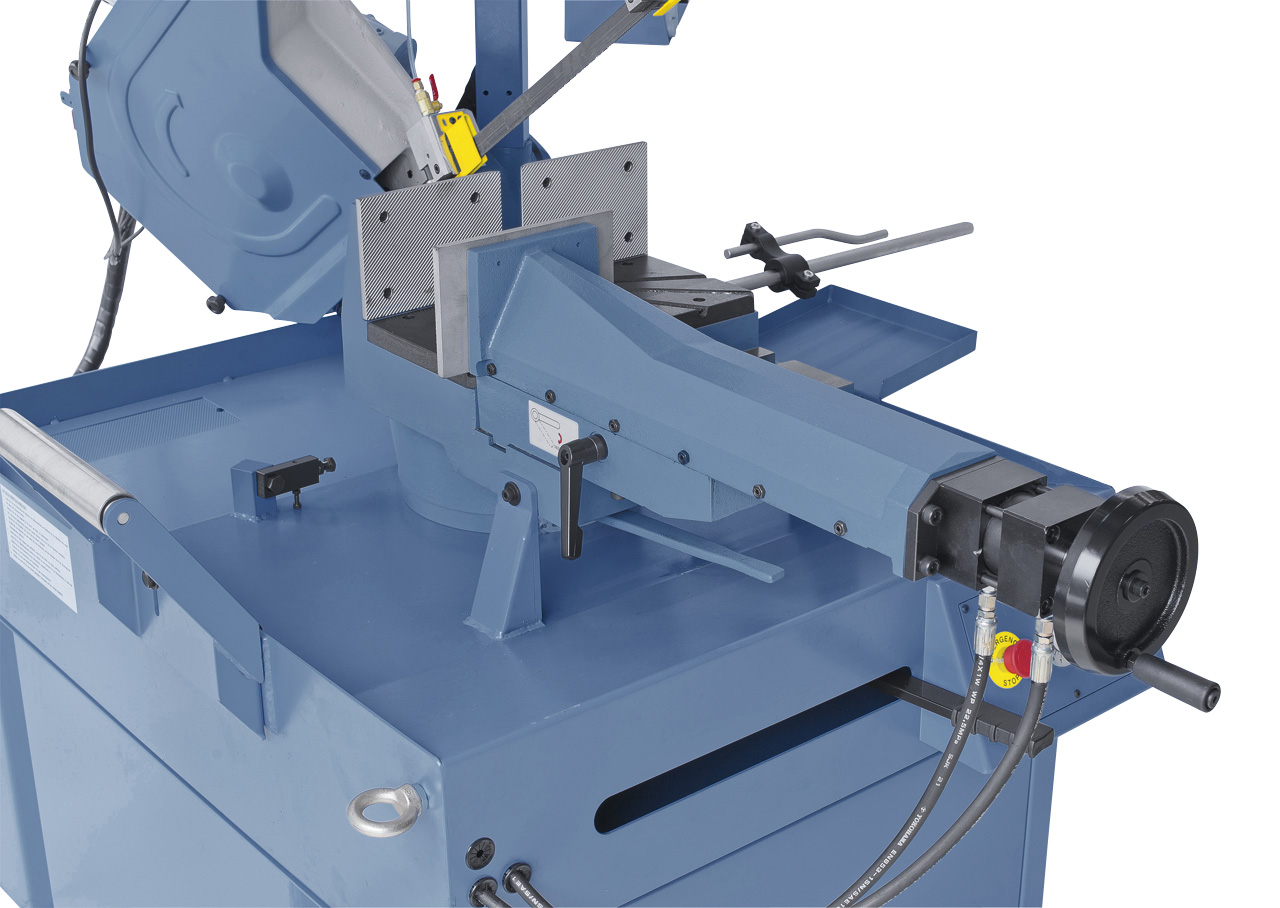

Quick adjustment of the required opening.
Quick adjustment of the required opening.

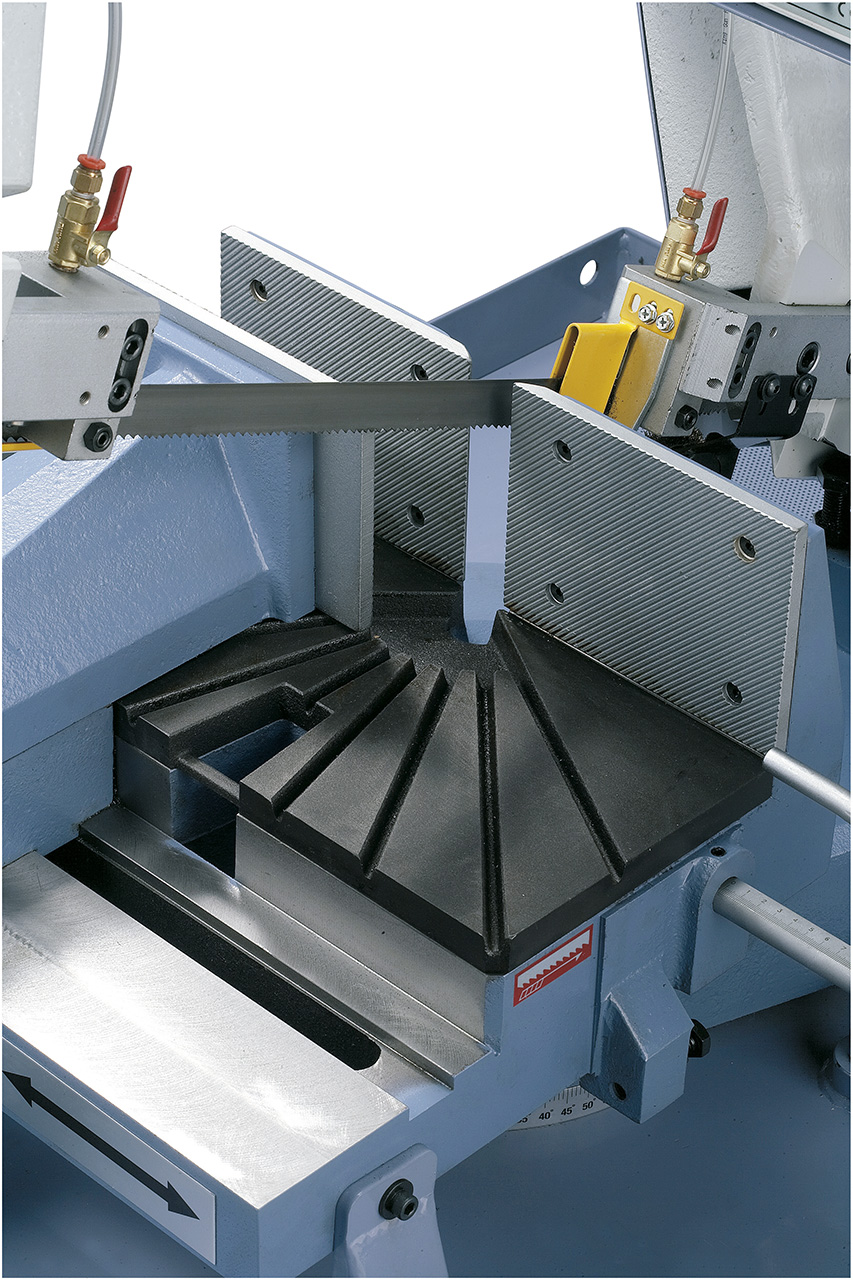

Quick clamping vice can be moved sidewise for double mitre cutting.
Quick clamping vice can be moved sidewise for double mitre cutting.

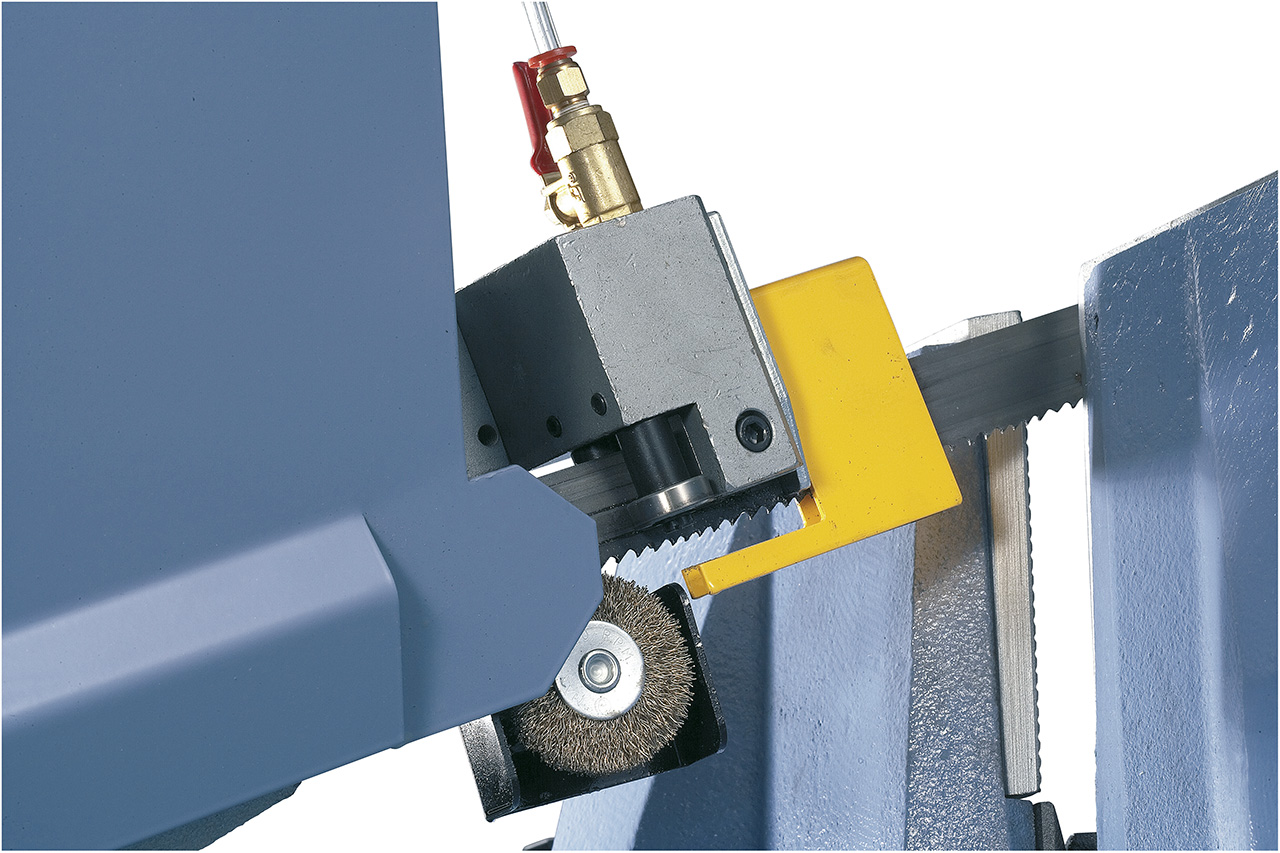

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts

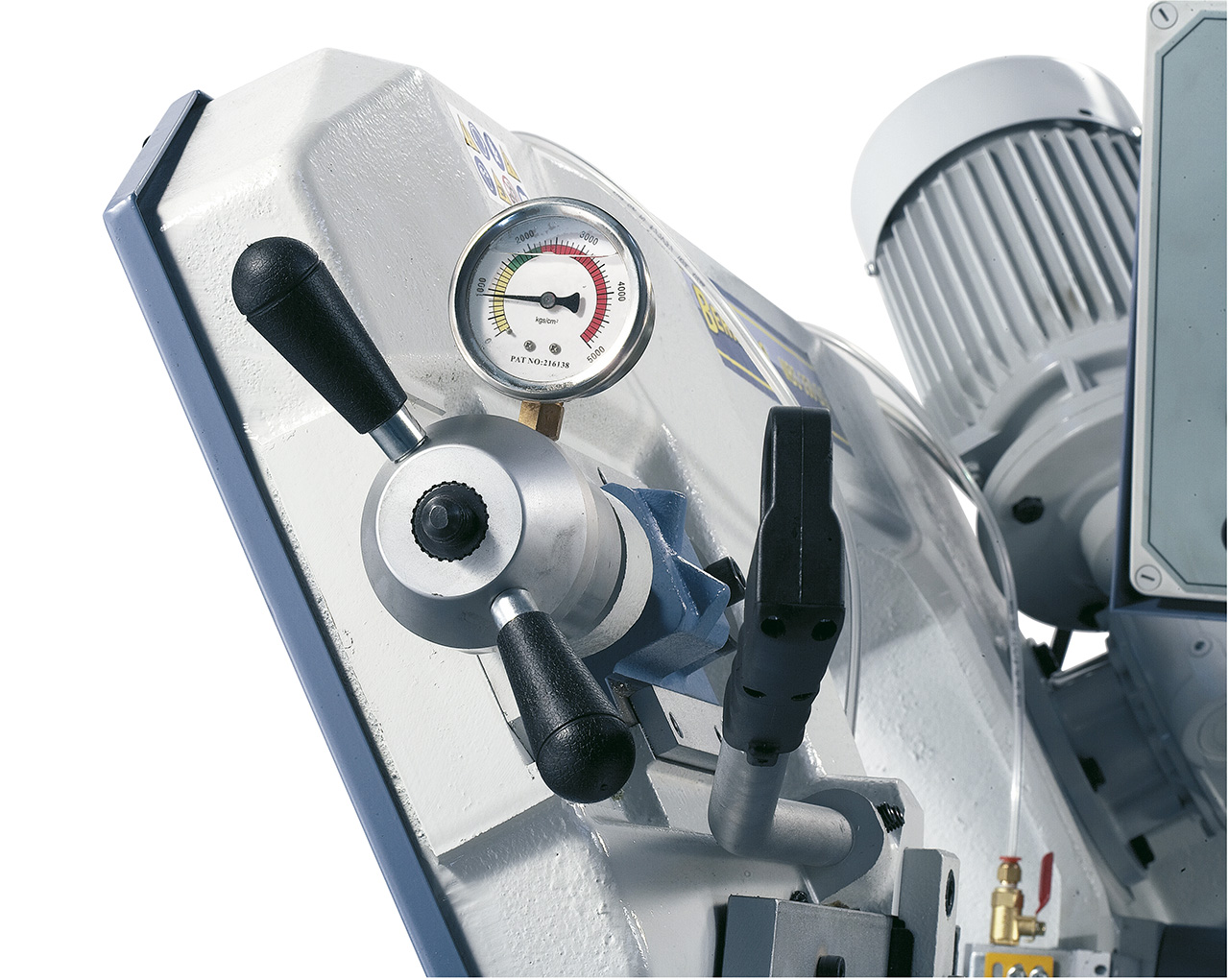

The manometer allows precise blade tension.
The manometer allows precise blade tension.

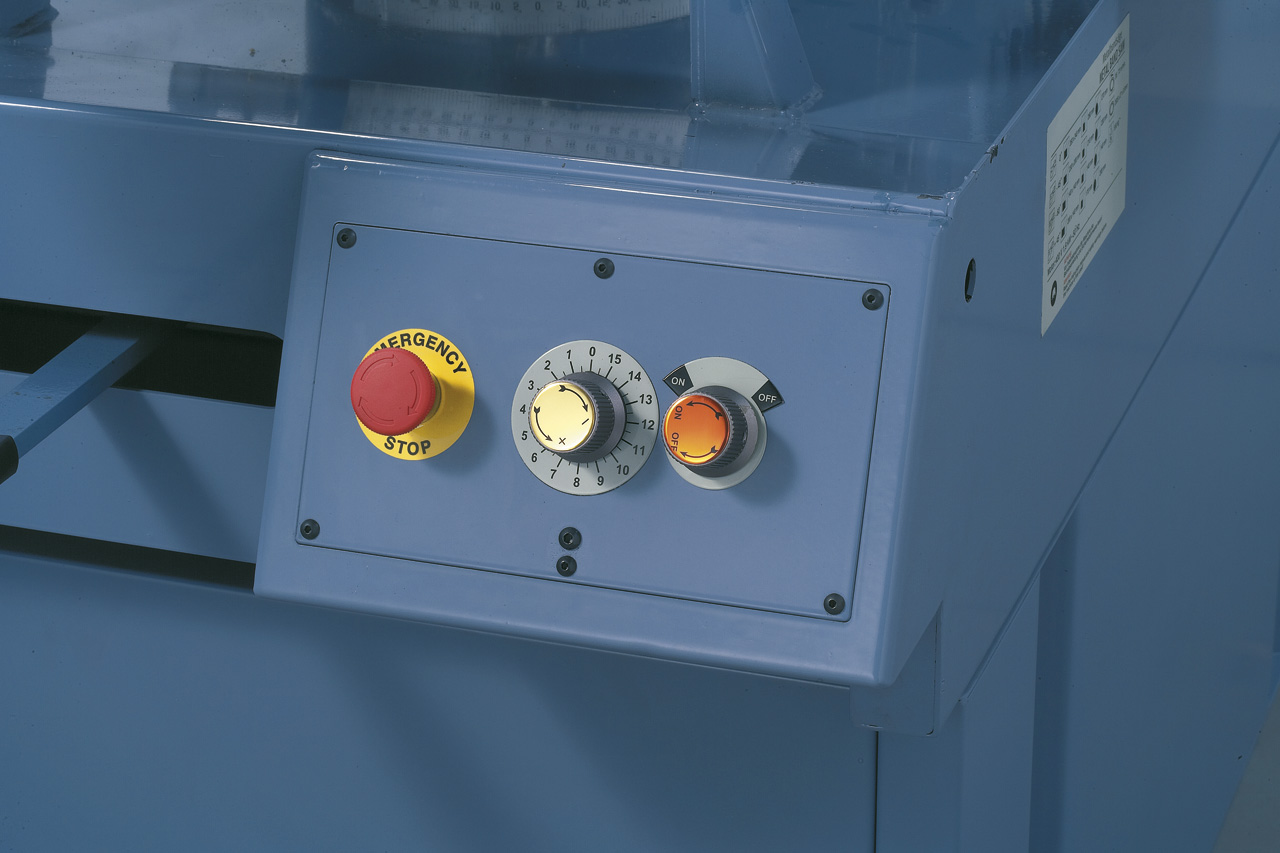

Convenient support pressure adjustment via regulating valve.
Convenient support pressure adjustment via regulating valve.

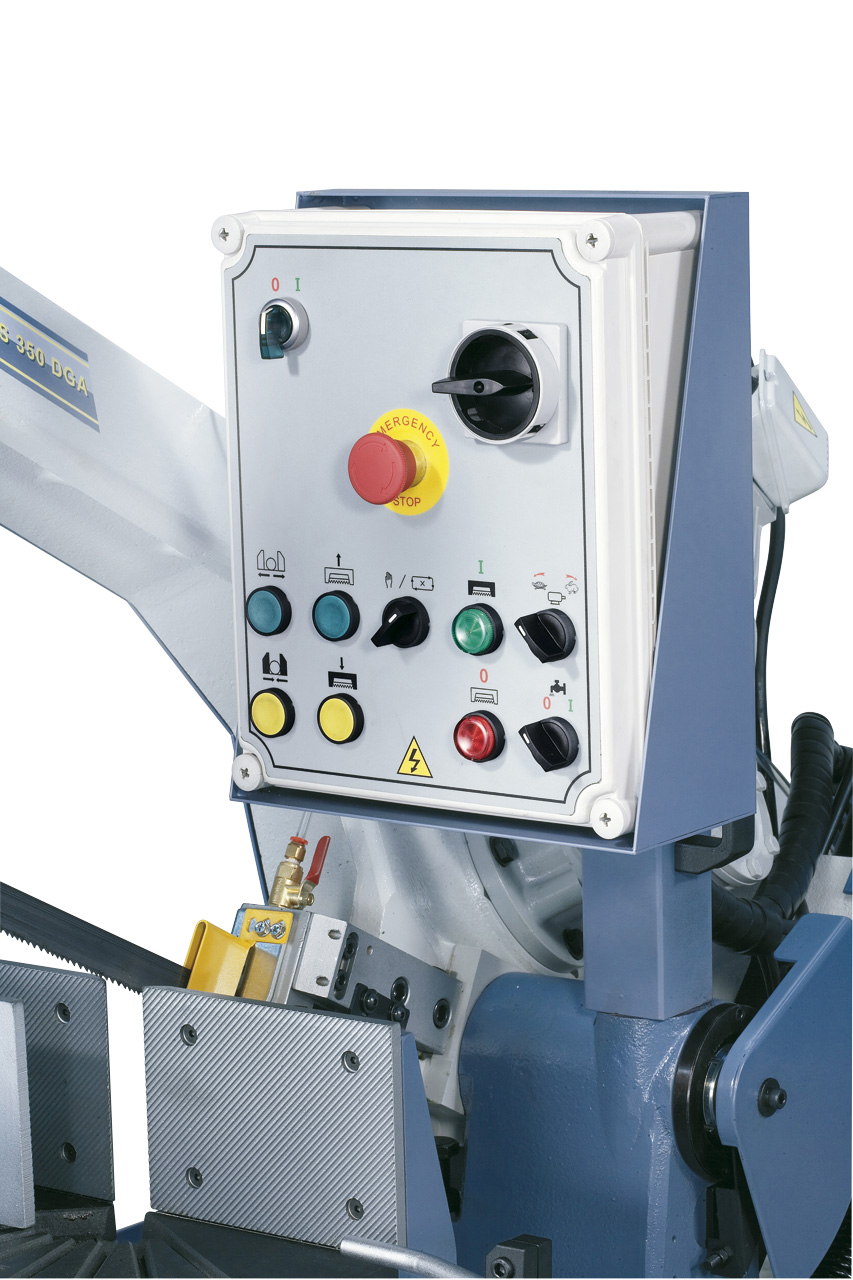

Clear arrangement of the control elements on the tiltable panel.
Clear arrangement of the control elements on the tiltable panel.

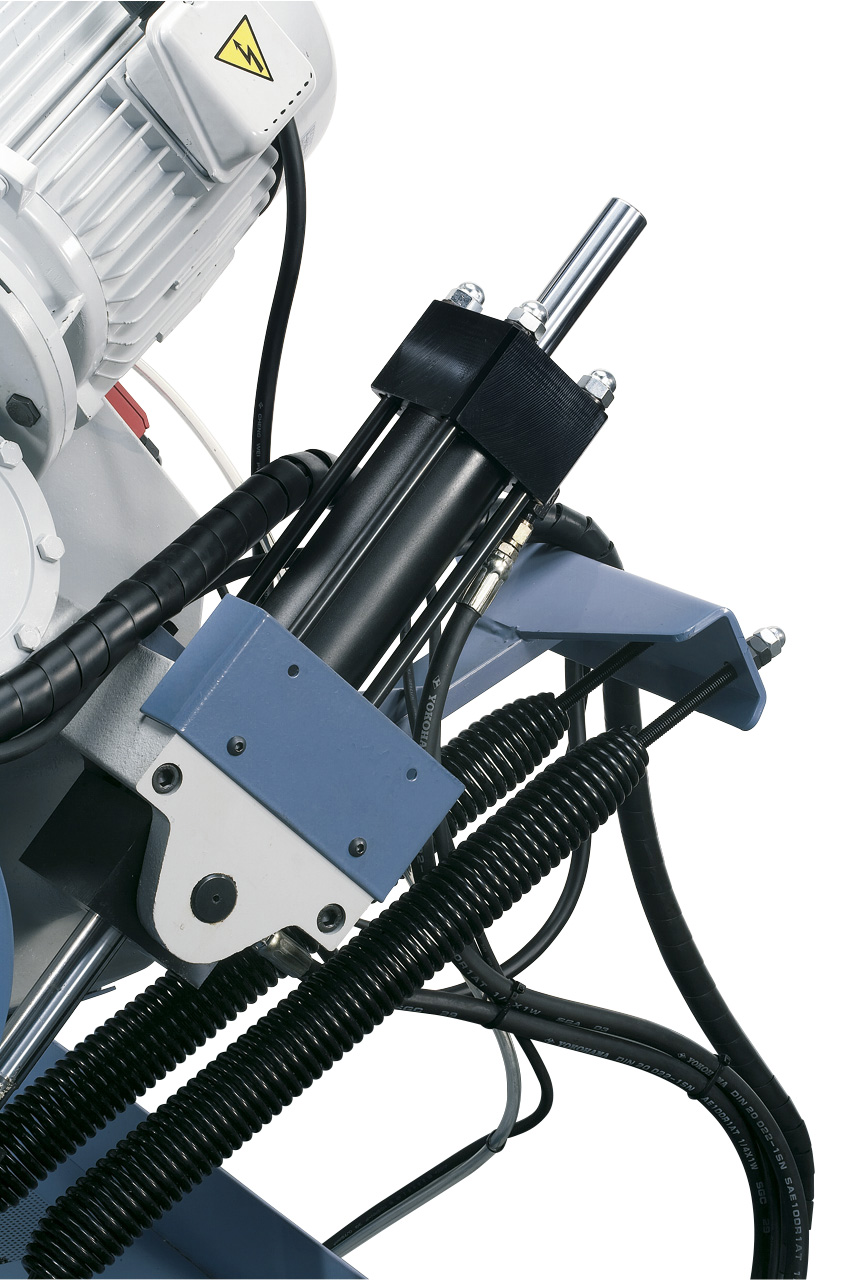

Strong hydraulic cylinder, designed for permanent operation.
Strong hydraulic cylinder, designed for permanent operation.
Quick adjustment of the required opening.
Quick clamping vice can be moved sidewise for double mitre cutting.
Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
The manometer allows precise blade tension.
Convenient support pressure adjustment via regulating valve.
Clear arrangement of the control elements on the tiltable panel.
Strong hydraulic cylinder, designed for permanent operation.

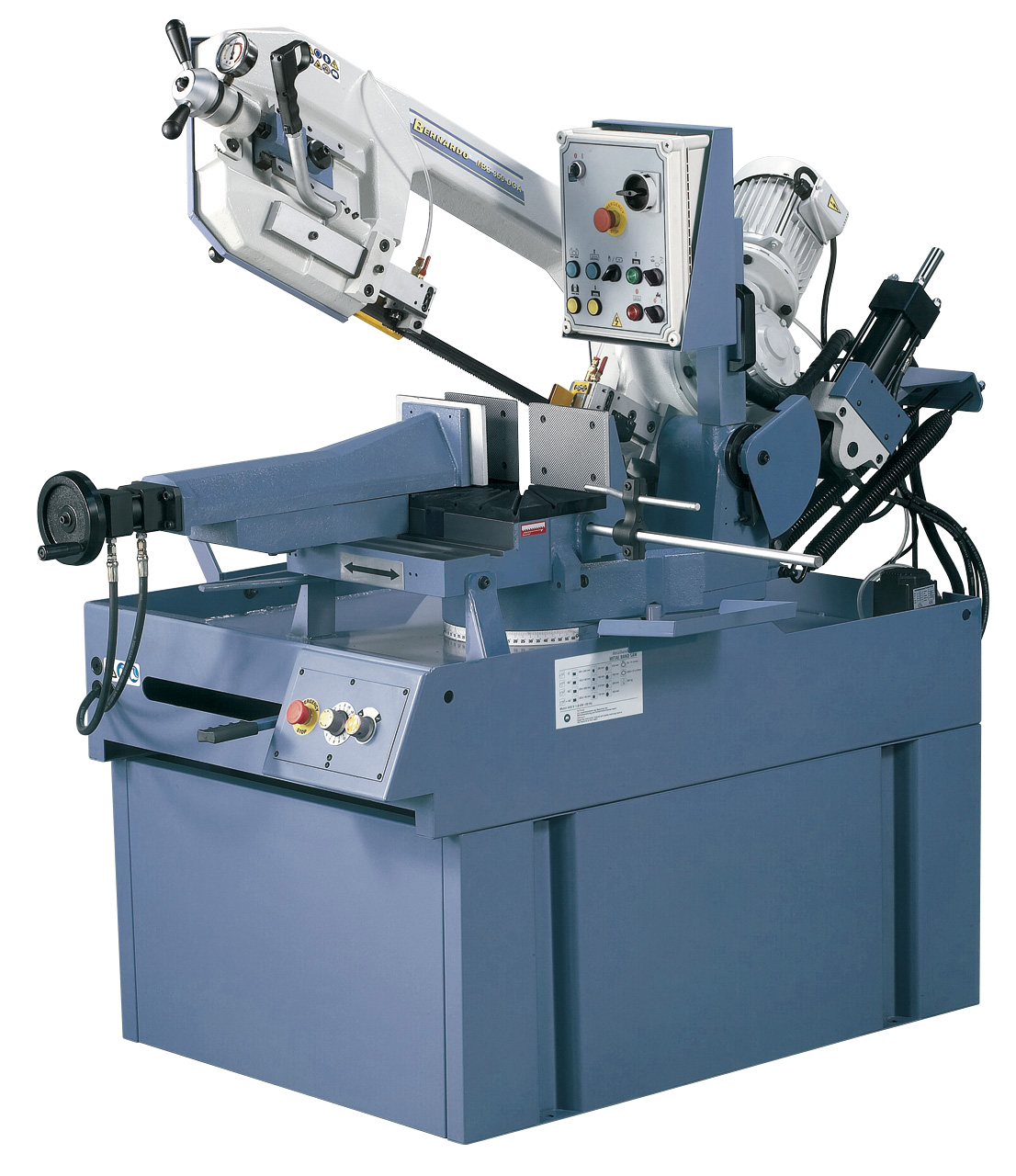

Semi-automatic double mitre bandsaw MBS 350 DGA / 400 V

Art.Nr.: 04-1701
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 350 DGA double mitre bandsaw features a solid construction allowing precise cutting of hollow profiles, full rivet material, stainless steel etc. The semi-automatic function increases the productivity, making this model ideal for locksmith shops, engine construction, tool shops etc.

€9,204.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • The semi-automatic function greatly increases productivity
  • Optional manual or semi-automatic operation
  • 2 speed settings (36 / 72 m/min)
  • Relocatable vice, manual or hydraulic clamping
  • Saw frame tilts (-45° up to +60°), angle can be read on scale
  • Professional band saw with unbeatable price-to-performance ratio
  • Smooth and vibration-free run guarantees high cutting accuracy
  • Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
  • Adjustable hydraulic cylinder for support pressure regulation of the saw frame



Semi-automatic operating mode:

  • Hydraulic clamping of the vice
  • Hydraulic lowering of the saw frame
  • Lifting of the saw frame

Product Specifications

Cutting capacity round / square 90°

270 mm / 260 x 260 mm

Cutting capacity flat 90°

350 x 240 mm

Cutting capacity round / square 45° R

230 mm / 210 x 210 mm

Cutting capacity flat 45° R

230 x 150 mm

Cutting capacity round / square 45° L

200 mm / 170 x 170 mm

Cutting capacity flat 45° L

200 x 140 mm

Cutting capacity round / square 60° R

140 mm / 140 x 140 mm

Working height

950 mm

Bandsaw blade dimensions

2925 x 27 x 0,9 mm

Cutting speeds

36 / 72 m/min

Coolant pump

100 W

Motor power output S1 100%

1,9 kW

Motor power input S6 40%

2,8 kW

Voltage

400 V

Machine dimensions (L x D x H)

2010 x 1230 x 1820 mm

Weight approx.

600 kg

Delivery Contents

  • Bandsaw blade
  • Material fence
  • Stand
  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Hydraulic quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down
