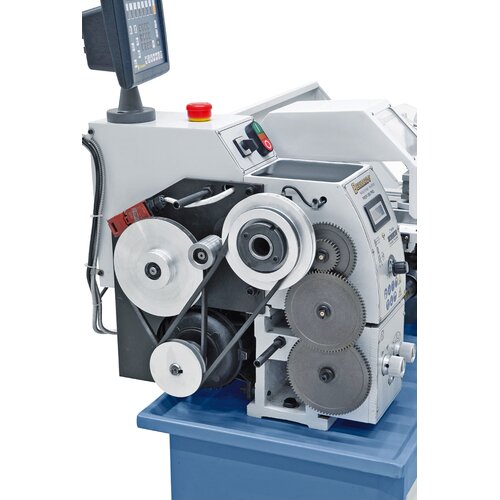

V-belts for easy change of the speed step

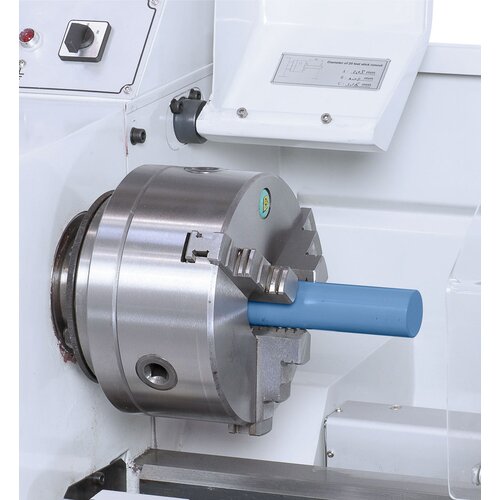

3-jaw steel chuck with hard inside and hard outside solid jaws as standard equipment.

The machine can be equipped with a quick change tool post holder to raise efficiency

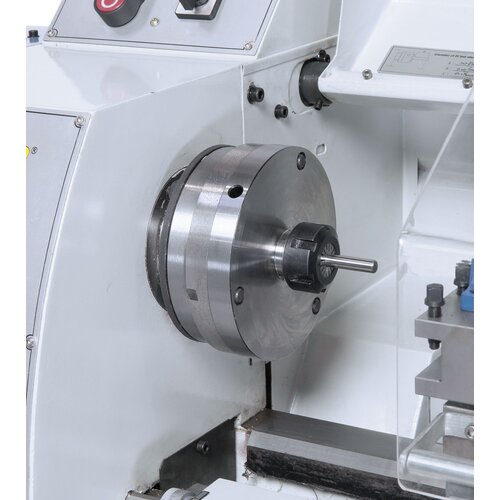

The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.

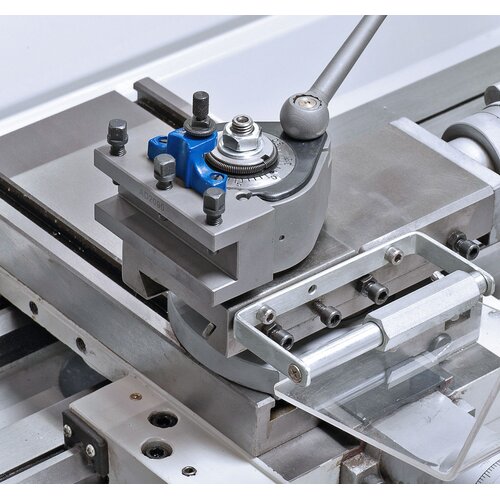

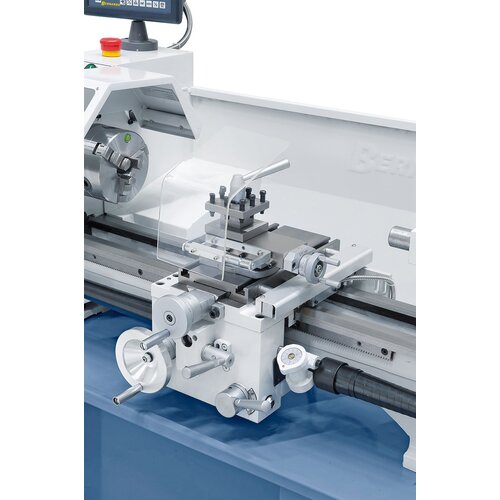

Smoothly-running apron with top support and 4-way tool post holder, handwheels with adjustable metric scale

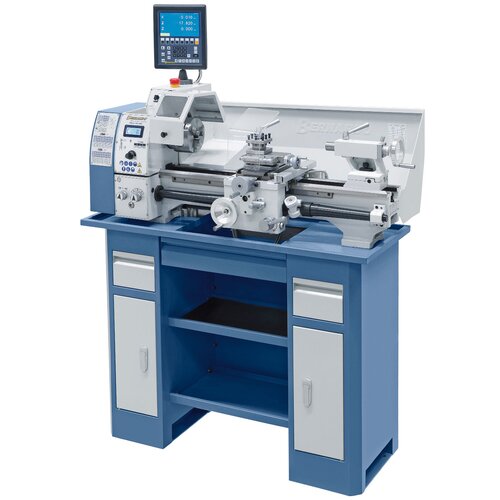

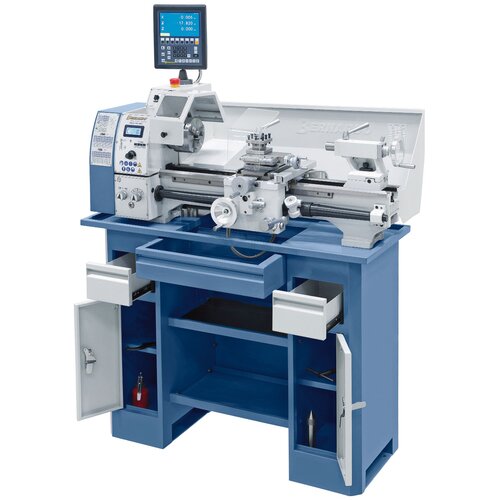

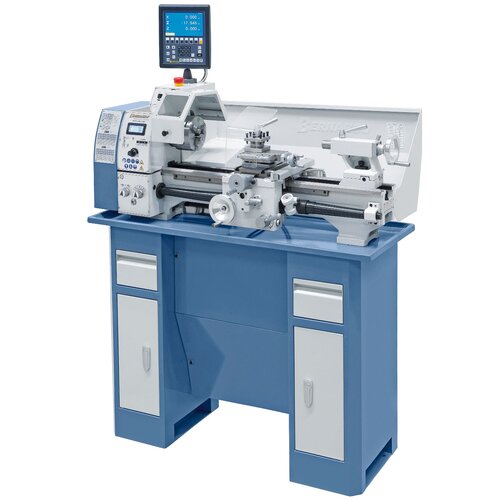

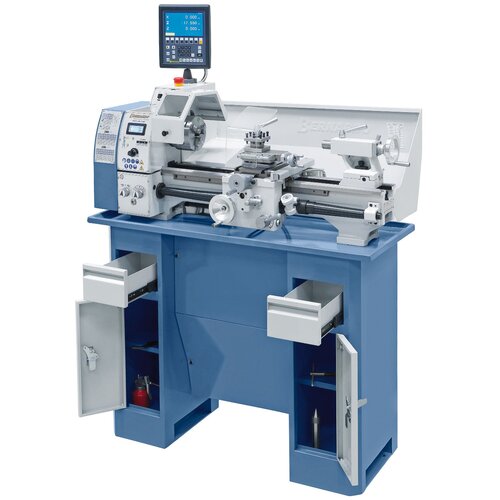

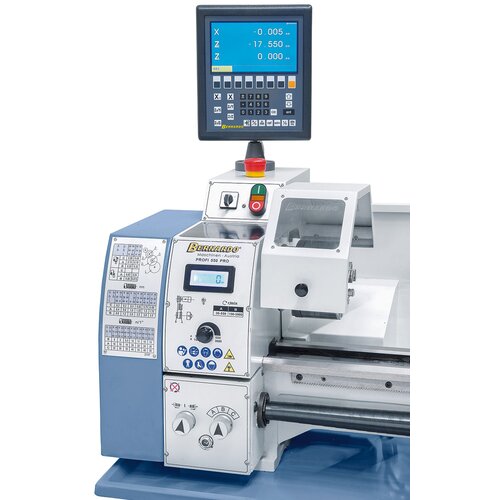

Precision lathe Profi 550 PRO / 400 V incl. 2-axis-digital readout ES-12 V

Art.Nr.: 03-1177

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Profi 550 PRO turning lathe feature a high speed range up to 3000 rpm as well as a large range of standard accessories (for instance DC-motor with frequency inverter, main spindle bearing in P5-quality, etc.) making this model ideal for users with high expectations.

€3,588.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Precision 3-jaw steel chuck for speed up to 3000 rpm comes standard
Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
Main spindle bearing with adjustable taper roller bearing in P5-quality
Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
Optionally available milling attachment increases range of applications
High concentricity of the hardened spindle nose ≤ 0,015 mm
Solid machine bed with inductive hardened and polished guideways
Top support can be adjusted in x-axis
Stepless speed adjustment as part of standard accessories, set speed can be read on digital display

Product Specifications

Distance between centers	550 mm
Center height	125 mm
Swing over bed	250 mm
Bed width	135 mm
Spindle bore	26 mm
Taper at spindle bore	MT 4
Speed range, stepless	30 - 450 / 150 - 3000 rpm
Longitudinal feed	(6) 0,06 - 0,32 mm/rev.
Cross feed	(4) 0,03 - 0,075 mm/rev.
Metric thread	(18) 0,2 - 3,5 mm
Inch thread	(21) 8 - 56 threads/1"
Travel of tailstock sleeve	70 mm
Taper of tailstock sleeve	MT 2
Motor power output S₁ 100%	1,5 kW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Machine dimension (W x D x H)*	1210 x 610 x 450 mm
Weight approx.	137 kg

* without stand

Delivery Contents

3-jaw steel chuck PO3-125 mm
Flange 125 mm
Dead centers
Change gears
4-way tool post holder
Cross slide with top support
Frequency inverter
Digital speed indication
Thread dial
Chuck guard
Splash guard
Leadscrew cover
