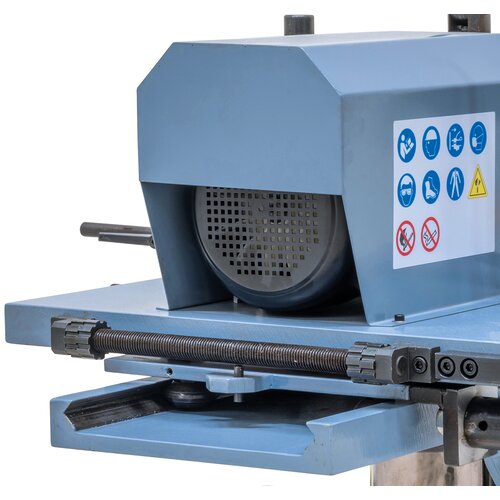

Precise roller guiding allows accurate movement of drill unit.
Precise roller guiding allows accurate movement of drill unit.

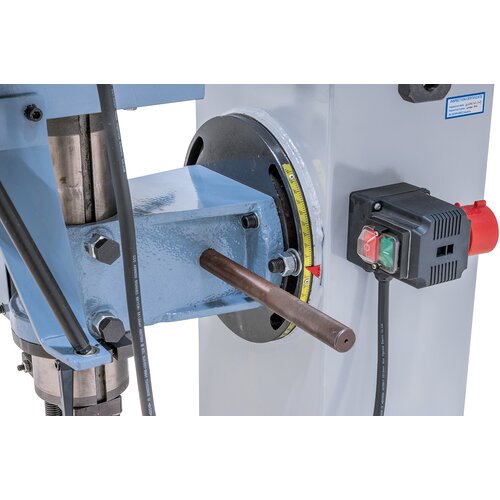

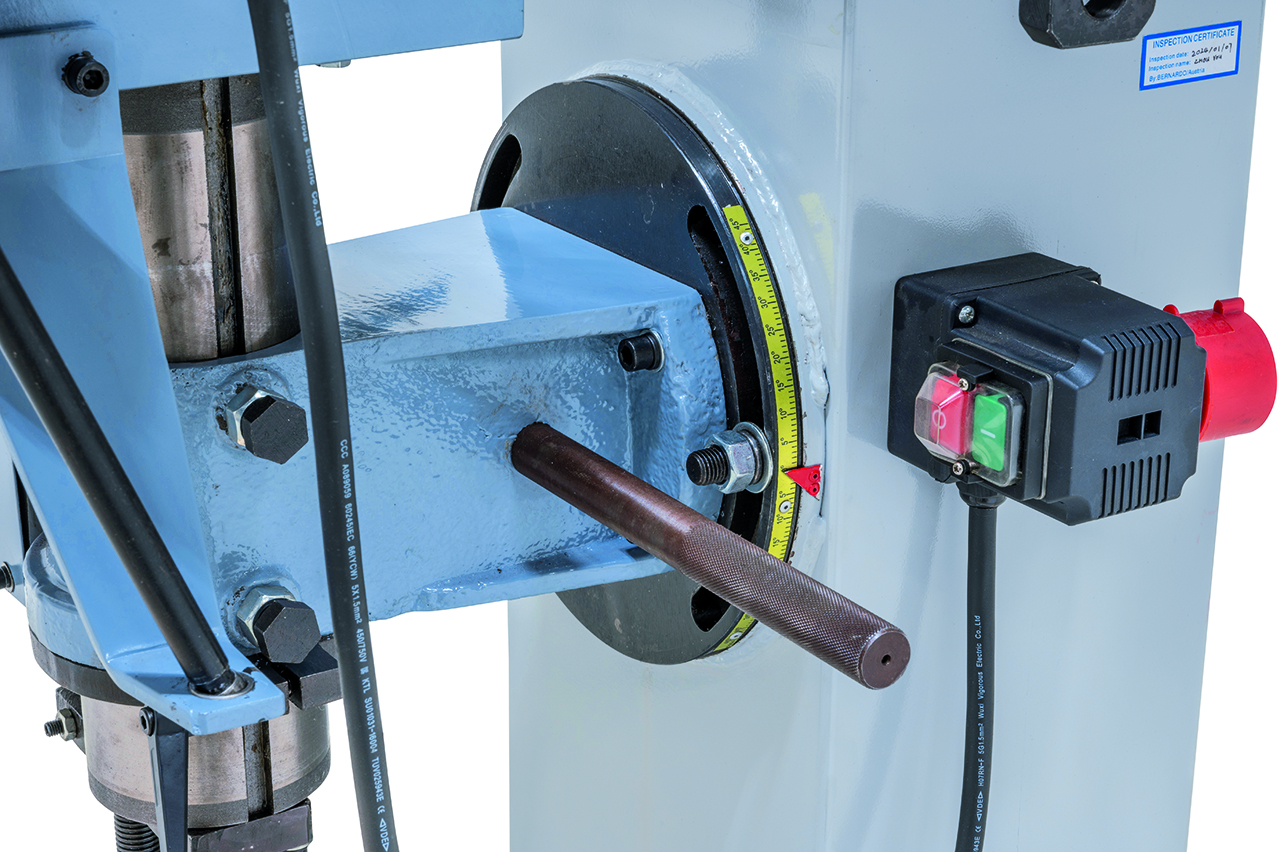

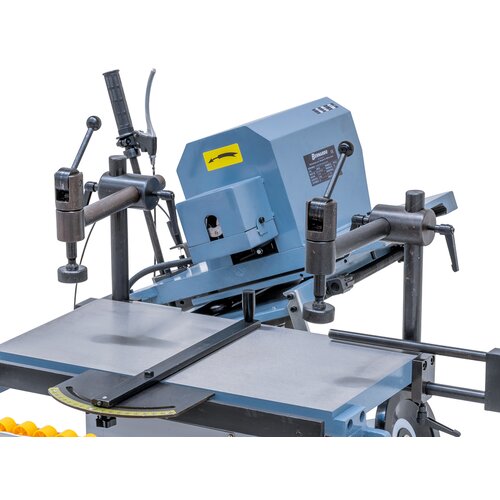

Drilling unit that can be swiveled on both sides (-45° to +45°)
Drilling unit that can be swiveled on both sides (-45° to +45°)

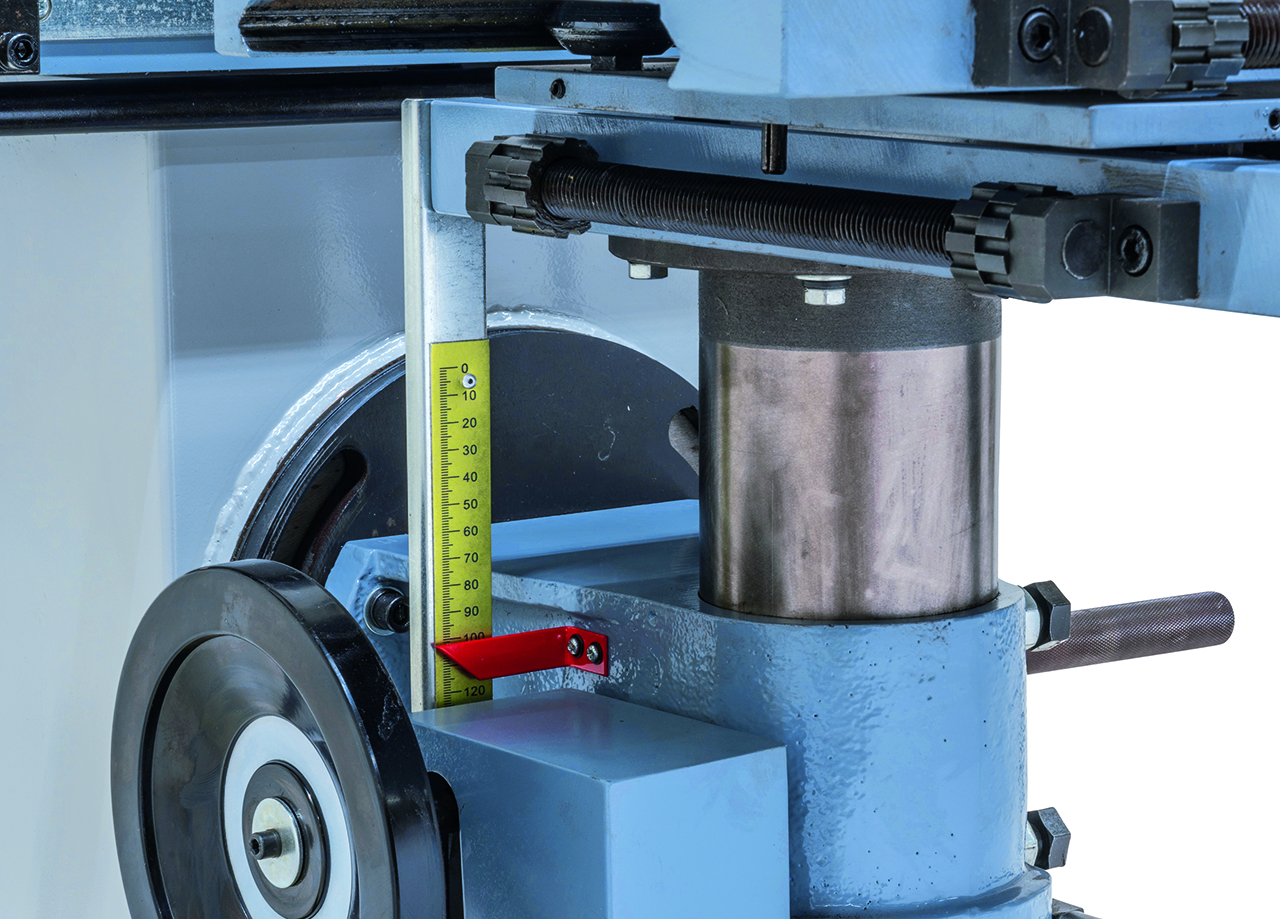

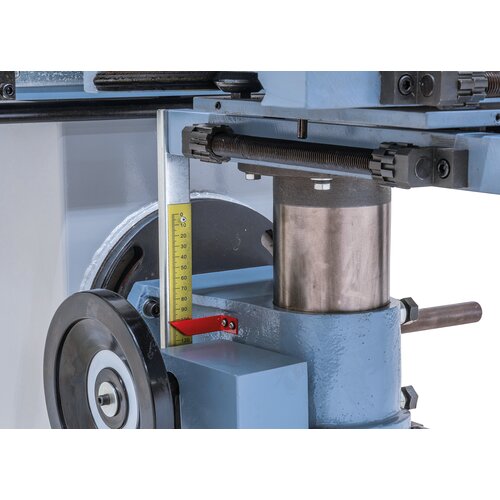

Set height of work table can be read out on scale.
Set height of work table can be read out on scale.

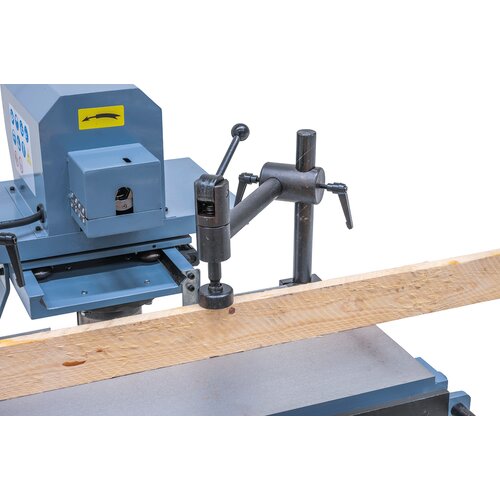

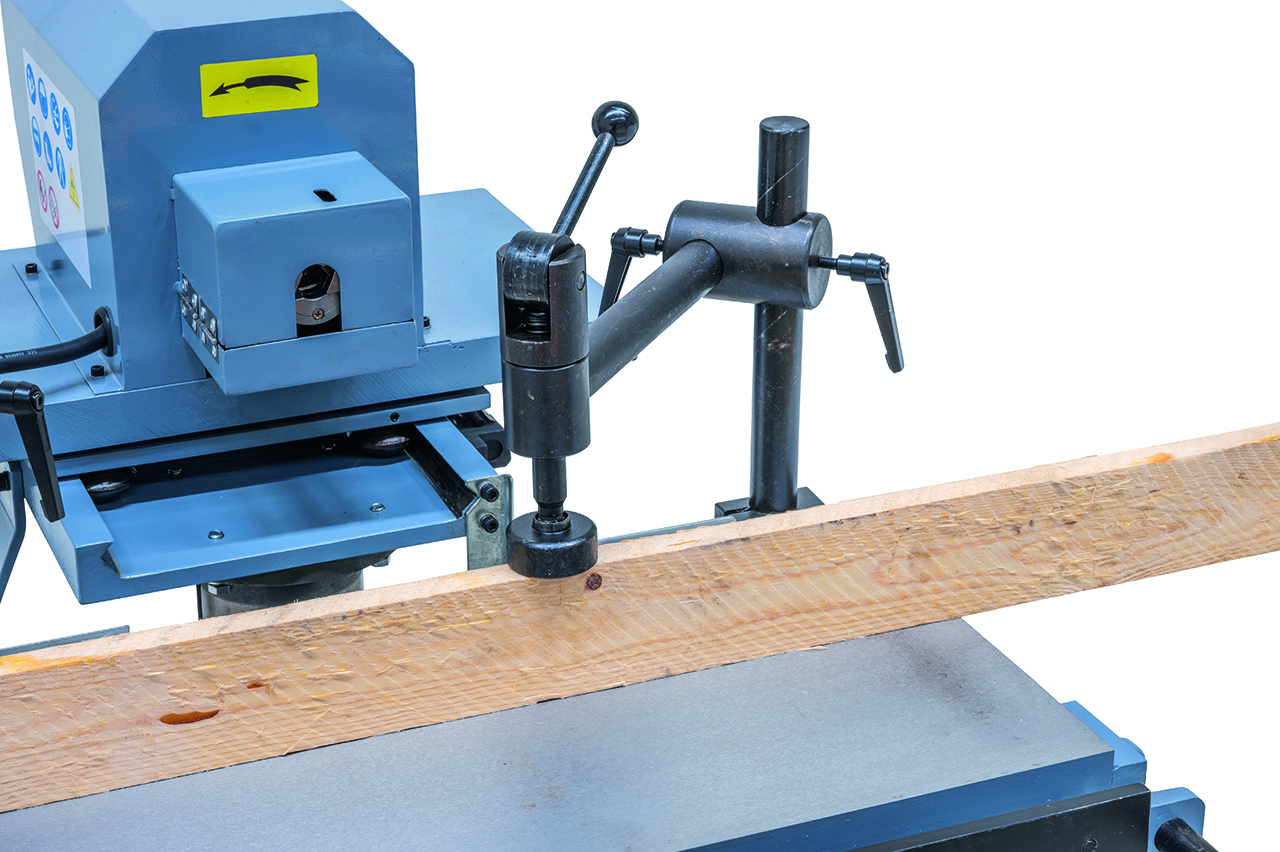

Complete with eccentric holder to allow secure fastening of workpiece.
Complete with eccentric holder to allow secure fastening of workpiece.

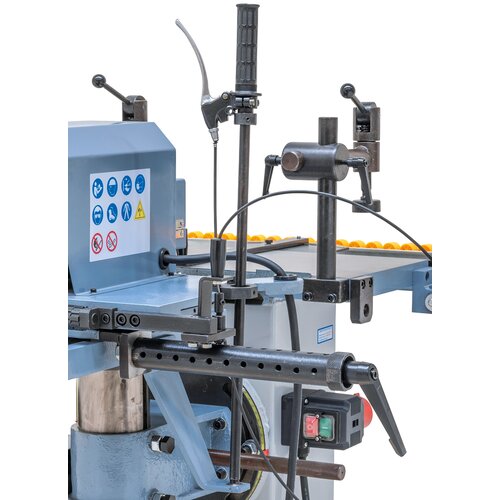

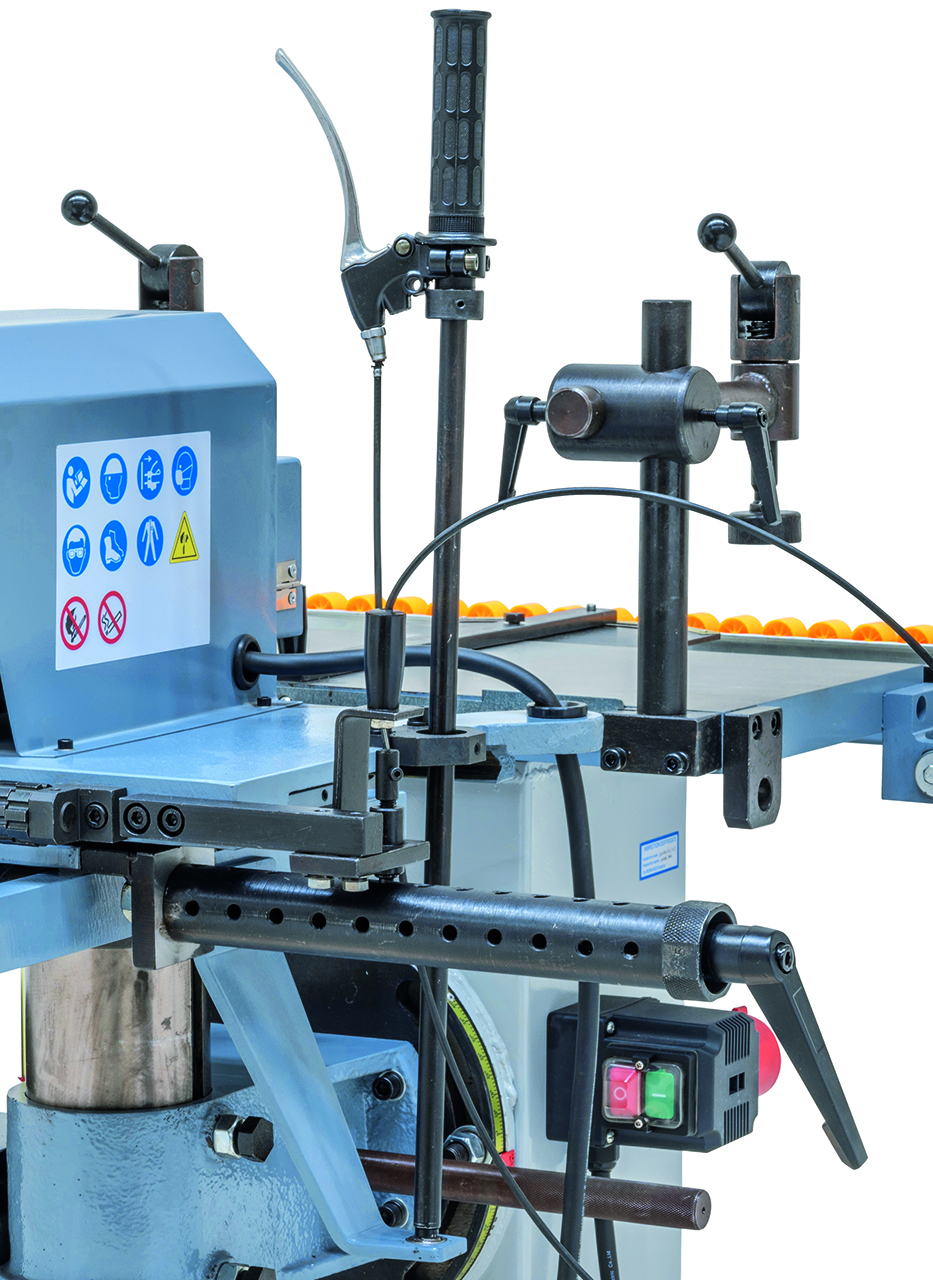

Rotor group with grid spacing 16 / 20 / 22 / 25 mm includes remote lever to set spacing, ideal for multiple hole drilling.
Rotor group with grid spacing 16 / 20 / 22 / 25 mm includes remote lever to set spacing, ideal for multiple hole drilling.

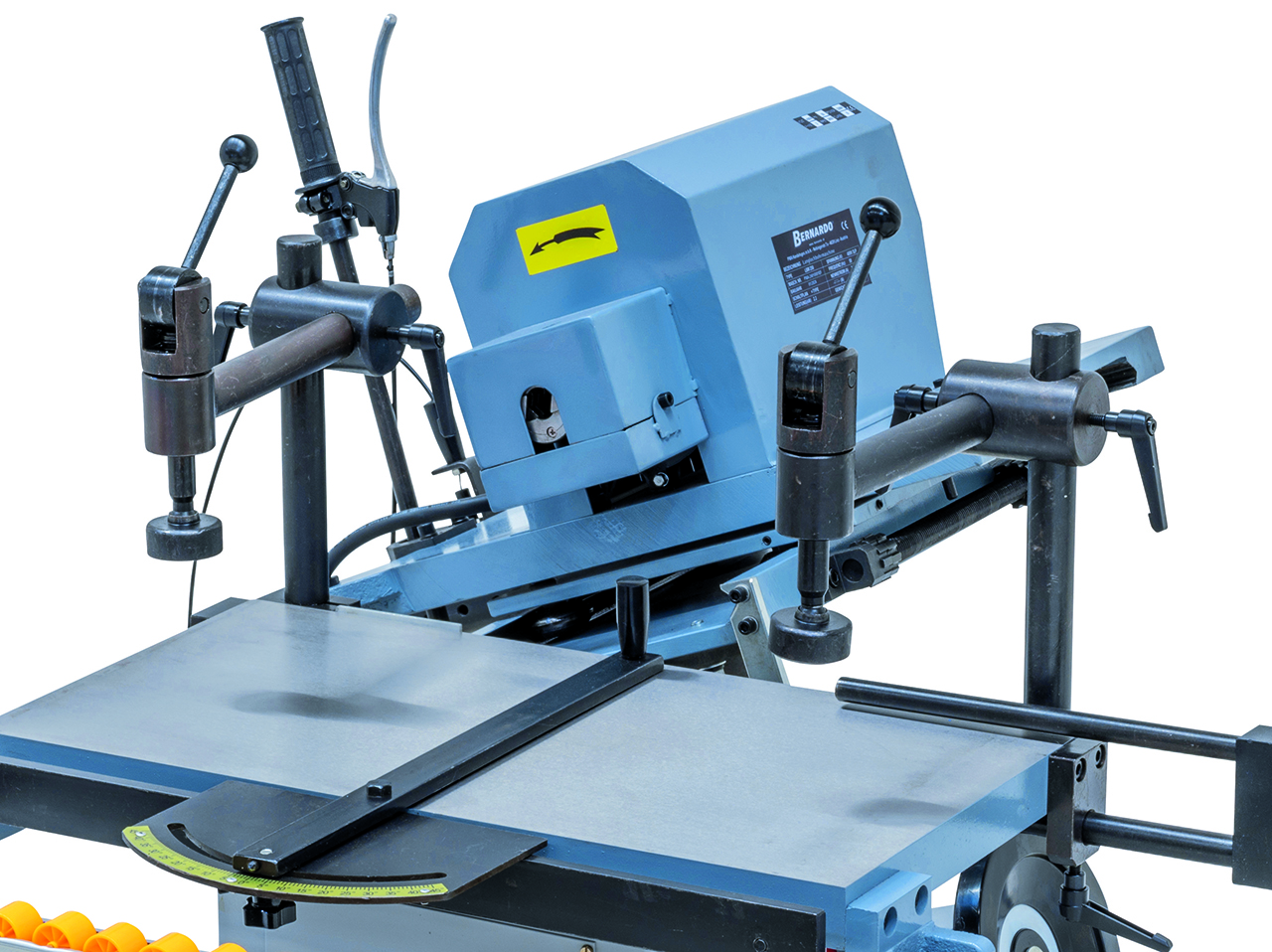

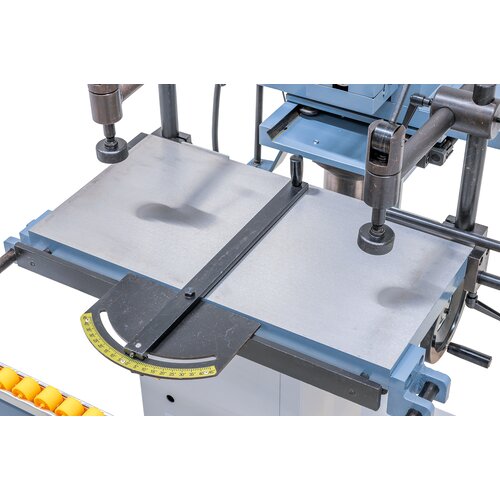

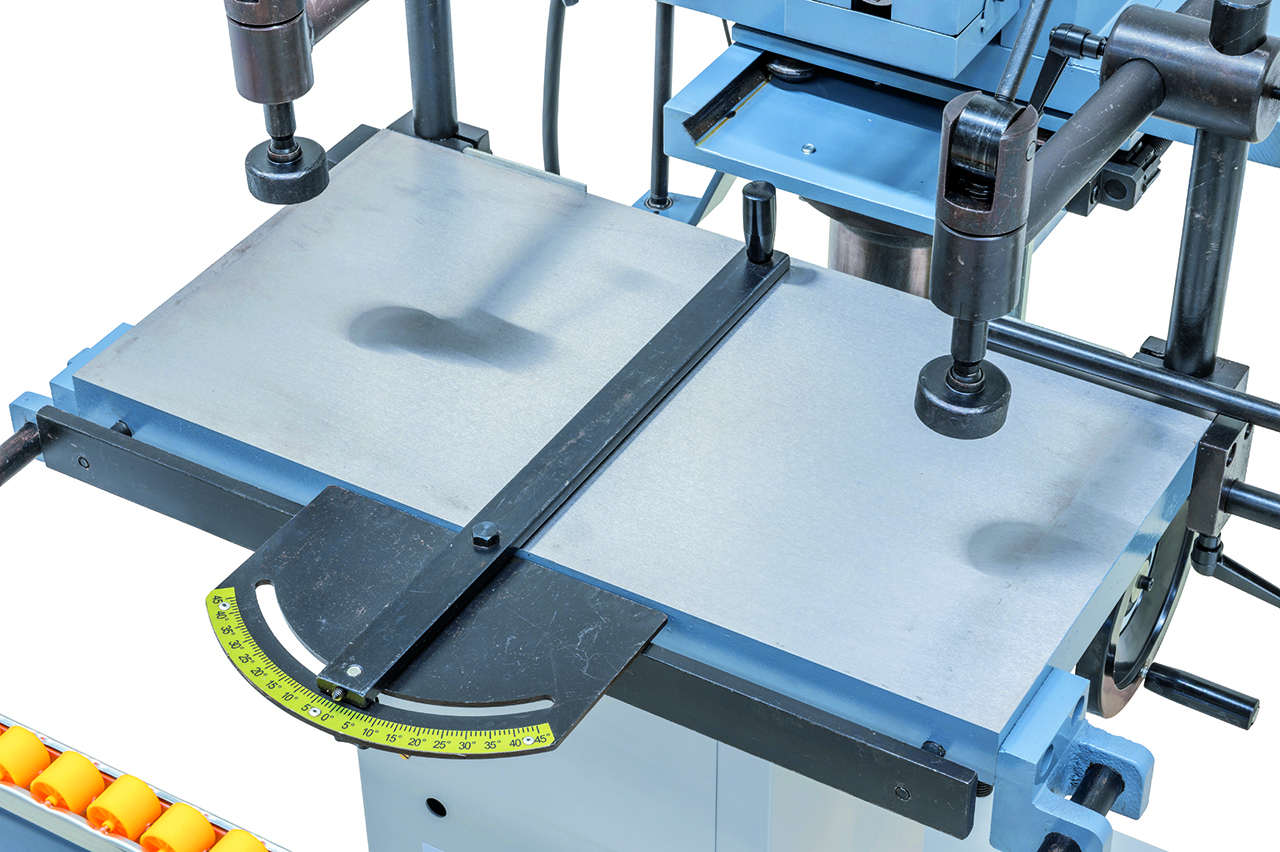

For angular drilling this machine comes with a mitre fence which tilts to both sides (-45° to +45).
For angular drilling this machine comes with a mitre fence which tilts to both sides (-45° to +45).

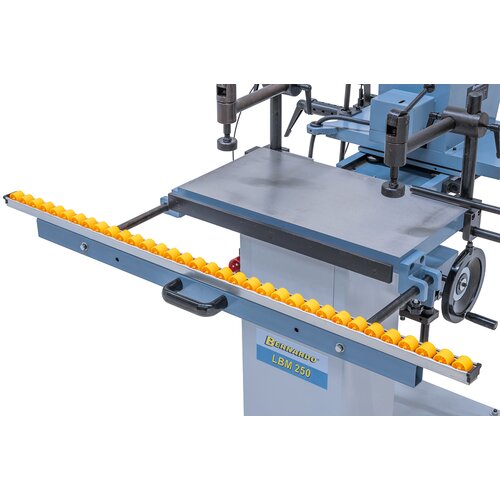

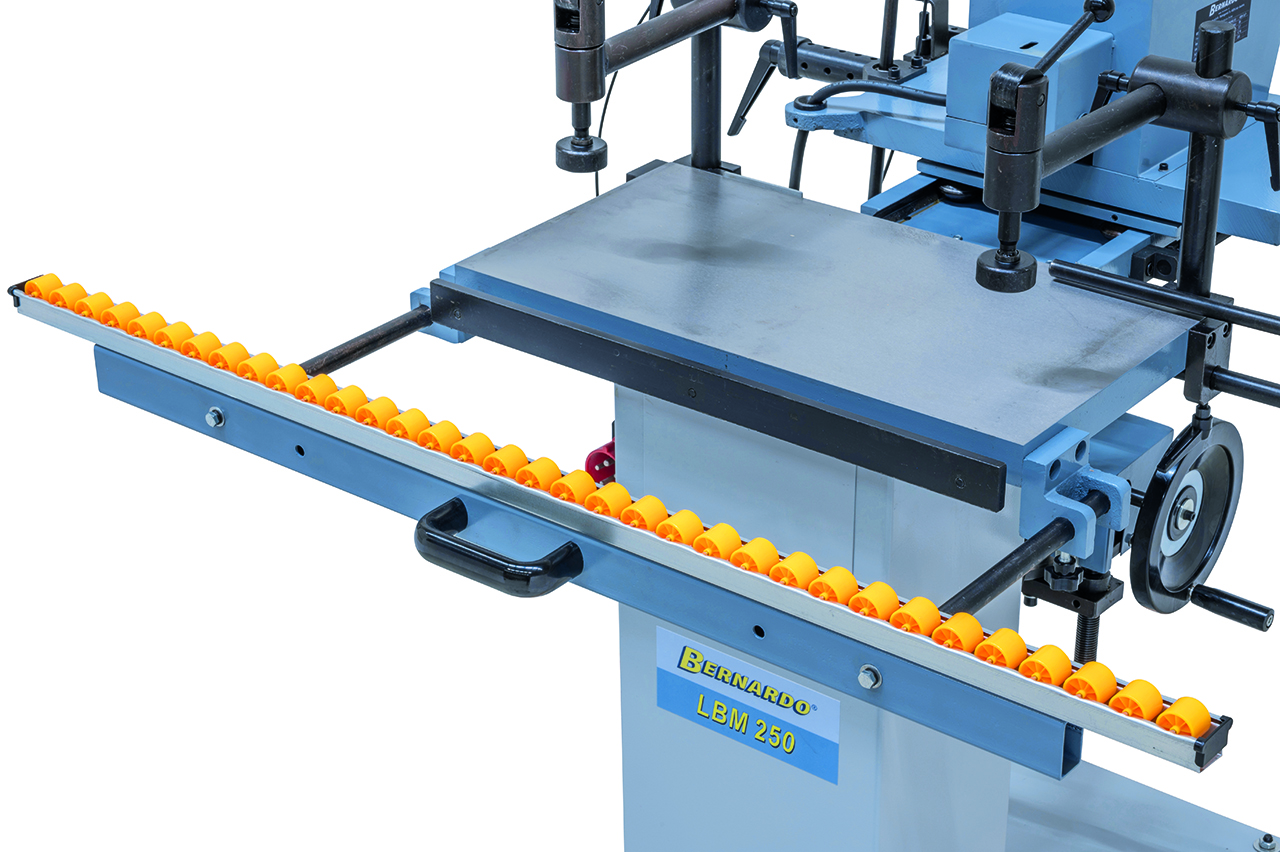

The standard extractable table extensions facilitate the processing of large workpieces.
The standard extractable table extensions facilitate the processing of large workpieces.
Precise roller guiding allows accurate movement of drill unit.
Drilling unit that can be swiveled on both sides (-45° to +45°)
Set height of work table can be read out on scale.
Complete with eccentric holder to allow secure fastening of workpiece.
Rotor group with grid spacing 16 / 20 / 22 / 25 mm includes remote lever to set spacing, ideal for multiple hole drilling.
For angular drilling this machine comes with a mitre fence which tilts to both sides (-45° to +45).
The standard extractable table extensions facilitate the processing of large workpieces.

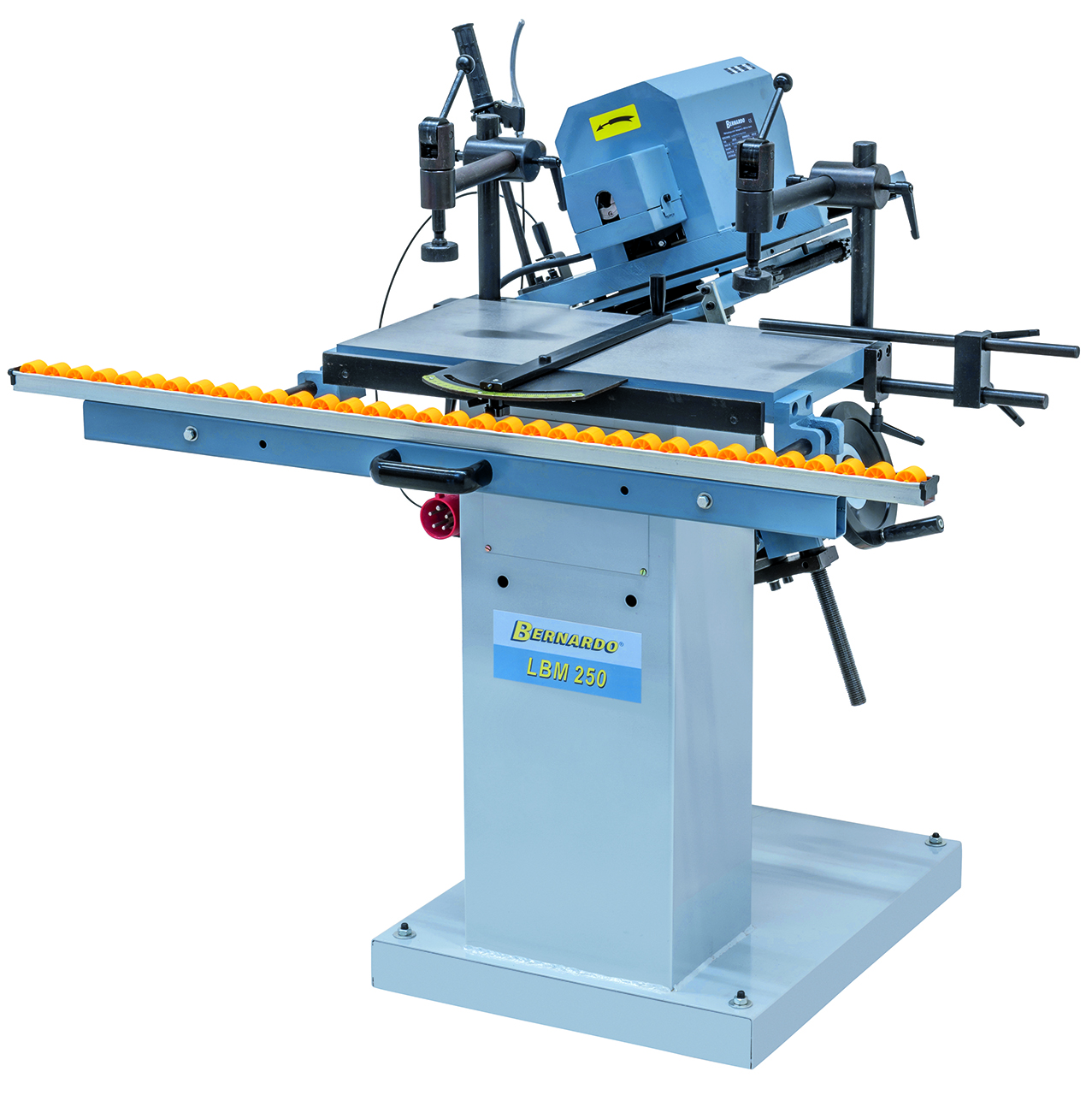

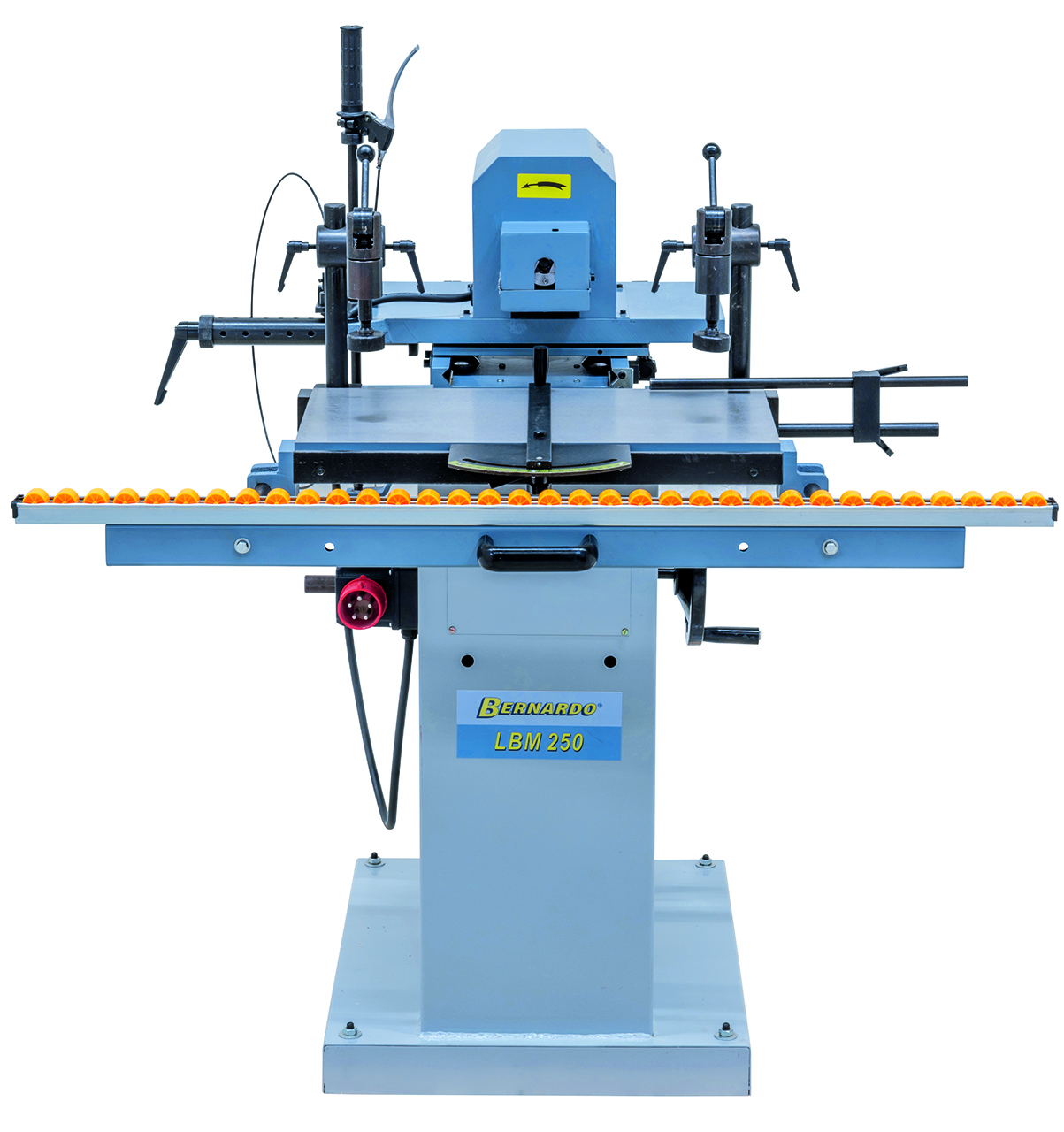

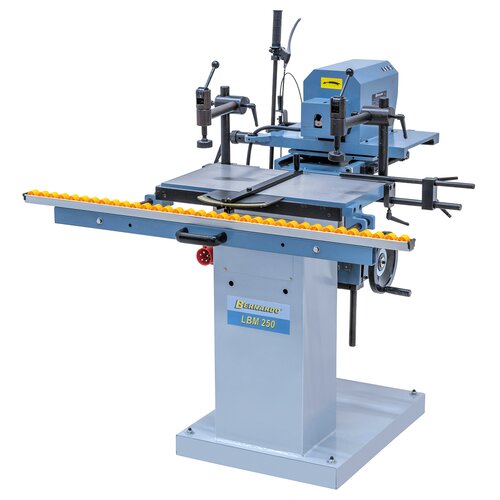

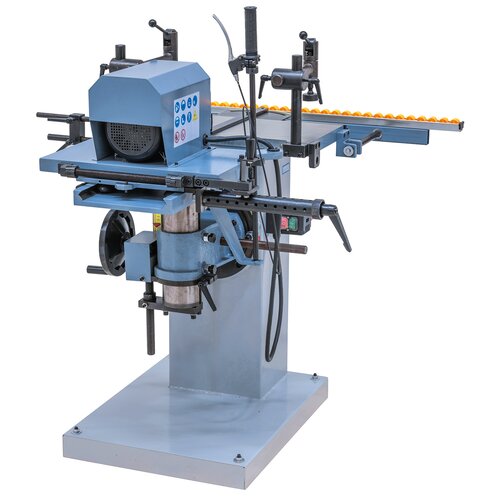

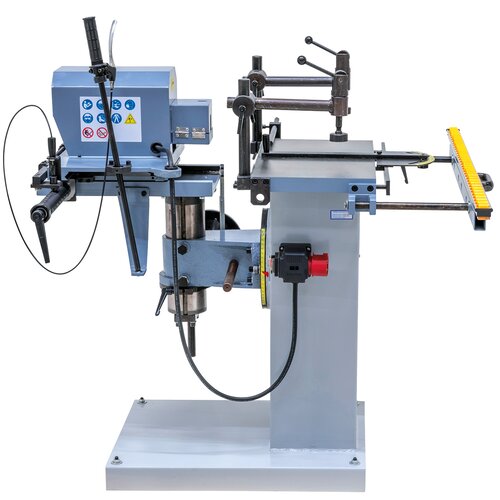

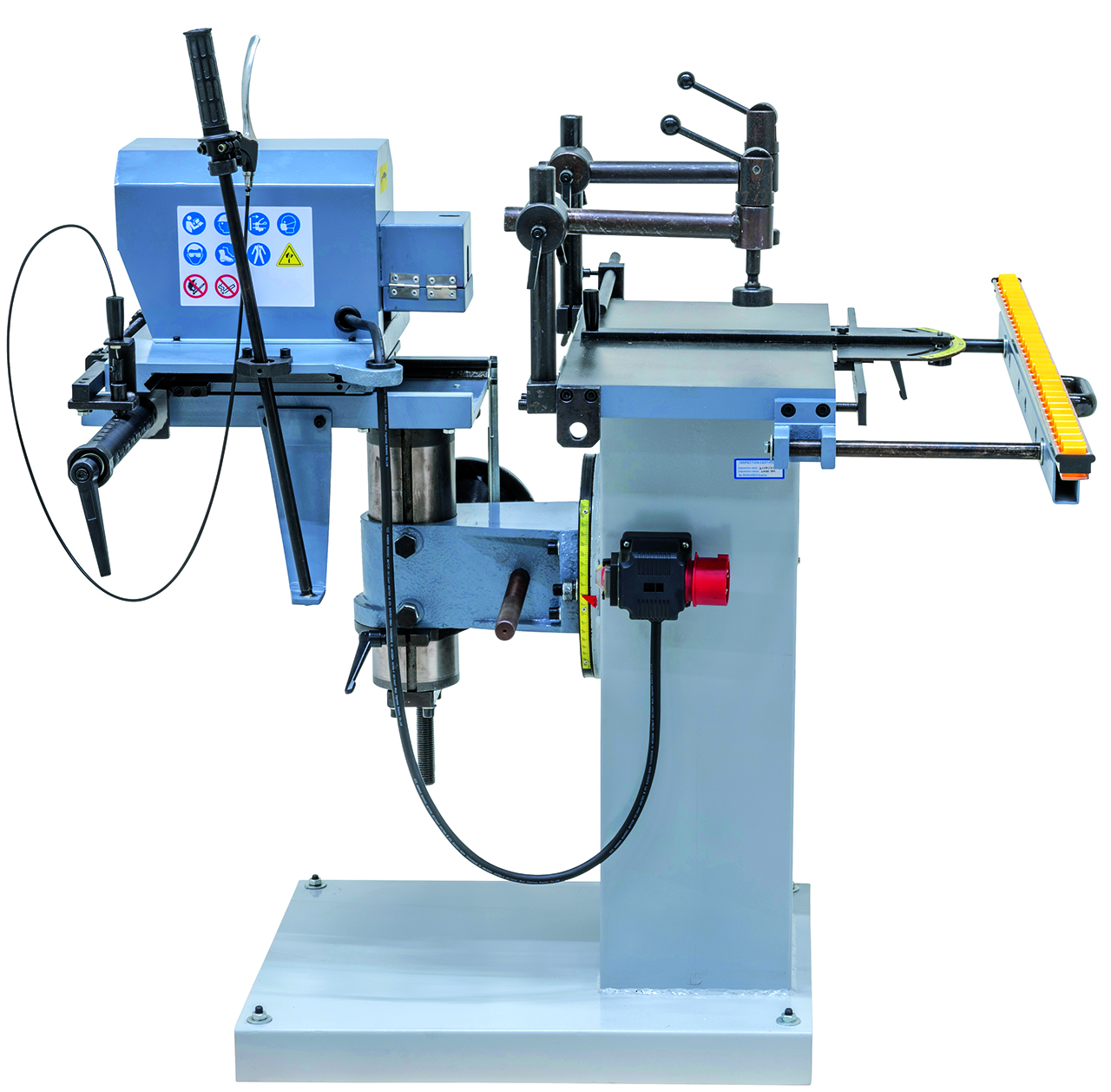

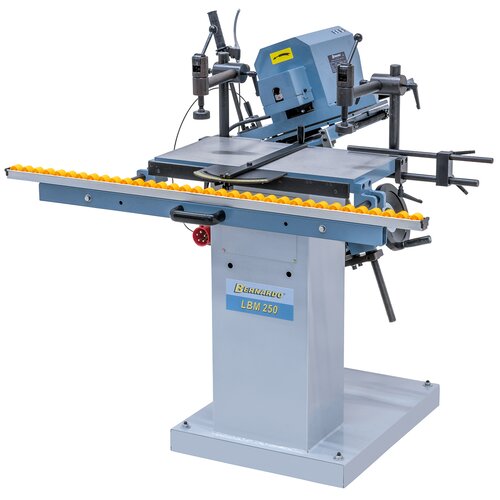

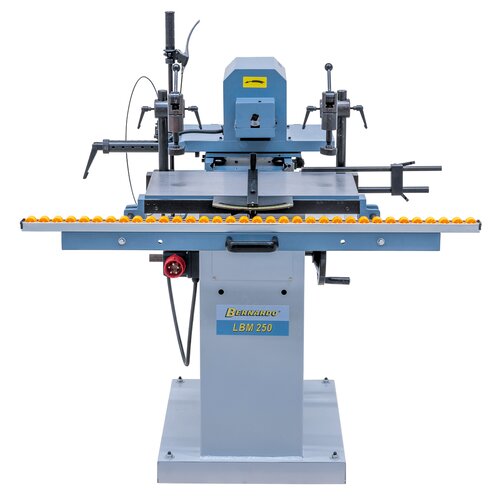

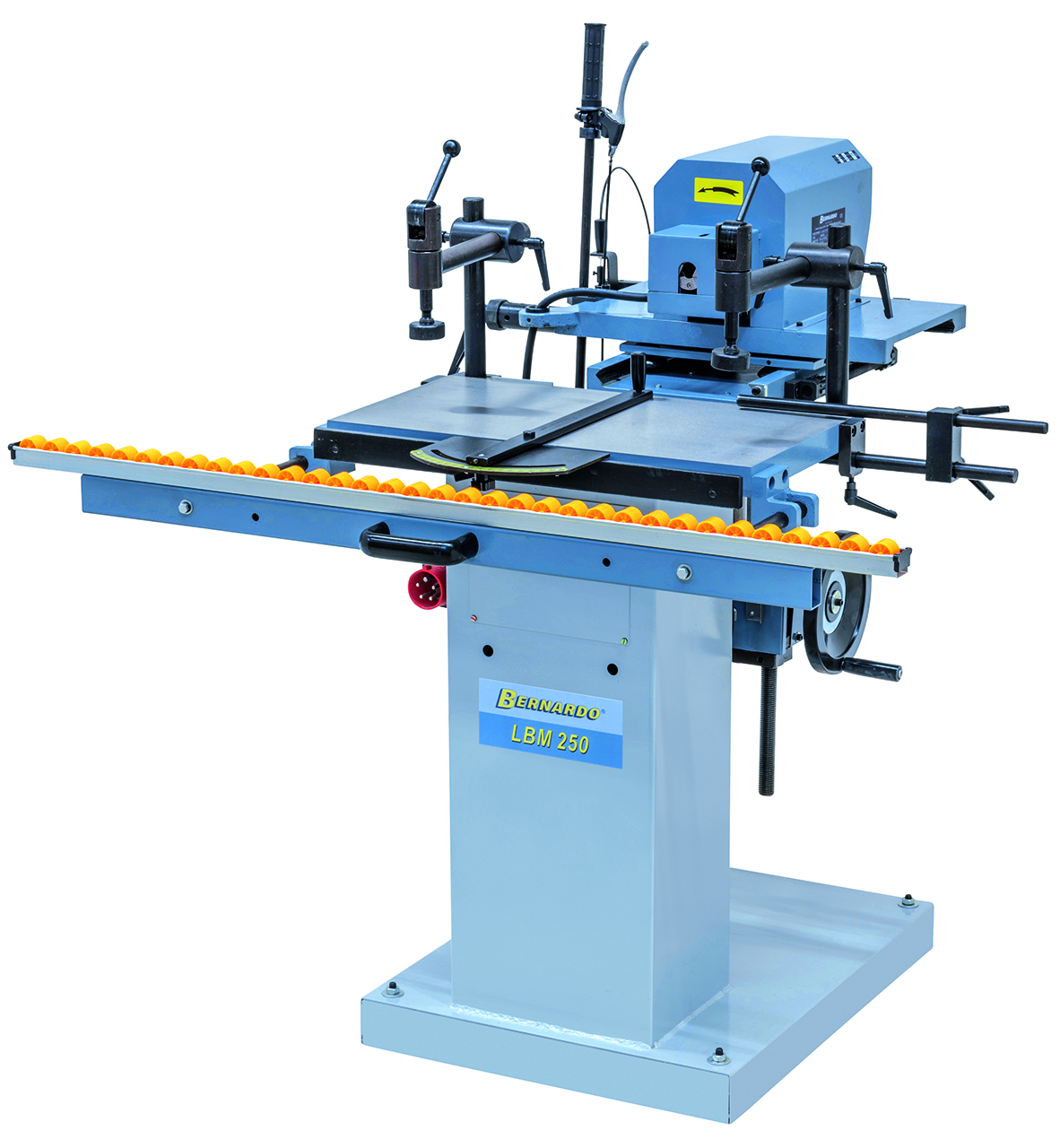

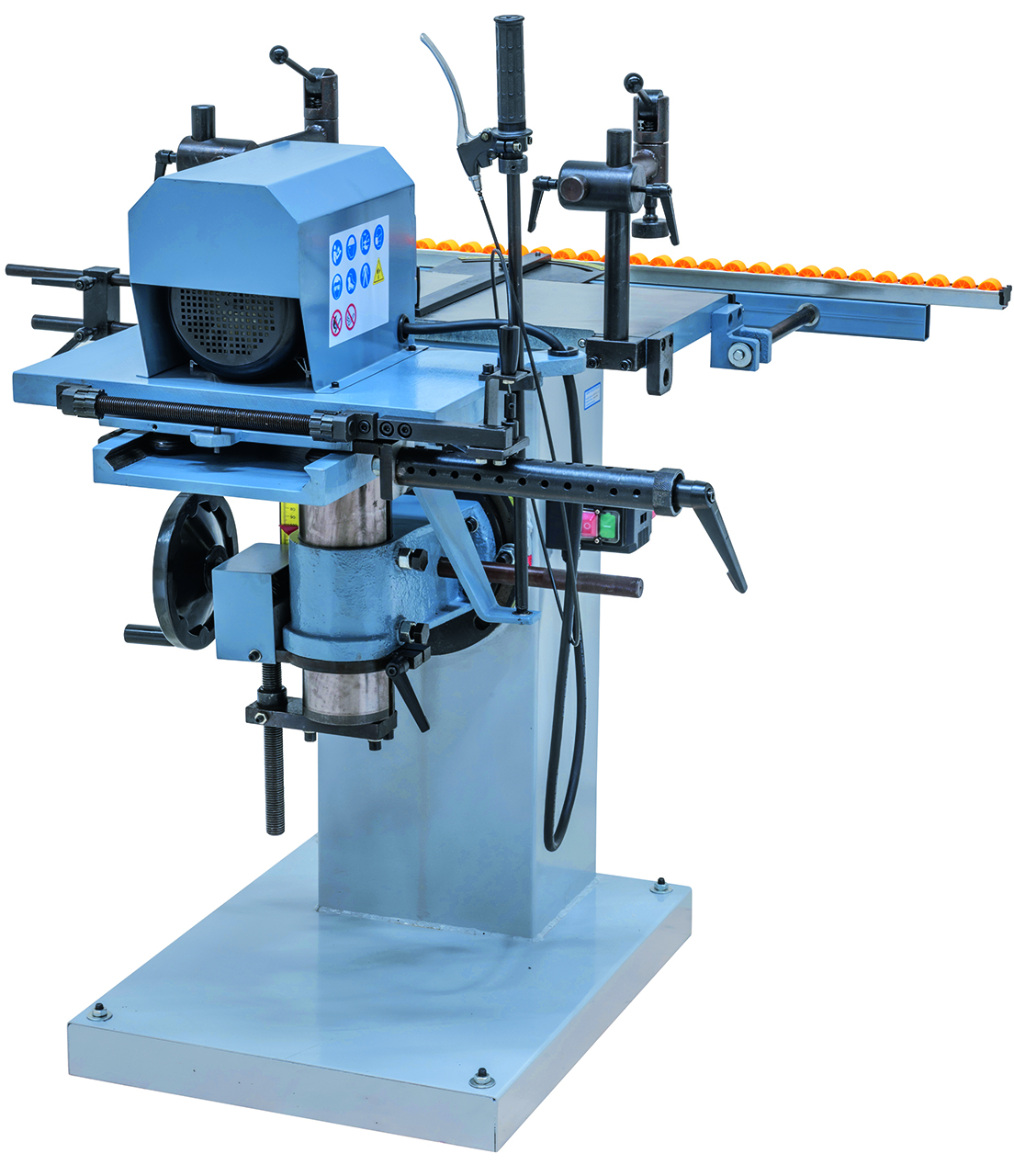

Mortising machine LBM 250 / 400 V

Art. No.: 10-10010
Wishlist Comparison List

The LBM 250 mortising machine offers optimal value for money. The torsion-resistant construction with its fixed and ground cast iron table ensures precise work results. The drilling unit, which can be swiveled to both sides, and the extractable table extension complete the standard version.

€2,340.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Westcott drill chuck 0 – 20 mm with protective cover comes standard
  • Equipped with 2 pcs. eccentric holder and mitre fence
  • Handwheel allows for convenient height adjustment of drill unit
  • Rotor group with grid spacing 16 / 22 / 25 / 32 mm comes standard, ideal for multiple hole  drilling
  • Drilling unit can be swivelled on both sides (45°), ideal for slotting work
  • One hand lever allows for easy adjustment of cross support
  • Powerful motor ensures optimal performance
  • Serially with extractable table extension

Product Specifications

Table size

600 x 320 mm

Table height

870 mm

Max. drill depth

155 mm

Drill width

245 mm

Height adjustment

150 mm

Speed

2800 rpm

Westcott drill chuck

0 - 20 mm

Motor power output S1 100%

2,2 kW (3,0 HP)

Motor power input S6 40%

3,0 kW (4,0 HP)

Voltage

400 V

Machine dimension (W x D x H)

1250 x 1280 x 1270 mm

Weight approx.

205 kg

Delivery Contents

  • 4-size rotor group with grid spacing 16 / 22 / 25 / 32 mm
  • Westcott drill chuck 0 - 20 mm
  • 2 pcs. eccentric holder
  • Mitre fence with guide
  • Machine base

Suitable accessories

Mortising bit set 6 pcs. clockwise (6/8/10/12/14/16 mm), 13 mm shaft
Mortising bit set 6 pcs. clockwise (6/8/10/12/14/16 mm), 13 mm shaft
Art. No. : 16-2002

€54.00

incl. 20% VAT

Deliverable Soon
Deliverable by Jan 18, 2026
