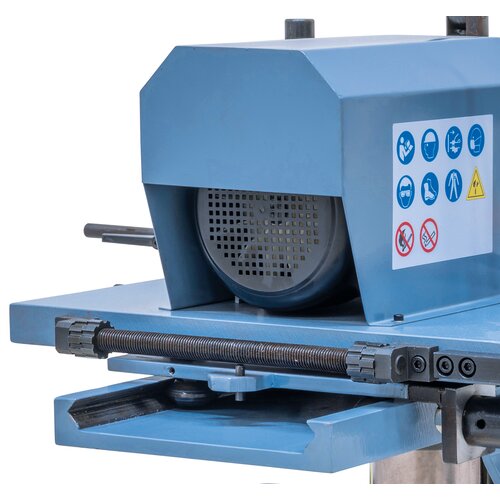

Precise roller guiding allows accurate movement of drill unit.

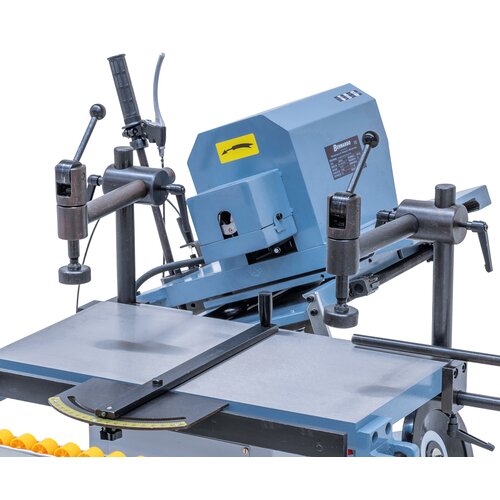

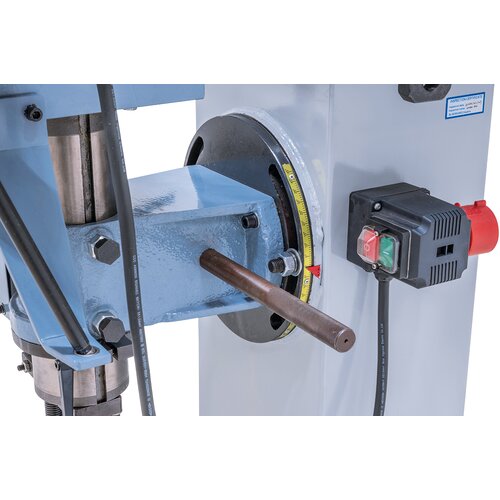

Drilling unit that can be swiveled on both sides (-45° to +45°)

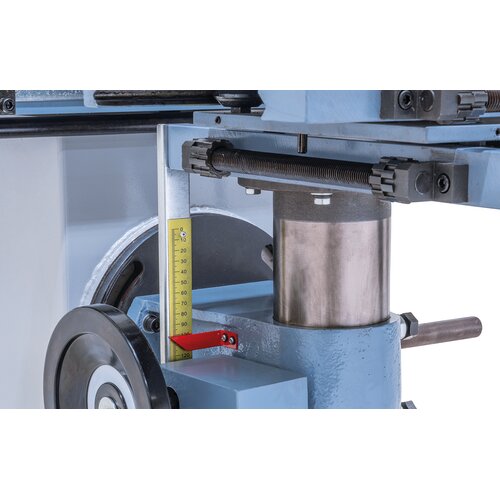

Set height of work table can be read out on scale.

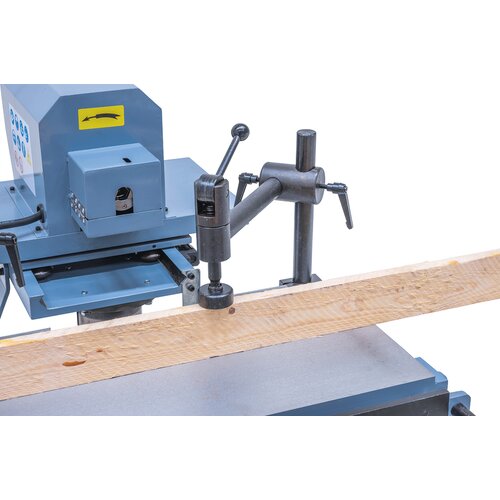

Complete with eccentric holder to allow secure fastening of workpiece.

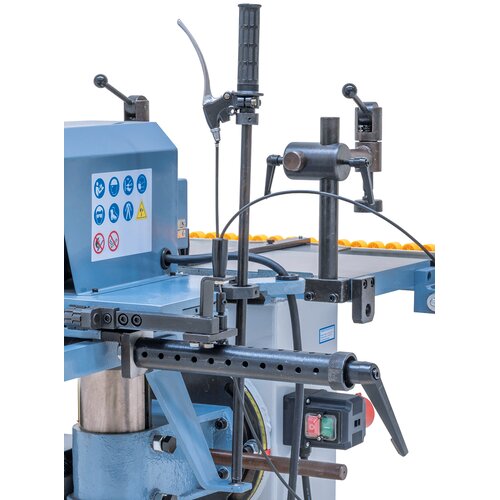

Rotor group with grid spacing 16 / 20 / 22 / 25 mm includes remote lever to set spacing, ideal for multiple hole drilling.

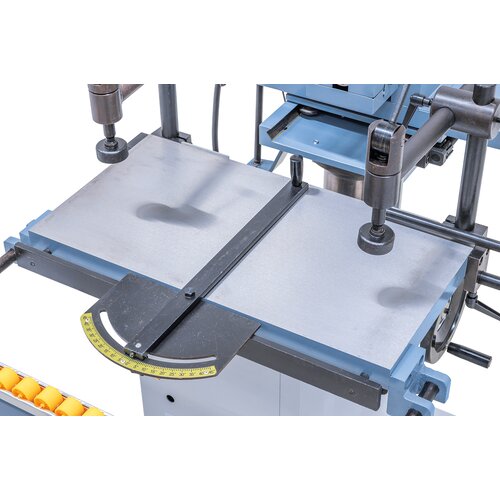

For angular drilling this machine comes with a mitre fence which tilts to both sides (-45° to +45).

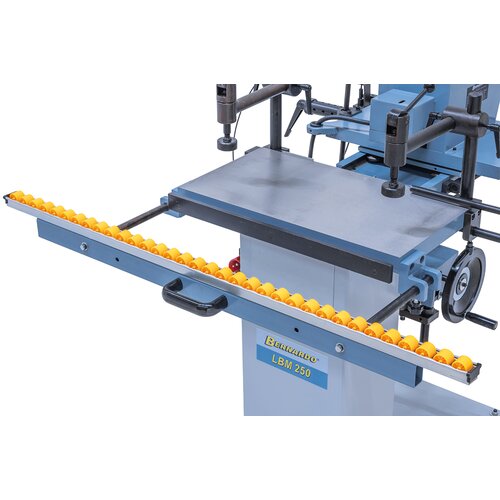

The standard extractable table extensions facilitate the processing of large workpieces.

Langhusboremaskiner LBM 250 / 400 V

Art. No.: 10-10010

Wishlist Comparison List

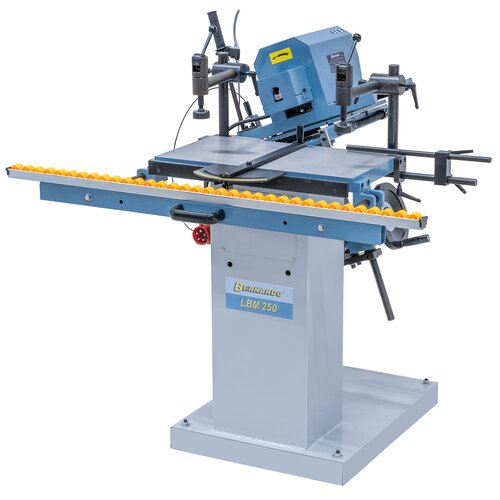

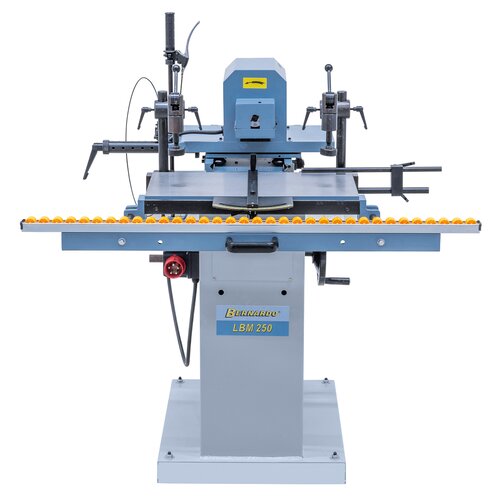

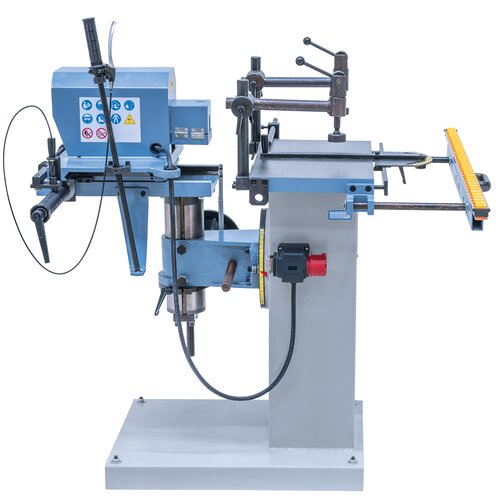

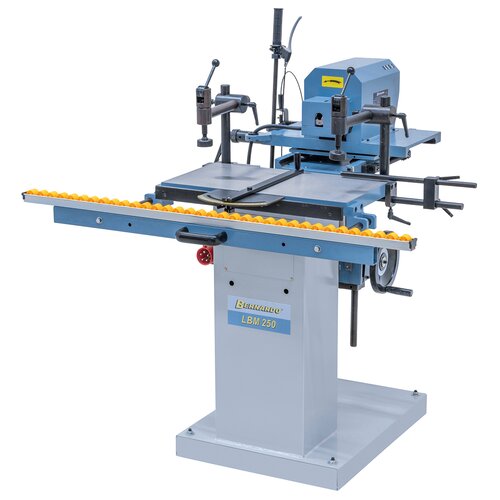

The LBM 250 mortising machine offers optimal value for money. The torsion-resistant construction with its fixed and ground cast iron table ensures precise work results. The drilling unit, which can be swiveled to both sides, and the extractable table extension complete the standard version.

2.340,00 €

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Westcott drill chuck 0 – 20 mm with protective cover comes standard
Equipped with 2 pcs. eccentric holder and mitre fence
Handwheel allows for convenient height adjustment of drill unit
Rotor group with grid spacing 16 / 22 / 25 / 32 mm comes standard, ideal for multiple hole drilling
Drilling unit can be swivelled on both sides (45°), ideal for slotting work
One hand lever allows for easy adjustment of cross support
Powerful motor ensures optimal performance
Serially with extractable table extension

Product Specifications

Table size	600 x 320 mm
Table height	870 mm
Max. drill depth	155 mm
Drill width	245 mm
Height adjustment	150 mm
Speed	2800 rpm
Westcott drill chuck	0 - 20 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	400 V
Machine dimension (W x D x H)	1250 x 1280 x 1270 mm
Weight approx.	205 kg
